Mount-It! MI-2751 Manuale utente

English

Installation Instruction

UNPACKING INSTRUCTIONS

!Carefully open the carton, remove contents and lay out on cardboard or other

protective surface to avoid damage.

!Check package contents against the Supplied Parts List in the next page to assure

that all components were received undamaged. Do not use damaged or defective

parts.

!Carefully read all instructions before attempting installation.

IMPORTANT SAFETY INFORMATION

!Install and operate this device with care. Please read this instruction before

installation, and carefully follow all instructions contained herein. Use proper safety

equipment during installation.

!Please call a qualified installation contractor for help if you don't understand these

directions or have any doubts about the safety of the installation.

Do not use this product for any purpose or in any configuration not explicitly specified

in this instruction. We hereby disclaims any and all liability for injury or damage

arising from incorrect assembly, incorrect mounting, or incorrect use of this product.

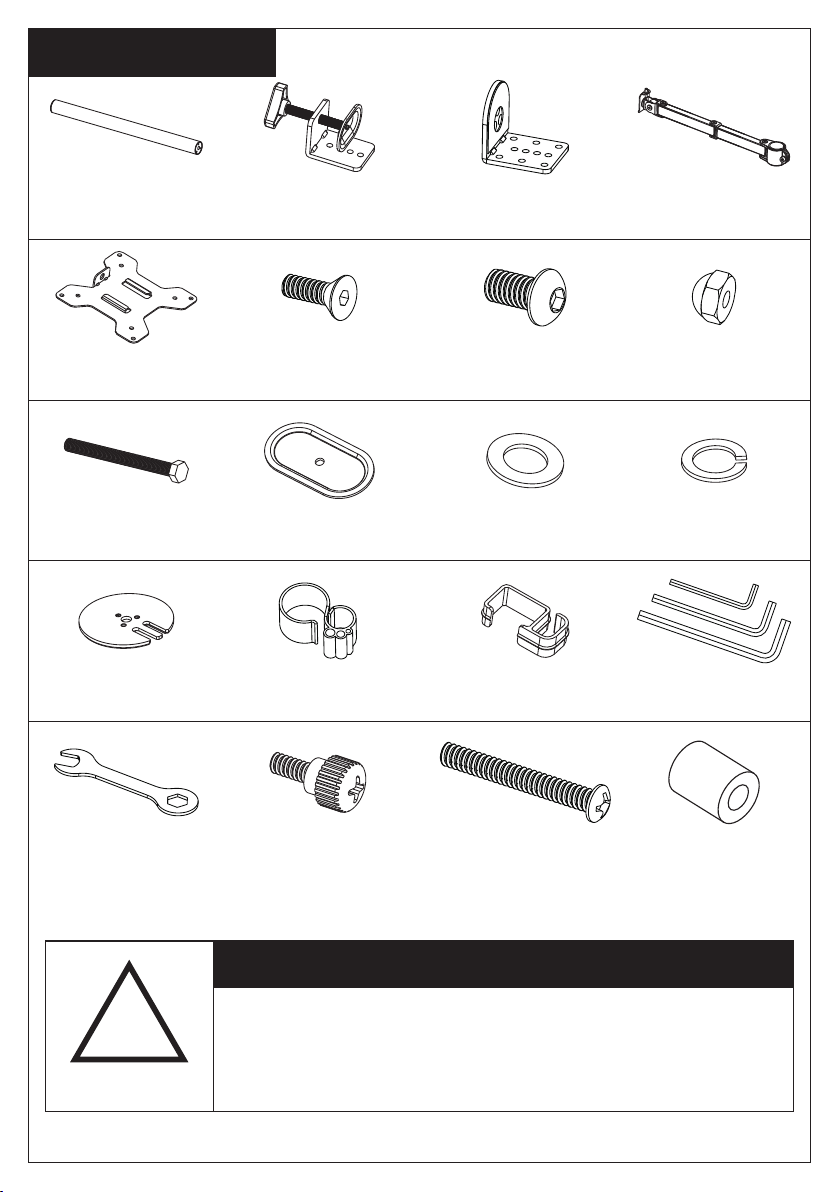

Supplied Par ts List

CAUTION!

WARNING

!This monitor desktop mount must be securely

attached to the horizontal desk. If the mount is

not properly installed it may fall, resulting in

possible injury and/or damage.

(1) Pole-a (1) Swivel Arm-d(1) “C” Clamp-b

(1)Support Plate-j(1)M10 Bolt-i (1)M10 Washer-k (1)Spring Washer-l

(4)M4 Spacer-s

(4)M4x12

Thumb Bolt-q (4)M4x30 Bolt-r

(1) “C” Clamp Brace-c

(1) VESA Plate-e (3) M5x14 Bolt-f (2) M8x12 Bolt-g (1) Nut-h

(1) Grommet Base

Plate-m (1)Wire Clip-n1 (1)Allen Key-o

(1)Wrench-p

(2)Wire Clip-n2

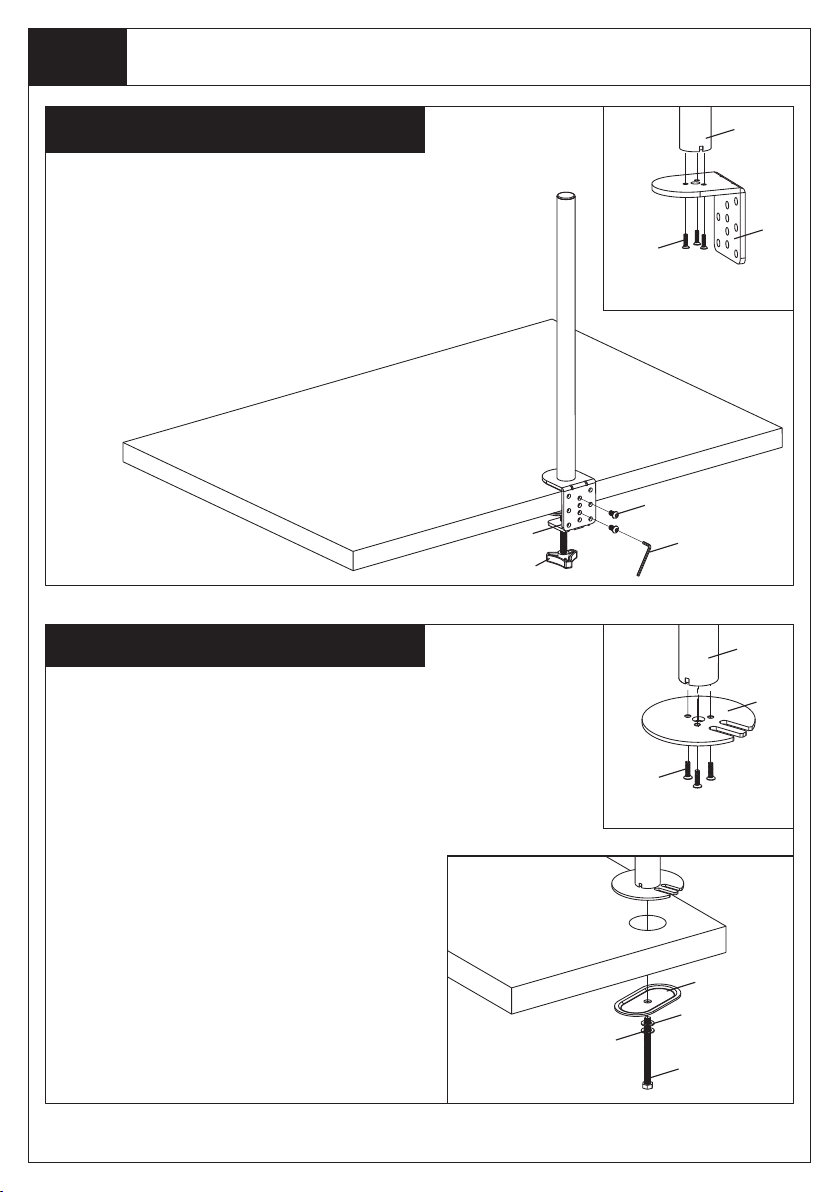

Step 1 Install the Pole to the Desktop

Option A: Desk Clamp Install a

1. Install the “C”-Clamp Brace(c) to the Pole

(a) using 3pcs M5x14 Bolts(f), and tighten

using the Allen Key(o), see Figure 1.

2. Install the “C”-Clamp(b) to the pole

assembly according to the thickness of the

desktop. The thickness can be changed to

three positions. Connect it using 2pcs M8x12

Bolts(g), and tighten using the Allen Key(o).

Tighten the “C”-Clamp to the desktop using

the plastic knob, see Figure 2.

Figure 1

Figure 2

Plastic Knob

Option B: Grommet Base Install

If the existing grommet hole comes with a

plastic protector, remove it to ensure a flat

surface before installing the desk mount.

1. Install the Grommet Base Plate(m) to the

Pole(a) using 3pcs M5x14 Bolts(f), and

tighten using the Allen Key(o), see Figure 3.

2. Position the Pole(a) on the mounting

surface and secure using the Support Plate

(j), M10 Washer(k), Spring Washer(l) and

M10 Bolt(i). Fasten the M10 Bolt using

provided Wrench(p), see Figure 4.

Figure 3

Figure 4

Existing Grommet Hole Installation

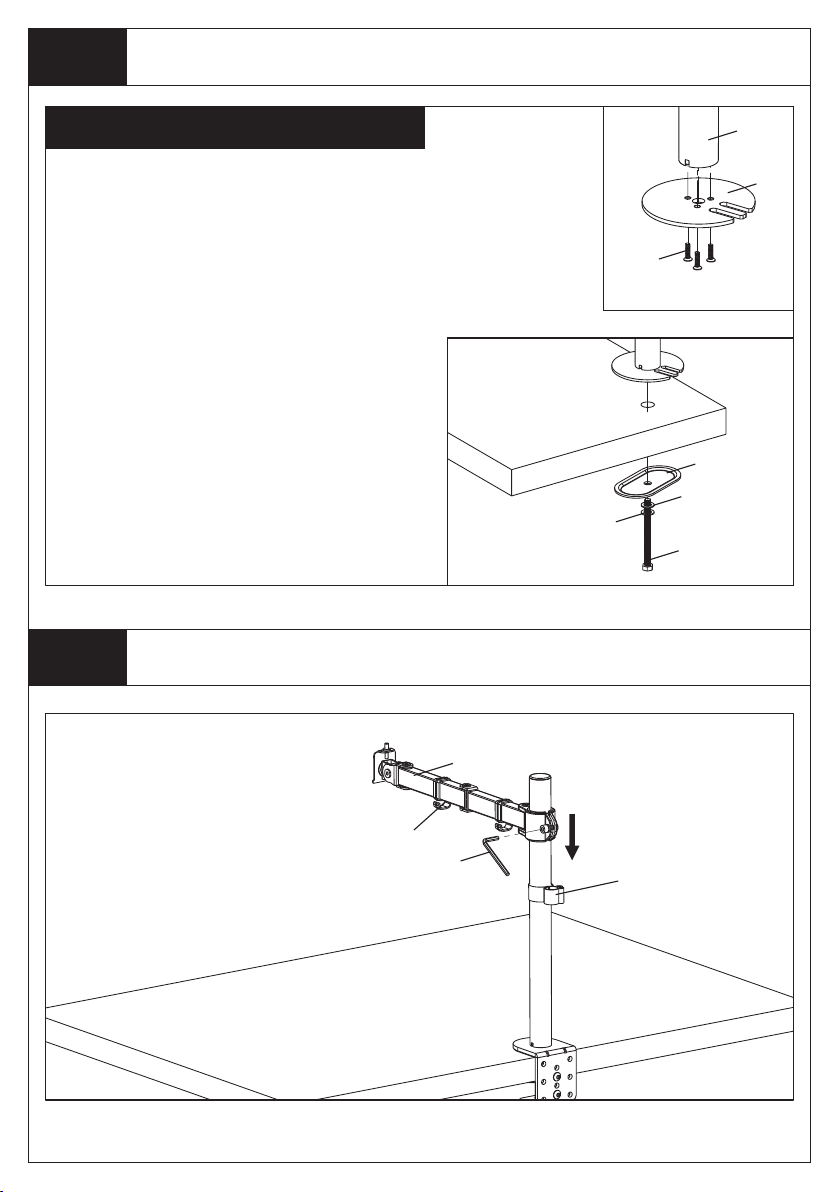

Step 1 Install the Pole to the Desktop

Self Drilled Grommet Hole Installation

Option B: Grommet Base Install

1. Position the Pole(a) on the mounting

surface and mark the center hole. Drill a 3/8"

(10mm) diameter hole at the marked position

through the mounting surface.

2. Install the Grommet Base Plate(m) to the

Pole(a) using 3pcs M5x14 Bolts(f), and

tighten using the Allen Key(o), see Figure 5.

3. Position the Pole(a) on the mounting

surface and secure using the Support Plate

(j), M10 Washer(k), Spring Washer(l) and

M10 Bolt(i). Fasten the M10 Bolt using

provided Wrench(p), see Figure 6.

Figure 5

Figure 6

Step 2 Install Arm to the Pole

Install Swivel Arm(d) to the

Pole(a). Fasten the bolt with

supplied Allen Key(o). Attach

the Wire Clip(n1,n2) to the

Pole(a) and Swivel Arm(d).

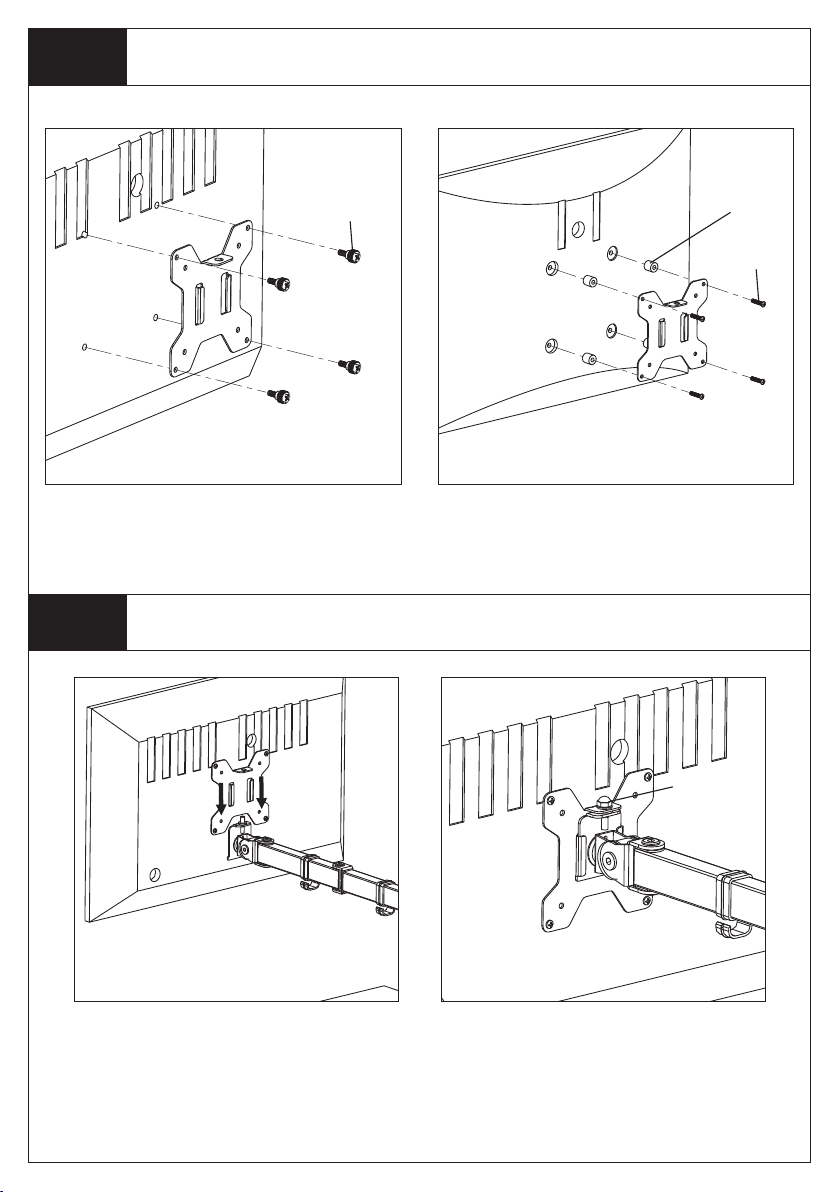

Step 3 Attach the VESA Plate to the Monitor

For Monitor with Curved or

Recessed Back

Step 4 Slide the Monitor onto the Head of Swivel Arm

Install the security Nut(h). Make

sure the security nut is installed

before you rotate the monitor.

Slide the monitor onto the head of

Swivel Arm(d) as shown in the

above diagram.

For Monitor with Flat Back

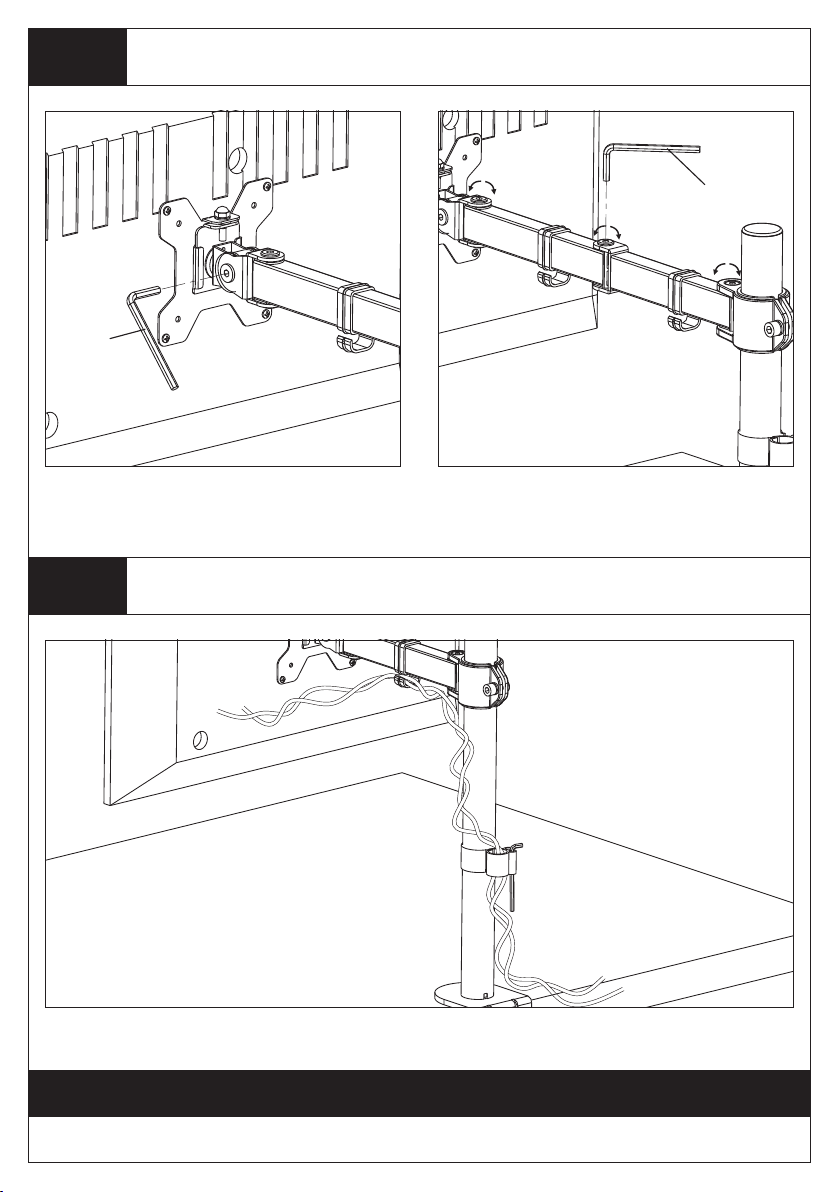

Step 6 Manage the Wires and Store the Allen Keys on Wire Clip

Step 5 Make the Necessary Adjustments

Use the supplied Allen Key(o) to make

the necessary adjustments.

Tighten the bolt with the supplied Allen

Key(o) to fix the tilt angle.

Fix the tilt angle

Thank you for choosing our products!
