Mounting Dream MD2380-03 Manuale utente
MD2380-03 INSTALLATION INSTRUCTION
26"~55" Max:400x400mm/16x16"
Min:75x75mm/3x3"
Für die Installationsanweisungen auf Deutsch, siehe Seite 10~11.
Pour l'instruction en Français, veuillez vous reporter à la page 12~13.
Para las instrucciones de la instalación en Español, favor vea la página 14~15.
Per le Istruzioni in Italiano, vedi pagina 16~17.
x3 x1
(DE-C1)
TV
1 2
Before getting started, let’s make sure this mount is perfect for you!
1 Is your TV VESA
equal to/greater than
75x75mm/3x3" and
equal to/less than
400x400mm/16x16"?
2 Does your TV
(including accessories)
weigh less than
99 LBS (45 KG)?
4 Installation Tools
(Not Included)
Yes --- Perfect!
No --- This mount is NOT compatible.
MAX:400mm/16"
MAX:
400mm/16"
Yes --- Perfect!
No --- This mount is NOT compatible.
CAUTION:
Drywall with
wood studs?
Band Tape
2m
2M2M
5 Safety Caution
Please read this instruction carefully before installation.
● This product is designed for use in wood stud, solid concrete, and concrete block walls
- DO NOT install into drywall alone.
● The wall must be capable of supporting five times the weight of the TV and mount
combined.
● Do not apply this product to any purpose not indicated by Mounting Dream.
● Incorrect installation may result in product damage or body injury. Mounting Dream shall
bear no responsibility for any damage or injury resulted from incorrect installation,
incorrect assembly or misuse.
Solid concrete or
concrete block?
Pencil Screwdriver Electrodrill Socket Wrench
1/2"(13mm)
Stud Finder Awl 7/32"(5.5mm)
Wood Drill Bit
3/8"(10mm)
Masonry Drill Bit Hammer
1
3 What is your wall
made of?

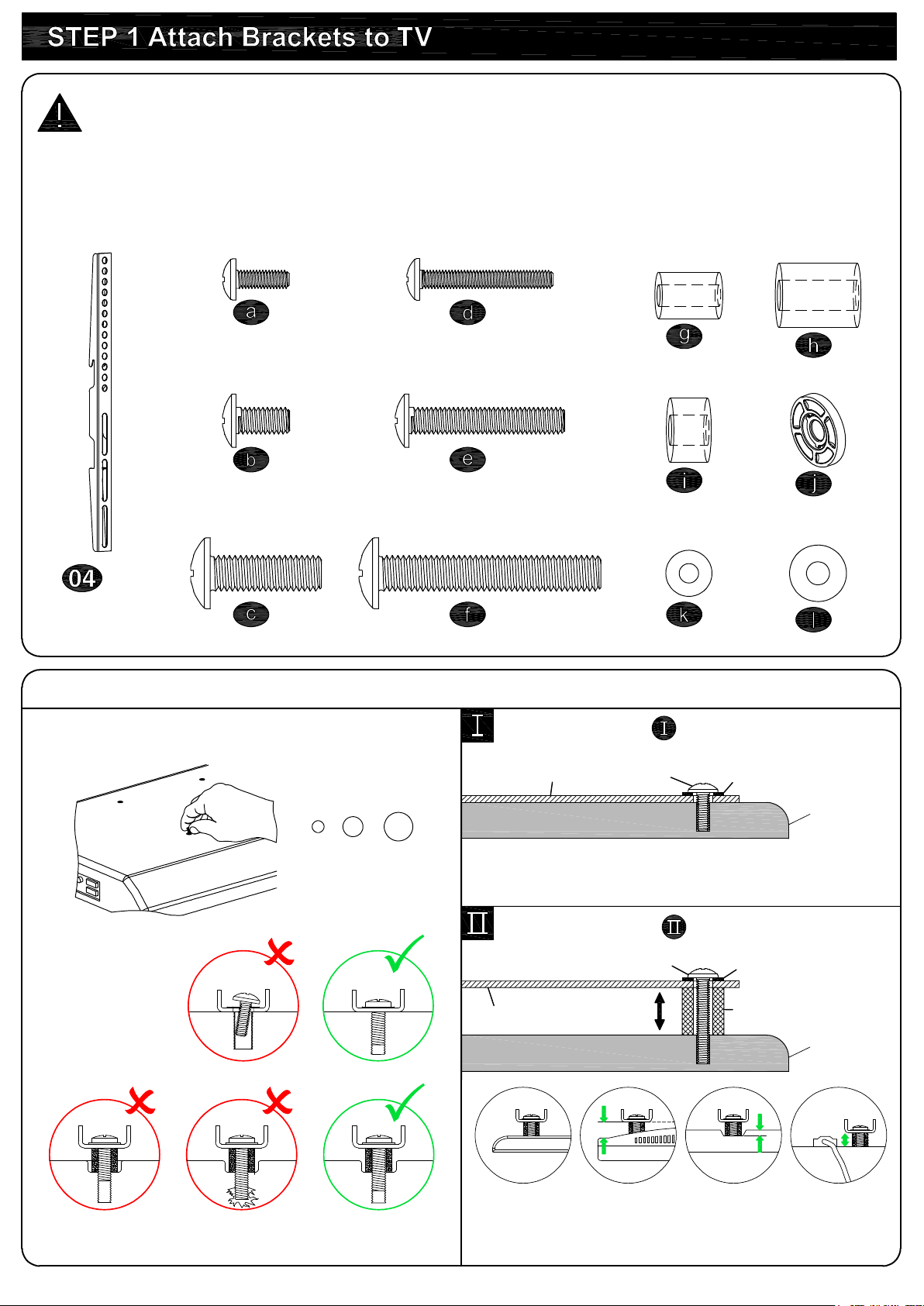

Parts and Hardware
WARNING:This product contains small items that could be a choking hazard if
swallowed. Before starting assembly, verify all parts are included and undamaged.
NOTE: Not all hardware included will be used.
TV Brackets
x2
1-1 Select TV Screws
TV back
Bracket Washer
Bracket
Long Screw
Spacer
No, go to PAGE 3 for detailed combination.
Yes, go to PAGE 3 for detailed combination.
TV back
2
1-2 Need Spacer?
Short Screw
Washer
M4x12mm
M6x12mm
M8x25mm
M4x30mm
M6x35mm
M8x45mm
M6x17mm M8x22mm
M4 M6
10mm 2.5mm
Washers
Spacers
TV Screws
x4 x4
x4 x4
x4 x4
x4
x4 x4
x4 x8
x4
M8
M6
M4
3
Tips: If you need to combine M6(e) or M8(c/f) screw with 2.5mm spacer(j), you have to
remove the inner circle.
1-3 Attach the TV Brackets
Screw and washer
Spacer(s), screw and washer
No!
For wood stud installations, follow STEP 2A
For concrete installations, follow STEP 2B on PAGE 6
<16mm
(5/8") 16"(406mm)
8"(203mm)
Min. Wood Stud Size:
nominal 2"(51mm)
actual 1 1/2"(38mm)
Min. Wood Stud Size:
nominal 4"(102mm)
actual 3 1/2"(89mm)
Parts and Hardware
Lag Bolt M8x70mm Allen Key
Concrete Wall Anchor 6pcs
Wood Stud Installations
O
x6 x1
x1
4
Centre line
CAUTION:Do not use in drywall or wood
Fischer UX10x60 R
Mounting
Template
x1
Wall Plate
Unit
16"(406mm)
7/32"
(5.5mm)
2.9"(74mm)
CAUTION: To avoid potential personal injury or property damage:
All 4 lag bolts MUST BE firmly tightened to prevent unwanted movement of the wall plate
assembly. Ensure the wall plate assembly is securely fastened to the wall before continuing on to
the next step.
To avoid potential personal injury or property damage, the Bolt Head Must Keep UP at this step!!
Go to Step 3 on PAGE 7.
5
Centre line
Again, find another wood stud
Bolt Head UP!
Level
Solid Concrete or Concrete Block Installations
6
DANGER
2.9"
(74mm)
3/8"
(10mm)
IMPORTANT: Never drill into
the mortar between blocks.
8"(203mm)
16"(406mm)
8"(203mm)
Concrete Wall
Anchor
Min.
8"(203mm)
CAUTION: To avoid potential personal injury or property damage:
All 6 lag bolts MUST BE firmly tightened to prevent unwanted movement of the wall plate
assembly. Ensure the wall plate assembly is securely fastened to the wall before continuing on to
the next step.
To avoid potential personal injury or property damage, the Bolt Head Must Keep UP at this step!!
Bolt Head
UP!
Level
7
99 LBS (45 KG)

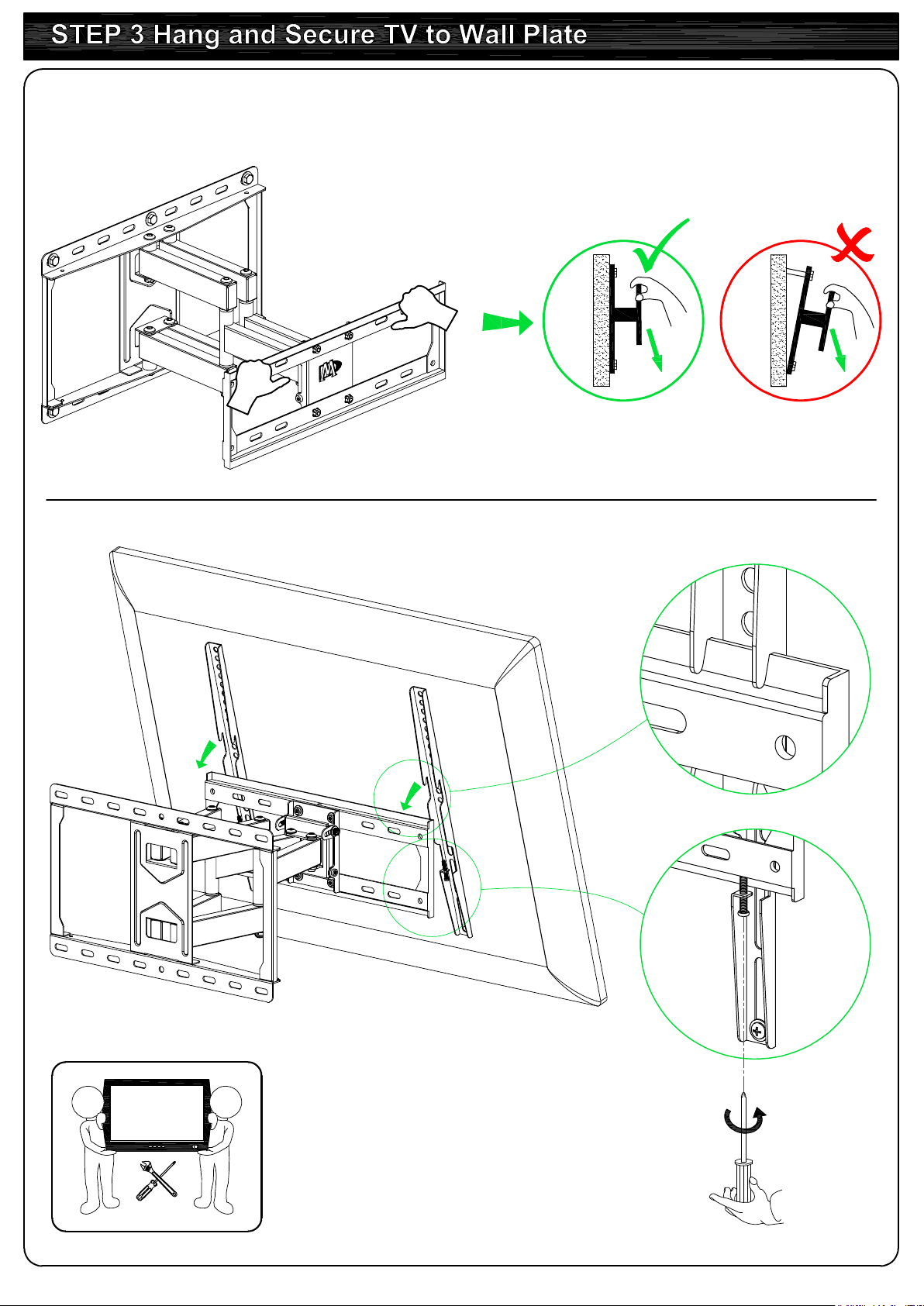

Before hanging TV, please conduct "wall plate installation integrity test" first.
TV
1 2
8

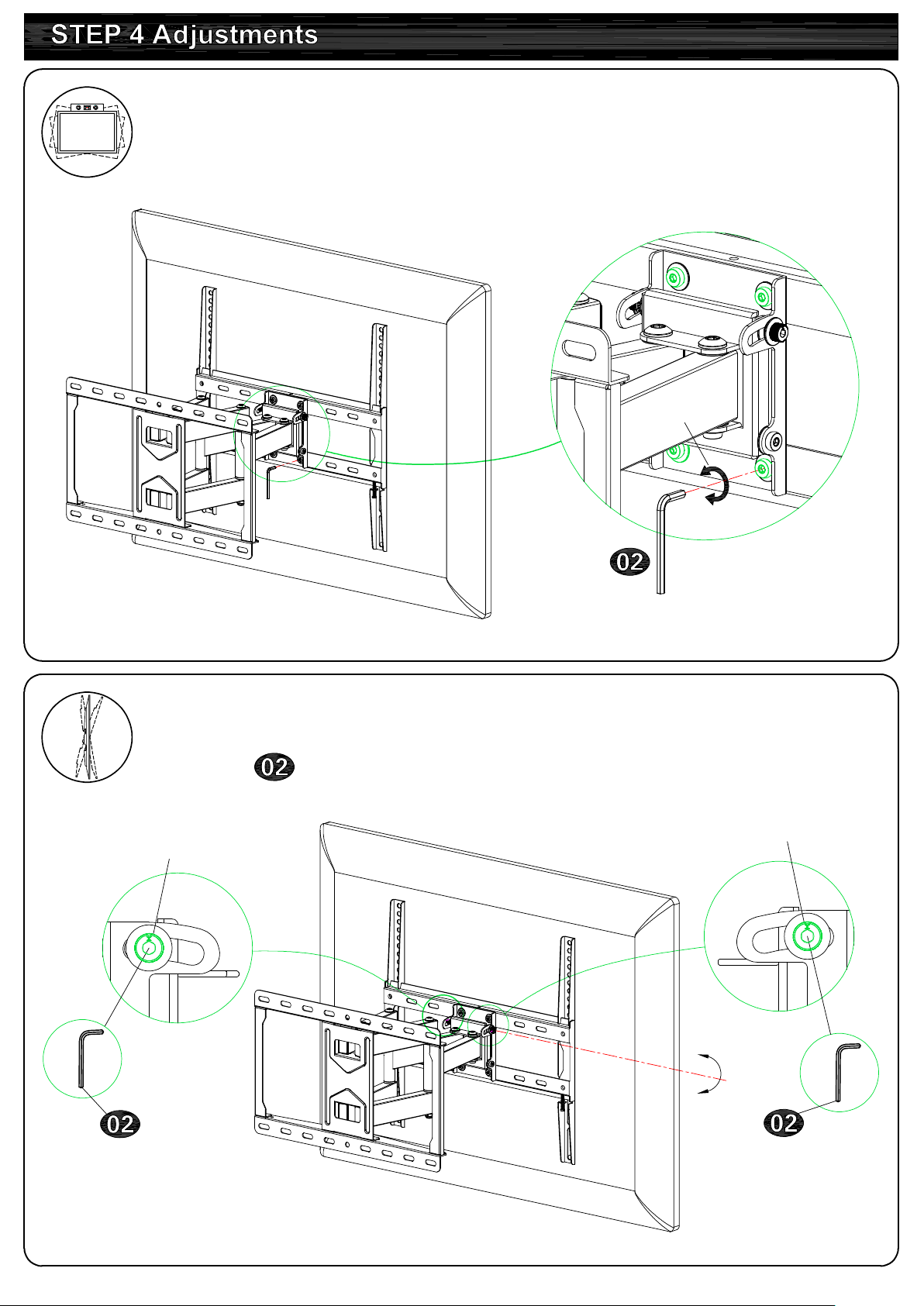

4-1 TV leveling adjustment (±3°):
Loosen 4 leveling bolts on the rear of TV plate by maximum 2
turns, adjust to level, and retighten to secure.
4-2 Tilting angle adjustment (+5°/-15°)：
Pull TV to your desired angle then fasten 2 tilting bolts with
Allen key .
Tilting bolts Tilting bolts
-15°
+5°
Loosen
Tighten
9

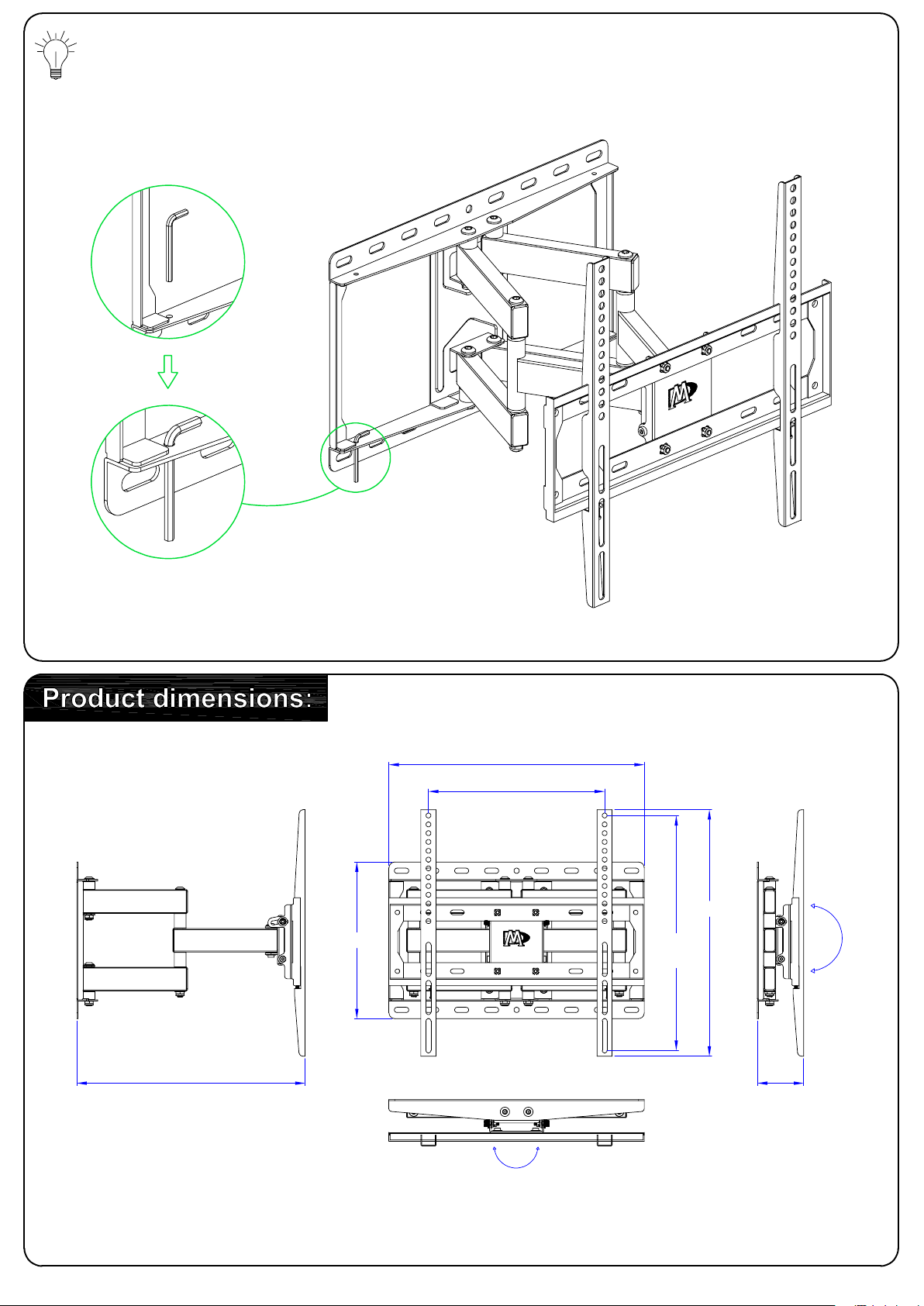

Allen key storage: For easy adjustment, you might put the Allen key on
the wall plate as illustration.
+5°
-15°
+45°/-45°
389mm 79mm
MAX:400mm
435mm
267mm MAX:
400mm
420mm
