MD2413-S INSTALLATION INSTRUCTION
17"~39" Max:200x200mm/8x8in
Min:100x100mm/4x4in
Für die Installationsanweisungen auf deutsch, Siehe Seite 11~12.
Pour l'instruction en français, veuillez vous reporter à la page 13~14.
Para las instrucciones de la instalación en español, favor vea la página 15~16.
Per le Istruzioni in italiano, vedi pagina 17~18.
x3 x1
(A0)
TV
1 2
If you have any questions, please contact us via customerservice@mountingdream.com
or call us at telephone (626) 604-9048 (USA) Mon - Fri 10am - 6pm (Pacific time).

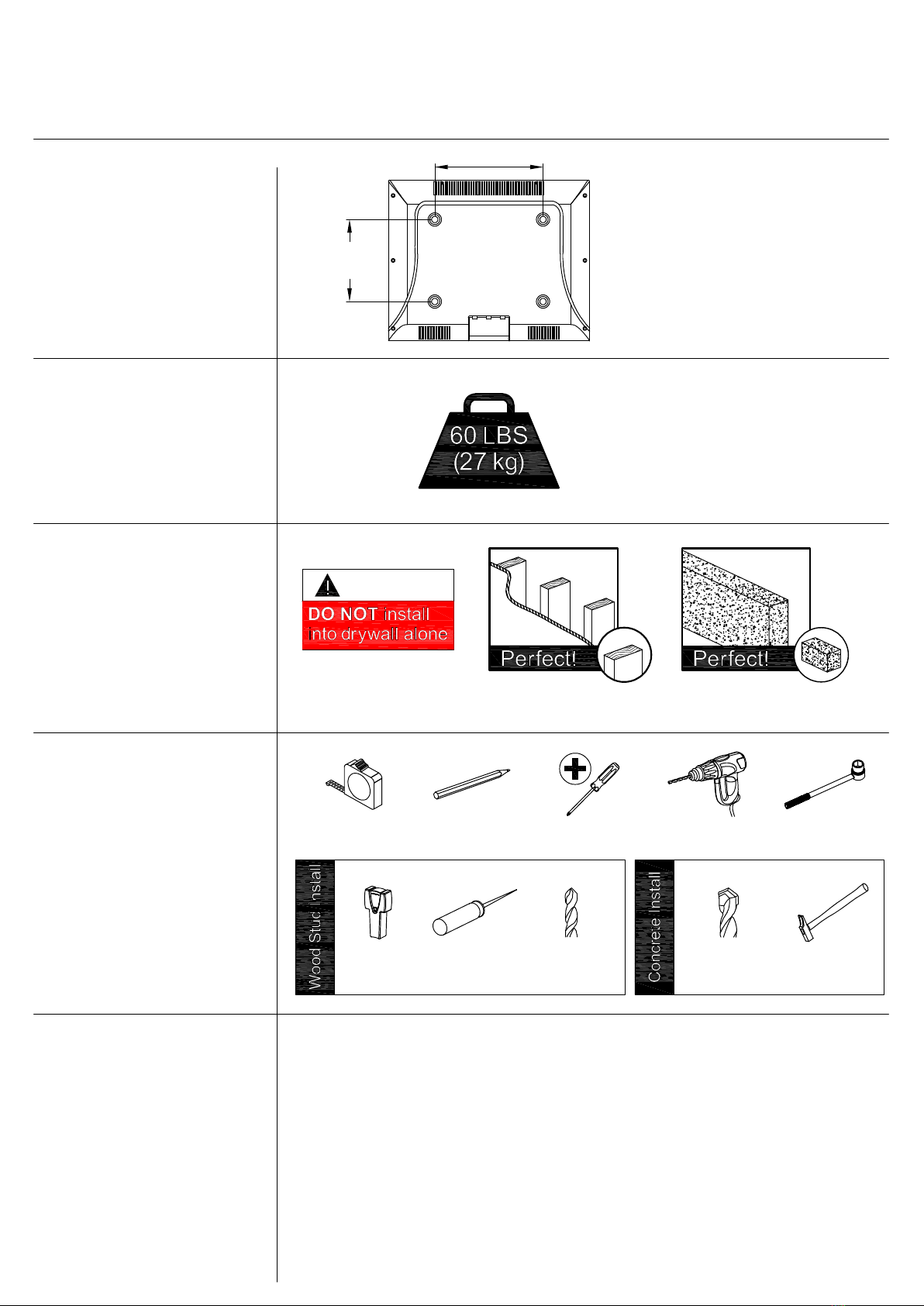

Before getting started, let’s make sure this mount is perfect for you!
1 Is your TV VESA
equal to/greater than
100x100mm/4x4in
and equal to/less than
200x200mm/8x8in?
2 Does your TV
(including accessories)
weigh less than
60 LBS (27 kg)?
4 Installation Tools
Yes --- Perfect!
No --- This mount is NOT compatible.
MAX:200mm/8"
MAX:
200mm/8"
Yes --- Perfect!
No --- This mount is NOT compatible.
CAUTION:
Drywall with
wood studs?
Band Tape
2M2M
5 Safety Caution
Please read this instruction carefully before installation.
If you do not understand these instructions or have doubts about the safety of the
installation, assembly or use of this product, contact Customer Service via
customerservice@mountingdream.com or call us at telephone (626) 604-9048 (USA) Mon
- Fri 10am - 6pm (Pacific time).
● This product is designed for use in wood stud and solid concrete wall.
- DO NOT install into drywall alone.
● The wall must be capable of supporting five times the weight of the TV and mount
combined.
● Incorrect installation may result in product damage or body injury. Mounting Dream shall
bear no responsibility for any damage or injury resulted from incorrect installation,
incorrect assembly or misuse.
● Do not apply this product to any purpose not indicated by Mounting Dream.
Solid concrete?
Pencil Screwdriver Electrodrill Socket Wrench
1/2"(13mm)
Stud Finder Awl 7/32"(5.5mm)
Wood Drill Bit
3/8"(10mm)
Masonry Drill Bit Hammer
1
3 What is your wall
made of?
Parts and Hardware
WARNING:This product contains small items that could be a choking hazard if
swallowed. Before starting assembly, verify all parts are included and undamaged. For parts
shortage or damage, please contact us via customerservice@mountingdream.com.
NOTE: Not all hardware included will be used.
M4x12mm
M5x12mm
M6x12mm
M8x25mm
M4x30mm
M5x30mm
M6x35mm
M8x50mm
M5/M6x17mm M8x22mm
M5/M4 M6
10mm 2.5mm
2
Washers
Spacers
TV Screws
x4
x4
x4
x4
x4
x4
x4 x4
x4
x4 x4
x4 x8
x4
Allen Key
x1

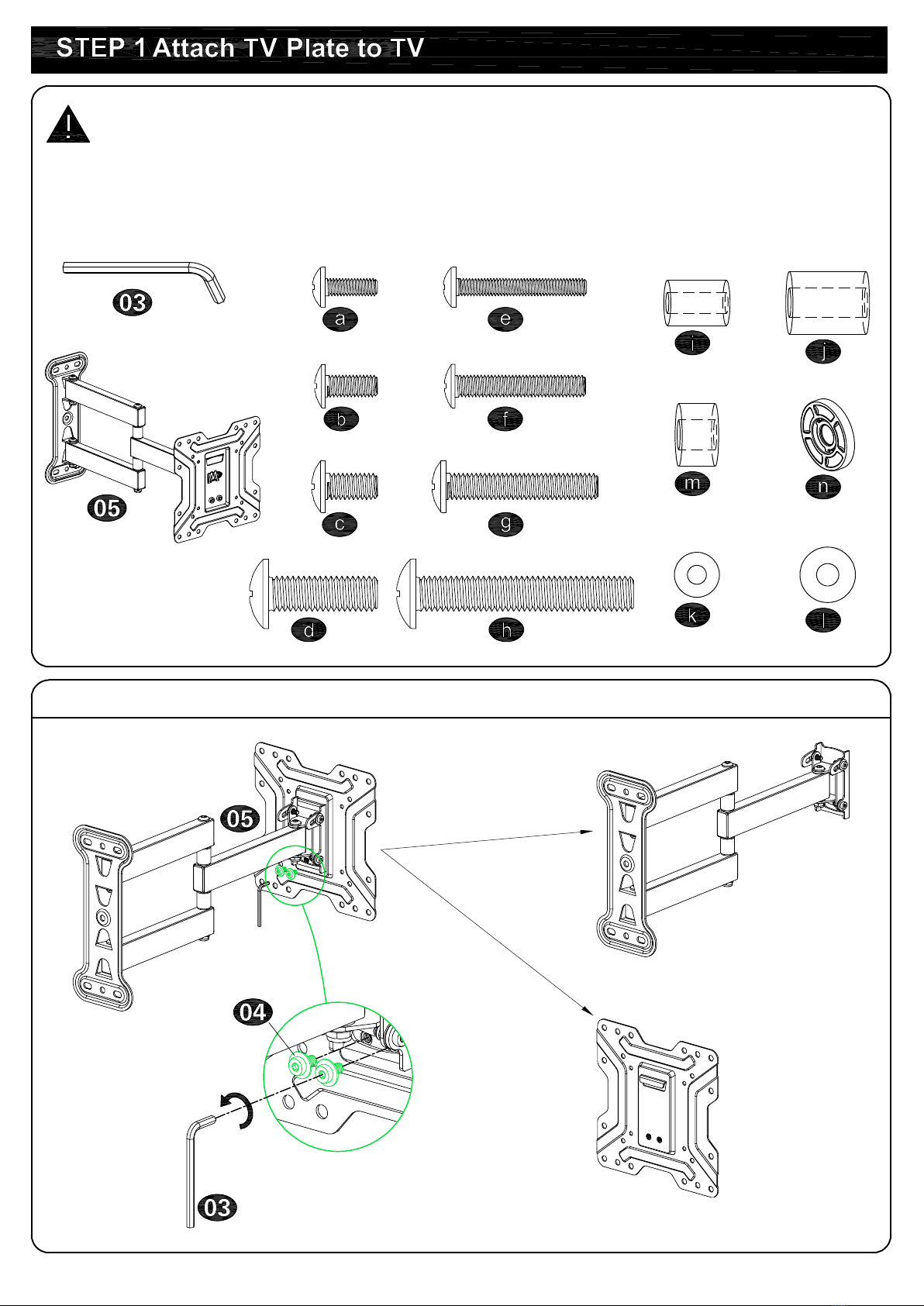

1-1 Disassemble Wall Plate Unit into Two Pieces
Wall Plate Unit
x1
Wall plate
TV plate
3

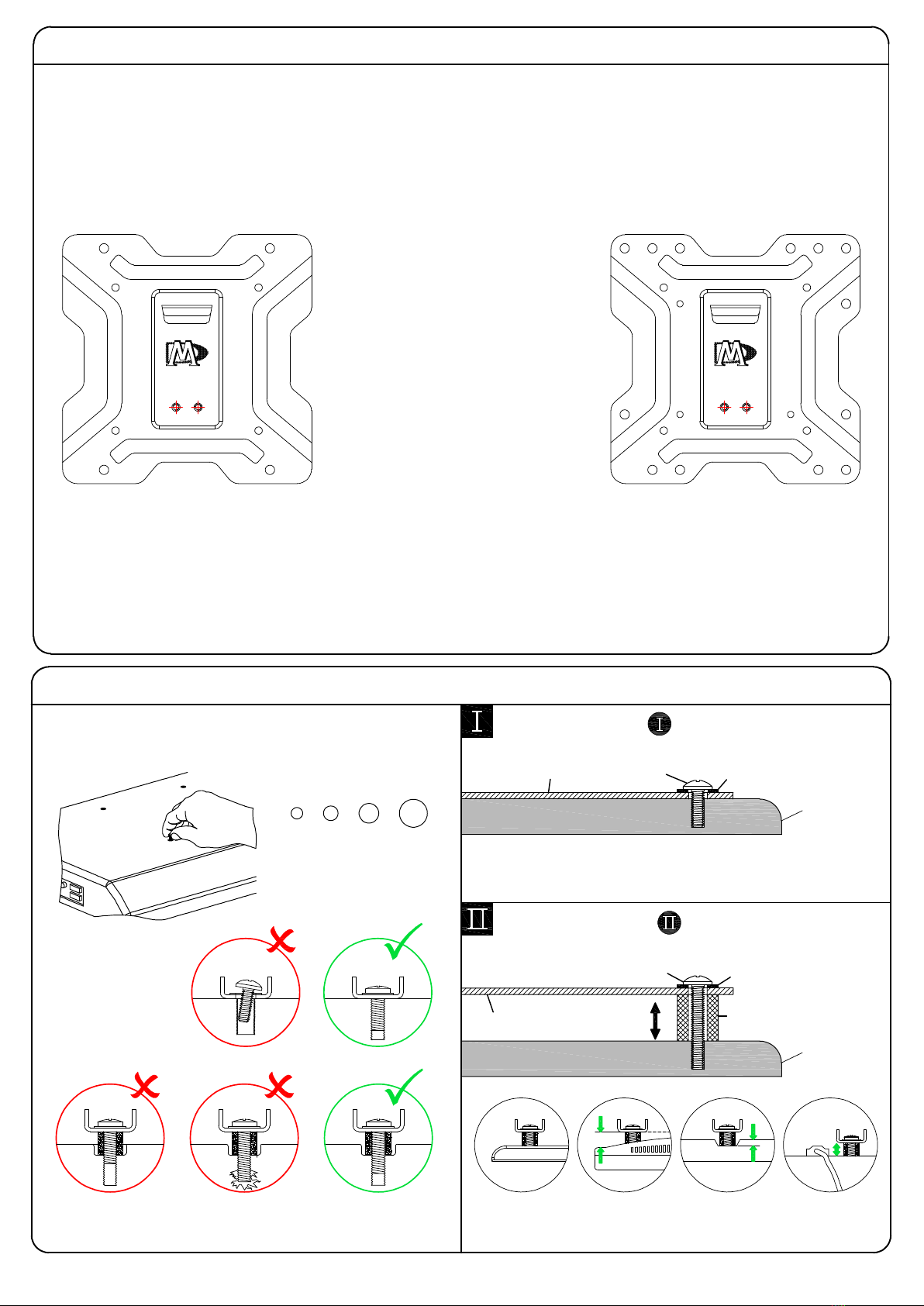

1-2 Choose Configuration
M8
M6
M5
M4
1-3 Select TV Screws
TV back
Bracket Washer
Bracket
Long Screw
Spacer
No, go to PAGE 4 for detailed combination.
Yes, go to PAGE 4 for detailed combination.
TV back
1-4 Need spacer?
Short Screw
Washer
① 100mm x 100mm
② 100mm x 200mm
③ 200mm x 100mm
④ 200mm x 200mm
⑤ 150mm x 150mm
④④
④④
③ ③
③③
② ②
② ②
① ①
① ①
⑤ ⑤
⑤ ⑤
4
Tips: If you need to combine M8(d/h) screw with 2.5mm spacer(n), you have to remove
the inner circle.
Screw and washer
Spacer(s), screw and washer

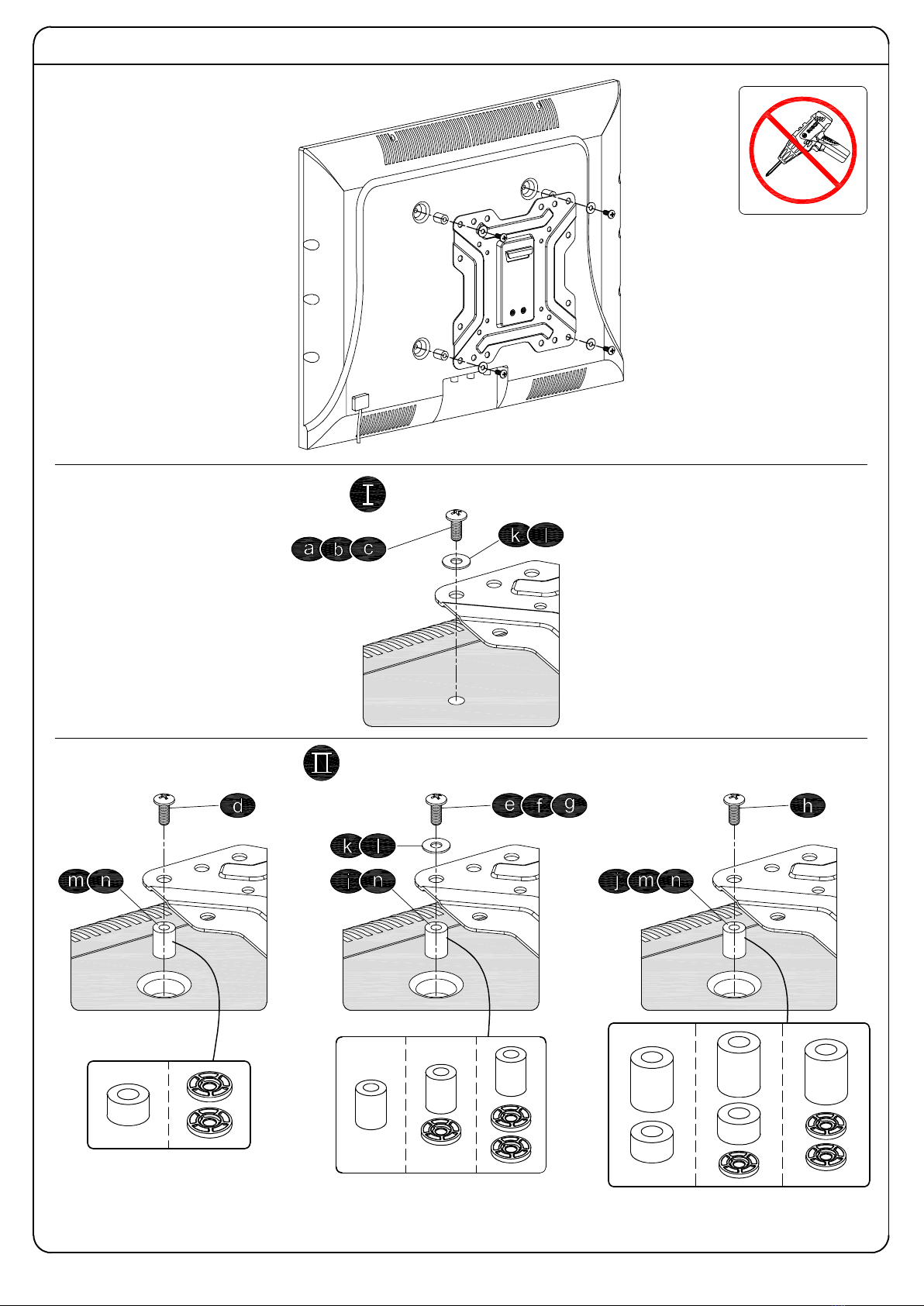

1-5 Attach TV Plate to TV Back
No!

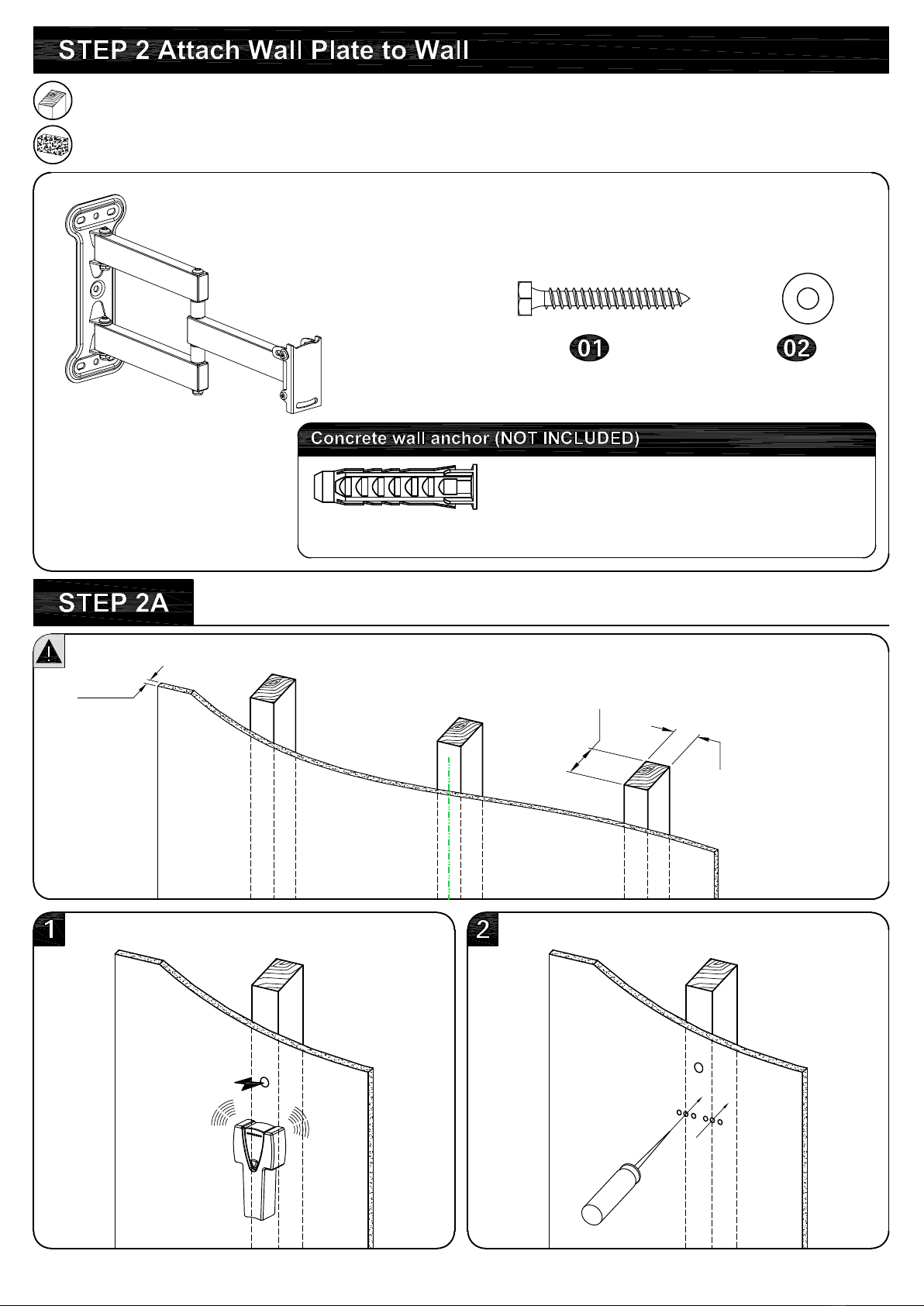

For wood stud installation, follow STEP 2A
For concrete installation, follow STEP 2B on PAGE 7
Parts and Hardware
Lag Bolt M8x60mm M8 Washer
5
x4 x4
<16mm
(5/8")
Min. Wood Stud Size:
nominal 2"(51mm)
actual 1 1/2"(38mm)
Min. Wood Stud Size:
nominal 4"(102mm)
actual 3 1/2"(89mm)
Wood Stud Installation
Contact us at telephone (626) 604-9048 (USA)
Mon - Fri 10am - 6pm (Pacific time) or email us by
customerservice@mountingdream.com to have
these additional pieces shipped directly to you.
Concrete Wall Anchor
4pcs
Wall plate
7/32"
(5.5mm)
Go to Step 3 on PAGE 8.
O
Centre line
2.5"(64mm)
6
Bolt Head UP!
Wall plate
Wall plate

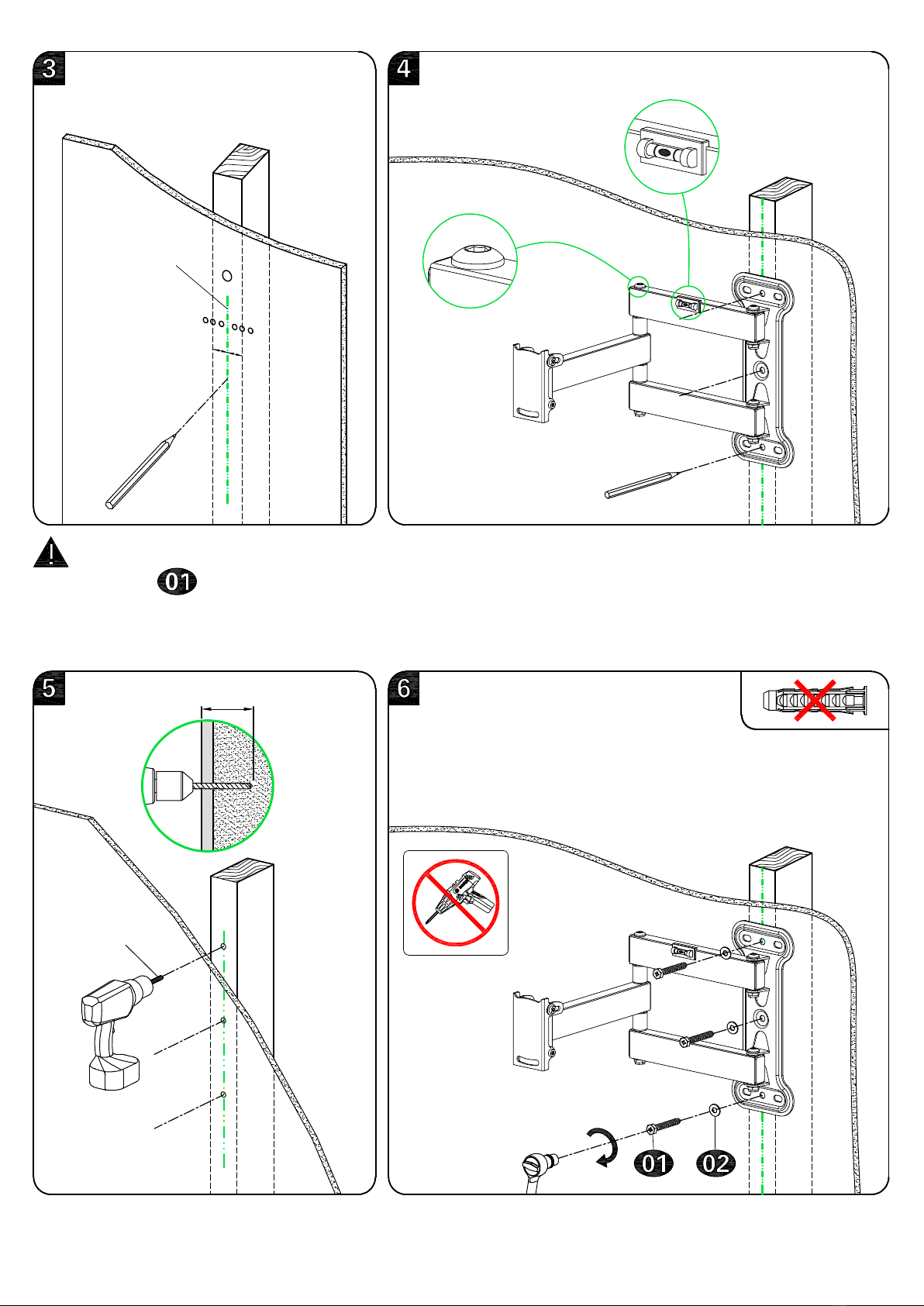

CAUTION: To avoid potential personal injury or property damage:
All 3 lag bolts MUST BE firmly tightened to prevent unwanted movement of the wall plate
assembly. Ensure the wall plate assembly is securely fastened to the wall before continuing on to
the next step.
To prevent the TV falling down, the Bolt Head Must Keep UP at this step!!
No!
Level
Solid Conrete Wall Installation
7
2.5"
(64mm)
3/8"
(10mm)
Concrete Wall
Anchor
Wall plate
Wall plate
DANGER
Min.
8"(203mm)
CAUTION: To avoid potential personal injury or property damage:
All 4 lag bolts MUST BE firmly tightened to prevent unwanted movement of the wall plate
assembly. Ensure the wall plate assembly is securely fastened to the wall before continuing on to
the next step.
To prevent the TV falling down, the Bolt Head Must Keep UP at this step!!
No!
Bolt Head UP!
Level
8
60 LBS (27 kg)
Before hanging TV, please conduct "wall plate installation integrity test" first.
TV
1 2

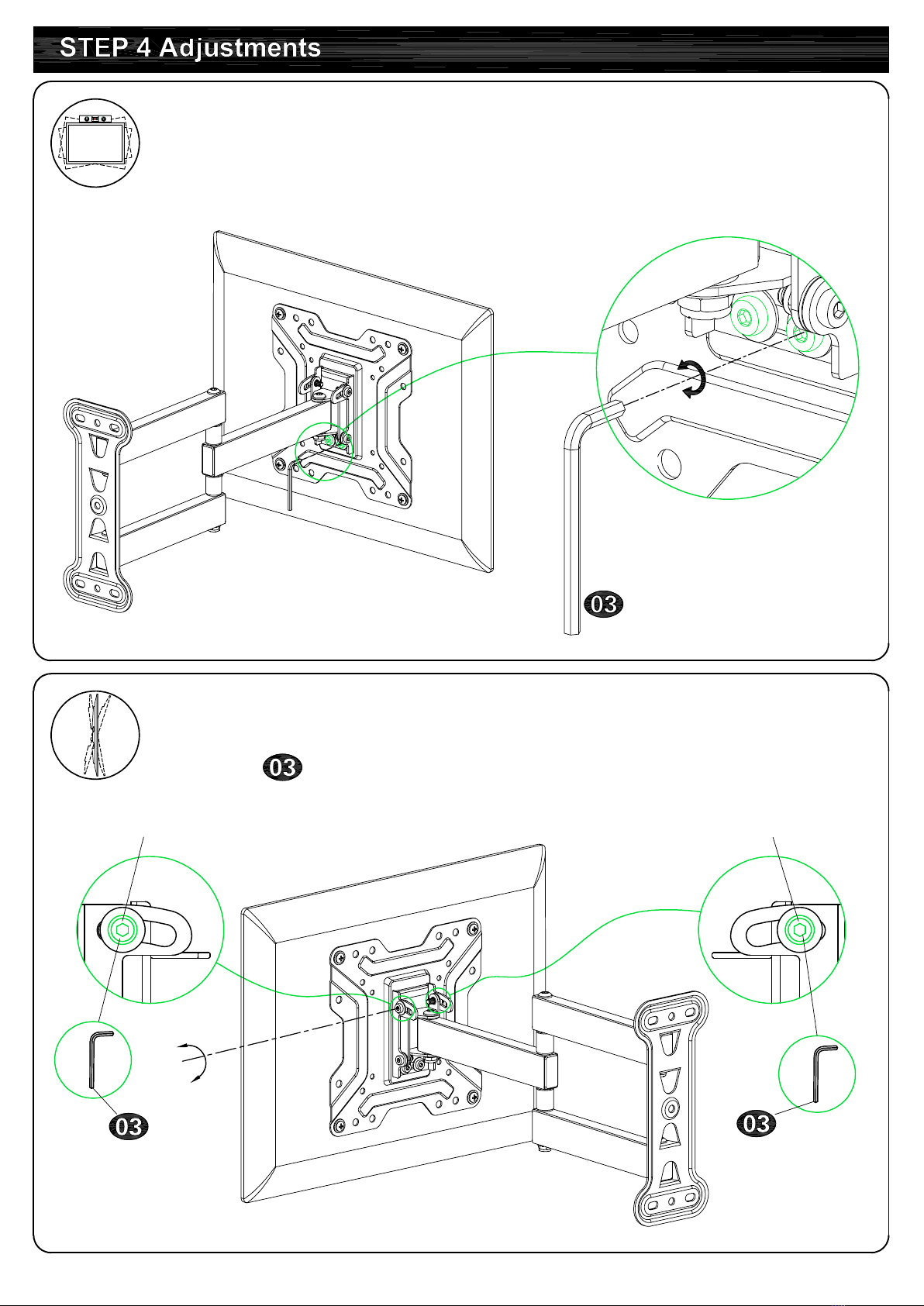

4-1 TV leveling adjustment (±5°):
Loosen 2 leveling bolts on the rear of TV plate by maximum 2
turns, adjust to level, and retighten to secure.
4-2 Tilting angle adjustment (+5°/-15°)：
Pull TV to your desired angle then fasten 2 tilting bolts with
Allen key .
Tilting bolts Tilting bolts
9
Loosen
Tighten
-15°
+5°
