Mounting Dream MD2413-MX-021 Manuale utente

Max:400x400mm/16x16"

Min:75x75mm/3x3"

Für die Installationsanweisungen auf Deutsch, siehe Seite 12~13.

Pour l'instruction en Français, veuillez vous reporter à la page 14~15.

Para las instrucciones de la instalación en Español, favor vea la página 16~17.

Per le Istruzioni in Italiano, vedi pagina 18~19.

x3 x1

MD2413-MX-021 INSTALLATION INSTRUCTION

1 2

(UK-C2)

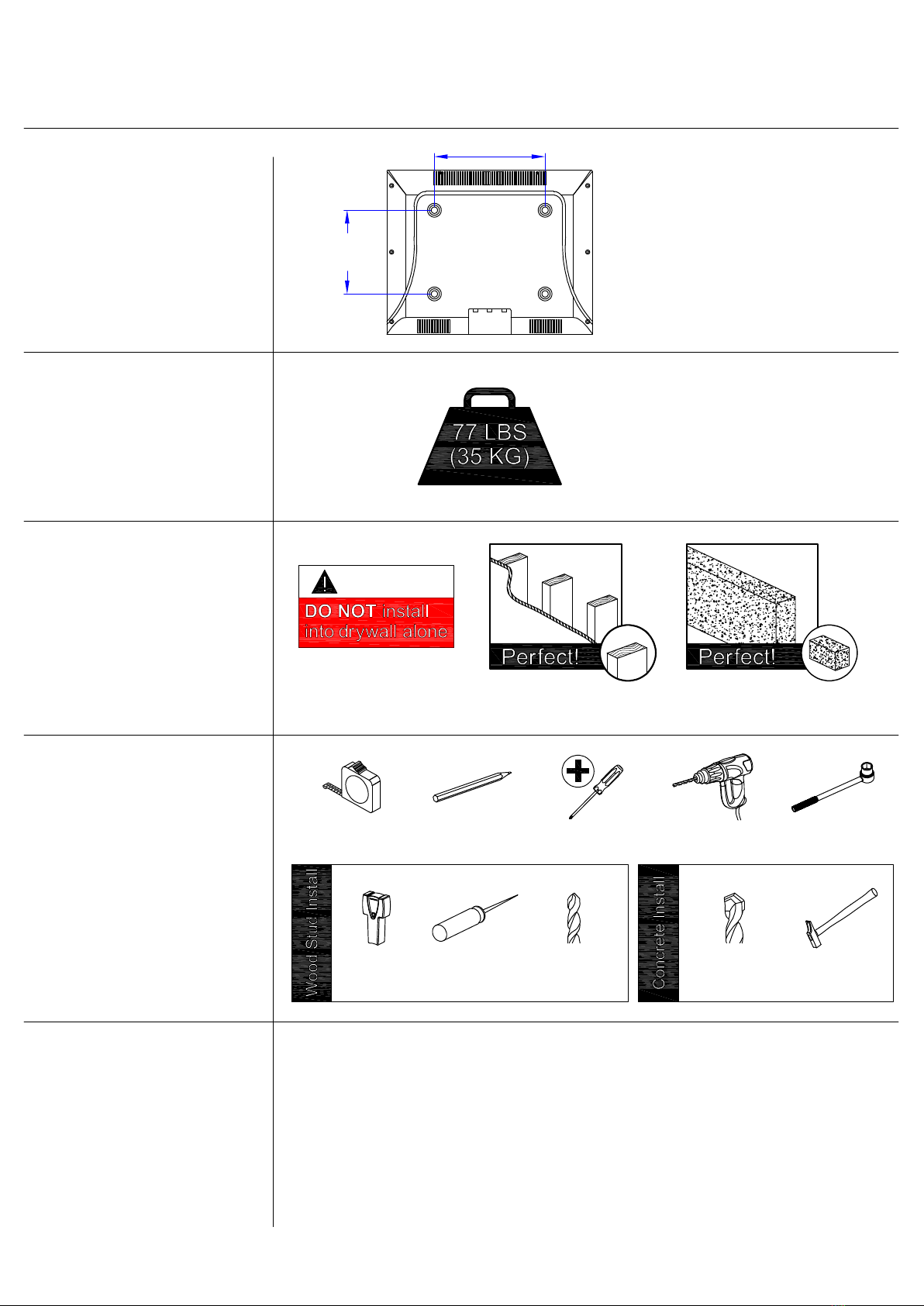

Before getting started, let’s make sure this mount is perfect for you!

1 Is your TV VESA

equal to/greater than

75x75mm/3x3"

and equal to/less than

400x400mm/16x16"?

2 Does your TV

(including accessories)

weigh less than

77 LBS (35 KG)?

4 Installation Tools

(Not Included)

Yes --- Perfect!

No --- This mount is NOT compatible.

MAX:400mm/16"

MAX:

400mm/16"

Yes --- Perfect!

No --- This mount is NOT compatible.

CAUTION:

Drywall with

wood studs?

Band Tape

2M2M

5 Safety Caution

Please read this instruction carefully before installation.

● This product is designed for use in wood stud and solid concrete wall.

- DO NOT install into drywall alone.

● The wall must be capable of supporting five times the weight of the TV and mount

combined.

● Do not apply this product to any purpose not indicated by Mounting Dream.

● Incorrect installation may result in product damage or body injury. Mounting Dream shall

bear no responsibility for any damage or injury resulted from incorrect installation,

incorrect assembly or misuse.

Solid concrete

wall?

Pencil Screwdriver Electrodrill Socket Wrench

1/2"(13mm)

Stud Finder Awl 5/32"(4mm)

Wood Drill Bit

3/8"(10mm)

Masonry Drill Bit Hammer

3 What is your wall

made of?

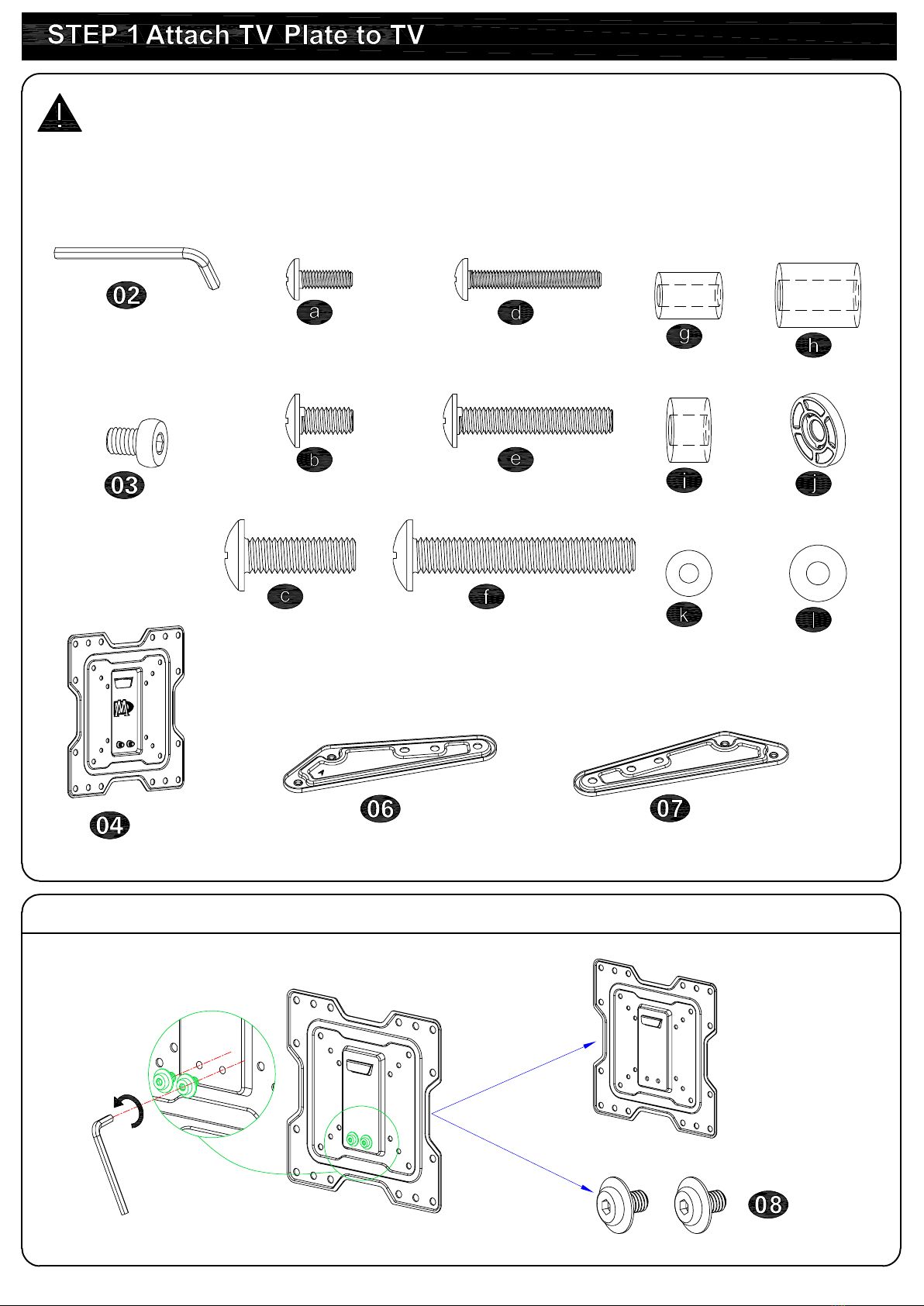

Parts and Hardware

WARNING:This product contains small items that could be a choking hazard if

swallowed. Before starting assembly, verify all parts are included and undamaged.

NOTE: Not all hardware included will be used.

M6x8mm

Allen Key

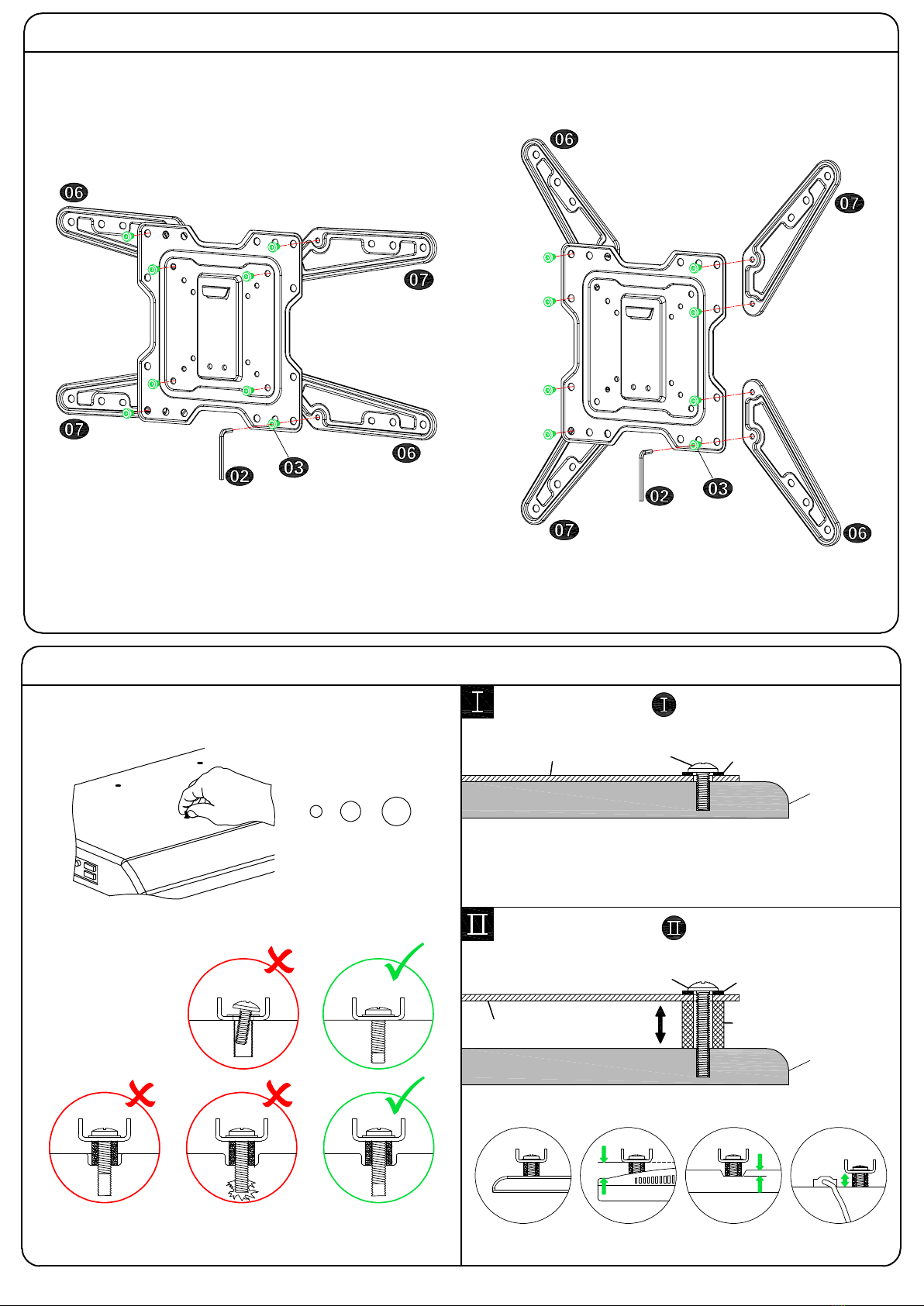

1-1 Disassemble TV Plate Unit into Two Pieces

Extended Arm

x2x2

Extended Arm

Extended Arm Screws

M4x12mm

M6x12mm

M8x25mm

M4x30mm

M6x35mm

M8x45mm

M6x17mm M8x22mm

M4 M6

10mm 2.5mm

Washers

Spacers

TV Screws

x4 x4

x4 x8

TV Plate Unit

TV Plate

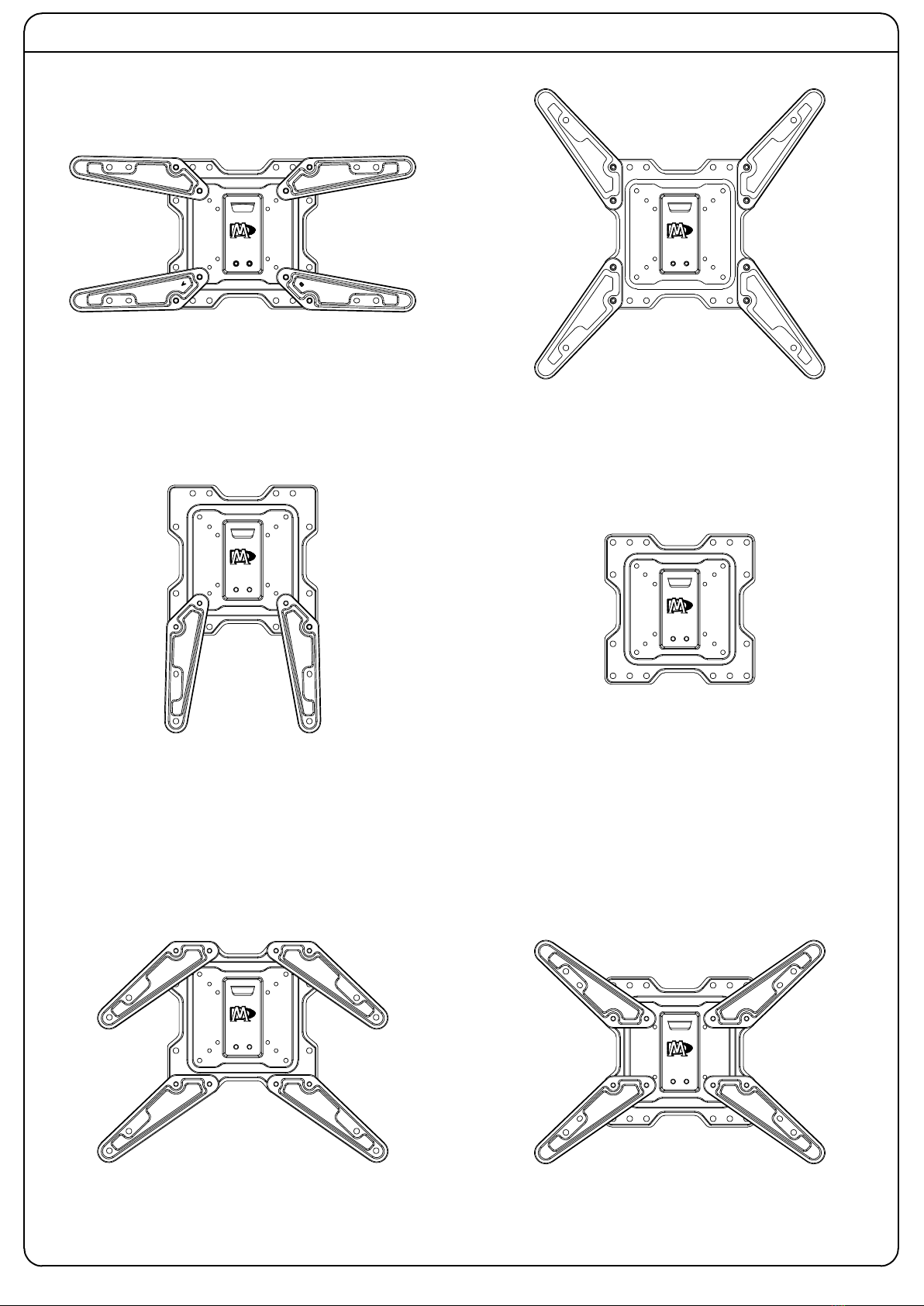

1-2 Choose Configuration

④

⑤

200mm x 300mm

400mm x 200mm

75mm x 75mm

100mm x 100mm

100mm x 200mm

150mm x 150mm

200mm x 100mm

200mm x 150mm

200mm x 200mm

300mm x 200mm 400mm x 300mm

①

③

300mm x 300mm

400mm x 400mm

①

①①

③

③③

② ②

②

④

④④

⑤

⑤ ⑤

⑥ ⑥

1-3 Select TV Screws

TV back

Bracket Washer

Bracket

Long Screw

Spacer

No, go to PAGE 5 for detailed combination.

Yes, go to PAGE 5 for detailed combination.

TV back

1-4 Need Spacer?

Short Screw

Washer

Extended Arms Assembly Example (For reference)

TV plate

Tips: If you need to combine M6(e) or M8(c/f) screw with 2.5mm spacer(j), you have to

remove the inner circle.

Screw and washer

Spacer(s), screw and washer

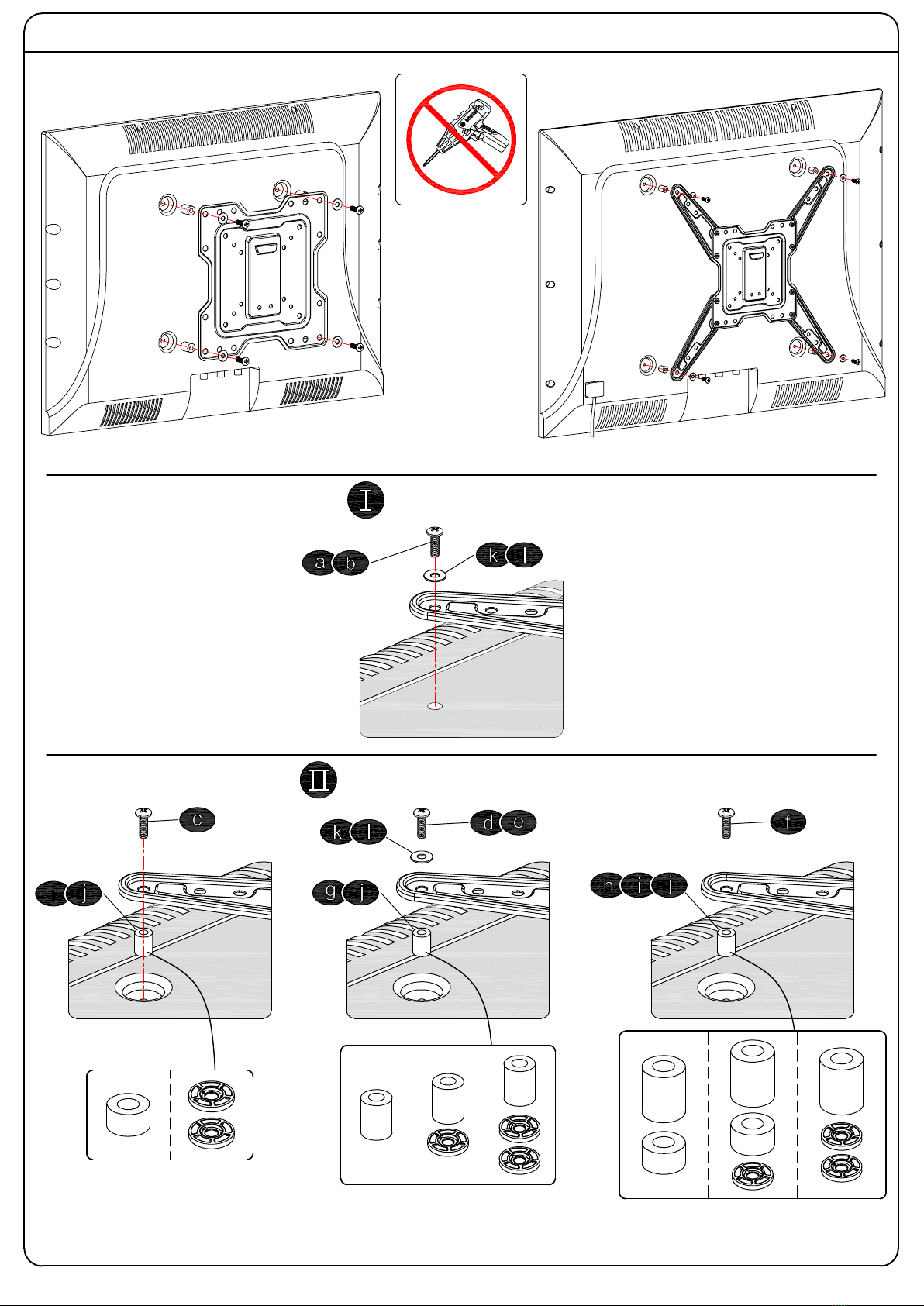

1-5 Attach TV Plate to TV Back

No!

For wood stud installation, follow STEP 2A

For concrete installation, follow STEP 2B on PAGE 8

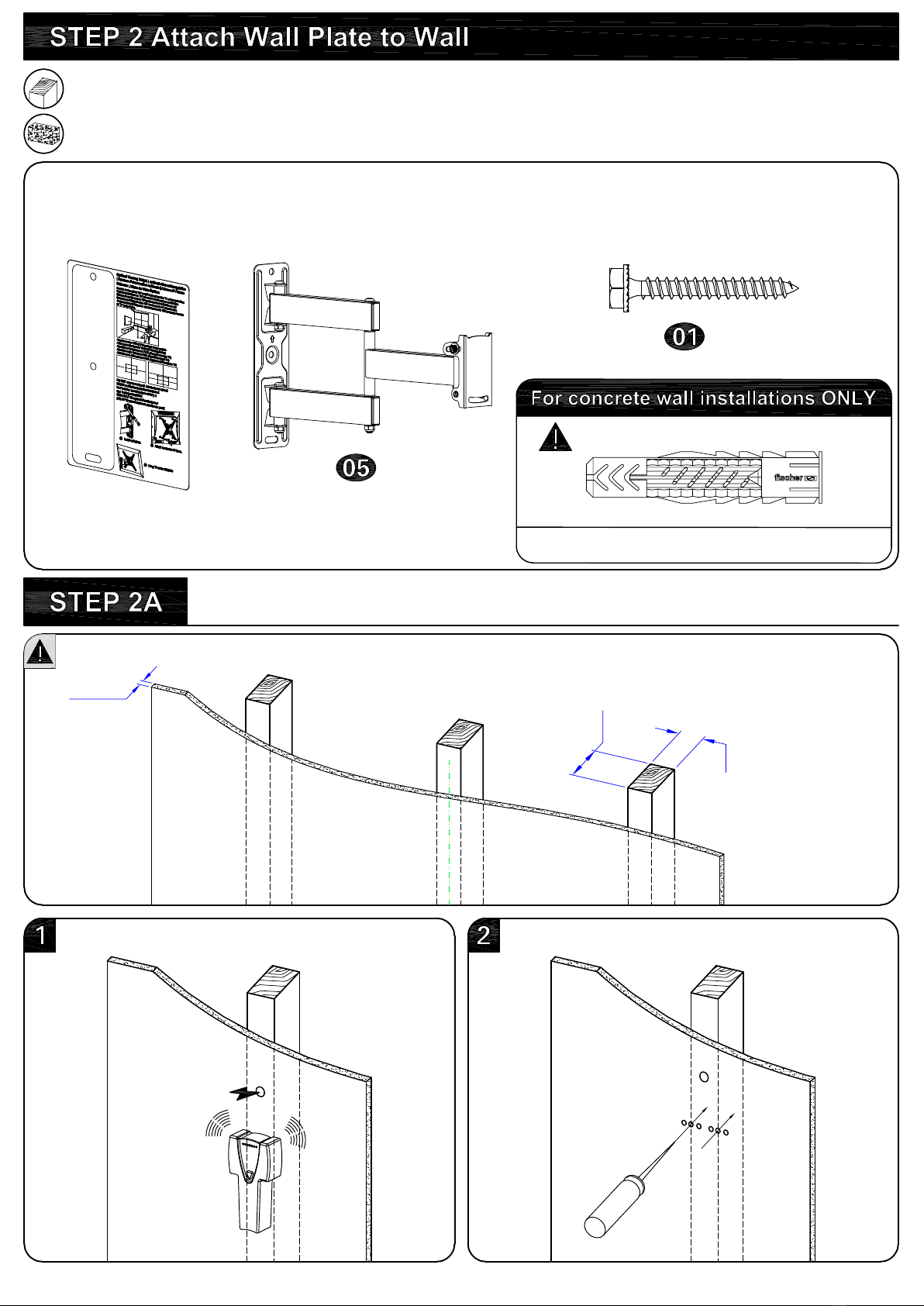

Parts and Hardware

<16mm

(5/8")

Min. Wood Stud Size:

nominal 2"(51mm)

actual 1 1/2"(38mm)

Min. Wood Stud Size:

nominal 4"(102mm)

actual 3 1/2"(89mm)

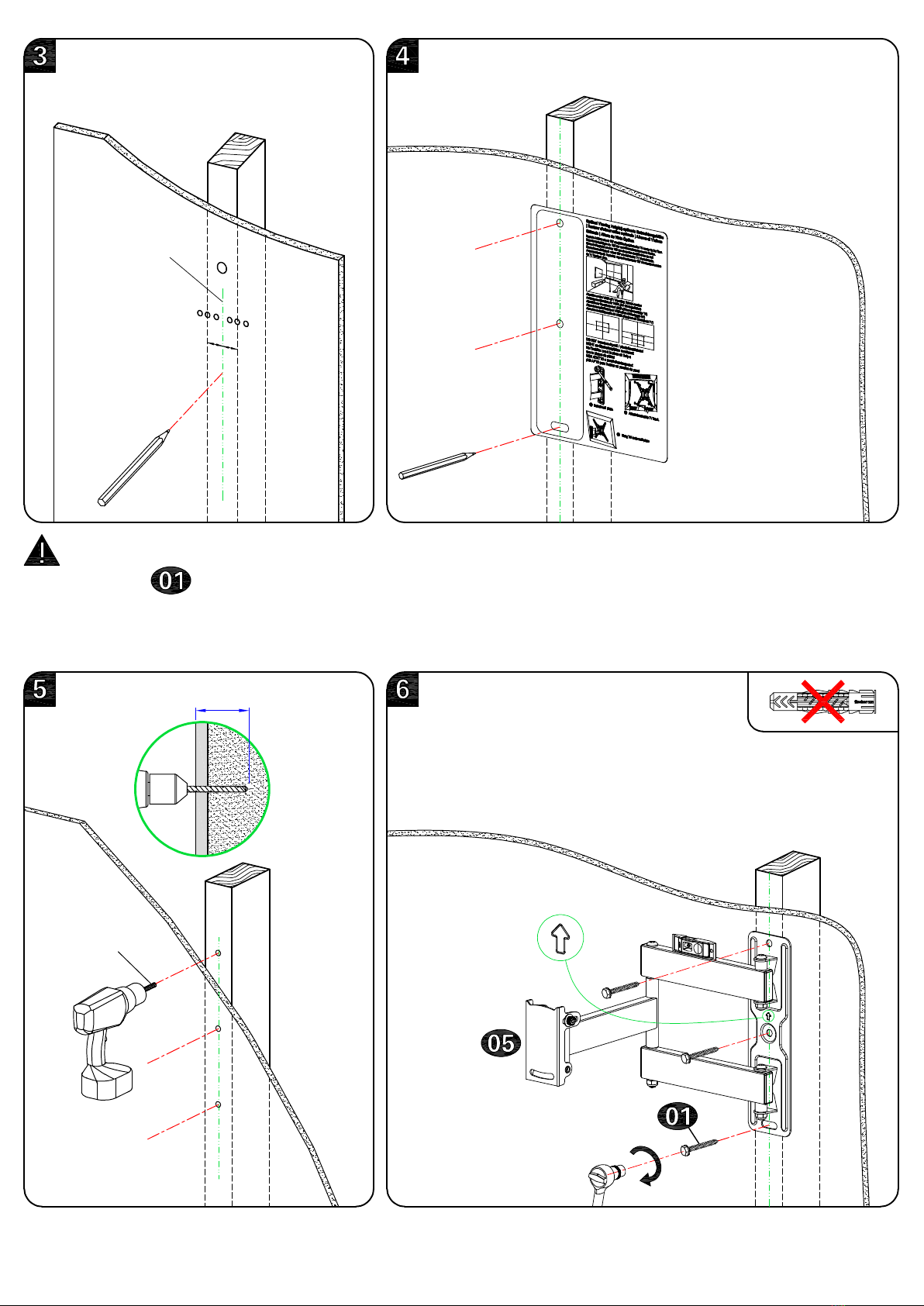

Wood Stud Installation

Wall plate

Mounting Template

Lag Bolt M7x70mm

Concrete Wall Anchor 3pcs

CAUTION:Do not use in drywall or wood

Fischer UX10x60 R

5/32"

(4mm)

Go to Step 3 on PAGE 9.

Centre line

2.9"(74mm)

CAUTION: To avoid potential personal injury or property damage:

All 3 lag bolts MUST BE firmly tightened to prevent unwanted movement of the wall plate

assembly. Ensure the wall plate assembly is securely fastened to the wall before continuing on to

the next step.

To prevent the TV falling down, the direction of the arrow should be upward as shown.

Level

Mounting Template

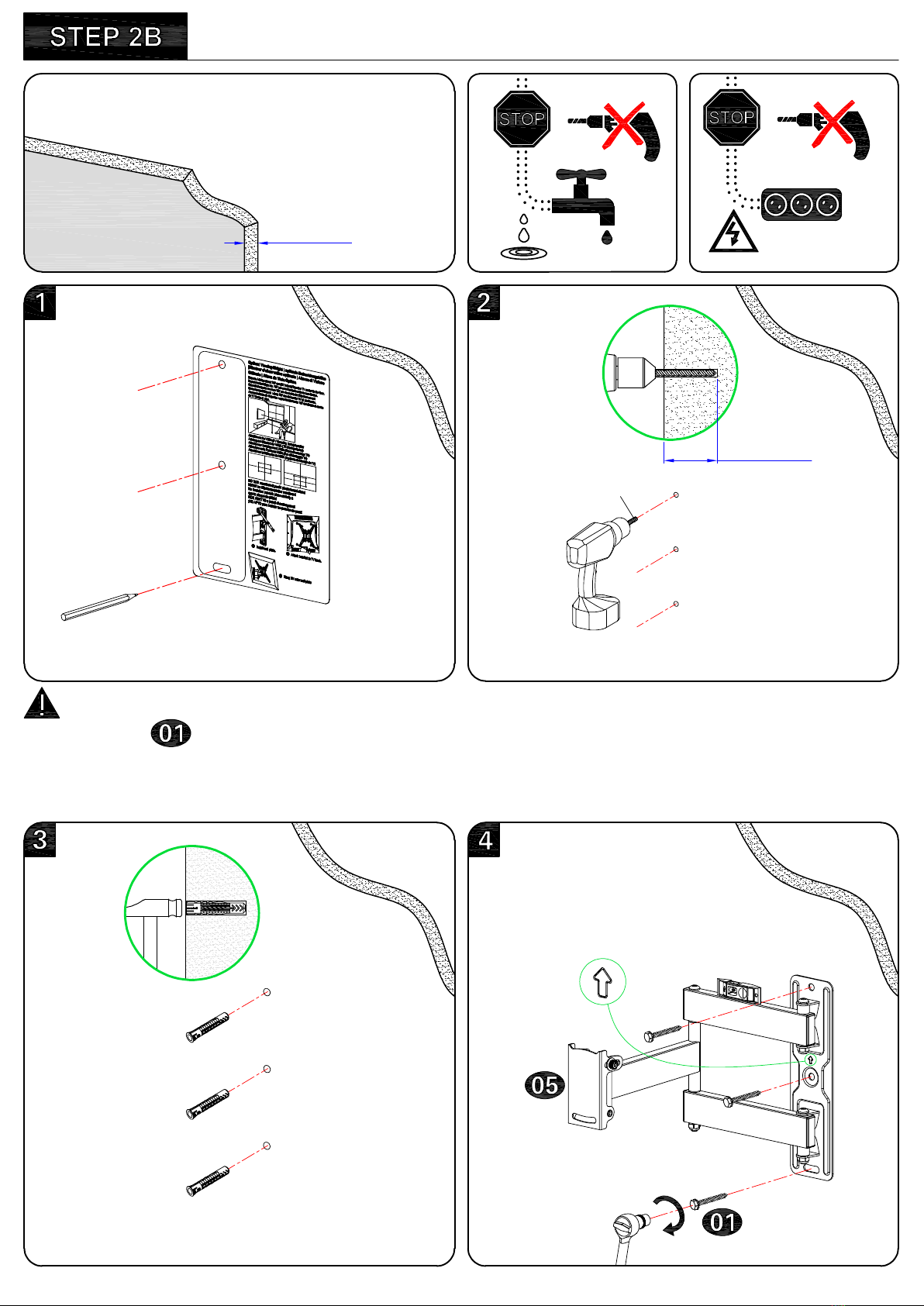

Solid Concrete Wall Installation

2.9"(74mm)

3/8"

(10mm)

DANGER

Min.

8"(203mm)

CAUTION: To avoid potential personal injury or property damage:

All 3 lag bolts MUST BE firmly tightened to prevent unwanted movement of the wall plate

assembly. Ensure the wall plate assembly is securely fastened to the wall before continuing on to

the next step.

To prevent the TV falling down, the direction of the arrow should be upward as shown.

Mounting Template

Level

Concrete Wall

Anchor

77 LBS (35 KG)

Before hanging TV, please conduct "wall plate installation integrity test" first.

1 2
