Mounting Dream MD2361-32 Manuale utente

MD2361-32 INSTALLATION INSTRUCTION

If you have any questions, please contact us via customerservice@mountingdream.com

or call us at telephone (626) 604-9048 (USA) Mon - Fri 10am - 6pm (Pacific time).

(A4)

42"~70" Max:800x400mm/32x16''

Min:200x100mm/8x4''

x2 x1

1 2

Für die Installationsanweisungen auf deutsch, Siehe Seite 9~10.

Pour l'instruction en français, veuillez vous reporter à la page 11~12.

Para las instrucciones de la instalación en español, favor vea la página 13-14.

Per le Istruzioni in italiano, vedi pagina 15~16.

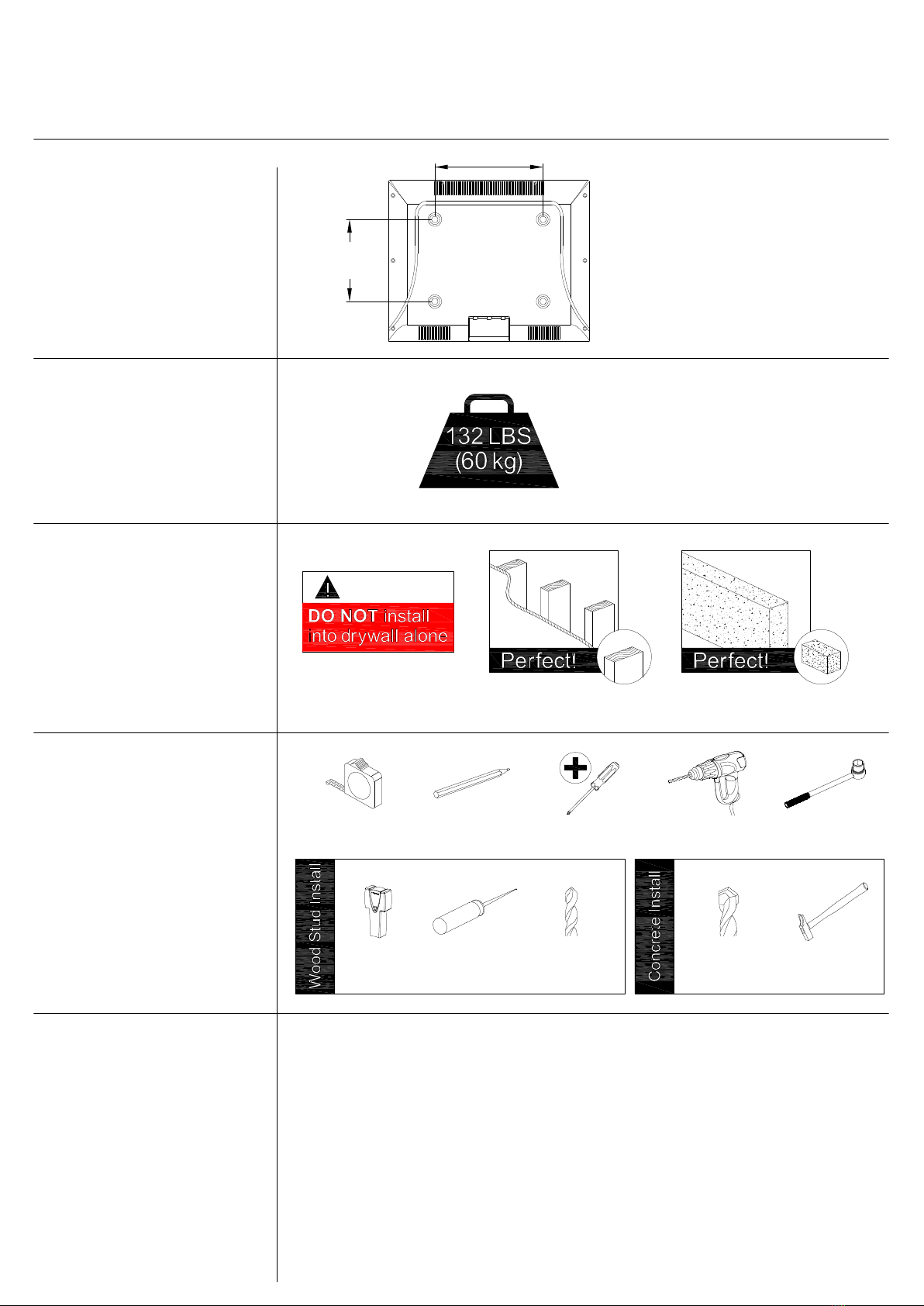

Before getting started, let’s make sure this mount is perfect for you!

1 Is your TV VESA

equal to/greater than

200x100mm/8x4" and

equal to/less than

800x400mm/32x16"?

2 Does your TV

(including accessories)

weigh less than

132 LBS (60 kg)?

4 Installation Tools

(Not Included)

Yes --- Perfect!

No --- This mount is NOT compatible.

MAX:800mm/32"

MAX:

400mm/16"

Yes --- Perfect!

No --- This mount is NOT compatible.

CAUTION:

Drywall with

wood studs?

Band Tape

2M2M

5 Safety Caution

Please read this instruction carefully before installation.

If you do not understand these instructions or have doubts about the safety of the

installation, assembly or use of this product, contact Customer Service via

customerservice@mountingdream.com or call us at telephone (626) 604-9048 (USA) Mon

- Fri 10am - 6pm (Pacific time).

● This product is designed for use in wood stud and solid concrete wall.

- DO NOT install into drywall alone.

● The wall must be capable of supporting five times the weight of the TV and mount

combined.

● Incorrect installation may result in product damage or body injury. Mounting Dream shall

bear no responsibility for any damage or injury resulted from incorrect installation,

incorrect assembly or misuse.

● Do not apply this product to any purpose not indicated by Mounting Dream.

Solid concrete

wall?

Pencil Screwdriver Electrodrill Socket Wrench

1/2"(13mm)

Stud Finder Awl 7/32"(5.5mm)

Wood Drill Bit

3/8"(10mm)

Masonry Drill Bit Hammer

3 What is your wall

made of?

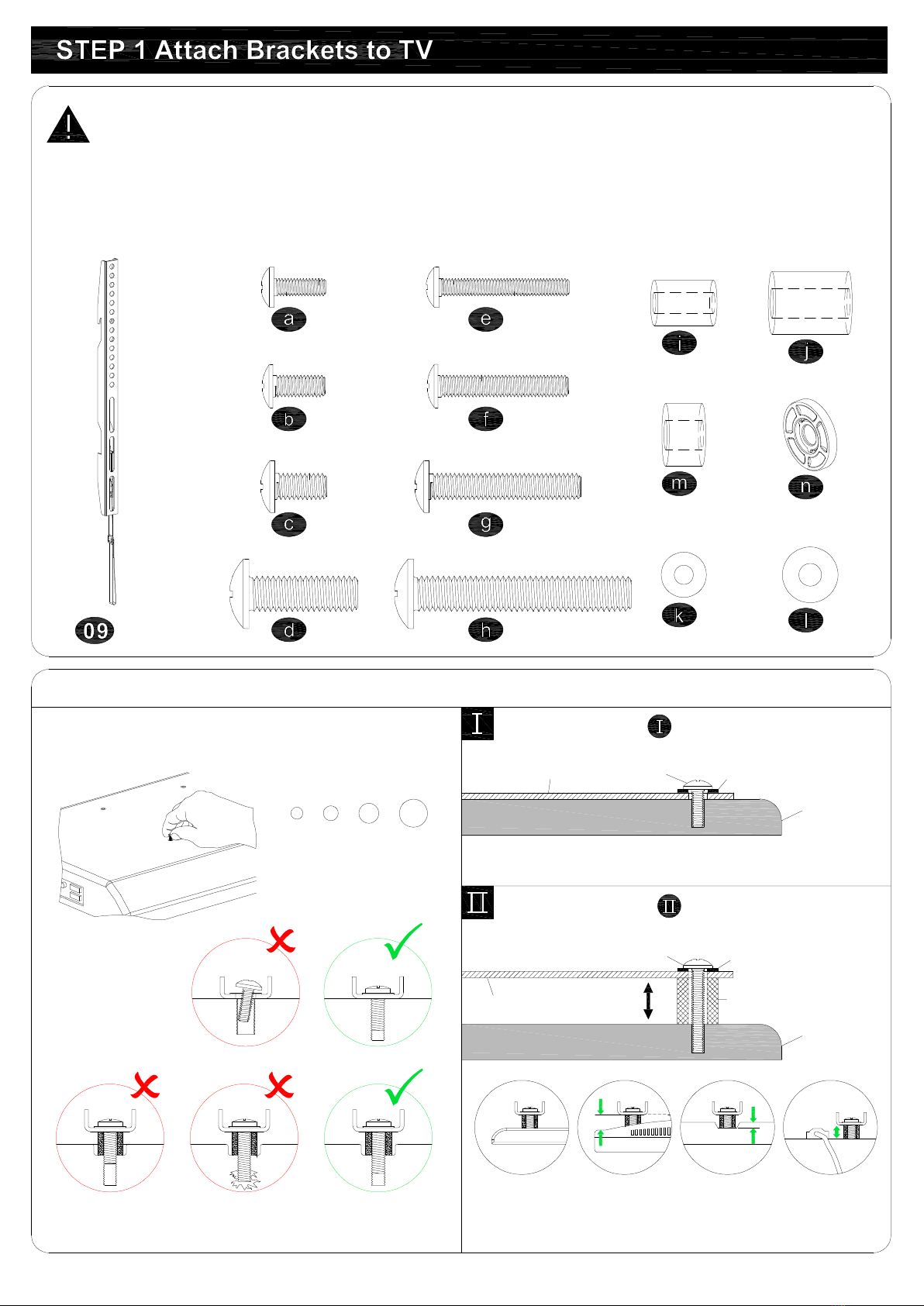

Parts and Hardware

WARNING:This product contains small items that could be a choking hazard if

swallowed. Before starting assembly, verify all parts are included and undamaged. For parts

shortage or damage, please contact us via customerservice@mountingdream.com.

NOTE: Not all hardware included will be used.

TV Brackets

1-1 Select TV Screws

TV back

Bracket Washer

Bracket

Long Screw

Spacer

No, go to PAGE 3 for detailed combination.

Yes, go to PAGE 3 for detailed combination.

TV back

1-2 Need Spacer?

Short Screw

Washer

Highly recommended to add spacers for more

spacing between wall mount and wall.

M4x12mm

M5x12mm

M6x12mm

M8x25mm

M4x30mm

M5x30mm

M6x35mm

M8x50mm

M5/M6x17mm M8x22mm

M5/M4 M6

10mm 2.5mm

Washers

Spacers

TV Screws

x4 x4

x4 x8

Tips: If you need to combine M8(d/h) screw with 2.5mm spacer(n), you have to remove

the inner circle.

1-3 Attach the TV Brackets

Screw and washer

Spacer(s), screw and washer

No!

For wood stud installation, follow STEP 2A

For concrete installation, follow STEP 2B on PAGE 6

<16mm

(5/8") 32"(812.8mm)

/24"(609.6mm)

/16"(406mm)

Min. Wood Stud Size:

nominal 2"(51mm)

actual 1 1/2"(38mm)

Min. Wood Stud Size:

nominal 4"(102mm)

actual 3 1/2"(89mm)

Wood Stud Installations

Lag Bolt M8x60mm M8 Washer

x6 x6

Parts and Hardware

M5x8mm Bolt

Mon - Fri 10am - 6pm (Pacific time) or email us

by customerservice@mountingdream.com to

have these additional pieces shipped directly to

you.

Concrete Wall Anchor

6pcs

Wall plate

Assemble Wall plate

M6 Antiskid nut

6mm open-end

wrench

4mm Allen key

M6x12 Bolt

Connection plate

7/32"

(5.5mm)

2.5"(64mm)

Go to Step 3 on PAGE 7.

No!

Centre line

Centre line 16"(406mm)

Again, find another wood stud

Level

CAUTION: To avoid potential personal injury or property damage:

All 4 lag bolts MUST BE firmly tightened to prevent unwanted movement of the wall plate

assembly. Ensure the wall plate assembly is securely fastened to the wall before continuing on

to the next step.

Wall plate

unit

Level

Solid Conrete Wall Installation

2.5"

(64mm)

Concrete Wall

Anchor

Min.

8"(203mm)

3/8"

(10mm)

DANGER

CAUTION: To avoid potential personal injury or property damage:

All 6 lag bolts MUST BE firmly tightened to prevent unwanted movement of the wall plate

assembly. Ensure the wall plate assembly is securely fastened to the wall before continuing on

to the next step.

Level

No!

Wall plate

unit

Pull down

1 2

132 LBS (60 kg)

Before hanging TV, please conduct "wall plate installation integrity test" first.

Pull down

the straps

MAX:800mm

872mm

420mm 222mm MAX:400mm

28mm

Vor der Installation bestätigen Sie bitte zuerst, ob diese Halterung für Ihr Fernsehapparat geeignet ist!

1 Ist der Abstand der

Montagelöcher von Ihrem

Fernsehapparat zwischen

200x100mm/8x4" und

800x400mm/32x16"?

2 Wiegt Ihr

Fernsehapparat (inkl.

Zubehör) weniger als

60 kg (132 LBS)?

4 Werkzeuge für

Installation

(Nicht enthalten)

Ja - Perfekt!

Nein - Diese Halterung ist nicht geeignet!

MAX:800mm/32"

MAX:

400mm/16"

Ja - Perfekt!

Nein - Diese Halterung ist nicht geeignet!

Vorsicht:

Gipskartonwand

mit Holzbalken?

Bandmaß

2M2M

5 Sicherheitshinweise

Bitte lesen Sie die Anweisungen sorgfältig vor der Installation durch.

Falls Sie diese Anweisungen nicht verstehen oder Zweifel bezüglich der Sicherheit der

Installation, des Zusammenbaus oder der Verwendung des Produkts haben, kontaktieren Sie

bitte den Kundendienst per E-Mail: customerservice@mountingdream.com. Oder rufen Sie

(626) -604-9048 (USA) an. Bürozeiten: Montag bis Freitag, 10:00 - 18:00 Uhr (Pazifikzeit)

● Dieses Produkt ist für die Installation an Wänden mit Holzträgern und Massivbetonwand -

NICHT an einer reinen Gipskartonwand montieren.

● Die Wand muss das Fünffache des Gesamtgewichts des Fernsehapparats und der Halterung

tragen können.

● Unsachgemäße Montage dieses Produkts kann zu Verletzungen und zu den Beschädigungen

an Ihrem Gerät führen. Mounting Dream haftet nicht für Schäden oder Verletzungen, die durch

unsachgemäße Montage, unsachgemäßen Zusammenbau oder unsachgemäße Verwendung

verursacht wurden.

● Verwenden Sie dieses Produkt nicht für einen anderen Zweck als speziell von Mounting

Dream angegeben.

Bleistift Kreuzschlitzschraubendreher Elektrobohrer Steckschlüssel

(13mm, 1/2”)

Balkensucher Ahle 5.5mm (7/32”)

Bohreinsatz für Holz

10mm (3/8”)

Bohreinsatz für Stein Hammer

3 Woraus besteht

Ihre Wand?

NICHT an einer reinen

Gipskartonwand

anbringen.

Perfekt! Perfekt!

Massivbetonwand?

Montage von Holzbalkenwand Montage von Betonwand
