CCG-1500 Series

Quick Installation Guide

Version 1.1, August 2023

Technical Support Contact Information

www.moxa.com/support



- 2 -

Overview

The CCG-1500 Series is a private 5G gateway that acts as a media and

protocol converter. These gateways support 5G-to-Ethernet and 5G-to-

Serial connections, suitable for both public and private networks. The

CCG-1500 Series can also be used as a protocol converter for Modbus

TCP/RTU communications, as well as a wireless platform for 5G

communications.

Equipped with a Cortex-A7 processor optimized for media conversion,

the CCG-1500 Series can be deployed in a wide variety of industrial

applications. The robust wide-temperature design further makes the

CCG-1500 Series suitable for use in harsh operating environments.

Package Checklist

Your CCG-1500 device is shipped with the following items. If any of

these items are missing or damaged, please contact your customer

service representative for assistance.

•1 CCG-1500 Series gateway

•DIN-rail mounting kit (pre-installed)

•Power jack for power adapter

•2-pin terminal block for power input

•6 antennas (CCG-1510-TW-T, CCG-1510-US-T models)

•4 antennas (CCG-1520-T models)

•Quick installation guide (printed)

•Warranty card

Panel Layouts

CCG-1510 Models

Front View

Rear View

- 3 -

Top View

Bottom View

CCG-1520 Models

Front View

Rear View

Top View

- 4 -

Bottom View

Device Dimensions

Mounting the CCG-1500 Series

The CCG-1500 Series can be mounted onto a DIN rail or a wall. The

DIN-rail mounting kit is attached to the device by default. The wall-

mounting kit can be purchased separately.

DIN-rail Mounting

Installation

STEP 1: Using a screwdriver, pull down the slider of the DIN-rail

bracket on the back of the unit.

STEP 2: Insert the top of the DIN rail into the slot just below the upper

hook of the DIN-rail bracket.

STEP 3: Press the device towards the DIN rail until it snaps into place.

- 5 -

Removal

STEP 1: Pull down the latch on the mounting kit with a screwdriver.

STEP 2: Slightly pull the device forward.

STEP 3: Lift the device up to remove it from the DIN rail.

Wall Mounting (Optional)

NOTE

Mounting the CCG-1500 Series onto a wall requires an optional

wall-mounting kit, which is sold separately.

For some applications, it may be more convenient to mount the CCG-

1500 gateway to a wall.

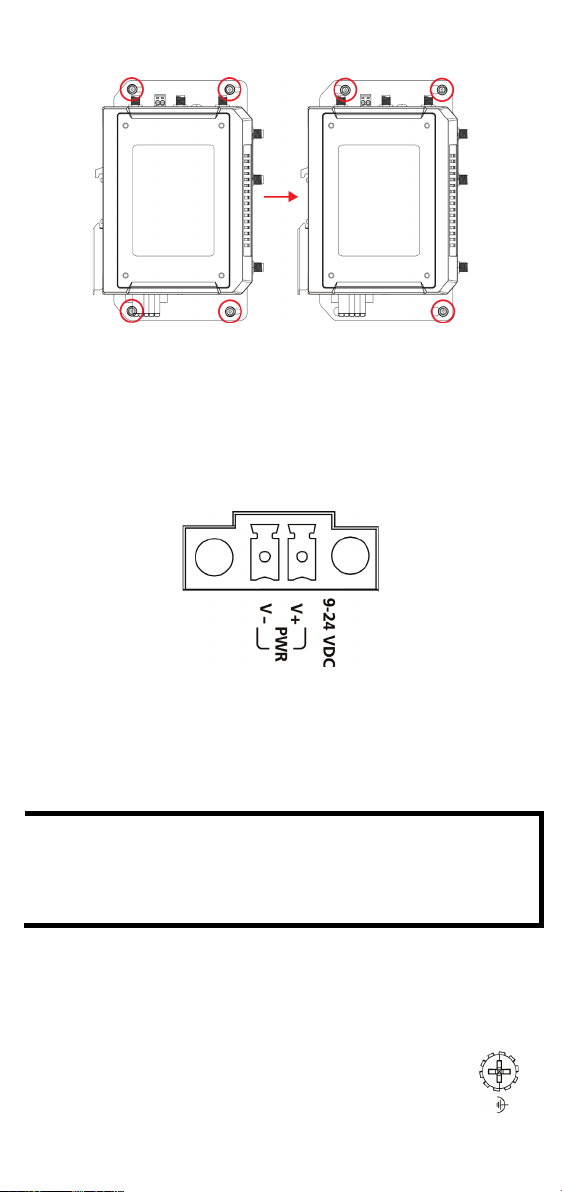

Installation

STEP 1

: Attach the wall mounting kit plates to the side panel of the

CCG

-1500 Series device using four M3 x 6 mm screws.

STEP 2: Use the CCG-1500 Series device with the wall mount plates

attached as a guide to mark the correct location of the four screws. The

heads of the screws should be less than 6.0 mm in diameter, the shafts

should be less than 3.5 mm in diameter, and th

e length should be at

least 10 mm in diameter.

STEP 3: Once the screws are fixed into the wall, insert the four screw

heads through the large opening of the keyhole

-shaped apertures of

the mounting kit. Tighten the four screws for added stability.

- 6 -

Connecting the Power Input

Power Terminal Block

A skilled person for the job should install the wiring for the input

terminal block. The wiring type should be copper (Cu) and only 14-22

AWG wire size and torque value 0.2 N-m should be used.

Power Jack

Connect the power jack (included in the package) to the CCG-1500

Series’ terminal block located on the top panel, then connect the power

adapter. It takes several seconds for the system to boot up. Once the

system is ready, the P/S LED will light up.

NOTE

The product is intended to be supplied by a UL Listed Power

Unit marked "L.P.S." (or "Limited Power Source") and is rated

-24 VDC @ 1.33-0.5 A min., Tma = 70°C (min). If you need

assistance

purchasing a power source, please contact Moxa for

more information.

Grounding the CCG-1500 Series

Grounding and wire routing help limit the effects of noise due to

electromagnetic interference (EMI) by routing the noise from the metal

chassis to the connected ground.

Connect the grounding wire to the

grounding screw located on

the top panel of the device

. When connected to ground, the

noise is routed directly through the metal chassis.

- 7 -

NOTE

The grounding wire should have a minimum diameter of

3.31 mm

NOTE

If using a Class I adapter, the power cord must be connected to

an outlet with an earthing connection.

Interface Description

10/100/1000BaseT(X) Ethernet Port

The 10/100/1000BaseT(X) ports located on the front panel of the CCG-

1500 Series device are used to connect to Ethernet-enabled devices.

The pin assignment of the port is as below:

10/100 Mbps

1000 Mbps

Signal

Tx+

Tx-

Rx+

–

Rx-

–

Definition

DA+

DA-

DB+

DB-

DD+

DD-

DC-

DC+

Serial Port

The serial port uses terminal block connectors. The serial mode (RS-

232, RS-422, or RS-485) can be configured through software. The pin

assignment of the port is as below:

Definition

RS-232TXD/RS-422T+

RS-232RXD/RS-422T-

RS-232RTS/RS-422R+/RS-485D+

RS-232CTS/RS-422R-/RS-485D-

GND

SIM Card Sockets

The CCG-1500 Series comes with two nano-SIM card sockets for

cellular communication. The nano-SIM card sockets are located on the

front panel and are protected by a cover. The left socket is for SIM 1

and the right socket is for SIM 2.

- 8 -

Remove the protective cover to

access the sockets, then insert

the nano-SIM cards into the

sockets directly. You will hear a

click when the cards are in

place.

To remove the cards, push the

cards in then release to unseat

the cards.

Wireless Connectors

Cellular Interface

The CCG-1510 Series is equipped with a built-in cellular module. To use

the cellular function, the antennas must be connected to the SMA

connectors. The CCG-1510 models have six antenna connectors while

CCG-1520 models have four antenna connectors.

GPS

The built-in GPS module of the CCG-1500 Series allows the device to

use GPS satellite geolocation. To use the GPS function, the antennas

must be connected to the SMA connectors.

LED Indicators

The LED indicators are located on the front panel of the CCG-1500. The

function of each LED is described in the table below:

LED Color Behavior Status

Signal

Strength

(Strong)

Green On Indicates a strong 4G/5G signal.

Signal

Strength

(Medium)

Green On Indicates a medium 4G/5G

signal.

Signal

Strength

(Weak)

Green On Indicates a weak 4G/5G signal.

P/S

(Power/System

Status)

Red On The system is booting up or is

not ready yet.

Green On The system is powered on and

ready.

Off Off The system is powered off.

SIM1/2 Amber On A SIM card is enabled in slot 1.

- 9 -

Green On A SIM card is enabled in slot 2.

Off Off No SIM card is inserted.

4G/5G

Amber On A cellular connection is

established to a 4G network.

Green On A cellular connection is

established to a 5G network.

Off Off No cellular network signal.

LAN1, LAN2

Green On

The port is active, and a link is

established at 1000 Mbps.

Green Blinking Data is being transmitted at

1000 Mbps.

Amber On

The port is active, and a link is

established at 10/100 Mbps.

Amber Blinking

Data is being transmitted at

10/100 Mbps.

Off Off The port is inactive, or the link is

down.

Accessing the Web Console

You can log into the web console of the CCG-1500 Series gateway by

connecting a host computer to LAN1 or LAN2 on the device and

navigating to the device’s default IP address in a web browser. Please

ensure the host computer and CCG-1500 gateway are in the same

subnet.

The default web interface address is https://192.168.225.1:443

When prompted, log in using the default credentials:

•Username: admin

•Password: moxa

Certifications

WARNING

為避免電磁干擾，本產品不應安裝或使用於住宅環境。

減少電磁波影響，請妥適使用。

電波功率密度 MPE 標準值： 1 mW/cm²，送測產品實測值：

0.11422 mW/cm²，建議使用時設備天線至少距離人體 20 公

分。

此電信終端設備支援行動寬頻頻段資訊：

LTE 介面支援頻段

: LTE FDD 700/900/1800/2100/2500MHz;

TDD 2600 MHz

5GNR 介面支援頻段: 5GNR FDD 700/1800/2100 MHz; TDD

2500/3500 MHz
