Moxa Single-Strand Fiber Converter

Hardware Installation Guide

1. Introduction

IEEE802.3u 100 Mbps Fast Ethernetsupports

two types of media for network connection:

10/100BaseT(X) and 100BaseFX.The

Single-Strand Fiber Converter (ME60) is designed

with an optic Wavelength Division Multiplexing

(WDM) technology that transports bi-directional

full duplexsignals over a single- strand fiber cable

simultaneously.

100Base-Xnetwork allows 512-bit time delay

between any two node-stations in a collision

domain. This switch-based converter breaks up

the TPas well as Fiber segments' collision

domain and extends the cabling distance.

Moxa TechnologiesCo., Ltd.

Reproduction without permission is prohibited.

Tel: +866-2-8919-1230

Fax:+886-2-8919-1231

www.moxa.com

support@moxa.com.tw

2. Model Descriptions

Model TX, RX Wavelength

TX(Transmit)1310 nm

ME60A RX(Receive) 1550 nm

TX(Transmit)1550 nm

ME60B RX(Receive) 1310 nm

Note:

ME60A/ME60B products mustbe installed in

pairs. I.e., install an ME60Aat one end, and an

ME60B at the other end.

ME60Aand ME60B can be identified by looking

at the labels on the products side orback panel.

3. Installing MOXASingle-Strand Fiber

Converter

Note:

The Single-Strand Fiber Converter Series is

hot-swappable.

l Wear a grounding device to protectagainst

electrostatic discharge.

l Verify thatthe AC-DC adapter conforms to your

country sAC power requirement and then

insert the power plug.

l Install the media cable fornetwork connection.

Attach the single-strand fibercable

Fiber

Port Install ME60Aand ME60B models at the

ends of the single-strand fiber cable.

"100FDX" is only for WDM

Attach a Cat.5 UTPcable to the TPport.

Port

MPR: (Default): To a switch or hub

DTE: To a workstation or NIC

Note: The "DTE"/"MPR" slide switch is on

the side panel.

Note for TP portcable connection:

l Use a straight-through cable.

Cable pin-outsforRJ45 jack 1, 2,3,6to 1,2,3,

6 are shown below:

Configure the MPR-DTE slide switch on the side

panel for connecting to a hub or NIC (Network

Interface Card).

l MPR (Default): To a switch or hub

l DTE: To a workstation or NIC (Network

Interface Card). (DTE pin-outs are set up as

crossover on the board)

TX-1310/RX-1550

ME60A

WDM Single Fiber

Single-Strand

Fiber TX-1550/RX-1310

ME60B

WDM Single Fiber

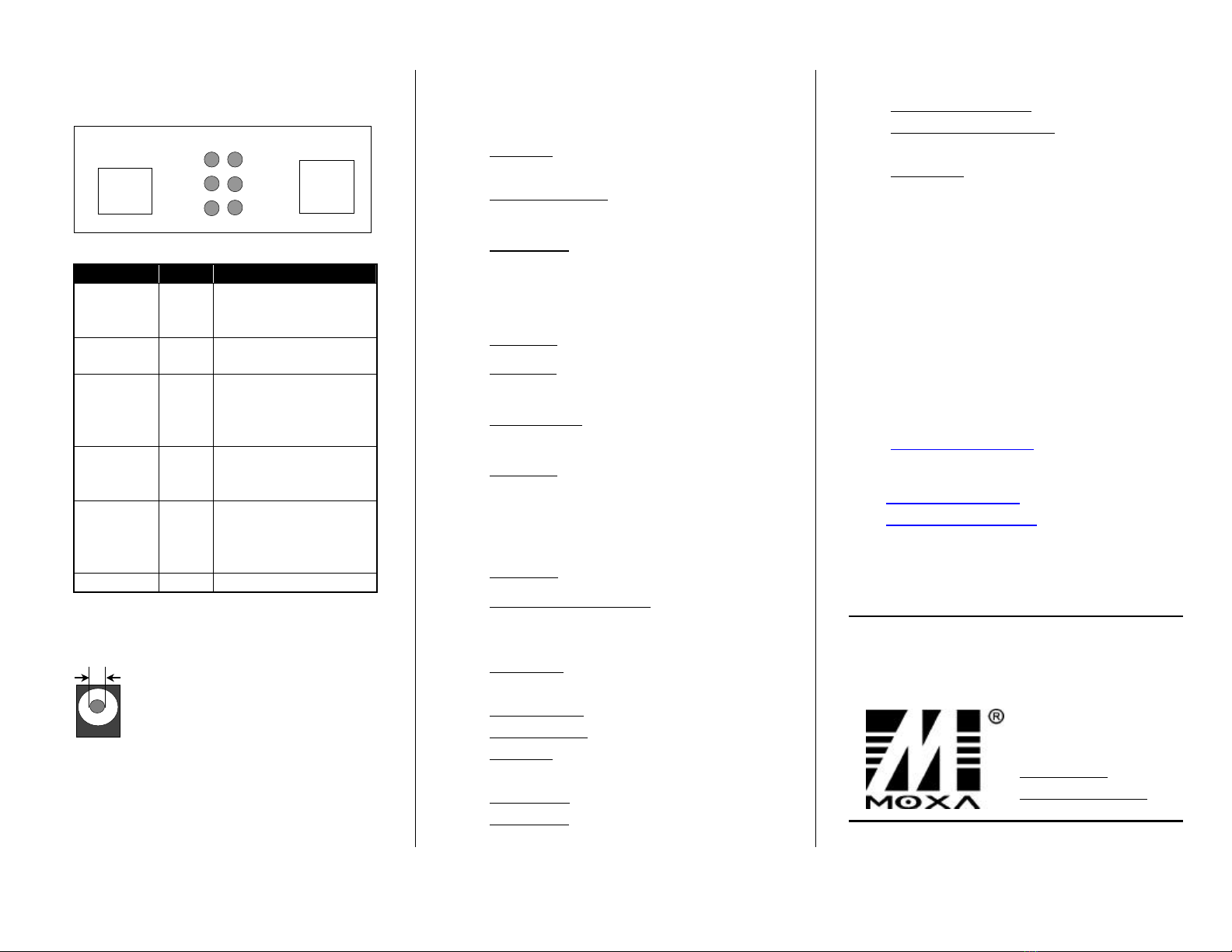

4. LED Description

LED location and status are shown below:

LED Color Function

FXLNK/ACT

Green

Lit forfiber port connection

Blinks when fiber port is

transmitting

FX100 Green

Lit

when fiber port speed is

at 100 Mbps

FXFDX/COL

Amber

Lit when fiber port is at

full-duplexmode

Blinks when collisions

occur

TP LNK/ACT

Green

Lit when TPis connecting

Blinks when TP is

transmitting

TP 100 Green

Lit when TPspeedis 100

Mbps

Off when TP speed is 10

Mbps

PWRGreen

Lit when +5V power is on

5. DC Jack and AC-DC Power Adapter

The DC jack's central post is 2.5 mm wide

6. Specifications

l Technology

Standards: IEEE802.3u, 10/100BaseT(X),

100BaseFX

DataTransfer Rate: 100 Mbps/148,800 PPS,

10 Mbps/14,880 PPS

FlowControl:IEEE802.3xcompliant for

full-duplex. Back pressure flowcontrol for

half-duplex.

l Interface

RJ45 ports: 10/100BaseT(X)

Fiber ports: 100BaseFX(SC connectors

available)

LED Indicators: POWER, FX: LNK/ACT, 100,

TP: LNK/ACT, FDX/COL

Dip switch: MPR (Default): Toa switch or hub

DTE: To a workstation or NIC, Network

Interface Card.

l Cable limitation

UTPCable: Cat. 5 cable (up to 100 m)

Single-Strand Fiber Cable: Recommended:

9/125 µm single-mode, Optional: 8.3/125,

8.7/125 or 10/125 µm single-mode

Wavelength: ME60ATX: 1310 nm/RX: 1550

nm, ME60B TX: 1550 nm/RX:1310 nm

Min. TXOutput: -10 dBm

Max. TXOutput: -7 dBm

Sensitivity: -32 dBm

l Power

Input voltage: 5VDC

Input current: 1A

l Environment

Operating temperature: 0 to 50°C

Ambient Relative Humidity: 5 to 90%

l Mechanical

Dimensions:26.2(H) ×70.3(W) ×94(D) mm

l RegulatoryApprovals:

FCC Part 15 Class A and CE Mark

7. Service Information

Customer satisfaction is our numberone concern.

To ensure that customers receive the full benefit

of our products, Moxa Internet Services has been

set up to provide technical support, driver

updates, product information, and user s manual

updates.

l E-mail for technical support:

support@moxa.com.tw

l World Wide Web sites for product information:

http://www.moxa.com

http://www.moxa.com.tw

Moxa TechnologiesCo., Ltd.

Reproduction without permission is prohibited.

Tel: +866-2-8919-1230

Fax:+886-2-8919-1231

www.moxa.com

support@moxa.com.tw

DC Jack: 2.5mm

DC Input: +5V

(DC current: full load consumption 0.7A)

SC Single-Strand Fiber

FX TP

LNK/ACT

100

FDX/COL PWR
