MP-Man MP-FOL6 Manuale utente

MP-FOL6

User’s Guide

Before operating this product, please read these instructions completely.

www.mpmaneurope.com

Getting Started

INTRODUCTION

Digital Audio Player (DAP) – FOL6

Your Digital Audio Player is a device that stores and plays multi-format digital audio files

including MP3, WMA and WAV files. Downloading hours of music from your PC, transfer

them into your DAP or use it for voice recording. Please read this manual carefully before

using this product for the first time.

KEY FEATURES

• Multi-format player supports: MP3, WMA and WAV files.

• Windows Plug & Play support for Windows ME, 2000 and XP and Mac OS10.2.8 or

higher.

• Windows 98SE compatible: Driver required.

• USB Version 2.0

• Six different music equalizer levels.

• Voice Recording

• Power saving feature.

• Firmware Upgradeable

PACKAGE CONTENTS

The packaging should include the following accessories:

• Digital Audio Player

• Stereo Earphones

• Carrying case

• Arm band

• Neck Strap

• USB Converter

• USB Cable

• 1 x AAA Battery

• CD-Rom

• Quick Start Guide

1GB -

PARTS DESCRIPTION

1. - Record Button 6. Navigation Control

2. Power On Button – Play ( II ) 7. USB Port

3. Power Off - Stop ( ) 8. Earphone Jack

4. EQ/Button 9. Neck Strap Holder

5. Mode Button

CONTROLS

Key Functions

mode Press to access into the Main Menu.

Press and hold to access into the Settings Menu.

hold Slide up to lock all keys functions.

Slide down to unlock all keys functions.

Record Button

Press to record in Voice mode.

EQ/Equalizer / Repeat button.

Press to access into the Repeat mode.

Press and hold to access into the Equalizer mode.

Press to select song into playlist in Navigation mode.

II Press and hold to turn the player OFF.

Press to turn the player ON.

2GB -

There is a joystick key in the center that can be used to control several key

functions. Press the button top, down, left, right or pressing it down will

achieve the following actions:

/Navi Push the button down to access the Navigation mode of the folders.

Push to confirm Setting.

Push to the right to select the next file.

Push and hold to the right to fast-forward within the files.

Push to the left to select the previous file.

Push and hold on to the left to fast-rewind within the files.

- Push downward to decrease the volume.

Push and hold downward to decrease the volume rapidly.

+ Push upward to increase the volume.

Push and hold upward to increase the volume rapidly.

Battery Installation

When the bars in the battery indicator (in the display) become low (figure 1), replace the

battery as follows.

1. Click the button and opens the battery compartment door.

2. Insert the battery with the correct polarity as show.

3. Close the battery compartment door.

BATTERY PRECAUTIONS

- To avoid battery leakage or corrosion, remove the battery from the player if the player is

not to be used for a long time.

- Remove dead battery from the player immediately to avoid damaging the player.

- When corrosion occurs, wipe the battery compartment immediately with a dry cloth and

insert a new battery.

3GB -

Downloading and Transferring Files

USB DRIVER INSTALLATION

For Windows ME, 2000 or XP:

These versions of Windows will automatically detect your DAP after connecting with the

USB cable and the computer. (Please make sure the DAP is turned ON.)

For Windows 98SE:

Windows 98SE will not recognize the player until you have installed the driver using the

included installation CD-ROM. Follow the detailed instructions in this section to activate the

USB mass storage function, so you will be able to transfer files from your computer to your

player.

Installation Procedures for the Player Software

(For Windows 98SE only)

When connecting the player to the computer for the first time, please follow these

instructions:

1. Insert the CD-ROM into the CD Drive. The auto-run program will display as shown

(Figure 1).

(Figure 1)

Remarks: If the setup does not start automatically, please run the setup.exe in your CD-ROM

drive directory. Double click “setup.exe” in the installation CD.

4GB -

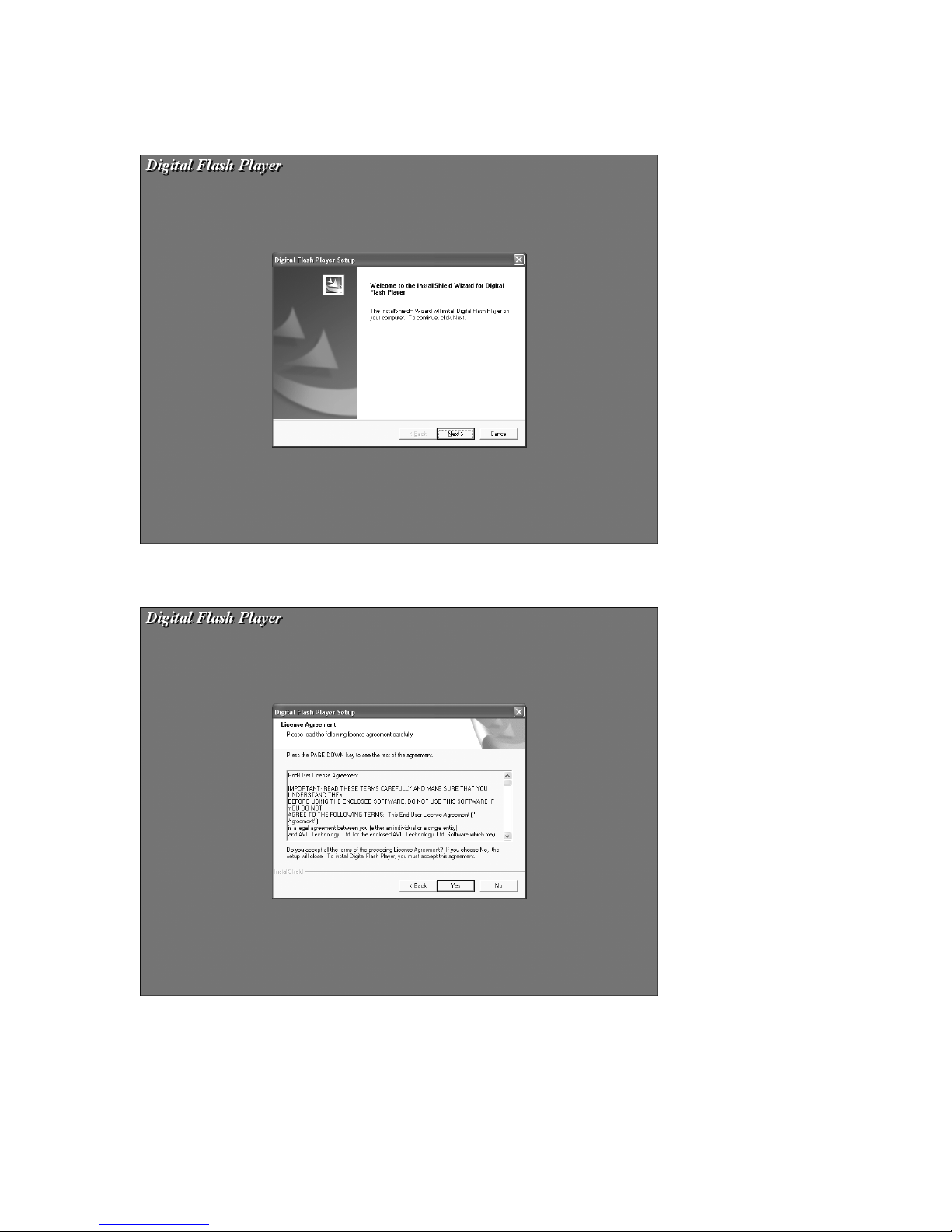

2. Follow the on screen instruction to install the software.

Click “Yes” to accept the License Agreement.

5GB -

Please install the software under the directory as prompted.

Warning: DO NOT change the installation path. Otherwise, the Player driver may not

run properly.

Click “Next” as prompted.

6GB -

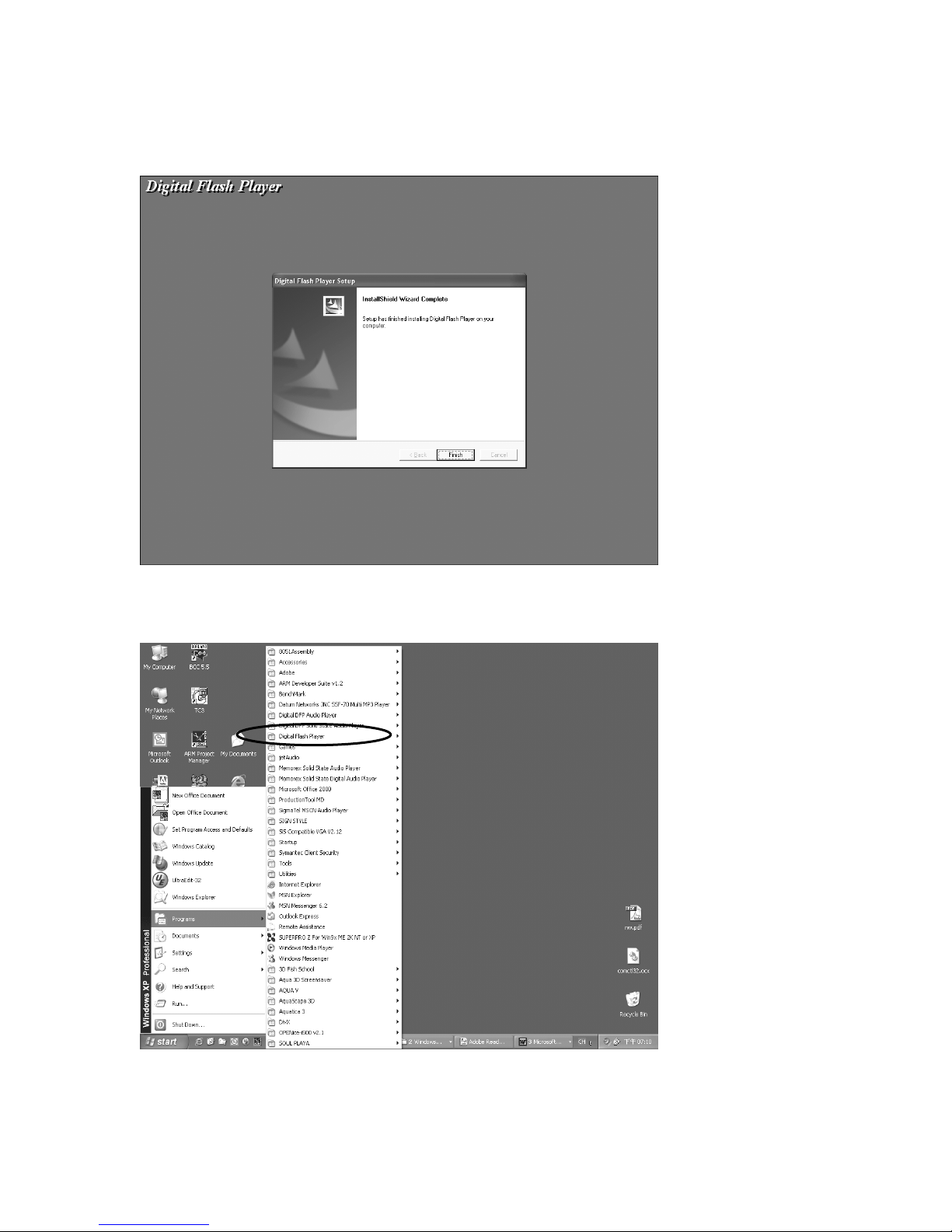

3. After successfully installing the driver software, please click “Finish” to complete the

installation.

4. When the installation is completed, the new program will be added to your Program

menu in the computer.

7GB -

TRANSFERRING FILES

Connect the DAP by using the supplied USB cable to the computer. Press the II button to

turn the player ON. The following will be displayed on the display of your DAP:

A “Removable Disk” will be added in My Computer. Open the “Removable Disk” folder:

Locate the files you wish to copy from your computer to your player. Drag and drop MP3,

WMA or WAV files on your computer into the “Removable Disk” folder. These files will

now be copied into your DAP.

Note: When you are finished transferring files, use the Safely Remove Hardware procedure

before disconnecting your player. (Please see the next section for detailed instructions.)

8GB -

DOWNLOADING WMA FILES WITH DRM

In order to download WMA files with DRM you must follow the procedure described below.

If you do not have “Windows Media Player 9” on your computer, you must go to

www.Microsoft.com to download and install this software. Before beginning the procedure

please turn the unit ON and connect the USB cable to the unit and to the USB port of your

computer.

1. Open the “Windows Media Player Browser,” and click on “Tools” in the menu bar. Then

click “Options...”.

9GB -
