MP-Man MP100 WOM Manuale utente

For your safety ─Read this user guide carefully to ensure proper

use of the product and to avoid any danger of physical damage.

UseSafely

Note: Please recharge the digital player before using it!

Function features

The player supports MP3/WMA/WAV/OGG/APE/AIFF/MS_ADPCM/MPC/FLAC

format music files.

Support USB 2.0 capability, much faster than USB 1.1, to enable faster

communication with your PC.

The player can record outside voice and FM radio.

The player has repeat functions.

The player has Video Playback, Photo Viewer, E-book functions, etc.

The player can power off automatically after a preset time.

Accessories

USB Cable Earphones Quick Start Guide Installation CD

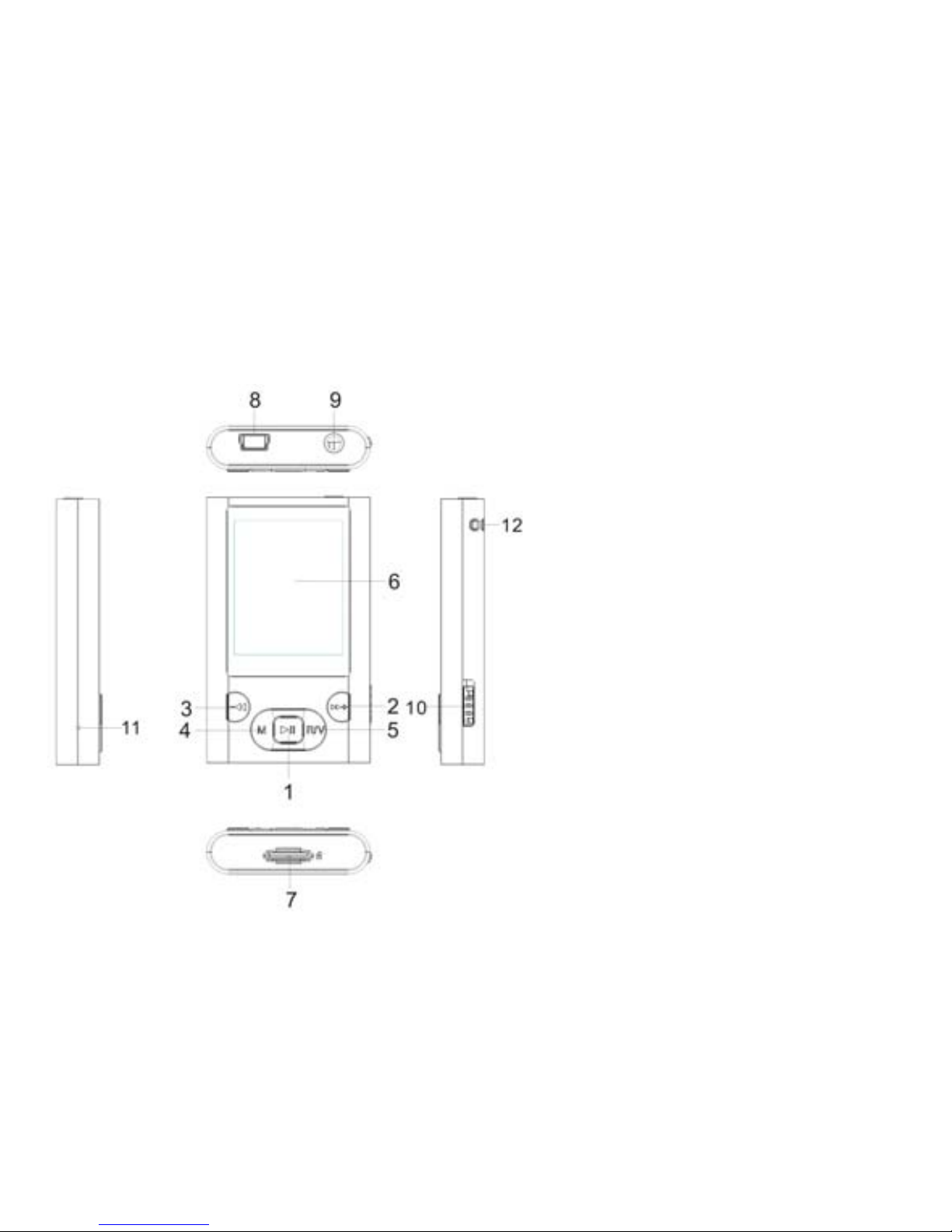

Components and Button functions

1. Power on/off or play/pause

2. Forward/Volume up

3. Backward/Volume down

4. MENU button

5. Record/Volume

6. LCD display

7. Micro SD/T-flash card slot

8. USB port

9. Earphone jack

10. HOLD button

11. RESET hole/Microphone

12. Hang strip hole

NOTE: You need a card which has songs and videos in it to play, this player can’t

save data without card.

ChargingLi–polymerbatterysafely

1. Connect the PC USB port and the MP3 USB port with the provided USB cable.

2. The power sign is shown dynamic when charging, once full charged, the power

sign will stop moving, power is full, please shut off the power. The charging time is

approximately 3 hours.

3. To stop recharging, disconnect the USB cable.

Notes

zBefore your first time use, please recharge your digital player.

zYour computer must be turned on while connected to your player for charging.

zDo not overcharge your player, or it may shorten the battery’s life.

zThe times of charge/discharge are no less than 300 cycles.

zThe li-polymer battery is consumptive material, so recharge it periodically is

needed even if the player is not be used.

CAUTION

1. Danger of explosion if battery is incorrectly replaced. Replace only with the same

or equivalent type.

2. Do not disassemble, crush, short-circuit or incinerate your battery as it may cause

fire, injury, burns, or other hazards.

Basicoperations

Turn power on and play music

1. Connect earphone to earphone jack.

2. Switch HOLD button to unlock position.

3. Insert the card into Micro SD/T-Flash card slot in power off mode.

4. Press and hold button to turn on and enter main menu.

5. To return main menu: Press and hold 【M】button.

To Pause/Play: Short press button.

To change tracks: Short press【/】button.

To turn unit off: Press and hold button.

NOTE: Please reset your player by pressing the RESET hole while failing to power on

or hanging up in power on mode.

Volume Adjustment

In Audio playing or tuning FM radio mode, short press【R/V】button to select volume

rim, then short press【/】button to turn up/turn down the volume.

Adding/Removing files/Folders – you can use the player as a removable USB storage.

1. Plug SD card into the card slot

2. Connect the PC USB port and the player USB port with the provided USB cable.

3. Add files/folders to the USB storage‘s folder. Select ”USB Disk” or “MTP Device”,

Ⅰ. Open files/folders to transfer from your computer.

Ⅱ. Open My Computer →Removable Disk from the desktop.

Ⅲ. Select the files/folders to transfer from your computer and draw and put them to a

folder of your choice in the Removable Disk (you also can transfer files on your PC to the

player using the "Copy" and "Paste" functions).

4. Delete files from the removable USB storage (use the "Delete" command).

Remove the player from PC –please follow the steps in case of damaging the player or

data loss.

1. Click the left mouse button on the icon that is on the taskbar at the bottom

right corner of the desktop.

2. Click the "Safely remove USB Mass storage Device – Drive (X:)" column.

3. Disconnect the player from your computer.

CAUTION:

Do not remove the player while files within the USB Mass Storage are being

played on your computer.

Do not disconnect the player from your computer or press M / button while

transferring files, or it will cause damage to the player or data loss.

MenuNavigation

M button: Enter main menu, submenu, confirm, long press return to main menu.

Skip button【/】: Shift menus/long press fast backward/long press fast forward

Play/Pause button ( ):Play, Pause, or return.

1. Press and hold【M】button to enter main menu.

2. Press【/】buttons to select your desired option (e.g. Music, Movie, Record,

Play, Radio, Picture, Text, Browser, Setting, Tools).

Music

Select “Music” in main menu and press 【M】button to enter.

Press【/】buttons to select music files and press to playback it, press

to pause.

Music Playback Submenu

In music playback mode, short press【M】button to enter submenu and short press

【/】buttons to select your desired mode

NOTE:

1.How to delete songs: When in playing status, press to pause, and then press M,

shows “Delete file” and Delete all” in the end of the submenu, you can delete songs.

2. All songs/Album/Artist/Genre all these items are created by Create Playlist, when

choose these items, it shows “playlist” on the top, user can update the playlist.

After plug out the USB, player creates the playlist automatically.

Now playing

1. Press M to play .

All songs

1. Press【M】to show all songs in card

2. Press 【/】to choose the song you want to play

3. Press 【M】to play

Album

1. Press 【M】to show all the albums

2. Short press【/】buttons to select the album you want

Artists

1. Press【M】to show all the artists

2. Short press【/】buttons to select the artist

3. Press 【M】to confirm to show all the songs of this artist

4. Short press【/】buttons to select the song you want

5. Short press 【M】to play

Genre

1. Short press 【M】to show all the genres

2. Short press【/】buttons to select the genre

3. Short press 【M】to choose genre you want

Favourite

1.Short press【M】to show the items

2. Short press【/】buttons to select the item

Ⅰ.View favourite

II.Add favourite

III.Delete favourite

IV.Exit

Card folder

1.Short press 【M】to show all the folders in card

2. Short press【/】buttons to select the folder

3.Short press 【M】to show the files in the folder

Create playlist

Short press 【M】to create the playlist

Setting

Short press 【M】to show the items:

I. Repeat

1. Select Repeat and short press 【M】button to enter.

2. Short press【/】buttons to select your desired option (e.g. Normal, Repeat

one, Repeat All, Shuffle,Intro).

3. Short press 【M】button to confirm.

II. Equalizer

1. Select Equalizer and short press 【M】to enter.

2. Short press【/】buttons to select your desired option (e.g. Natural, Rock,

PoP, Classic, Soft, Jazz, DBB, SRS WOW(﹡)HD).

3. Short press M button to confirm.
