MP-Man TS200 Series Manuale utente

Instruction Manual

Please read this instruction carefully before the operation.

For Series

TS200

Video & MP3 Player

Page 2 Table Of Contents

Â



Package Contents ..........................................................................................................................5

Features ............................................................................................................................................5

 

 

Charging the Battery ......................................................................................................................7

Charging with a Computer ...........................................................................................................7

Turning the Player On/Off ..............................................................................................................7

Resetting the Player ........................................................................................................................8

Disabling the Controls (Hold) .........................................................................................................8



Main Menu Controls .......................................................................................................................9

 

Music Browser Controls .................................................................................................................10

Using the Quick Play List .................................................................................................... 11

Now Playing Controls (Music Playback) ..................................................................................... 11

Quick Option Menu ...........................................................................................................12

Page 3 Table Of Contents

 

Photo Browser Controls .................................................................................................................14

Photo Viewer Controls ..................................................................................................................15

 

Movie Browser Controls ................................................................................................................16

Movie Playback Controls ............................................................................................................. 17

 

Radio Tuning Controls ...................................................................................................................18

Quick Option Menu ...........................................................................................................19



Text Browser Controls ....................................................................................................................20

Text Reader Controls .....................................................................................................................20

Quick Option Menu ...........................................................................................................20



Explorer Controls ...........................................................................................................................22





Page 4 Table Of Contents

 

 



Page 5 Thank You

Â

Congratulations on your purchase of the Video & MP player. This manual is designed to help you easily

set up and begin using your new player right away. Please read this manual carefully and retain it for

future reference.

Package Contents

Please make sure that the items shown below are

included in the package. Should an item be miss-

ing, please contact the local retailer from which you

purchased this product.

Video & MP player

USB Cable

Instruction Manual & Documentation

Professional Stereo Earphones

This package may contain plastic bags or

other materials that pose a hazard to chil-

dren. Be sure to safely dispose of all pack-

ing materials after opening.

Features

Integrated ash memory

Full-color LCD display

Plays music, video, photos and text

ID and LRC support for song and synchronized

lyric information display

Integrated FM Radio

USB . Hi-speed for fast le transfers

Page 6 Controls At A Glance

Â



Top View

1. Enter/Powerbutton

Press to conrm a selection;

Press and hold to Power On/

Off the player.

<ENTER>

Side View

2. UpButton <UP>

3. DownButton <DOWN>

Front View

4. LCDtouchscreen

Tap the display with your nger to activate the

on-screen control.

5. Optionbutton <OPTION>

Bottom View

6. USBPort/Charge

7. 3.5mmHeadphoneJack

Rear View

8. ResetButton <RESET>

RESET

Page 7 Getting Started

Â

Charging the Battery

Your player has an integrated rechargeable battery.

Upon initial use, the battery should be charged fully

to ensure optimal performance and battery life.

If the player has not been used in a while, the

battery may need to be recharged overnight (about

 hours).

The battery used in this device may present

a re or chemical burn if mistreated. Do not

disassemble, incinerate, or heat the battery.

Do not leave the battery in a place subject

to direct sunlight, or in a car with its win-

dows closed.

Do not connect the player to a power source

other than that which is indicated here or on

the label as this may result in the risk of re

or electric shock.

Charging with a Computer

Your player can be charged through a USB com-

puter connection. Use the supplied USB cable to

connect the player to a high-power USB port of a

computer. The computer must be powered on and

not in sleep mode.

When the player is connected and charg-

ing, a USB symbol will be displayed on the

player’s screen.

Turning the Player On/O

To turn the player on, press and hold the

<ENTER> button until the screen turns on.

To turn the player o, press and hold the

<ENTER> button until the screen turns o.

Page 8 Getting Started

Resetting the Player

Reset the player if it should freeze and not respond

or otherwise malfunction.

1. Disconnect your player if it is connected to a

computer.

2. Use a paper clip to gently press the <RESET>

button located on the bottom of the player.

Using the Touchscreen Controls

Your video MP player comes equipped with an

easy-to-use touchscreen which allows access to the

player’s functions. Use your nger tip or a stylus to

tap the area of the screen where a control icon is

displayed. If you tap and hold an icon, it will register

as a continuous button press.

To avoid damaging the screen, do not

touch it with excessive force or with

any object other than your nger or the

stylus. For best response, make sure

your hands are clean before using the

touchscreen controls.

Page 9 Main Menu

Â

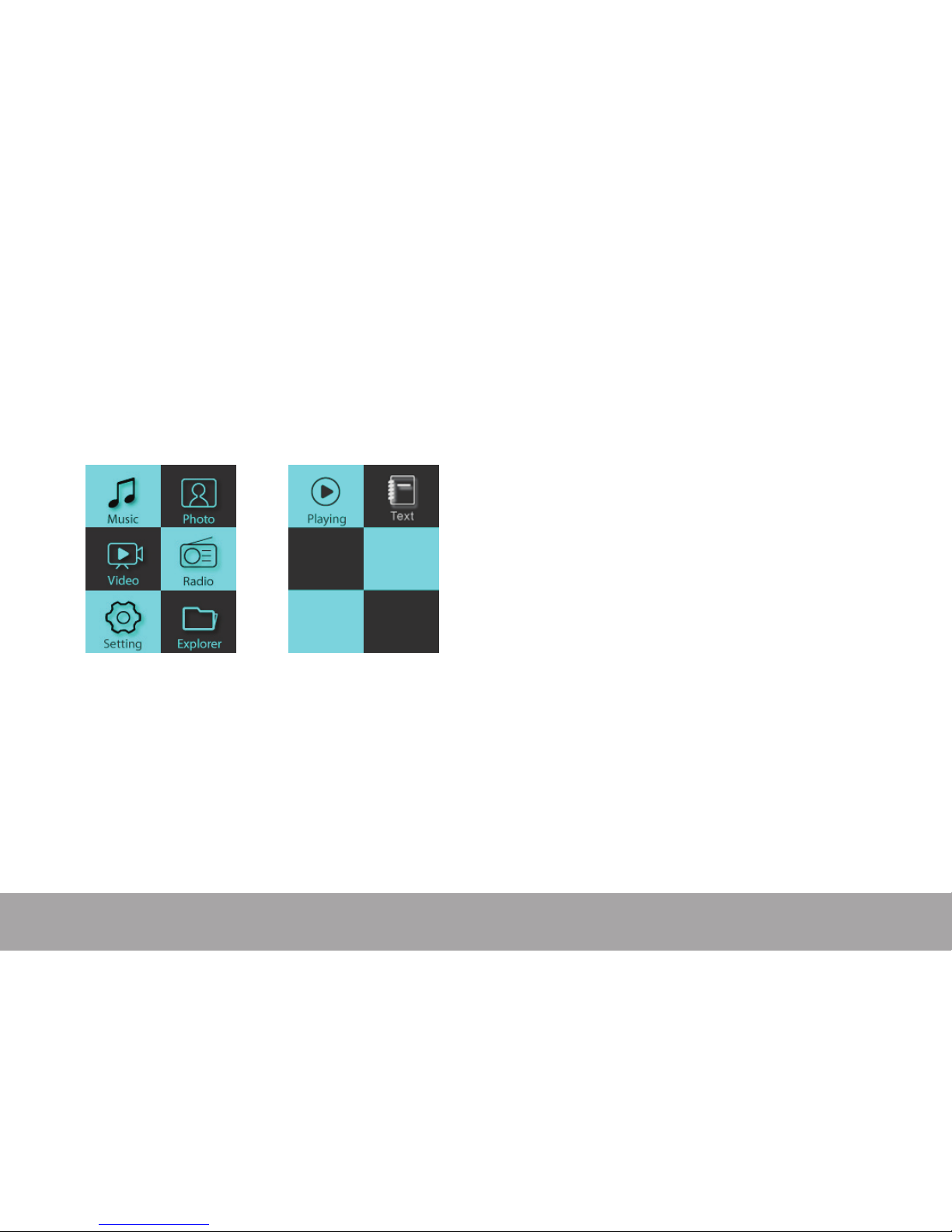

When you turn on the player, you will see the Main

menu. The Main menu gives you access to the dier-

ent function modes of your player. These modes are:

Music: Browse and play music.

Photo: Browse and view Photo.

Video: Browse and play Video.

Radio: Listen to FM radio broadcasts.

Setting: Adjust the player’s options.

Explorer: Browse all les.

Playing: Return to the Now Playing screen.

Text: Browse and read text les.

Main Menu Controls

Each function mode is represented by an icon on

the Main Menu screen.

To enter a mode, tap the icon with your nger.

To scroll the screen and display other menus,

slide your nger on the screen left or right.

You may also use the player’s standard controls to

access each mode:

To browse through the dierent modes, press

<UP> or <DOWN>.

To select a mode, press the <ENTER> button.

Page 10 Music Mode

Â

Browse for and play your music les.

Music Browser Controls

When you choose MUSIC mode from the Main

menu, you will see the Music Browser screen. You

can choose to browse your music by song name, al-

bum, artist, or genre, or you may choose “Explorer”

to view the music les and folders on the player.

Function Key Action

To browse through the list Press <UP> or

<DOWN>

To select an item Press <ENTER>, or tap

the desired selection on

the LCD screen.

To return to the previous screen Press <OPTION>

If your music les contain ID3 song infor-

mation tags, you will be able to view your

tracks by Artist, Album, or Genre. To view

all les (including those that do not contain

ID3 information), select “Explorer” option.

If music is already playing, you will have

the additional option to return to the Now

Playing screen.
