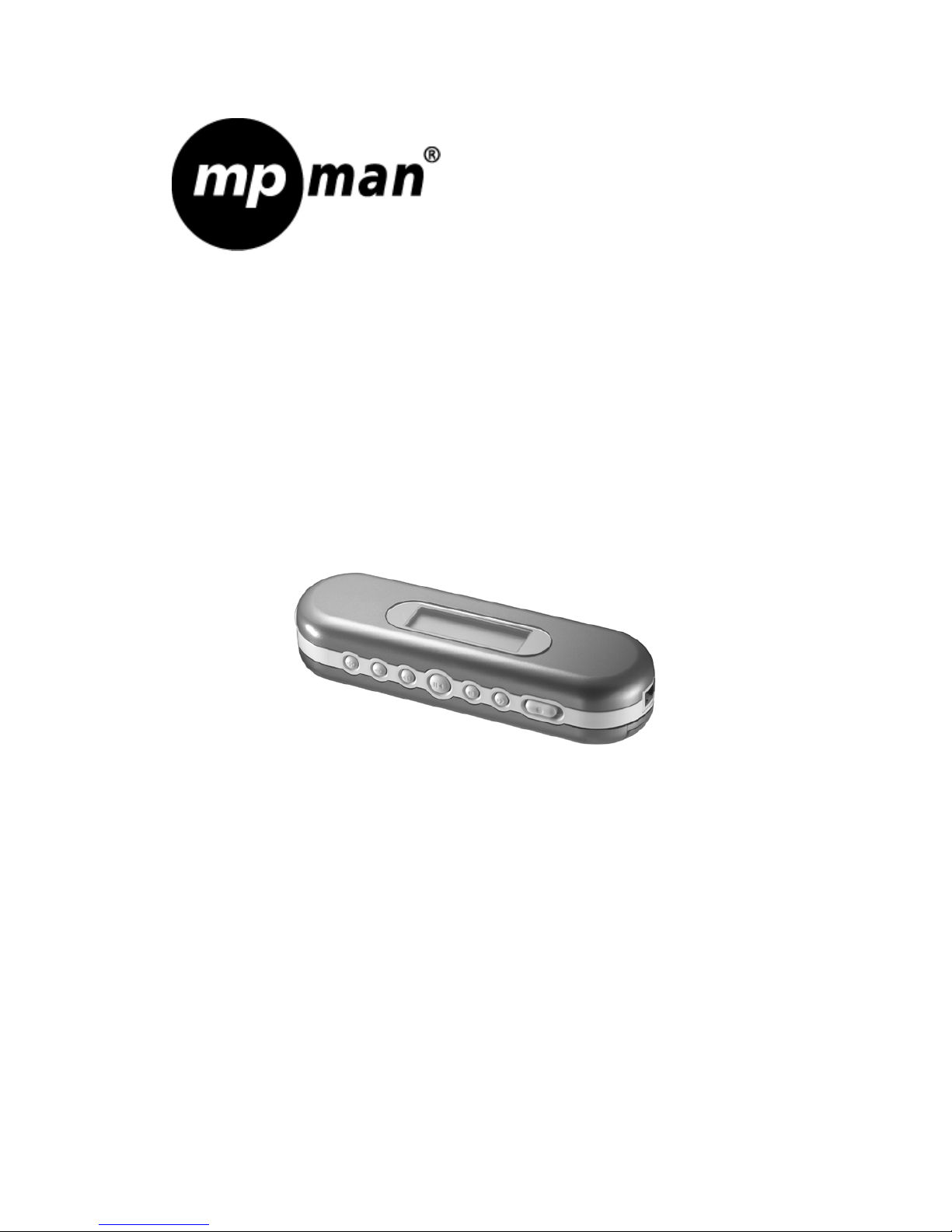

MP-Man MP-F1000 Manuale utente

MP-F1000

Digital Audio Player

- Instruction Manual

Index 

Brief Introduction

Introduction 2

Key Features 2

Packaging Contents 2

Installing the Battery 2

Parts Description 3

Downloading and Transferring Files

USB Driver Installation 4 - 6

Transferring Files 7

Safely Remove Hardware Procedure 8

Operation

Listening to Music 9

Controls 9

Key Functions 9

LCD Screen 9

Additional Information

Precautions 10 -11

Troubleshooting 12

Technical Specifications 13

Care and Maintenance 14

Brief Introduction

DIGITAL AUDIO PLAYER (DAP)

Thank you for purchasing our DAP. Selecting fine audio equipment such as the unit you have

just purchased is only the start of your musical enjoyment. Now it is time to consider how you

can maximize the fun and excitement your equipment offers. This manual provides detailed

operation instructions and features of the unit. Please read this manual carefully before using

this product for the first time.

KEY FEATURES

- Multi-format player supports: MP3, WMA, and WAV files.

- USB data transfer.

- Supports for Windows ME, 2000, XP and Mac OSX.

- Supports Windows 98SE (Driver is required - see “Downloading and Transferring Files”).

- Full Graphic LCD display.

- Battery level indication.

PACKAGE CONTENTS

The packaging should include the following accessories:

- MP-F1000 Player

- USB Cable

- CD-ROM

- Stereo Earphones

INSTALLING THE BATTERY

Slide open and remove the battery compartment door. Insert the 1 x AAA Alkaline battery

with the correct polarity as shown. Close the battery compartment door.

- To avoid battery leakage or corrosion, remove the battery from the player if the player is

not to be used for a long time.

- Remove dead battery from the player immediately to avoid damaging the player.

- When corrosion occurs, wipe the battery compartment immediately with a dry cloth and

insert a new battery.

PARTS DESCRIPTION

Downloading and Transferring Files 

SYSTEM REQUIREMENTS

For Windows 2000, ME or XP:

These versions of Windows will automatically detect your Player after connecting with the USB

cable and the computer. These versions are also compatible with the Napster software

included on the CD.

Installation Procedures for the Player Software

(For Windows 98SE only)

When connecting the player to the computer for the first time, please follow these instructions:

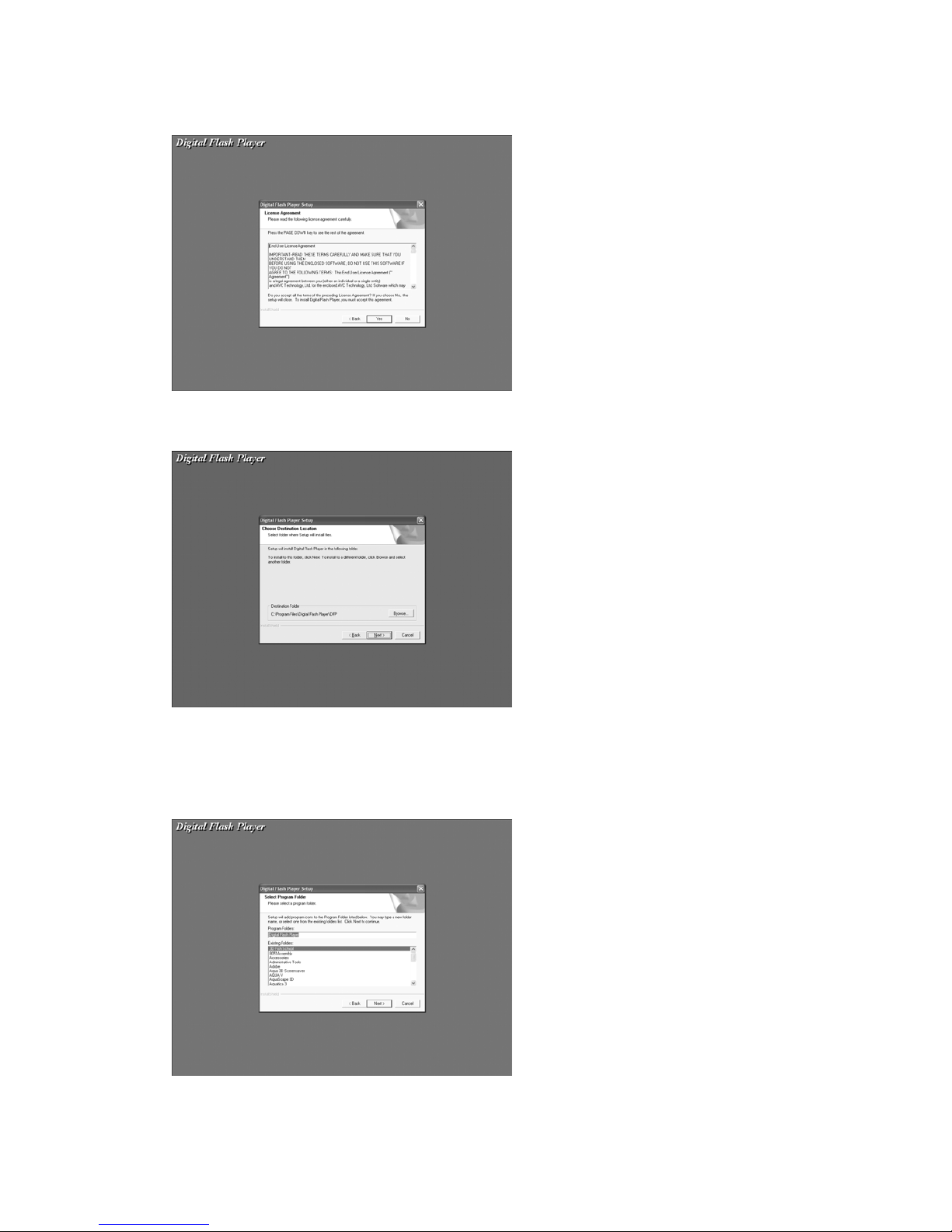

1. Insert the CD-ROM into the CD Drive. The auto-run program will display as shown

(Figure 1).

Remarks: If the setup does not start automatically, please run the setup.exe in your CD-ROM

drive directory. Double click “setup.exe” in the installation CD.

2. Follow the on screen instruction to install the software.

Click “Yes” to accept the License Agreement.

Please install the software under the directory as prompted.

Warning: DO NOT change the installation path. Otherwise, the Player driver may not run

properly.

Click “Next” as prompted.

3. After successfully installing the driver software, please click “Finish” to complete the

installation.

4. When the installation is completed, the new program will be added to your Program

menu in the computer.

TRANSFERRING FILES

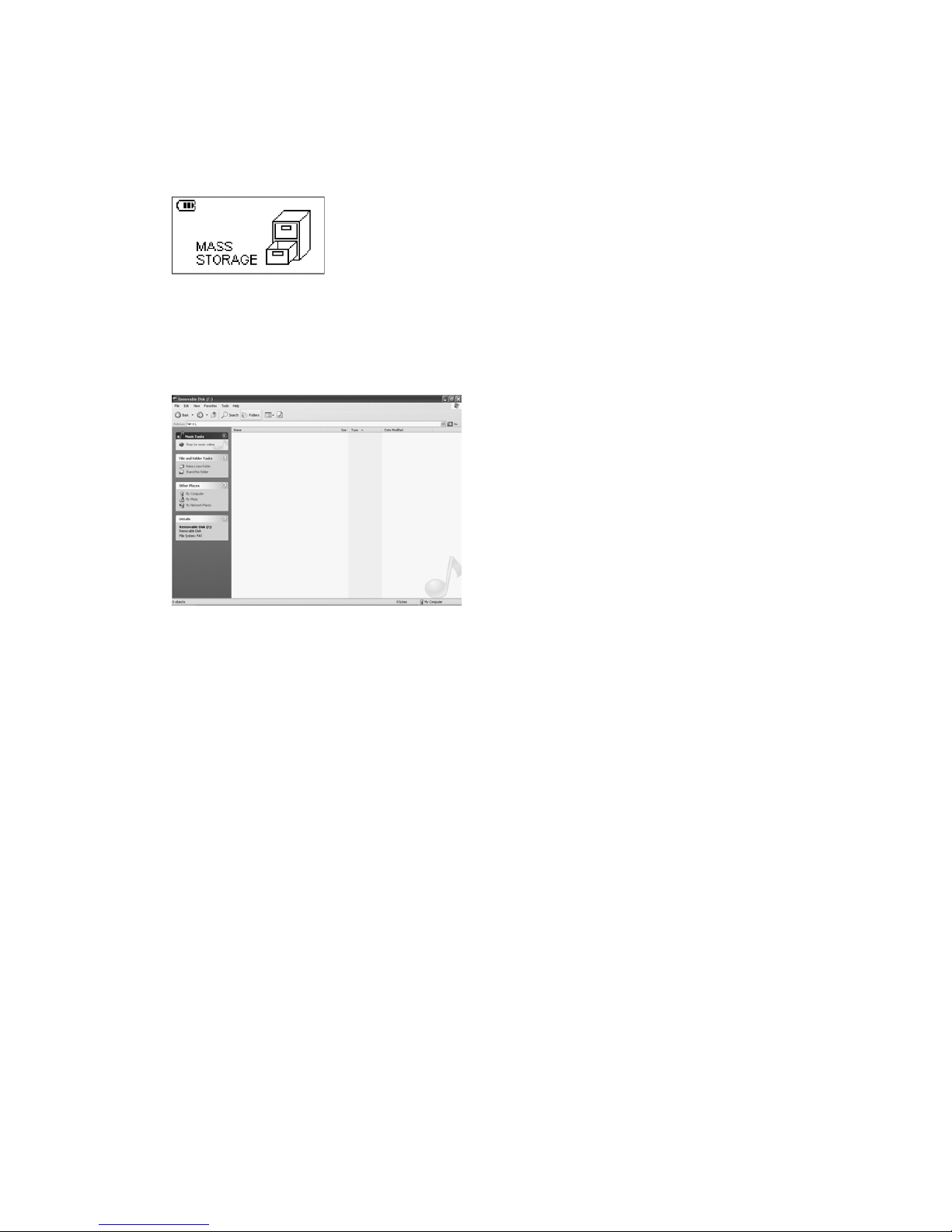

Connect the player to the computer by using the supplied USB cable. The player will

automatically turn on. The following will be displayed in the LCD screen of your player:

A “Removable Disk” will be added on your computer. Open the “Removable Disk” folder:

Locate the files you wish to copy from your computer to your player. Drag and drop MP3,

WMA or WAV files on your computer into the “Removable Disk” folder. These files will now be

copied into your player.

Note: When you are finished transferring files, use the Safely Remove Hardware procedure

before disconnecting your player. (Please see the “Safely Remove Hardware Procedure”

section for detailed instructions.)

SAFELY REMOVE HARDWARE PROCEDURE

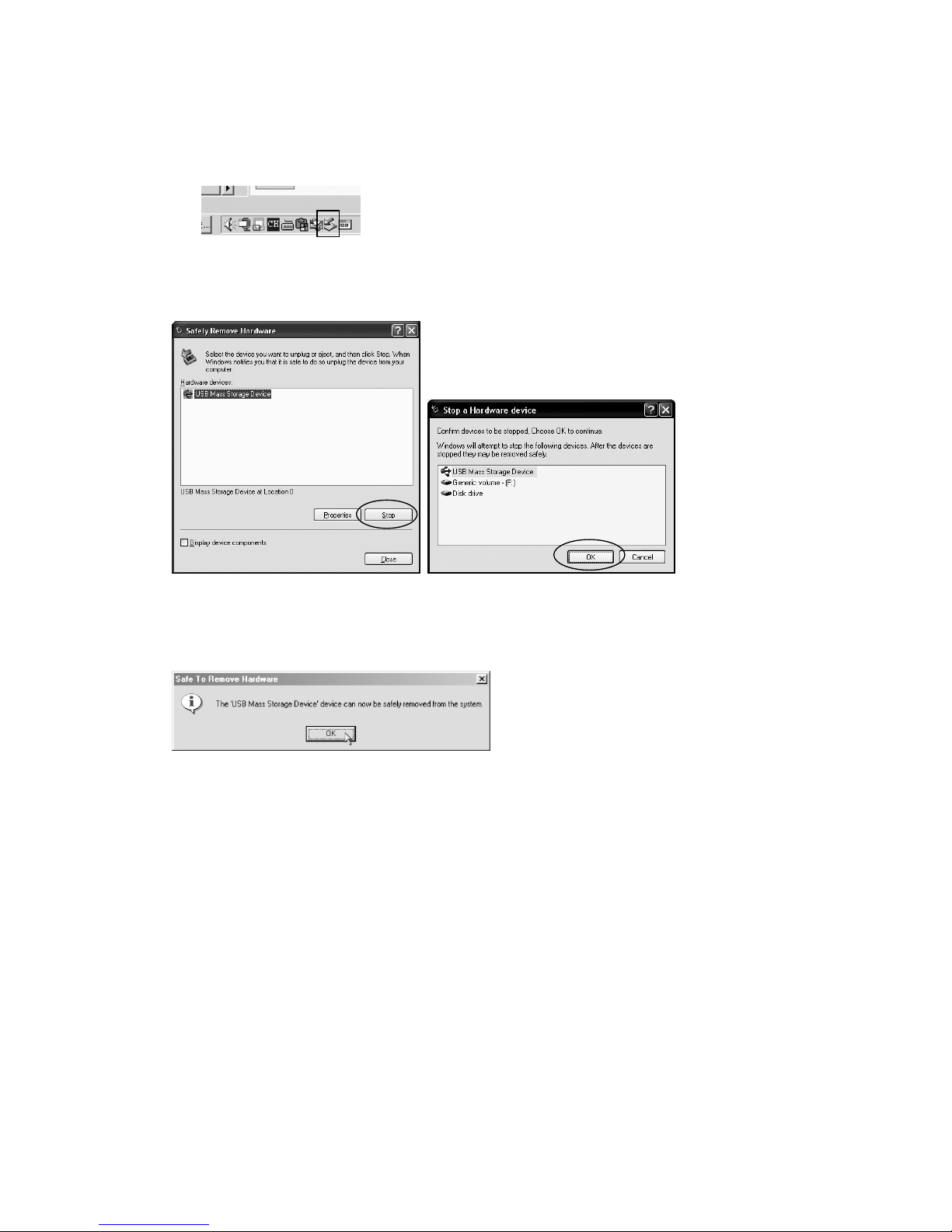

1. Double click the “Safely Remove Hardware” icon on the task bar:

2. From the “Safely Remove Hardware” window, select “USB Mass Storage Device” and click

the “Stop” button. The “Stop a Hardware Device” window will pop up as shown:

3. Click “OK”. A “Safe to Remove Hardware” window will pop up. Now, it is safe to remove

the USB Cable and the player from the computer.

Remarks: If the “Safely Remove Hardware” icon is not displayed on the task bar, please

double click on the My Computer. Right click on “Removable Disk”, left click on “eject”.

Then it is safe to remove the player from the computer.

Operation

LISTENING TO MUSIC

After transferring MP3, WMA or WAV files from the computer to your player, you can start

listening to the music while you learn how to use the rest of the features.

Insert the earphones into the earphone jack of the player; press the fII button to turn the

player on. The first song will immediately begin to play.

Controls

Key Functions

Slide the button to the left to lock all keys.

Slide the button to the right to unlock all keys.

Press the button to select the previous file or track.

Press and hold the button to fast rewind.

Press and hold to turn off the power.

Press to stop.

Press and hold to turn on the power.

Press to play or pause.

Press the button to select the next file or track.

Press and hold the button to fast forward.

Press the button to decrease the volume.

Press and hold the button to decrease the volume rapidly.

Press the button to increase the volume.

Press and hold the button to increase the volume rapidly.

LCD Screen
