MP-Man MP-F62 Manuale utente

DIGITAL MUSIC PLAYER

MP3&WMA

USER MANUAL

MP-F62

www.mpmaneurope.com

_________________________________________________________________________________________________________________________________________________________________

Before connecting, operating or adjusting this product please read these

instructions completely.

UP TILL 99 SONGS IN ONE DIRECTORY

YOUR MP-F62 ACCEPTS

UPTILL 99 SONGS IN ONE DIRECTORY

IF YOU WANT MORE THEN 99 SONGS,

STORE THEM IN A NEW DIRECTORY

IN PLAY MODE, YOU CAN CHANGE THE DIRECTORY

IN THE MENU.

DON’T FORGET: MAXIMUM 99 SONGS IN EACH DIRECTORY

1.1The player characteristics

♠Supports MP3 and WMA music format.

♠Supports USB function

♠Supports two lines of lyrics display synchronization

♠Big display (128*32) LCD display

♠Supports Firmware upgrade function

♠Voice equalizer

♠GUI (graphical user interfaces).

The box:

(1) MP3 player 1Pcs

(2) Stereo earphone 1Pcs

(3) CD ROM 1Pcs

(4) Manual 1Pcs

(5) USB cable 1Pcs

PC needs

(1) Pentium 100 MHz or faster

(2) Windows 98/2000/ ME/XP

(3) USB port

(4) CD- ROM driver

(5) 15MB of free space on harddisk

(6) 32 MB RAM

1.2 The player appearance interface

1.3 Figure & Keys

1) REC,

2) Menu,

3) F.FWD / Next,

4) Vol -,

5) F.REV / Previous,

6) Play/Pause,

7) Vol+,

8) LCD,

9) Earphone,

10) USB Port,

11) Cord Hole,

12) Mic,

13) Power ON/OFF,

14) Push button of USB Port,

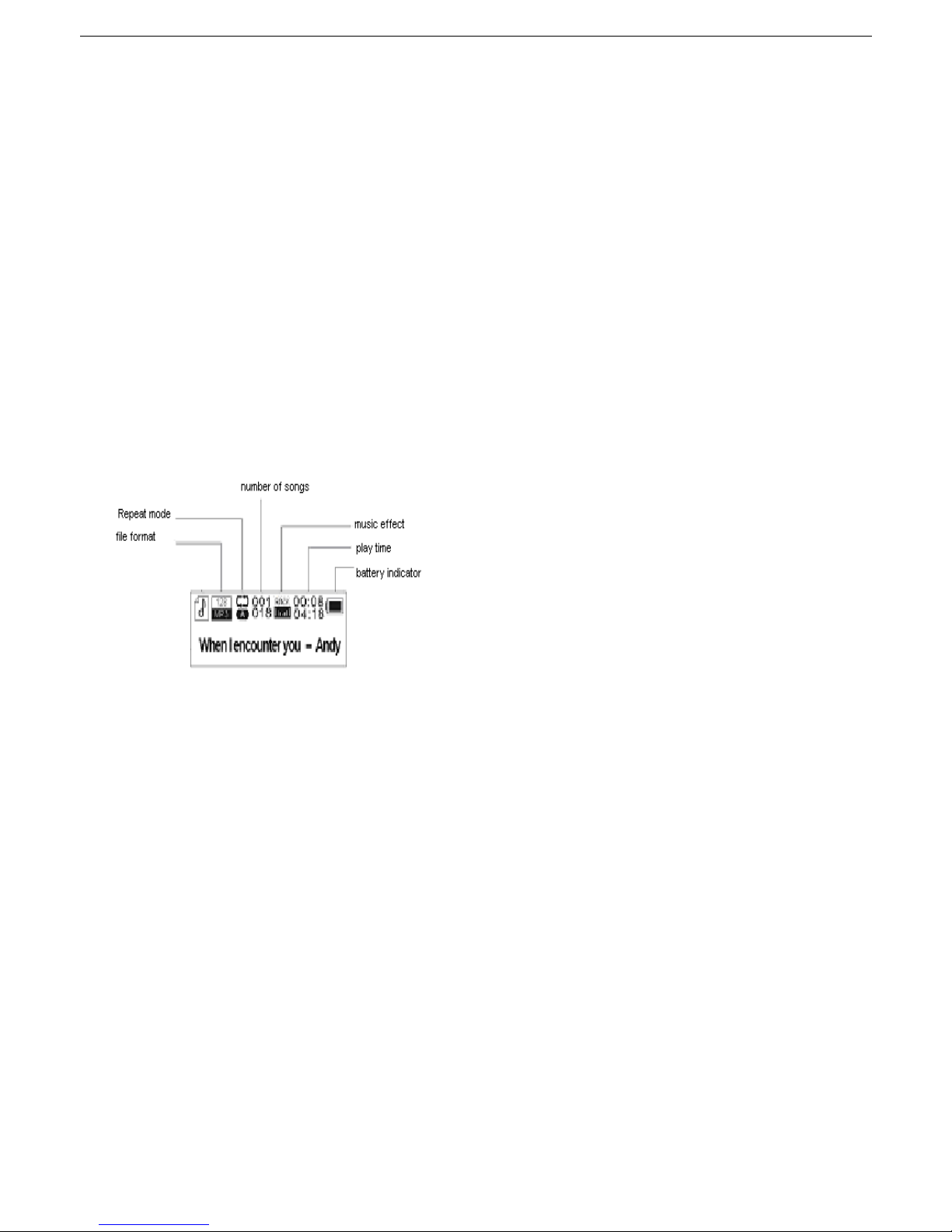

1.4 Display

This player adopts big LCD of 128*32 lattice

1.5 Battery

The screen shows a battery indicator with nine levels.

The battery is full when the battery voltage is 1.5V.

The battery indicator will be empty when the battery is used up. At that time,

the player should be charged with an external charger(optional) or with

the USB connection on your PC

2 Operating instruction

2.1 Turning on/off the MP3 player

Slide switch (13) to the right. The LCD display will light up.

Slide switch (13) to the left. The MP3 player will shut off.

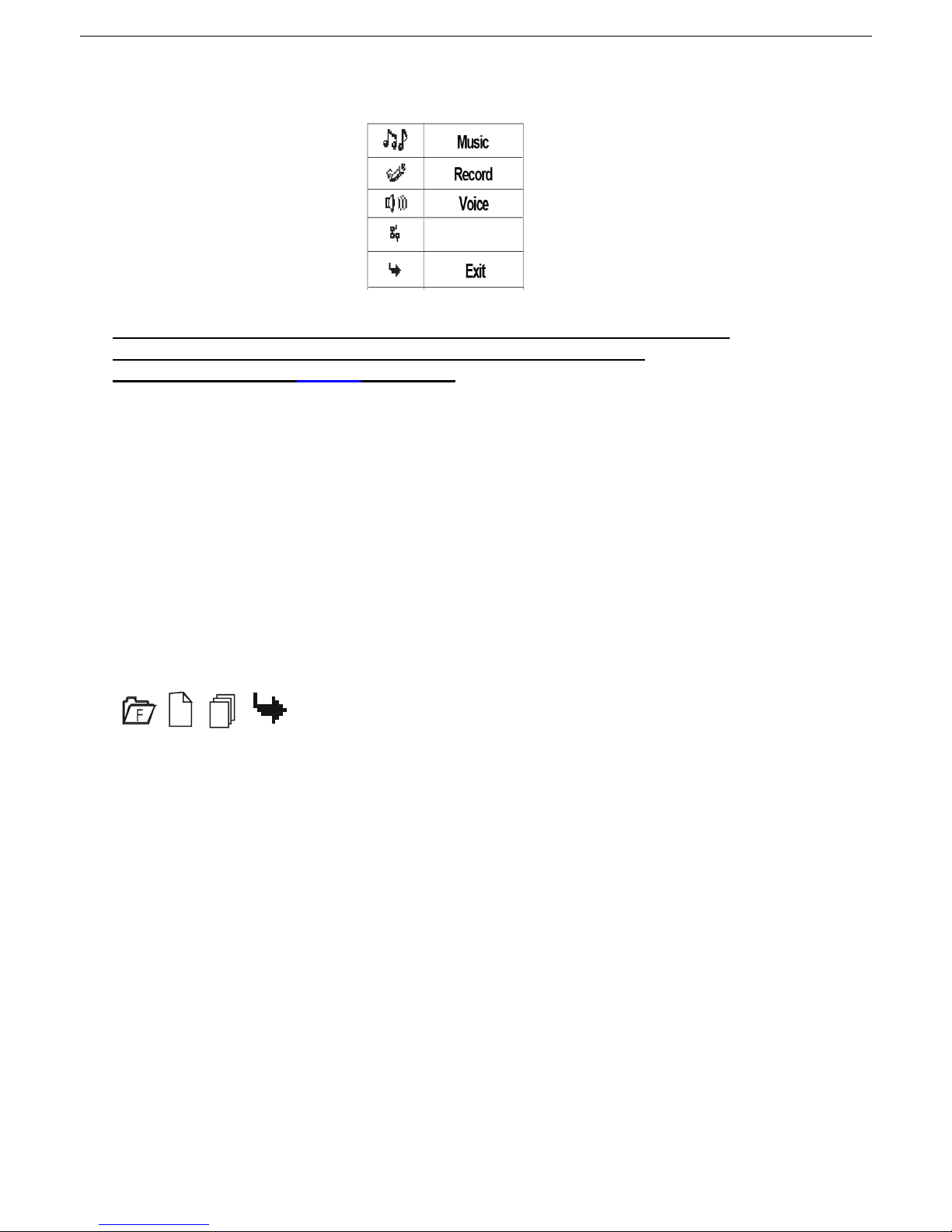

2.2 Main menu

Press the “Menu” button for several seconds, from any point in the menu,

and the player returns automatically back to the main menu.

Five options:

1) MUSIC

2) RECORD

3) VOICE

4) SETTING

5)EXIT

You can switch between options by press the “F.FWD” or “F.REV” button

“”or “”. Then press shortly on the “Menu” button to

enter the submenu or confirm a function.

2.3 “Music” mode

Select “Music” mode in the main menu.

2.3.1 Stop submenu

Press "Menu" button once to enter the stop submenu.

Four options:

- Local Folder

- Delete file

- Delete all

- Exit

2.3.1.1 Local folder

主盘目录

Files can be stored in different folders.

Create new folders in Windows explorer when MP3 is connected.

Open “external drive”.

Create new folder

- Press "Menu" button to open Local folder

- Press “F.FWD” or “F.REV” button to select the catalog

- Press “Menu” button to confirm

2.3.1.2 Delete file

2.3.1.3 Delete all

Deletes all files of the current catalog

Local folder

Settin

2.3.2 Play submenu

During playback, press "Menu "button to enter "Play submenu “:

Six options:

- Repeat

- Equalizer

- Tempo Rate

- Replay

- Replay times

- Replay gap

- Exit

2.3.2.1 Repeat

Normal All songs are

played once

Repeat

One

Repeats the

current song

Folder Plays all the music

of a specific folder

Repeat

Folder

Repeats the music

of a specific folder

Repeat

All

Repeats all the

music.

Random

Plays music at

random.

Intro

First 10 seconds

of each song is

played.

2.3.2.2 Equalizer

Seven options:

- Natural

- Rock

- Pop

- Classic

- Soft

- Jazz

- DBB

2.3.2.3 Tempo Rate

The music can be played faster or slower (only with MP3 files)

Change the rate by Press “F.FWD” or “F.REV” button.

2.3.2.4 Replay mode

A-B replay

When replay mode is selected, the A-B icon is visible .

Select the start point A (flashing) by press “F.FWD” button.

Select the end point B (flashing) by press “F.FWD” button.

The A-B section will be repeated continuously

Press “Menu” button to return to normal playback

-During replay, the play-rate can be changed with VOL+ or VOL-".

- Adding your voice to the A-B section

During playback of the A-B section, by press “F.FWD” button

The microphone icon appears and your voice is recorded.

Press “Menu” button again to stop the recording.

The A-B section + the voice recording will be repeated

2.3.2.5 Replay times

Here you are able to choose how many times (1-10) the A-B section

will be repeated.

2.3.2.6 Replay gap

Choose the time (1-10 sec) between each A-B section.

2.3.3 Lyrics

This MP3 player supports "*. lrc "Lyric files

Lyrics can be downloaded from the Internet.

Make sure that lrc-file has the same name as the corresponding song.

For example:

If the song name is “Yesterday.mp3 “, the lyric file should be

named “Yesterday.lrc”

MP3 and LRC file must be stored in the same folder!

No Lyric

Lyric included

Attention: A lyric cannot be larger then 500 words.

2.4 Record mode

-Select "Record mode " in the main menu.

The unit can store 99 recordings in each folder.

- Press “PLAY” button to start recording.

- Press “PLAY” button again to pause the recording (Time flashes).

- Press “PLAY” again to continue recording.

- Press and hold the “PLAY” button to stop recording.

2.4.1 Record submenu

In the Record mode, press menu button once

3 options:

- Local folder

- REC type

- Exit

2.4.1.1 Local folder

cfr 2.3.1.1

2.4.1.2 REC type

Four options:

- “Fine REC”: high quality recording, wav format, good quality.

- “Long REC”: lower quality recording, act format, uses less space

- “Fine VOR”: wav format

- “Long VOR”: act format

When using “VOR recording”, the player enters into the

state of “pause recording” if no sound is detected

by the microphone. Recording starts again when sound is detected.

2.5 Voice mode

In this mode you can listen to the recordings created in “Record mode”

Select in the main menu "Voice mode ".

2.5.1 Voice stop submenu

When playback is stopped, press “Menu” button to enter the Voice submenu.

2.5.1.1 Local folder (Stop submenu)

cfr 2.3.1.1

2.5.1.2 Delete file (Stop submenu)

2.5.1.3 Delete all (Stop submenu)

Deletes all files of the current catalog

2.5.2 Voice play submenu

During playback, press “Menu” button to enter the Voice play submenu.

4 options: - Repeat

-Temporate

-Replay

-Exit

Those options are similar to the music play submenu

2.6 Systems set up

Select “System” in the main menu

- Record Time

- Backlight

- Language

- Power off

- Replay mode

- Contrast

- Memory info.

- Firmware version

- Exit

2.6.1 Record Time

Enter here the correct date and time.

Press VOL+ button and the year- number will start flashing.

Change the year number by Press “F.FWD” or “F.REV” button

Press again VOL+ button and the months will start flashing flashing….

When date and time are correct, press menu button to confirm.

2.6.2 Backlight

Adjust the backlight intensity between 0 and 30,

by pressing “F.FWD” or “F.REV” button

Press “Menu” Button to confirm

2.6.3 Language

Change the language by pressing “F.FWD” or “F.REV” button

Press Menu button to confirm.

2.6.4 Power off

- Off time

With this function the device will automatically shut down after a preset time. (0-60sec), when no

button is touched and music is not playing.

If time is set at 0 seconds, the function is cancelled.

- Sleeping mode

With this function the device will always shut down after a preset time (0-120 min).

If time is set at 0, the function is cancelled.

When the device is powered off, sleeping mode is set at 0.

2.6.5 Replay

Manual replay or auto replay

2.6.6 Contrast

Change contrast by pressing “F.FWD” or “F.REV” button

Press “Menu” button to confirm.

2.6.8 Memory info

Gives a percentage of the used memory compared to the total memory size

2.6.9 Firmware version

Info about software version

2.7 USB disk use

The unit functions as a standard USB disk with most operating systems.

- Windows98 (driver needed)

- Above Windows 2000 (no need to install driver)

When connected with PC (battery not needed), the device can be

in 3 different modes

- “wait” mode

- “download data” mode

- “ send data” mode

Attention: Removing the device from the PC during data transfer

can cause severe damage to the device!

2.8 Specification

(1) FLASH Memory 128MB, 256MB, 512MB, 1GB

(2) music format. MP3, WMA, WAV

(3) liquid crystal display monitor 128× 32 lattices

(4) Display Color One color

(5) Languages English, French, Italian, German,

Spanish, Swedish, Dutch, Czech, Portugal.

(6) Power supply 3.8v Rechargeable Lithium battery

(7) USB2.0 (Read 1033K Byte/S,

Write 955K Byte/S)

(8) recording WAV (32K bps), ACT (8K bps)

(9) frequency response 20Hz~20KHz

(10) distortion < 0.1%

(11) baud rate >4Mbps

(12) weight 35g

(13) size 80mm x 31mm x 12mm (L x W x D)

2.9 Troubleshooting

If for any reason your player is blocked, you can reset the firmware

You just have to switch it off and back on. Reset is automatic at startup.

FOR MORE INFORMATION DO NOT HESITATE TO VISIT OUR WEBSITE

www.mpmaneurope.com
