MP-Man MP- F59 Manuale utente

DIGITAL MUSIC PLAYER

MP3&WMA

USER MANUAL

MPF-59

www.mpmaneurope.com

___________________________________________________________________

Before connecting, operating or adjusting this product please read these

instructions completely.

UP TILL 99 SONGS IN ONE DIRECTORY

YOUR MP-F59 ACCEPTS

UPTILL 99 SONGS IN ONE DIRECTORY

IF YOU WANT MORE THEN 99 SONGS,

STORE THEM IN A NEW DIRECTORY

IN PLAY MODE, YOU CAN CHANGE THE DIRECTORY

IN THE MENU.

DON’T FORGET: MAXIMUM 99 SONGS IN EACH DIRECTORY

1.1The player characteristics

♠Supports MP3 and WMA music format.

♠Supports USB function

♠Supports two lines of lyrics display synchronization

♠Big display (128*32) LCD display

♠Supports Firmware upgrade function

♠Voice equalizer

♠GUI (graphical user interfaces).

The box:

(1) MP3 player 1Pcs

(2) Stereo earphone 1Pcs

(3) CD ROM 1Pcs

(4) Manual 1Pcs

(5) USB cable 1Pcs

PC needs

(1) Pentium 100 MHz or faster

(2) Windows 98/2000/ ME/XP

(3) USB port

(4) CD- ROM driver

(5) 15MB of free space on harddisk

(6) 32 MB RAM

1.2 The player appearance interface

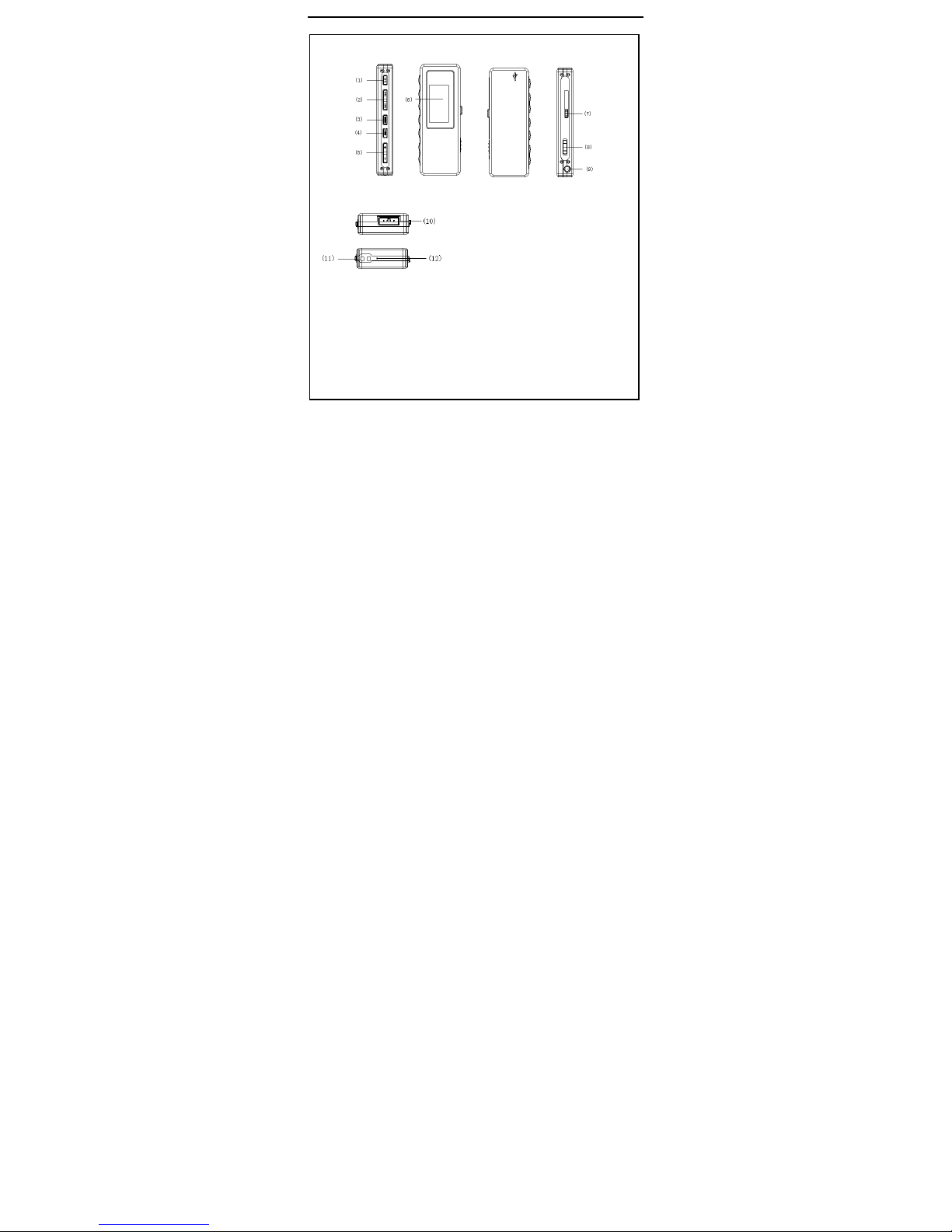

1.3 Figure & Keys

1) Play/Pause

2) F.FWD/F.REV, Previous/Next,

3) Menu,

4) REC,

5) Vol+/-,

6) LCD,

7) Push button of USB Port,

8) Power ON/OFF

9) Earphone,

10) USB Port,

11) Cord Hole,

12) Mic

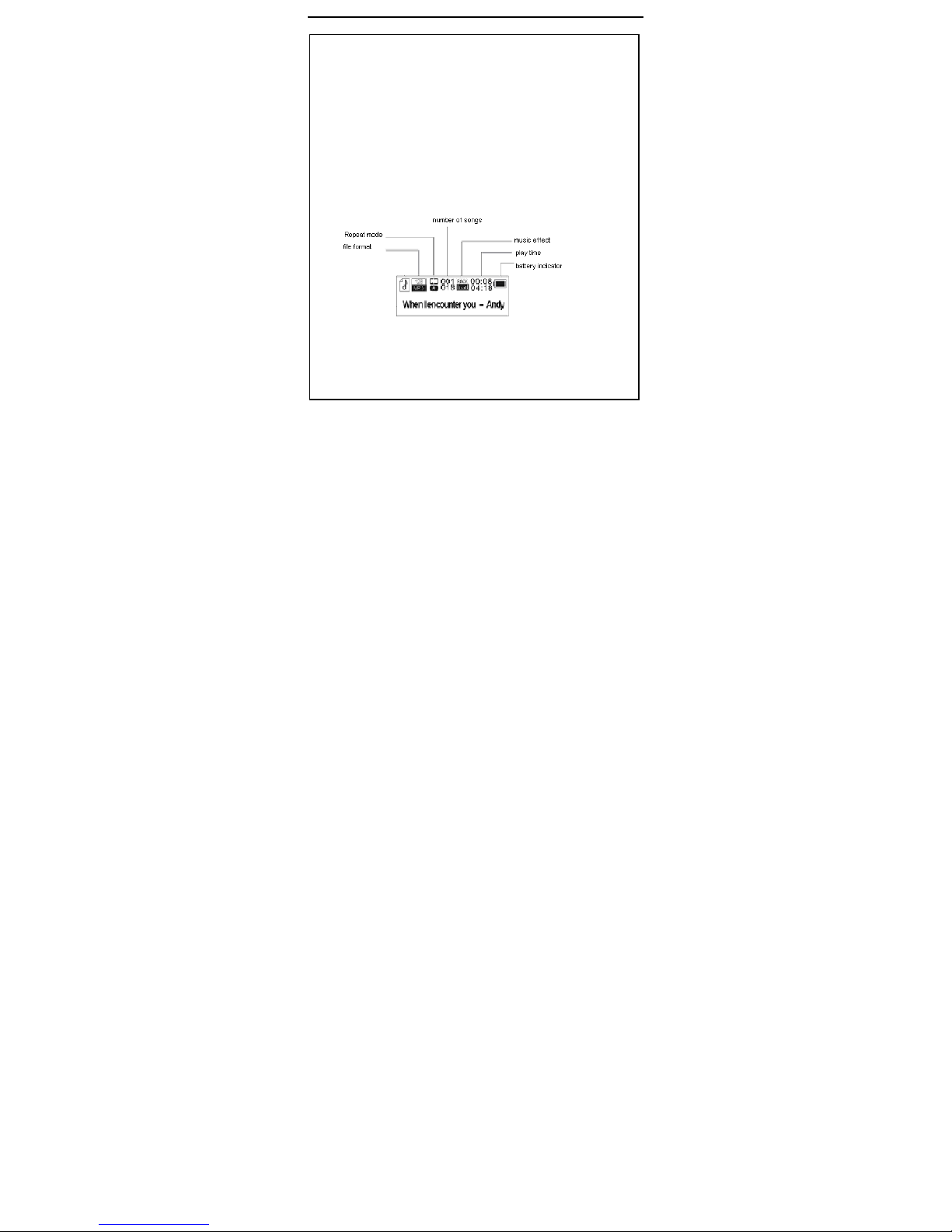

1.4 Display

This player adopts big LCD of 128*32 lattice

1.5 Battery

The screen shows a battery indicator with nine levels.

The battery is full when the battery voltage is 1.5V.

The battery indicator will be empty when the battery is used up. At that time,

the player should be charged wit an external charger(optional) or withh

the USB connection on your PC

2 Operating instruction

2.1 Turning on/off the MP3 player

Slide switch (8) to the right. The LCD display will light up.

Slide switch (8) to the left. The MP3 player will shut off.

2.2 Main menu

Press the “Menu” button for several seconds, from any point in the menu,

and the player returns automatically back to the main menu.

Five options:

- 1) MUSIC

- 2) RECORD

- 3) VOICE

- 4) FM

- 5) SYSTEM

You can switch between options by press the “F.FWD” or “F.REV” button

“”or “”. Then press shortly on the “Menu” button to

enter the submenu or confirm a function.

2.3 “Music” mode

Select “Music” mode in the main menu.

2.3.1 Stop submenu

Press "Menu" button once to enter the stop submenu.

Four options:

- Local Folder

- Delete file

- Delete all

- Exit

2.3.1.1 Local folder

主盘目录

Local folde

Files can be stored in different folders.

Create new folders in Windows explorer when MP3 is connected.

Open “external drive”.

Create new folder

- Press "Menu" button to open Local folder

- Press “F.FWD” or “F.REV” button to select the catalog

- Press “Menu” button to confirm

2.3.1.2 Delete file

2.3.1.3 Delete all

Deletes all files of the current catalog

2.3.2 Play submenu

During playback, press "Menu "button to enter "Play submenu “:

Six options:

- Repeat

- Equalizer

- Tempo Rate

- Replay

- Replay times

- Replay gap

- Exit

2.3.2.1 Repeat

Normal All songs are played once

Repeat One Repeats the current song

Folder Plays all the music of a specific folder

Repeat Folder Repeats the music of a specific folder

Repeat All Repeats all the music.

Random Plays music at random.

Intro First 10 seconds of each song is played.

2.3.2.2 Equalizer

Seven options:

- Natural

- Rock

- Pop

- Classic

- Soft

- Jazz

- DBB

2.3.2.3 Tempo Rate

The music can be played faster or slower (only with MP3 files)

Change the rate by Press “F.FWD” or “F.REV” button .

2.3.2.4 Replay mode

A-B replay

When replay mode is selected, the A-B icon is visible .

Select the start point A (flashing) by press “F.FWD” button.

Select the end point B(flashing) by press “F.FWD” button .

The A-B section will be repeated continuously

Press “Menu” button to return to normal playback

-During replay, the play-rate can be changed with VOL+ or VOL-".

- Adding your voice to the A-B section

During playback of the A-B section, by press “F.FWD” button

The microphone icon appears and your voice is recorded.

Press “Menu” button again to stop the recording.

The A-B section + the voice recording will be repeated

2.3.2.5 Replay times

Here you are able to choose how many times (1-10) the A-B sectionHere you are able to choose how many times (1-10) the A-B section

will be repeated.will be repeated.

2.3.2.6 Replay gap2.3.2.6 Replay gap

Choose the time( 1-10 sec) between each A-B section.

2.3.3 Lyrics2.3.3 Lyrics

This MP3 player supports "*. lrc "Lyric filesThis MP3 player supports "*. lrc "Lyric files

Lyrics can be downloaded from the internet.Lyrics can be downloaded from the internet.

Make sure that lrc-file has the same name as the corresponding song.Make sure that lrc-file has the same name as the corresponding song.

For example:For example:

If the song name is “Yesterday.mp3 “, the lyric file should beIf the song name is “Yesterday.mp3 “, the lyric file should be

named “Yesterday.lrc”named “Yesterday.lrc”

MP3 and LRC file must be stored in the same folder!MP3 and LRC file must be stored in the same folder!

No Lyric

Lyric included

Attention: A lyric can not be larger then 500 words.

2.4 Record mode

-Select "Record mode " in the main menu.

The unit can store 99 recordings in each folder.

- Press “PLAY” button to start recording.

- Press “PLAY” button again to pause the recording (Time flashes).

- Press “PLAY” again to continue recording.

- Press and hold the “PLAY” button to stop recording.
