MP-Man MP-FUB 31 Manuale utente

DIGITAL MUSIC PLAYER

MP3&WMA

USER MANUAL

MP-FUB 31

www.mpmaneurope.com

___________________________________________________________________

Before connecting, operating or adjusting this product please read these

instructions completely.

- 1 -

The player characteristics

♠Supports MP3 and WMA music format.

♠Supports stereo FM radio

♠Supports USB function

♠Supports two lines of lyrics display synchronization

♠Big display (128*32) LCD display

♠Seven colors display

♠Supports Firmware upgrade function

♠Voice equalizer

♠GUI (graphical user interfaces).

Insidethebox:

(1) MP3 player one

(2) Stereo earphone one pair

(3) Installation disk one

(4) User’s manual one

(5) USB cable one

(6) Battery 1.5V/”AAA” one

PCneeds

(1) Pentium 100 MHz or faster

(2) Windows 98/2000/ ME/XP

(3) USB port

(4) 4 X CD- ROM driver or higher

(5) 15 MB of free space on harddisk

(6) 32 MB system memory

- 2 -

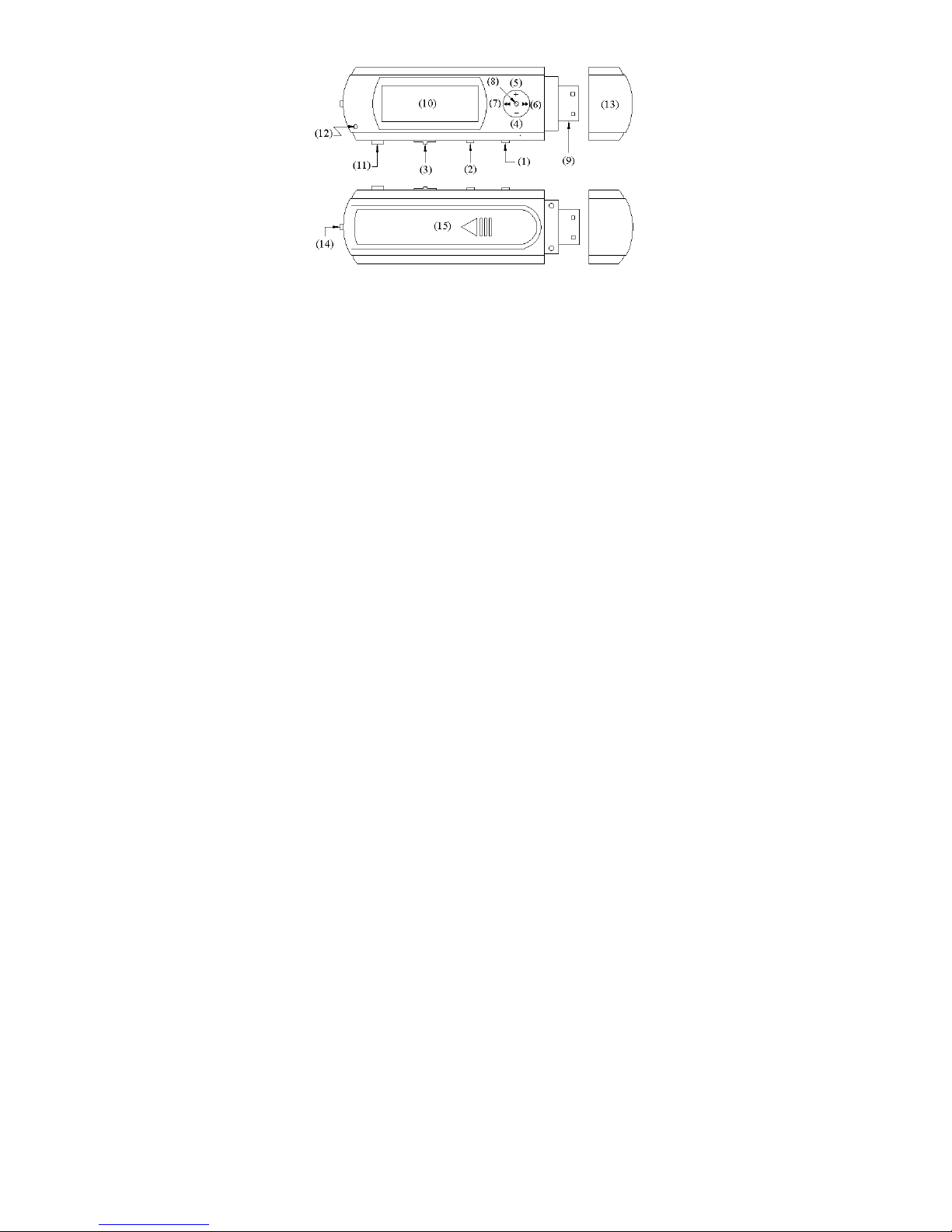

1.1 The player appearance interface

1.2 The buttons

(1) PLAY “” ⇒OPEN/PLAY/PAUSE/STOP/POWER OFF

(2) “REC” ⇒Rec/A-B

(3) “HOLD” ⇒Keyboard lock switch

(4) “VOL-”⇒Volume decrease/fast decrease

(5) “VOL+”⇒Volume increase/fast increase

(6) “” ⇒NEXT/FWD

(7) “” ⇒PREV/REV

(8) “MODE” ⇒Switch modes, menu selection by pressing on button

(9) ⇒USB interface

(10) LCD⇒Liquid crystal display

- 3 -

(11) PHONE “” ⇒Earphone input jack

(12) MIC ⇒Built-in microphone

(13) ⇒USB cover

(14) ⇒cord hole

(15) ⇒battery cover

1.3 Push-button definition

Push-button includes four operation methods as short push, long push, push and hold,

single push.

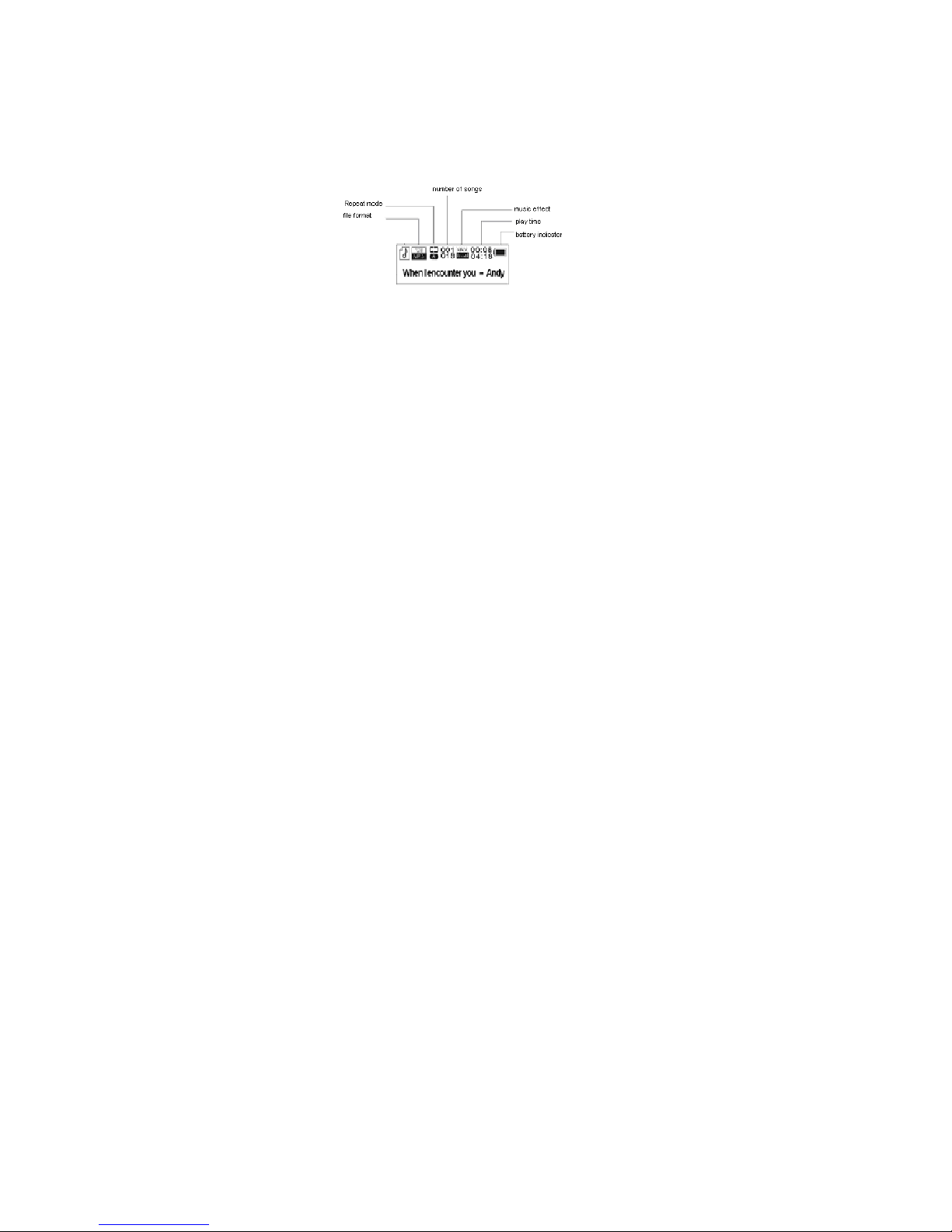

1.4 Display

This player adopts big LCD of 128*32 lattice

2 Operating instruction

2.1 Turning on the MP3 player

Push the “PLAY” button for several seconds. The LCD display will light up.

- 4 -

2.2 Main menu

Press the “MODE” button for several seconds, from any point in the menu,

and the player returns automatically back to the main menu.

Six options:

1) MUSIC

2) RECORD

3) VOICE REPLAY

4) FM

5) TELBOOK

6) SYSTEM

Music

Record

Replay

Telbook

System

You can switch between options by sliding the “MODE” button right

“”or left “”. Then push shortly on the “MODE” button to

enter the submenu or confirm a function.

- 5 -

2.3 “Music” mode

Select “Music” mode in the main menu.

2.3.1 Stop submenu

Press "Mode" button once to enter the stop submenu.

Four options:

- Local Folder

- Delete file

- Delete all

- Exit

2.3.1.1 Local folder

主盘目录

Local folde

Files can be stored in different folders.

Create new folders in Windows explorer when MP3 is connected.

Open “external drive”.

Create new folder

- Press "Mode" button to open Local folder

- Move mode button left or right to select the catalog

- Press “Mode” button to confirm

2.3.1.2 Delete file

- 6 -

2.3.1.3 Delete all

Deletes all files of the current catalog

- 7 -

2.3.2 Play submenu

During playback, press "MODE "button to enter "Play submenu “:

Six options: - Repeat

- Equalizer

- Tempo Rate

- Replay

- Replay times

- Replay gap

- Exit

2.3.2.1 Repeat

Normal All songs are played once

Repeat One Repeats the current song

Folder Plays all the music of a specific folder

Repeat Folder Repeats the music of a specific folder

Repeat All Repeats all the music.

Random Plays music at random.

Intro First 10 seconds of each song is played.

2.3.2.2 Equalizer

Seven options:

- Natural

- Rock

- Pop

- Classic

- Soft

- Jazz

- DBB

2.3.2.3 Tempo Rate

The music can be played faster or slower (only with MP3 files)

Change the rate by pushing the “Mode” Button left or right.

2.3.2.4 Replay mode

- A-B replay

When replay mode is selected, the A-B icon is visible .

Select the start point A (flashing) by sliding “Mode” button right.

Select the end point B(flashing) by sliding “Mode” button right.

The A-B section will be repeated continuously

Press “Mode” button to return to normal playback

-During replay, the play-rate can be changed with VOL+ or VOL-".

- Adding your voice to the A-B section

During playback of the A-B section, slide “Mode” button to the right.

The microphone icon appears and your voice is recorded.

- 8 -

The A-B section + the voice recording will be repeated

Slide “Mode” button right again to stop the recording.

2.3.2.5 Replay times

Here you are able to choose how many times (1-10) the A-B section

will be repeated.

2.3.2.6 Replay gap

Choose the time( 1-10 sec) between each A-B section.

2.3.3 Lyrics

This MP3 player supports "*. lrc "Lyric files

Lyrics can be downloaded from the internet.

Make sure that lrc-file has the same name as the corresponding song.

For example:

If the song name is “Yesterday.mp3 “, the lyric file should be

named “Yesterday.lrc”

MP3 and LRC file must be stored in the same folder!

No Lyric

Lyric included

Attention: A lyric can not be larger then 500 words.

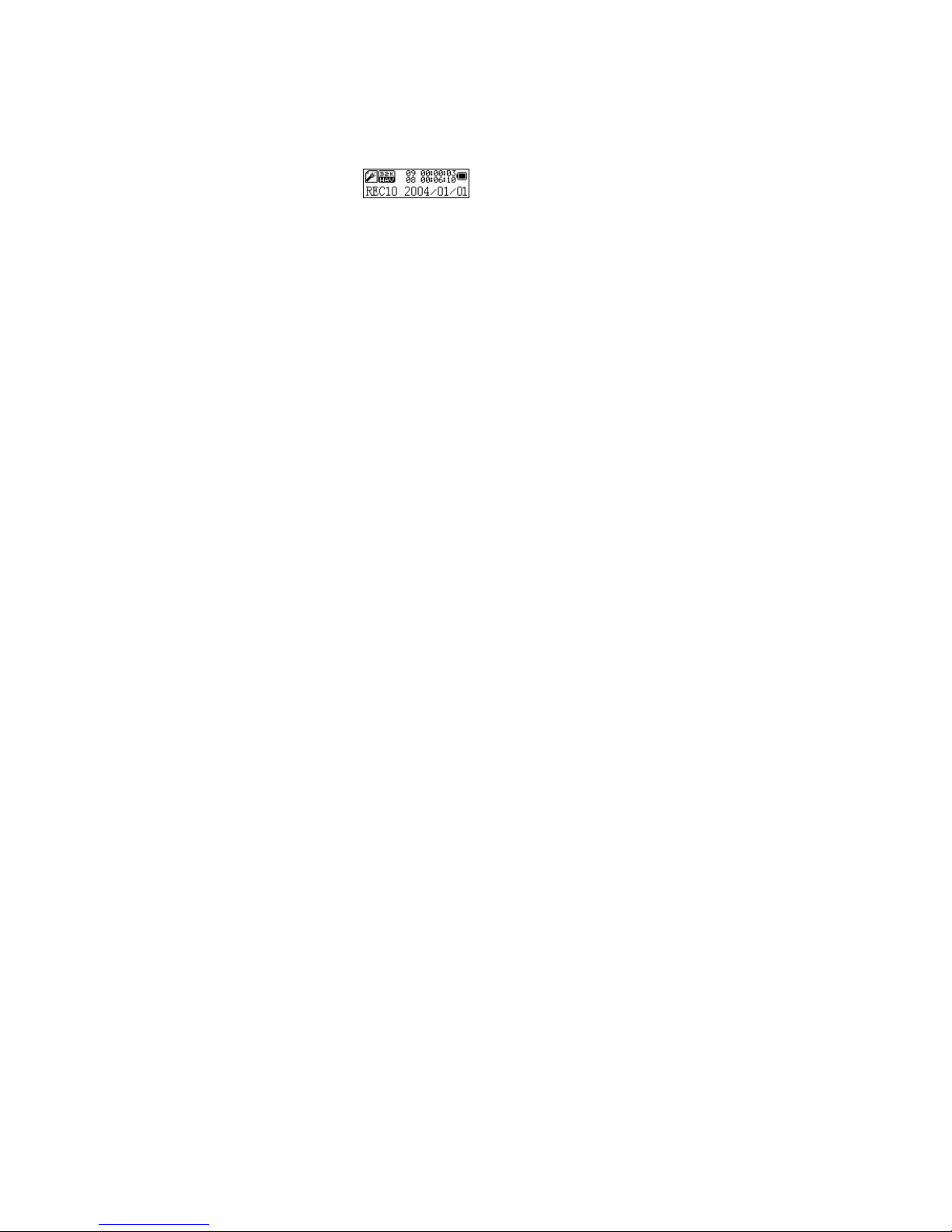

2.4 Record mode

-Select "Record mode " in the main menu.

The unit can store 99 recordings in each folder.

- Press “PLAY” button to start recording.

- Press “PLAY” button again to pause the recording (Time flashes).

- 9 -

- Press and hold the “PLAY” button to stop recording.

- Press “PLAY” again to continue recording.

2.4.1 Record submenu

In the Record mode, press mode button once

3 options:

- Local folder

- REC type

- Exit

2.4.1.1 Local folder

cfr 2.3.1.1

2.4.1.2 REC type

Four options:

- “Fine REC”: high quality recording, wav format, good quality.

- “Long REC”: lower quality recording, act format, uses less space

- “Fine VOR”: wav format

- “Long VOR”: act format

When using “VOR recording”, the player enters into the

state of “pause recording” if no sound is detected

by the microphone. Recording starts again when sound is detected.

2.5 Voice Replay mode

In this mode you can listen to the recordi gs created in “Record mode”n

Select in the main menu "Voice mode ".

2.5.1 Voice stop submenu

When playback is stopped, press “Mode” button to enter the Voice submenu.

- 10 -
