MP-Man MP-FUB35 Manuale utente

DIGITAL MUSIC PLAYER

MP3&WMA

USER MANUAL

MP-FUB35

www.mpmaneurope.com

________________________________________________________________________________

Before connecting, operating or adjusting this product please read these instructions completely.

The player characteristics

♠Supports MP3 and WMA music format.

♠Supports stereo FM radio

♠Supports USB function

♠Supports two lines of lyrics display synchronization

♠Big display (128*32) LCD display

♠Voice equalizer

♠GUI (graphical user interfaces).

Inside the box:

(1) MP3 player one

(2) Stereo earphone one pair

(3) Installation disk one

(4) User’s manual one

(5) USB cable one

(6) Battery 1.5V/”AAA” one

PC needs

(1) Pentium 100 MHz or faster

(2) Windows 98/2000/ ME/XP

(3) USB port

(4) 4 X CD- ROM driver or higher

(5) 15 MB of free space on hard disk

(6) 32 MB system memory

1.1The player appearance interface

1.2 The buttons

(1) “HOLD” ⇒Keyboard lock switch

(2) “MENU” ⇒Switch modes, menu selection by pressing on button

(3) “REC” ⇒Rec/A-B

(4) “VOL-”⇒Volume decrease/fast decrease

(5) “VOL+”⇒Volume increase/fast increase

(6) “” ⇒NEXT/FWD

(7)“” ⇒PREV/REV

(8) PLAY “” ⇒OPEN/PLAY/PAUSE/STOP/POWER OFF

(9) ⇒USB interface

(10) LCD⇒Liquid crystal display

(11) PHONE “” ⇒Earphone input jack

(12) MIC ⇒Built-in microphone

(13) ⇒USB cover

(14) ⇒Cord hole

(15) ⇒Battery cover

1. 3 Push-button definition

Push-button includes four operation methods as short push, long push, push and hold, single

push.

1.4 Display

This player adopts big LCD of 128*32

2 Operating instructions

2.1 Turning on the MP3 player

Push the “PLAY” button for several seconds. The LCD display will light up.

2.2 Main menu

Press the “MENU” button for several seconds, from any point in the menu,

and the player returns automatically back to the main menu.

Five options:

1) MUSIC

2) RECORD

3) VOICE REPLAY

4) FM

5) SYSTEM

You can switch between options by sliding the “PLAY” button right “”or left “”. Then

push shortly on the “MENU” button to enter the submenu or confirm a function.

2.3 “Music” mode

Select “Music” mode in the main menu.

2.3.1 Stop submenu

Press " MENU " button once to enter the stop submenu.

Four options:

- Local Folder

- Delete file

- Delete all

- Exit

Music

Record

Replay

System

2.3.1.1 Local folder

主盘目录

Files can be stored in different folders (maximum 10 folders including root folder).

Create new folders in Windows explorer when MP3 is connected.

Open “external drive”.

Create new folder

- Press " MENU " button to open Local folder

- Move PLAY button left or right to select the catalog

- Press “MENU ” button to confirm

2.3.1.2 Delete file

2.3.1.3 Delete all

Deletes all files of the current catalog

2.3.2 Play submenu

During playback, press " MENU "button to enter "Play submenu “:

Six options:

- Repeat

- Equalizer

- Tempo Rate

- Replay

- Replay times

- Replay gap

- Exit

2.3.2.1 Repeat

Normal All songs are played once

Repeat One Repeats the current song

Folder Plays all the music of a

specific folder

Repeat Folder Repeats the music of a

specific folder

Repeat All Repeats all the music.

Random Plays music at random.

Intro First 10 seconds of each

song is played.

Local folder

2.3.2.2 Equalizer

Seven options:

- Natural

- Rock

- Pop

- Classic

- Soft

- Jazz

- DBB

2.3.2.3 Tempo Rate

The music can be played faster or slower (only with MP3 files)

Change the rate by pushing the “PLAY” Button left or right.

2.3.2.4 Replay mode

- A-B replay

When replay mode is selected, the A-B icon is visible .

Select the start point A (flashing) by sliding “PLAY” button right.

Select the end point B(flashing) by sliding “PLAY” button right.

The A-B section will be repeated continuously

Press “MENU” button to return to normal playback

-During replay, the play-rate can be changed with VOL+ or VOL-".

- Adding your voice to the A-B section

During playback of the A-B section, slide “PLAY” button to the right. The microphone icon

appears and your voice is recorded. Slide “PLAY” button right again to stop the recording.

The A-B section + the voice recording will be repeated

2.3.2.5 Replay times

Here you are able to choose how many times (1-10) the A-B section will be repeated.

2.3.2.6 Replay gap

Choose the time (1-10 sec) between each A-B section.

2.3.3 Lyrics

This MP3 player supports "*. lrc "Lyric files

Lyrics can be downloaded from the internet. Make sure that lrc-file has the same name as the

corresponding song. For example:

If the song name is “Yesterday.mp3 “, the lyric file should be named “Yesterday.lrc”

MP3 and LRC file must be stored in the same folder!

No Lyric

Lyric included

Attention: A lyric can not be larger then 500 words.

2.4 Record mode

-Select "Record mode " in the main menu.

The unit can store 99 recordings in each folder with a maximum of 10 folders (including root folder)

- Press “PLAY” button to start recording.

- Press “PLAY” button again to pause the recording (Time flashes).

- Press “PLAY” again to continue recording.

- Press and hold the “PLAY” button to stop recording.

2.4.1 Record submenu

In the Record mode, press “MENU” button once

3 options:

- Local folder

- REC type

- Exit

2.4.1.1 Local folder

cfr 2.3.1.1

2.4.1.2 REC type

Four options:

- “Fine REC”: high quality recording, wav format, good quality.

- “Long REC”: lower quality recording, act format, uses less space

- “Fine VOR”: wav format

- “Long VOR”: act format

When using “VOR recording”, the player enters into the state of “pause recording” if the

microphone detects no sound. Recording starts again when sound is detected.

2.5 Replay mode

In this mode you can listen to the recordings created in “Record mode”

Select in the main menu "Replay mode ".

2.5.1 Replay stop submenu

When playback is stopped, press “MENU” button to enter the Replay submenu.

2.5.1.1 Local folder (Stop submenu)

cfr 2.3.1.1

2.5.1.2 Delete file (Stop submenu)

2.5.1.3 Delete all (Stop submenu)

Deletes all files of the current catalog

2.5.2 Replay submenu

During playback, press “MENU” button to enter the Replay submenu.

4 options: - Repeat

-Temporate

-Replay

-Exit

Those options are similar to the music play submenu

2.6 FM mode

Choose in main menu "FM mode ". Press “MENU” button to enter

2.6.1 FM mode submenu

In "FM mode " press "MENU" button to enter the FM submenu

7 options:

- Save

- Delete

- Delete all

- Normal band

- Japan band

- Fine rec

- Long rec

- Exit

Freq Mode

Move PLAY button once left or right to change frequency with 0.1Hz.

Move PLAY button left or right and hold for a few seconds.

Release the button when the frequency changes.

The tuner will search automatically for the next available station.

Search Station

Move PLAY button left or right to select a (stored) radio stations

Auto search

The tuner will search for available radio stations and automatically store them.

2.6.1.1 Save (radio station)

When searching a radio station manually, it can be stored

with this function. Maximum 20 frequencies can be stored.

2.6.1.2 Delete broadcaster

With this function, stored stations can be removed.

2.6.1.3 Delete all broadcaster

With this function, all stored stations can be removed.

2.6.1.4 Normal band

87MHz –108MHz

2.6.1.5 Japan band

76MHz –96MHz

2.6.1.6 Fine REC type

With this function music from a radio station can be recorded.

Press “PLAY” button to start recording.

Press PLAY button again to stop/save the recording.

Exquisite recording which is the wav format and good voice quality

2.6.1.7 Long REC type

With this function music from a radio station can be recorded.

Press “PLAY” button to start recording.

Press PLAY button again to stop/save the recording.

Long recording which is the act format and normal voice quality

2.7 Systems set up

Select “System” in the main menu

- System Time

- Record type

- Backlight

- Light Color

- Language

- Power off

- Replay mode

- Contrast

- Online Mode

- Memory info

- Firmware version

- Firmware upgrade

- Exit

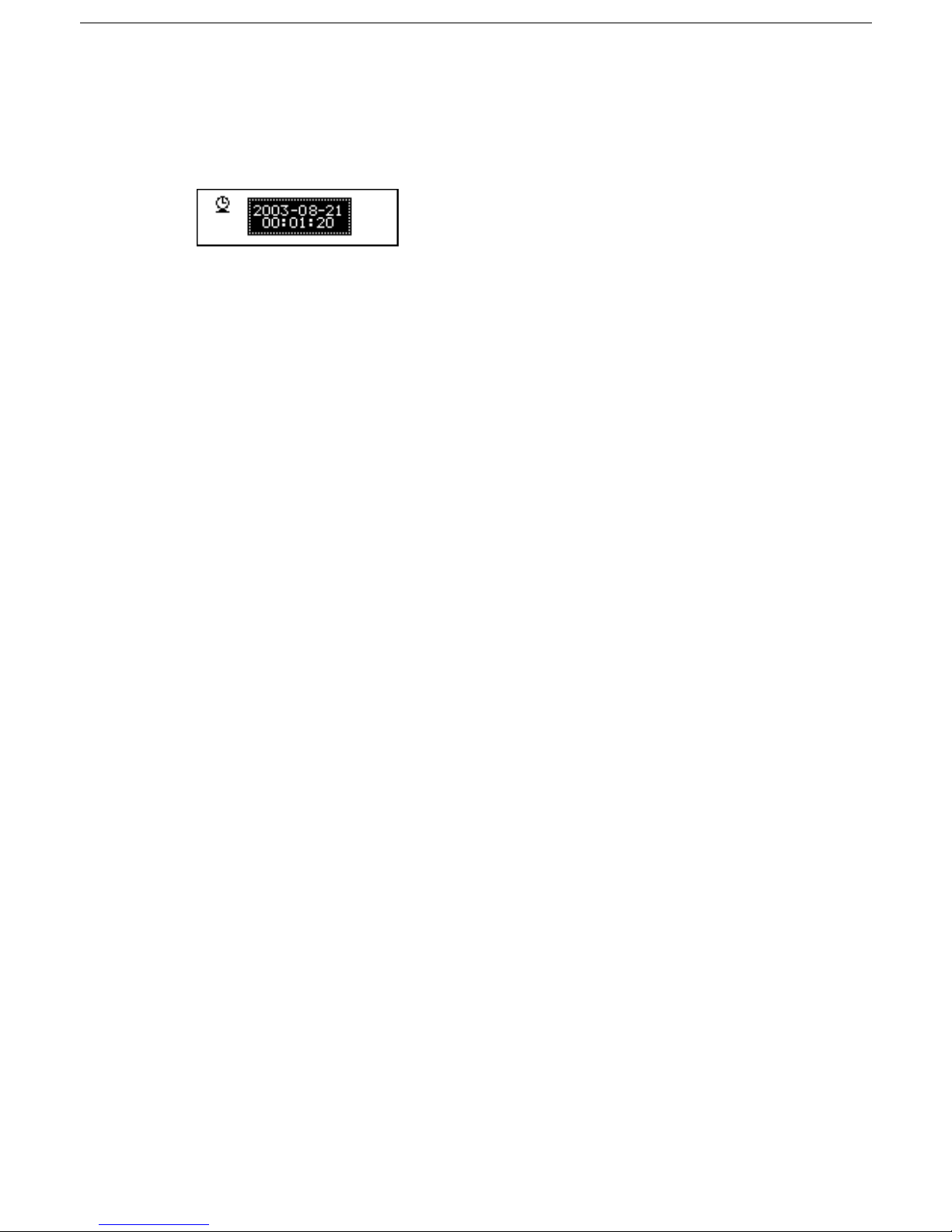

2.7.1 System Time

Enter here the correct date and time.

Press VOL+ button and the year- number will start flashing.

Change the year number by pushing PLAY button left or right

Press again VOL+ button and the months will start flashing….

When date and time are correct, press “MENU” button to confirm.

2.7.2 Backlight

Adjust the backlight intensity between 0 and 30, by pushing “PLAY” button left or right.

Press “MENU” Button to confirm

2.7.3 Language

Change the language by moving “PLAY” button left or right.

Press “MENU” button to confirm.

2.7.4 Power off

- Off time

With this function the device will automatically shut down after a preset time. (0-60sec), when no

button is touched and music is not playing. If time is set at 0 seconds, the function is cancelled.

- Sleeping mode

With this function the device will always shut down after a preset time (0-120 min).

If time is set at 0, the function is cancelled.

When the device is powered off, sleeping mode is set at 0.

2.7.5 Replay mode

Manual replay or auto replay

2.7.6 Contrast

Change contrast by moving “PLAY” button left or right.

Press “MENU” button to confirm.

2.7.7 Memory info

Gives a percentage of the used memory compared to the total memory size

2.7.8 Firmware version

Info about software version
