MP-Man MID7C Manuale utente

For Model No.

MID7C EN User Manual

Page 1

This manual contains important safety precautions and information of correct use.

Please be sure to read this manual carefully before use so as to avoid any accidents.

Do not place the product in hot, wet or dusty environment, especially in summer, do not leave the product

inside a car with all windows closed.

Avoid dropping, impacting or shaking the product violently, otherwise it may cause damages or malfunctions.

Select a proper volume to avoid ear problem when using earphones.

Do not cross the road or drive vehicles, using headphones to avoid trac accidents.

Be sure to use the provided chargers and accessories in the package.

Be sure to charge the product when the following situations take place,

- The battery icon shows lower or empty.

- System automatically shut down and it turns o soon after restart.

- Operation keys do not respond properly.

- The device shows on the top right corner.

Hardware

7.0” High Denition TFT LCD Touch Screen (800x480 pixel)

Capacitive multi-touch (2 touch) point function

CPU: Telechips TCC8902 ARM processor

RAM : DDR2 256MB (3D accelerator possible for 3D games)

Wi-Fi (IEEE802.11 b/g/n) for internet connection

HDMI port for TV-out (1080p output support)

USB host for OTG function

G-sensor

Micro SD card slot recognizing up to 32GB

Built-in speaker & Built-in MIC

5V DC power adapter

Compatible with keyboard, mouse

Dimension : 124 x 192 x 12.8mm

Andriod 2.3 Ginger Bread

Google browser

Wi-Fi connection

e-Book function (all e-book formats supported by application)

1080p HD le playback

VoIP phone function with Wi-Fi connection

Possible to view/edit MS oce les by application

Video: AVI, RM/ RMVB, FLV, MPG4 – 1, MPEG – 2 etc.

Audio: MP3, WMA, AAC, WAV ect.

Photo: JPEG, BMP, GIF, PNG, TIFF

Page 2

specification

Software

Page 3

Name

Important Notice

- If the device is freezing or stuck, press the

reset button(a small hole).

- When the performance is slow after using

some applications, it is recommended to

close running application in setting menu.

Caution

- For charging, be sure to use the power

adapter(DC5V) that is provided in the package,

otherwise, the device may be damaged

and does not work.

- The device is equipped with high performance

processor. It may heat in case of using long or

while charging.

MID7C

Menu Home Back

Charger Reset MicroSD slot

Speaker

Camera

Volume+

Volume-

Power

USB HDMI Earphone

Long press power button to turn on/o the device. It may take a minute to boot the device.

Short press power button to turn on/o the screen.(Standby mode. Refer to 3. below)

Page 4

1. Power On/Off

After turning on the device, desktop displays with shortcut icons and arrow panel at the right side

2. Desktop

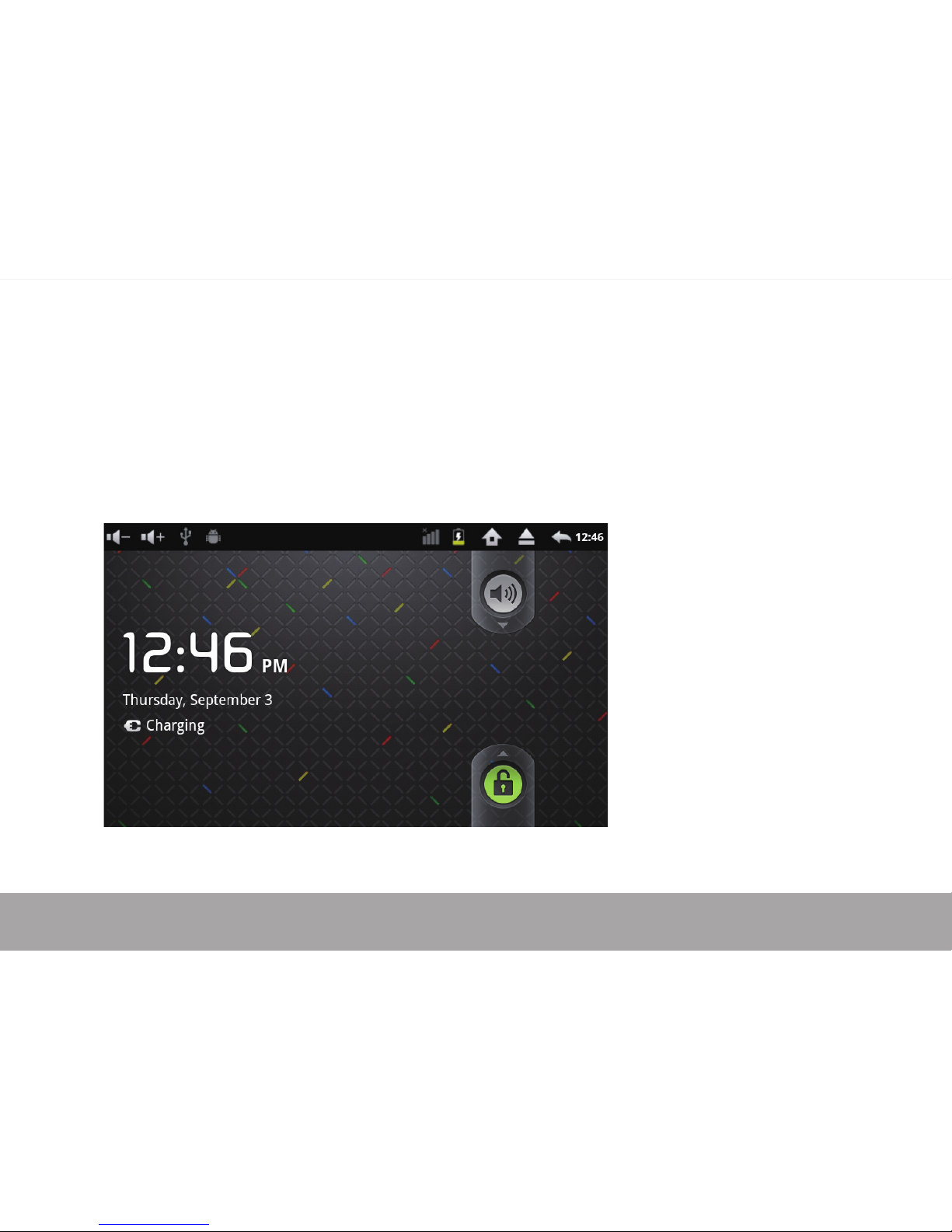

Short press the power button to turn on/o the screen (standby mode on/o).

After standby mode o, slide the lock icon to the speaker icon in order to unlock the screen.

Page 5

3. Standby mode(Screen off mode) /

Unlock the screen

On the desktop, press menu button and select Settings.

4. System settings

Page 6

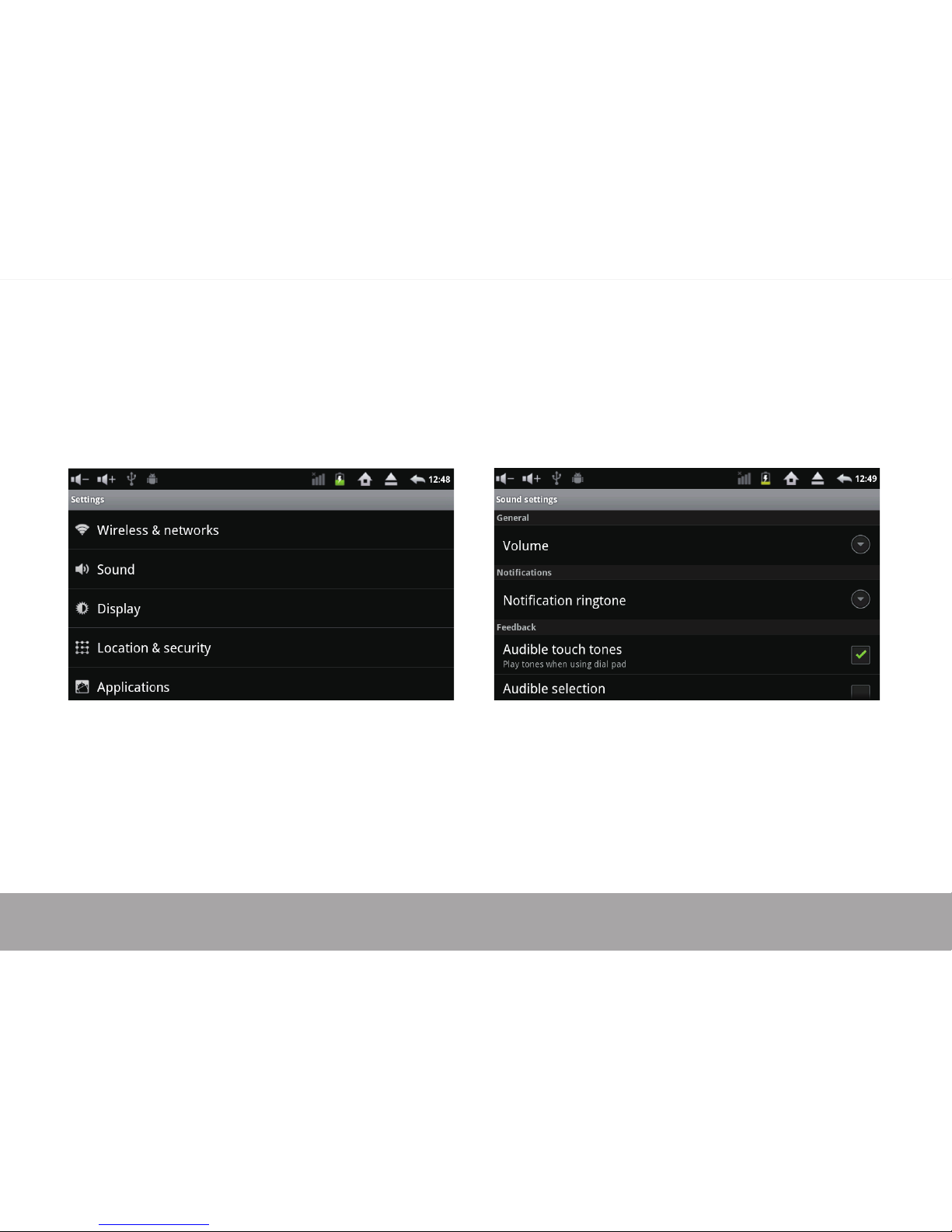

Press Settings

1.Wireless & networks

Page 7

Wi-Fi – Press Wi-Fi to turn on/o

Wi-Fi settings - Press Wi-Fi settings, press Network

notication, then the device will automatically

search the available Wi-Fi signals.

Select the network you want to connect with.

2. Sound & display

Set up each setting as you like.

Page 8

3. Location & security

Use wireless networks – Location determined by Wi-Fi and/or mobile networks

Set up screen lock – Protect your device from unauthorized use by creating a personal screen unlock pattern.

Visible passwords – Show password as you type.

Install from TF card – Install encrypted certicates from TF card.

Set password – Set or change the credential storage password.

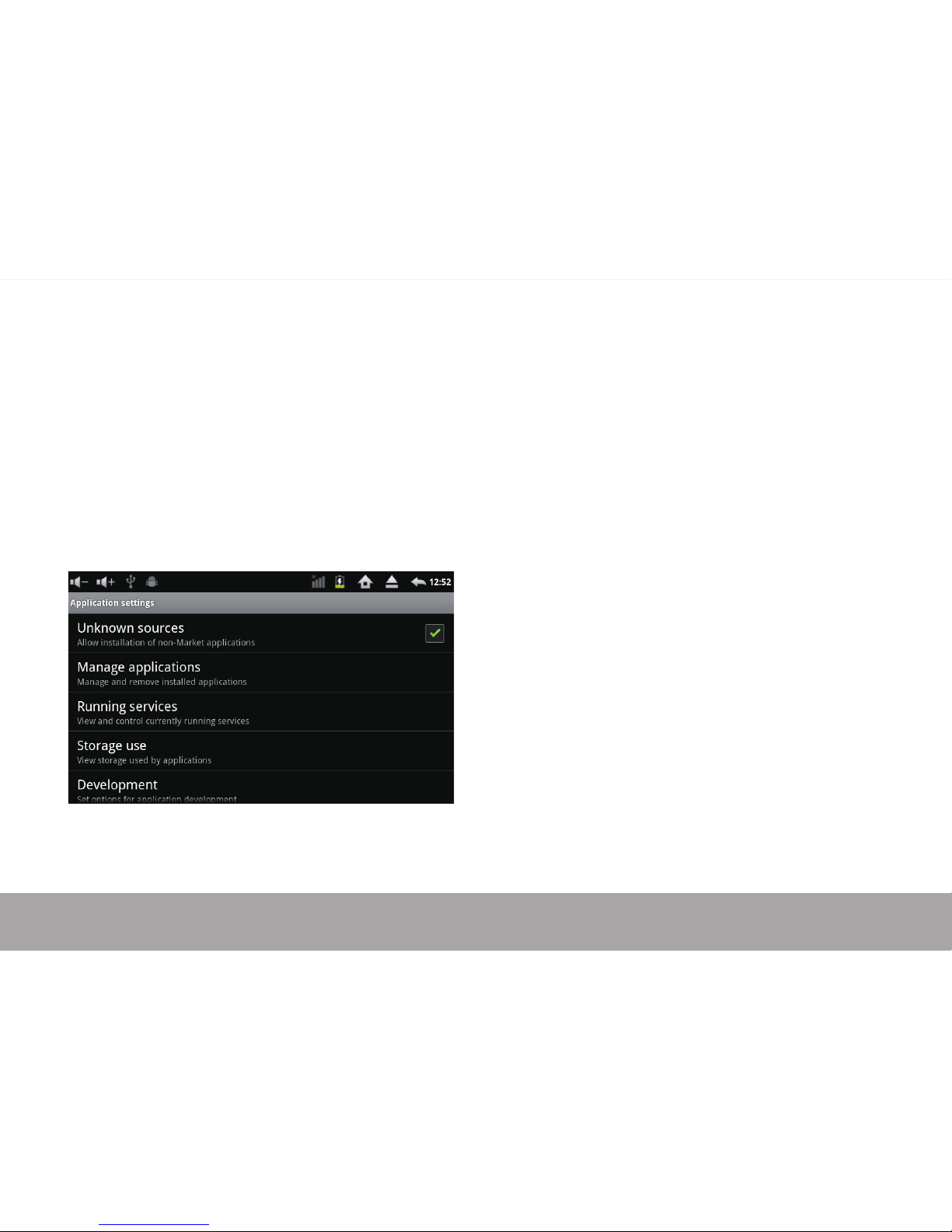

4. Applications

Unknown sources

If you want to allow installation of non-Market Applications, Press Unknown sources and presses OK.

Manage applications

All installed application are listing.

Running services

View and control currently running services.

Storage use

View storage used by applications

Development

Set options for application development

Keep pressing an application to manage.

Press Uninstall to uninstall the selected application.

Page 9
