MP-Man MP959 Manuale utente

For Model No.

MP959 User Manual

Page 1

Do not place the product in hot, wet or dusty environment, especially in summer,

do not leave the product inside a car with all windows closed.

Avoid dropping, impacting or shaking the product violently, otherwise it may cause damages or malfunctions.

Select a proper volume to avoid ear problem when using earphones.

Do not cross the road or drive vehicles, using headphones to avoid trac accidents.

Be sure to use the provided chargers and accessories in the package.

Be sure to charge the product when the following situations take place,

- The battery icon shows lower or empty.

- System automatically shut down and it turns o soon after restart.

- Operation keys do not respond properly.

- The device shows on the top right corner.

This manual contains important safety precautions and information of correct use.

Please be sure to read this manual carefully before use so as to avoid any accidents.

Andriod 4.0 ICS

Audio: MP3, WMA, AAC, WAV etc

Photo: JPEG, BMP, GIF, PNG, TIFF

Video: AVI, RM/ RMVB, FLV, MPG4 – 1, MPEG – 2 etc.

Possible to view/edit MS oce les by application

VoIP phone function with Wi-Fi connection

1080p HD le playback

e-Book function (all e-book formats supported by application)

Wi-Fi connection

Google browser

5V DC power adapter

9.7" IPS 1024*768 Capacitive touch panel

Capacitive 10-point multi-touch screen

CPU: ARM cortex A8 processor

RAM : DDR3 1GB (3D accelerator possible for 3D games)

Wi-Fi (IEEE802.11 b/g/n) for internet connection

Dual camera 2M pixel (backside), 0.3M pixel (front)

HDMI port for TV-out (1080p output support)

USB host for OTG function

G-sensor

Micro SD card slot recognizing up to 32GB

Built-in speaker & Built-in MIC

Hardware speciﬁcation Software speciﬁcation

Page 2

Specification

Page 3

Name

Power

TV-OUT

MicroSD

Earphone

Speaker

Charger USB

USB/OTG/host Camera(front) Camera(back)

Volume+

Volume -

ESC

Reset

P959

Important Notice

If the device is freezing or stuck, press the reset

button (a small hole). Another way to turn o the

device by force is to hold pressing power button

for more than 7 seconds.

When the performance is slow after using some

applications, it is recommended to close running

application in setting menu.

Use“File Manager”at main menu to search les.

Instruction

Charging

The device is equipped with high performance processor.

It may be warm in case of using long or while charging, but not the problem.

Note

Be sure to use the power adapter (DC5V, 2A) that is provided in the package, otherwise, the device may be

damaged and does not work.

See the battery icon ( ) on the status bar to check charging.

It takes approx.. 8-10 hours to be fully charged from empty battery. Do not charge more than 15hours to

protect the device.

Page 4

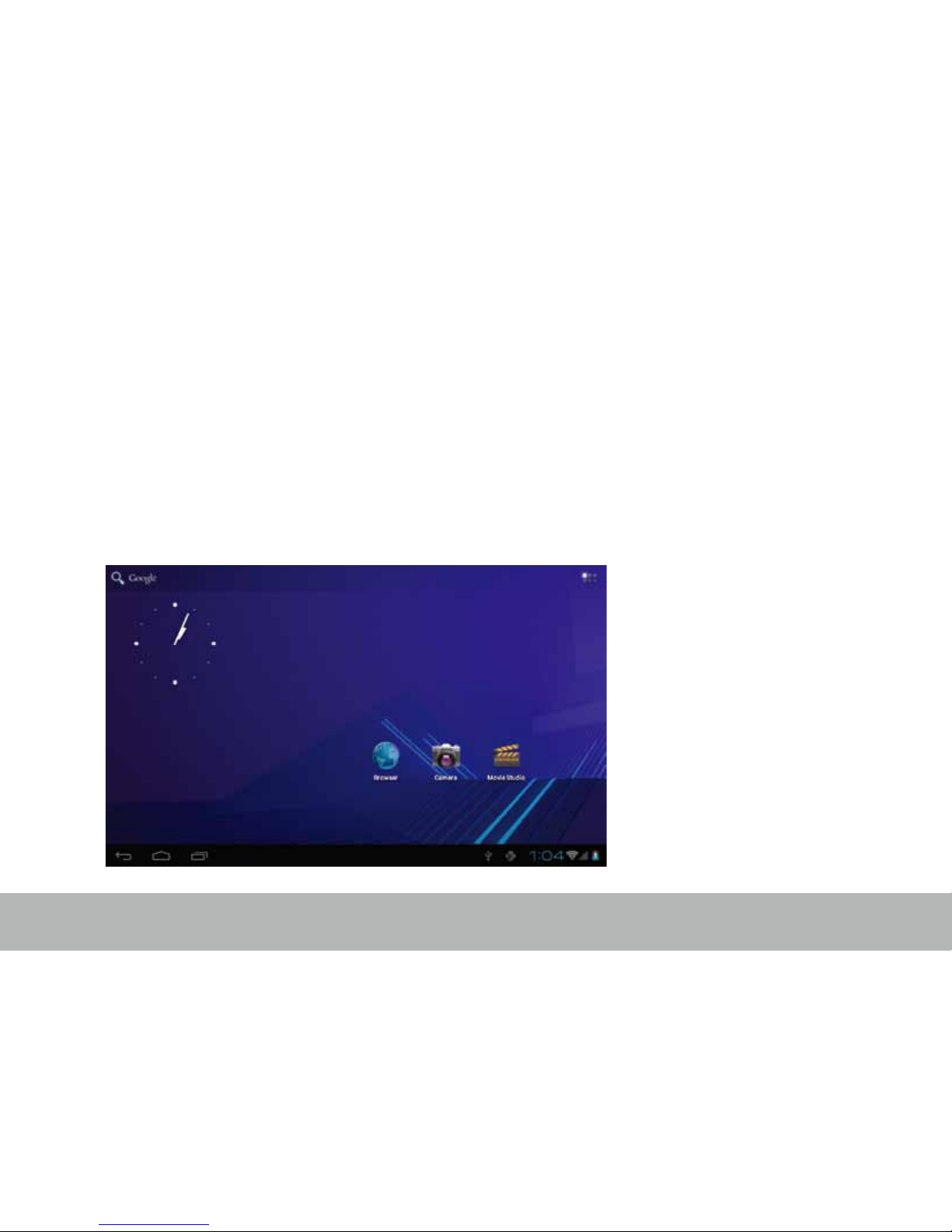

After turning on the device, desktop displays with shortcut icons and arrow panel at the right side

Page 5

1. Power On/Off

Long press power button to turn on/o the device. It may take a minute to boot the device.

Short press power button to turn on/o the screen.(Standby mode. Refer to 3. below)

2.Desktop

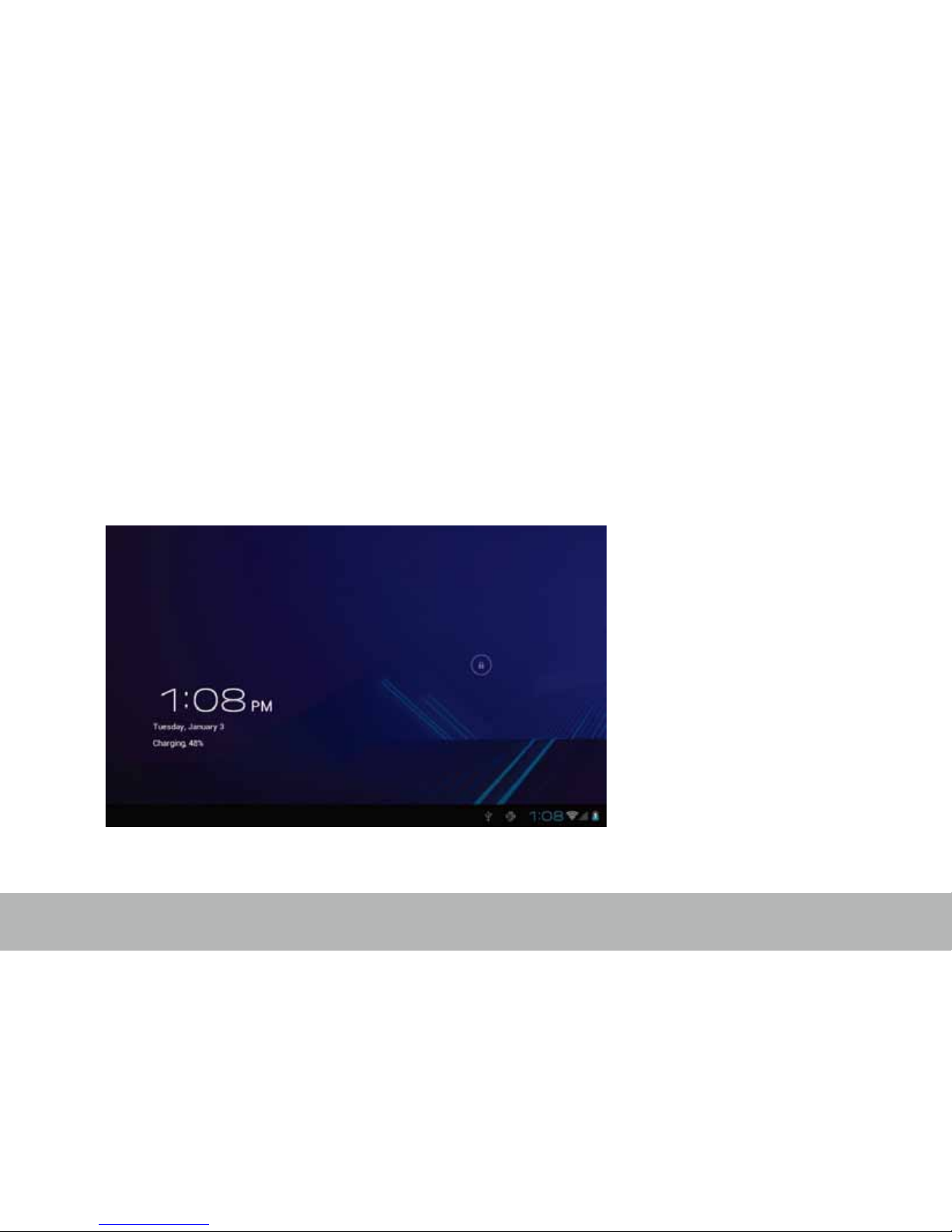

3. Standby mode(Screen off mode) /

Unlock the screen

Short press the power button to turn on/o the screen (standby mode on/o).

After standby mode o, slide the lock icon in order to unlock the screen.

Page 6

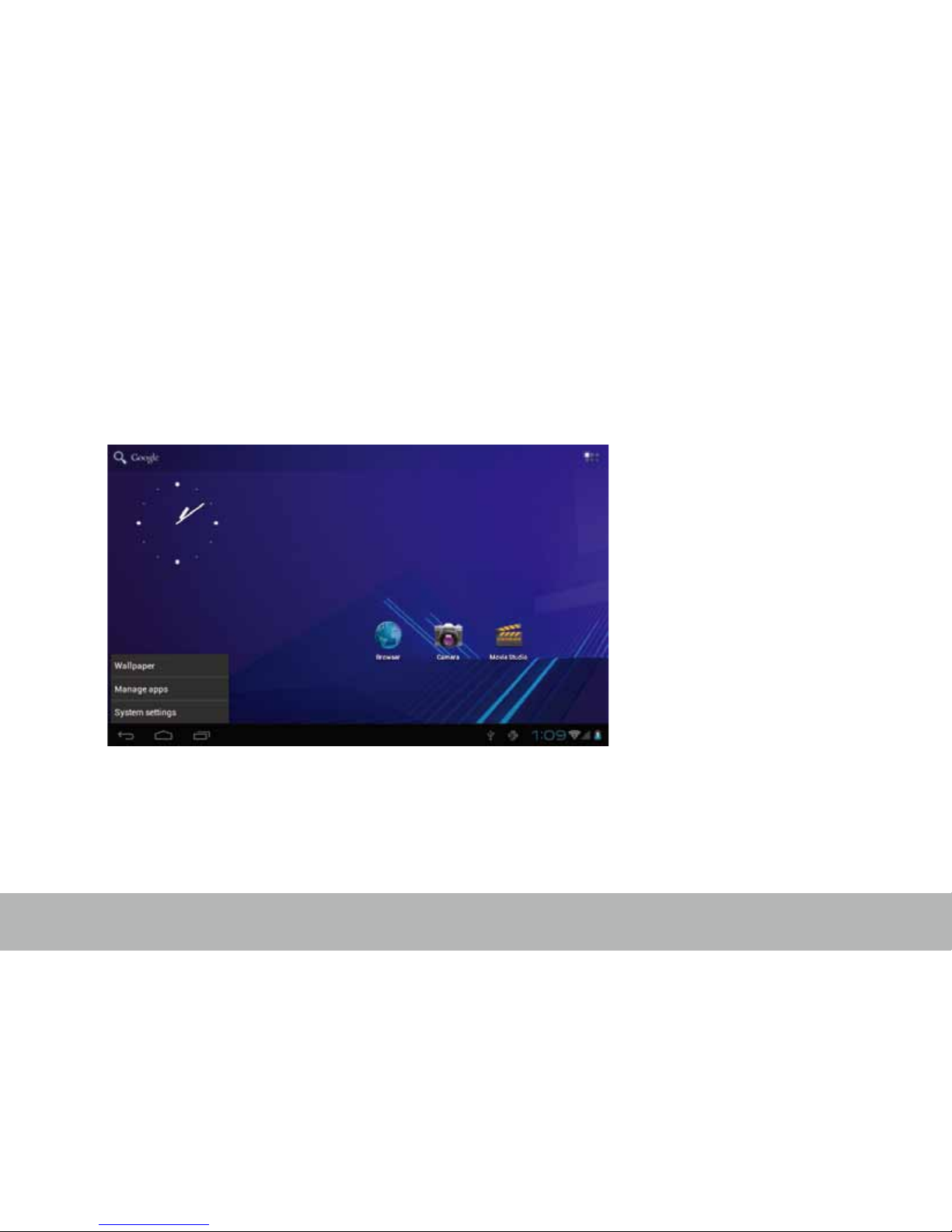

On the desktop, press menu button and select system settings.

4. System settings

Page 7

Press system settings

1. Wireless & networks

Page 8

Wi-Fi – Press Wi-Fi to turn on/o

Wi-Fi settings - Press Wi-Fi settings, then the device

will automatically search the available Wi-Fi signals.

Select the network you want to connect with.

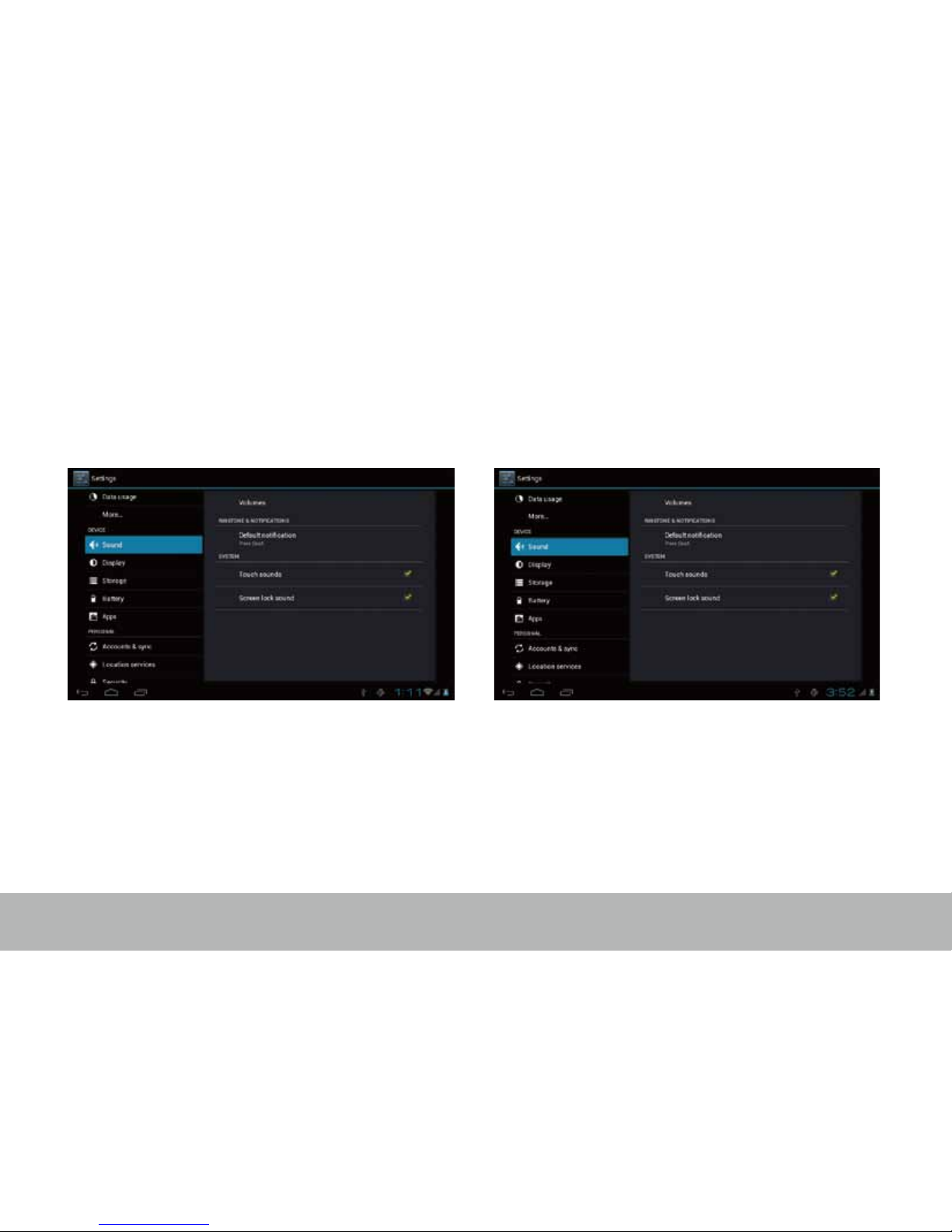

2. Sound

Set up each setting as you like.

Page 9

3. Display

Set up each setting as you like.

4. Storage

Check device memory and microSD card status.

Unmount SD card – Unmount the SD card for

safe removal.

•

To search the les, run “File Manger” at main menu. On the top screen, press to see les inside device.

Press to see les of microSD card. Press to see les of external storage.

Note
