MRC SI-600 Manuale utente
Operation Manual for
Multi-Tubbe Vortexer
SI-600
PLEASE READ THIS MANUAL CAREFULLY BEFORE OPERATION
3, Hagavish st. Israel 58817 Tel: 972 3 5595252, Fax: 972 3 5594529 mrc@mrclab.com
MRC.VER.01-8.12
Foreword
Thank you for purchasing our Products: Multi-Tube Vortexer. This Manual
for users contains function and operation of the Instrument. In order to use
the instrument properly, please read this manual carefully before using the
Instrument.
Opening Check
Please check the Instrument and Appendix with the packing list when
you first open the instrument packing case. If you find there is something
wrong with the Instrument and the Appendix, do contact the vendor or the
producer.
Safety Warnings and Guidelines
1. Important operation information of the security:
Before the users’ operation, they should have a perfect conception of how to
use the Instrument. Therefore, read this Manual carefully before using it.
2. Security:
The operation, maintenance and repair of the Instrument should comply with
the basic guidelines and the remarked warning below. If you don’t comply with
them, it will have effect on the scheduled using life of the Instrument and the
protection provided.
This product is a normal and an indoor Instrument which conforms
to Standard B style- I type- GB9706.1.
Before using the device, read the Manual carefully. These units are
designed for use in laboratory environments. The device must be used
by skilled personnel with the appropriate training.
The operator should not open or repair the Instrument by himself,
which will result in losing the qualification of repair guarantee or occur
accident. If there is some wrong with the Instrument, the company will
A.C. power’s grounding should be reliable to safeguard against an
electric shock. The 3-pin plug supplied with thermo-shaker’s power
cable is a safety device that should be matched with a suitable grounded
socket.
Operation before reading the Manual is forbidden. Read the
guidelines and directions below and carry out the countermeasure
according to them.
3. The maintenance of Instrument
The platform and clamp should be cleaned by the cloth stained with a little
alcohol. If there are smutches on the Instrument, clean them by soft cloth stained
with cleaning cream.
Power off when you finish your work. Pull off the connector plug
when there’s long time no use of the Instrument and cover it with a
cloth or plastic paper to prevent from dust.
Pull the connector plug from the jack at once in the following cases,
and contact the vendor:
There is some liquid flowing into the Instrument;
Drenched or fire burned.
Abnormal operation: such as abnormal sound or smell.
Instrument dropping or outer shell damaged.
The function has obviously changed.
Before power on, guarantee the voltage used should be accordant to
the voltage needed, and the rated load of electrical outlet should not
lower than the demand. If the electric line is damaged, you should
replace it with the same type. You should assure there’s nothing on the
electric line and you should not put the electric line in the ambulatory
place. Hold the jack when you pull out the electric line, and don’t pull
the electric line.
Contents
Chapter 1 Introduction ------------------------------------------------------------------------- 1
Chapter 2 Specifications ---------------------------------------------------------------------- 2
1. The normal operating condition --------------------------------------------- 2
2. The basic parameters and the function ----------------------------------- 2
Chapter 3 Preparations ------------------------------------------------------------------------ 3
1. Structure Description ----------------------------------------------------------- 3
2. Keyboard and Display panel ------------------------------------------------- 4
3. Power connection --------------------------------------------------------------- 5
4. Exchangeable Tube Foam Rack--------------------------------------------- 5
Chapter 4 Operation Guide ------------------------------------------------------------------- 6
1.Speed and time setting -------------------------------------------------------- 6
2.Key combination ----------------------------------------------------------------- 7
3.Pulsing mode-----------------------------------------------------------------------8
Chapter 5 Failure analysis and handling ------------------------------------------------ 9
ANNEX 1. Wiring Diagram for SI-600……………………………………………...10
SI-600 Multi-tube Vortexer Chapter 1 Introduction
─
1
─
Chapter 1 Introduction
The Multitube Vortexer is designed for mechanical and chemical cell lysis,
mixing suspensions, and general sample agitation. This vortex mixer gives
a distinctly different motion than shaking a sample. With vortexing, greater
shearing forces are placed on materials in the bottom of a tube, thus
promoting either disruption or solubility.
The multi-tube vortex mixer is a tool to provide that extra degree of mixing,
however it accommodates full racks of tubes or microwell plates as
opposed to singe tubes. Consequently, this unit is useful for higher
throughput mixing of samples.
Features
•
LCD display, it is easy to setup and use.
•
Procedure restored function; when it power-down suddenly and then
re-power-on, the device can return to the set procedure automatically.
•
Timing function. It can be set mixing time within 00:00~99:59h,
display window shows the remnant time to do timing.
•
Brushless motor with precise speed, long-lifetime, and without
maintenance
SI-600 Multi-tube Vortexer Chapter 2 Specification
─
2
─
Chapter 2 Specifications
1. The normal operating condition:
Ambient temperature：
：：
：4°
°°
°C ～
～～
～45°
°°
°C
The relative humidity: ≤70%
Power supply：
：：
：AC100-240V 1.5A
2. The basic parameters and function
Model
Parameter
SI-600
Speed 500~2500rpm
Orbit 3.6mm
Time setting 1min ~ 99h59min
Max. load 4.5kg
Input power 60W
Outer dimension(mm)
426×250×480
Weight(kg) 14.5
SI-600 Multi-tube Vortexer Chapter 3 Preparations
─
3
─
Chapter 3 Preparations
This chapter introduces Multi-Tube Vortexer’s mechanical structure and the central
panel’s functions and some preparations before power-on. You should be familiar with
this chapter before the Multi-Tube Vortexer is first operated.

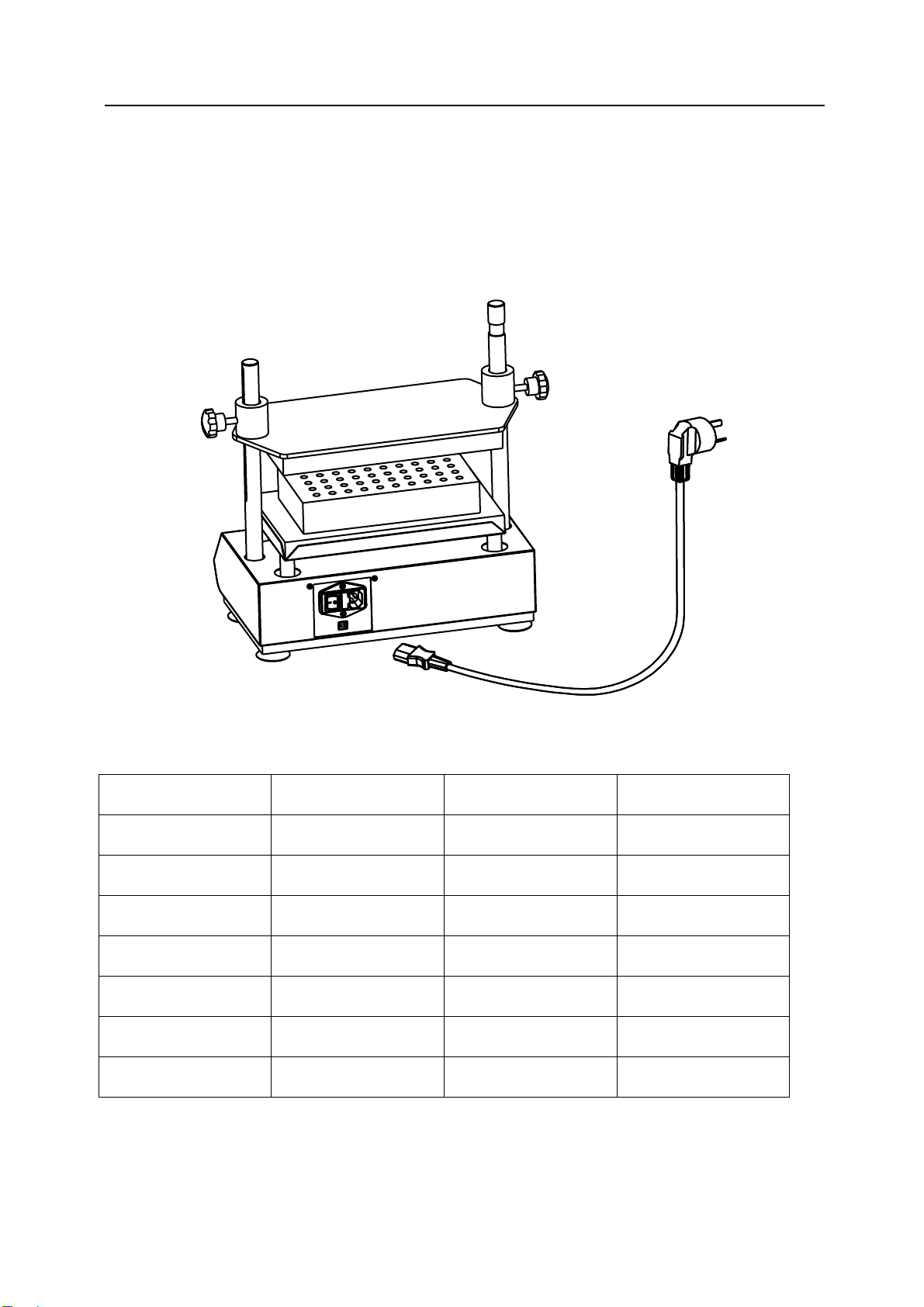

1. Structure Description
Support plate
Mains power supply
Power connector
Screw knobs
Foam tube rack
Panel
USB input interface
SI-600 Multi-tube Vortexer Chapter 3 Preparations
─
4
─
2.
Keyboard and Display panel
Short
Start
Stop
Short mix key: the machine mixes in the highest speed by
pressing this key continuously, and will stop running when leaving
go of it.
Start key, short pressing this key to start the procedure
Stop key, short pressing this key to start the procedure
Increasing key for speed and time, it can setup speed and time
Decreasing key for speed and time, it can setup speed and
time
SI-600 Multi-tube Vortexer Chapter 3 Preparations
─
5
─
3. Power connection
Place the Multi-Tube Vortexer on a level bench or table. Plug the extend power supply
unit into the socket at the rear side of the machine. The external power supply unit
(power adapter AC100-240V) ensures the external safety of the unit.
4. Exchangeable Tube Foam Rack
Type Parameter Tube Capacity Dimension (mm)
SI-B01 10mm 50 245X132X45
SI -B02 12mm 50 245X132X45
SI -B03 13mm 50 245X132X45
SI -B04 16mm/15ml 50 245X132X45
SI -B06 25mm 15 245X132X45
SI -B07 50ml 15 245X132X45
SI
–B00
Replacement tray
pad set / 305X178.5X25
AC100-240V~
