V-Gard® H1 Safety Helmet

4-pt Chin Strap (PN 10194765)

Order No.: 10205295/00

CR 800000035610

V-Gard is a registered trademark of MSA Technology, LLC in the US, EU, and other countries.

Confidence Plus is a registered trademark of MSA Technology, LLC in the US.

1000 Cranberry Woods Drive

Cranberry Township, PA 16066

USA

Phone 1-800-MSA-2222

Fax 1-800-967-0398

For your local MSA contacts please go to our website www.MSAsafety.com

Installing the Chin Strap

V-Gard® H1 Safety Helmet - Chin Strap (PN 10194765)

1 Installing the Chin Strap

WARNING!

Examine the chin strap before and after each use for missing, cut, frayed, or broken stitching. Examine the

hardware on the chin strap for breakage, cracks, discoloration, or any other unusual condition. If the chin

strap shows any signs of wear or damage, replace it immediately. Failure to obey this warning can result in

serious injury or death.

(1) Remove the packaging, and examine the chin strap.

(2) Put the helmet on its crown on a flat surface or your lap,

so the brim points forward.

(3) Align the chin strap so that the grey whistle buckle points

towards the brim (circled).

(4) Put the crossed, stitched straps through the comfort pad

on the suspension ratchet.

Installing the Chin Strap

V-Gard® H1 Safety Helmet - Chin Strap (PN 10194765)

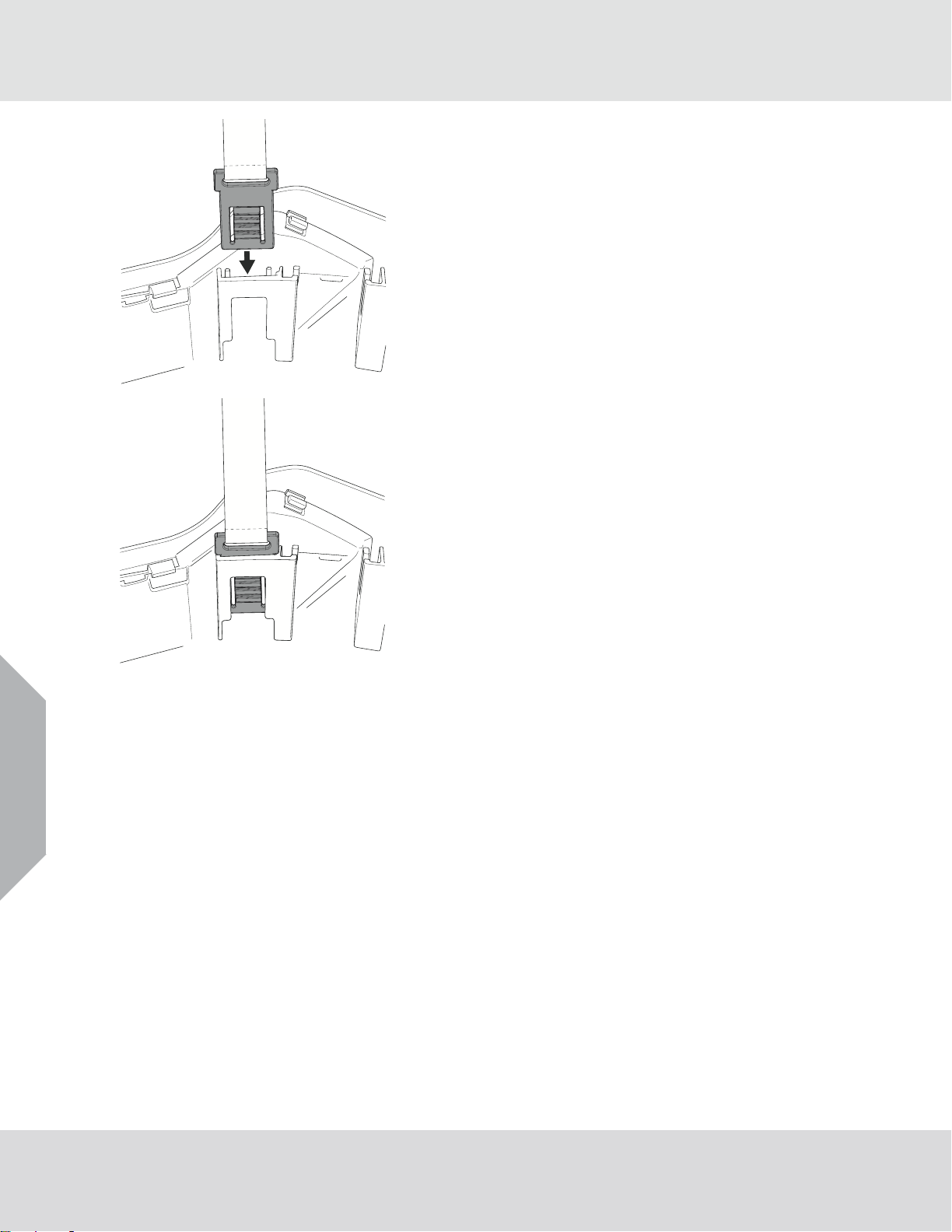

(5) Connect the black clips on the crossed, stitched straps

(B, C) to the rear of the helmet (B, C).

(6) Connect the black clips on the short, loose straps (A, D)

to the front of the helmet (A, D).

(7) Make sure that the clips on all four legs of the chin strap

are installed, are connected correctly, and do not disen-

gage.

(8) Make sure that the webbing is not twisted.

Adjusting the Chin Strap

V-Gard® H1 Safety Helmet - Chin Strap (PN 10194765)

2 Adjusting the Chin Strap

3 Maintenance

Examine the rescue whistle for blockage or damage. Blow the whistle to make sure it operates correctly.

If the rescue whistle is damaged or broken, replace the chin strap.

Use a solution of MSA's Confidence Plus® Cleaning Solution (P/N 10009971 or 10032737) or mild soap and

warm water to clean the chin strap and rescue whistle. Do NOT use detergents. Let the chin strap air-dry.

MSA recommends that you replace the chin strap after 12 months of use.

4 Ordering Information

Make sure that you adjust the chin strap for a tight fit. To apply equal pressure between all four Y straps,

pull the webbing through the side adjusters until the lengths are correct.

Part number Description

10194765 Replacement Chin Strap, V-Gard H1 Safety Helmet, EN 12492

For local MSA contacts, please visit us at MSAsafety.com
