MSH equipment WIZARD UP 30 Manuale utente
Wizard Up30 Rev. 4 28/04/2017
1
SINGLE SCISSOR VEHICLE LIFT
W
WI
IZ
ZA
AR
RD
D
U
UP
P
3
30
0
O
O
OP
P
PE
E
ER
R
RA
A
AT
T
TI
I
IN
N
NG
G
G
I
I
IN
N
NS
S
ST
T
TR
R
RU
U
UC
C
CT
T
TI
I
IO
O
ON
N
NS
S
S
HTC Srl Unipersonale – Web site www.effemme.biz - E-mail info@effemme.biz - P.Iva: 01607910674
Via degli Elettricisti – Zona Ind.le - 64020 Scerne di Pineto (TE)Tel. 085.9463008 – Fax 085.9462461
Wizard Up30 Rev. 4 28/04/2017
2
CONTENTS
1. INTRODUCTION……………………………………………………………………………..3
2. PACKING……………………………………………………………………………………...4
3. TRANSPORT…………………………………………………………………………………5
4. MACHINE DESCRIPTION………………………………………………………………….6
5. LAYOUT AND TECHNICAL DETAILS…………………………………………………….7
6. SAFETY……………………………………………………………………………………...13
7. INSTALLATION……………………………………………………………………………..15
8. FIRST OPERATION………………………………………………………………………..23
9. MAINTENANCE…………………………………………………………………………….24
10.TRUBLESHOOTING……………………………………………………………………….25
11.ACCESSORIES…………………………………………………………………………….28
12.SPARE PARTS……………………………………………………………………………..28
13.MAINTENANCE BOOK……………………………………………………………………36
14.GUARANTEE …..…………………………………………………………………………..41
•SYMBOLS
HAZARD / DANGER
PROHIBITED
WARNING
Follow the instruction given by the messages preceded by a safety alert symbol
Refer exclusively to the ITALIAN version of this Manual for a safe use of the machine.
Any translations of this manual may not comply to the original version integrating
additions and contents that are not present in the original text and which are not
necessarily authorized by the manufacturer.
Wizard Up30 Rev. 4 28/04/2017
3
1. INTRODUCTION
This manual was written for shop technicians (car lift operators) and maintenance technicians. Before operating these
car lifts, please read these instructions completely. The lift should be operated only by purposely trained technicians
over 18 years of age, in full observance of the regulations in force in the country where the lift is installed.
This manual covers important information for:
• Safety of people
• Safety of the car lift
• Safety of lifted car
This manual is considered to be a permanent part of the lift and must be kept in an easily accessible place so that the
operator can find it and refer to it any time.
PARTICULARLY CAREFUL READING OF CHAPTER “3”ON SAFETY AND MAINTENANCE IS RECOMMENDED.
All versions of “UP 30” have been designed and built as required by: EUROPEAN DIRECTIVES: 98/37/CE-
73/23/CEE e 89/336/CEE and EUROPEAN STANDARDS: EN 292.1, EN 292.2, EN 1050, EN 60204-1, EN 1493.
Only skilled and previously authorized technicians should be allowed to carry out transport, assembling, setting,
maintenance, overhaul, moving, dismantling operations, etc. concerning the lift. The manufacturer is not responsible
for possible damage to people, vehicles and objects, caused by improper use of the lift.
Read these instruction completely before operating the lift.
The lift must be only used for vehicles up to the specified capacity.
Any improper use of this lift is strictly forbidden Disconnect the lift from the main electric supply before any
extraordinary maintenance operation.
Lift installation must be carried out as specified by these instructions.
Service test; proceed as described on page 32.
THE MANUFACTURER IS NOT LIABLE FOR POSSIBLE DAMAGE RESULTING FROM FAILURE TO FOLLOW
THE INSTRUCTION SUPPLIED WITH THIS CAR LIFT.
Wizard Up30 Rev. 4 28/04/2017
4
2. PACKING
Standard versions of the car lift are pre-assembled and equipped as follows (pic. 1):
N.2 bases and platforms (P1-P2) placed on top of each other, with pallet and wooden shims, and sealed with
“pluriball” and metal clamps.
N.1 control box sealed with “pluriball” and metal clamps and wooden shims (packed on the lift).
N.1 cardboard box equipped with electric and hydraulic connections, rubber pads (packed on the lift).
N.1 set of short or long lifting/lowering ramps or set of spacecovering (packed on the lift).
Pic. 1
Wizard Up30 Rev. 4 28/04/2017
5
3. TRANSPORT
Packing can be lifted or moved by fork lift trucks, cranes or bridge cranes. In case of slinging, a second person must
always take care of the load to avoid dangerous oscillations. At the arrival of goods, check for possible damage due to
transport operations. Also verify that all items specified in the delivery notes are included. In case of damage or
possible defects in transit, the person in charge or the carrier must be immediately informed. Furthermore, during
loading and unloading operations goods must be handled as shown in (pic. 2) (when slinging, use wooden spacers to
prevent carton box from damaging).
PACKING REMOVAL:
Wooden packing and pluriball packing can be recycled , in case of total packing removal, comply with the rules in
force in the lift installation country.
Pic. 2
Wizard Up30 Rev. 4 28/04/2017
6
4. MACHINE DESCRIPTION
MODELS - SPECIFICATIONS

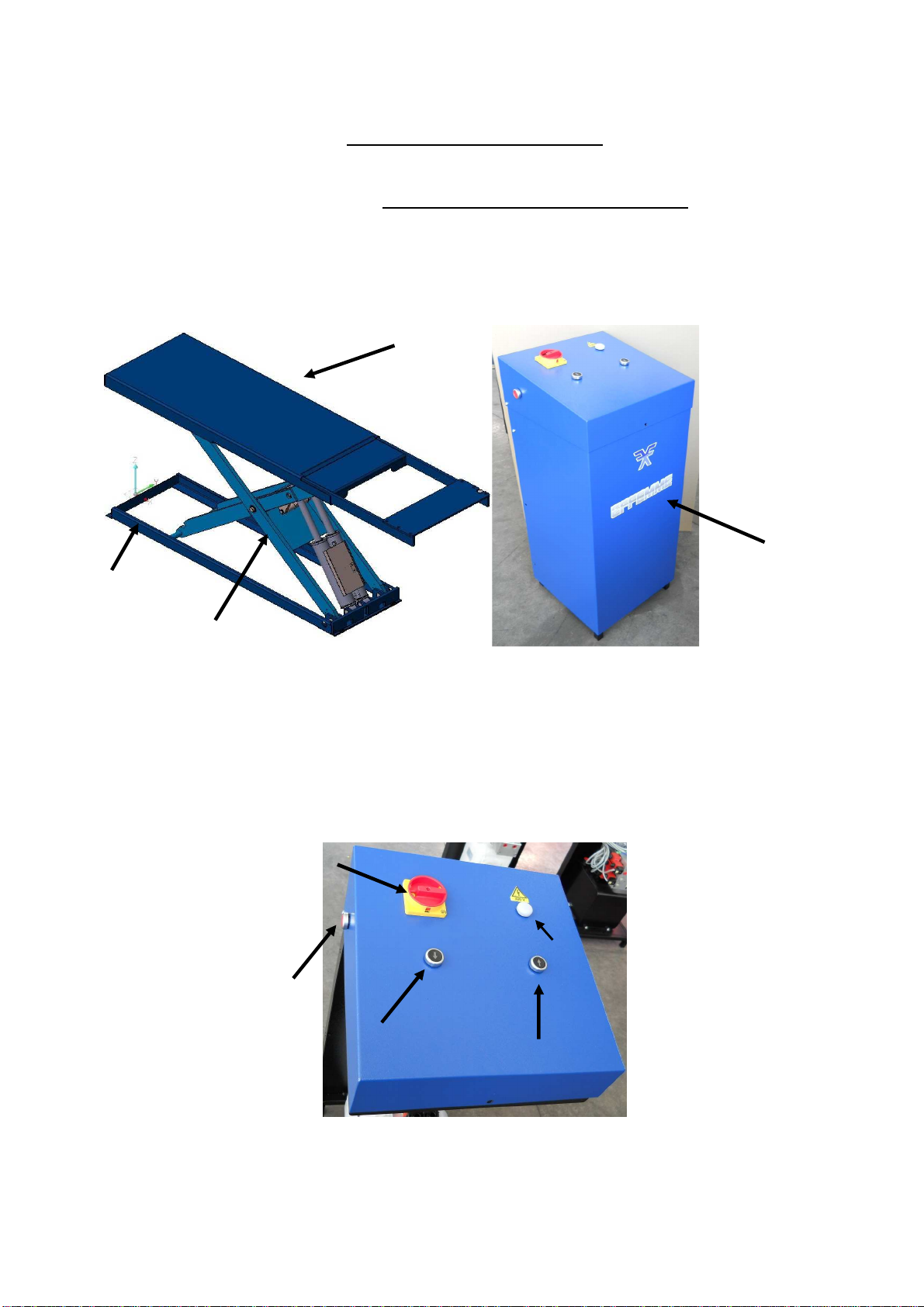

“UP 30” models are single scissor and fixed (that is anchored to the ground) car lifts. They have been designed and
built for vehicle lifting and placing operations. Our car lifts are equipped as follows (pic. 3):
A. BASE (Fixed structure)
B. ARMS, PLATFORM (Lifting and travelling structure).
C. CONTROL BOX
Pic. 3
FIXED STRUCTURE UNIT: This is the car lift base, made of a structural steel sheet with floor fixing holes.
LIFTING AND TRAVELLING STRUCTURE UNIT: This is composed of steel booms and a platform. The platform is
made of structural steel sheet with supporting uprights anchored to the booms by steel pins at the fixed points, and by
sliders at the movable ones. Lifting system links are equipped with maintenance-free self-lubricating bushings.
CONTROL BOX: The unit is made of a metallic box containing oil tank, pump motor assembly, electro-valve
assembly and electrical and hydraulic supply connections. Low-voltage controls (24V) are placed on the power unit.
they are the following (pic. 4)
Pic. 4
B
B
A
C
4
2
1
3
5
Wizard Up30 Rev. 4 28/04/2017
7
1. Lifting push button: When pressed, motor and lifting mechanism are operated.
2. Lowering push button: When pressed, lowering electrovalves are operated.
3. Led: Indicates that the control board is powered.
4. Master switch: The switch can be padlocked to prevent the use of the lift during the maintenance.
5. EF: End-Stroke High Micro Exclusion.
“UP 30” single scissor lifts are able to lift vehicles and vans whose weight is no more than 3000 kg. All version are
equipped with extension platforms so vehicles with a longer “wheel base” can be lifted. Our range of single scissor lifts
can meet any demand coming from car repairmen, tyre dealers, body repairmen etc.
The vehicle is supported by mean of 4 rubber pads (included), setting its wheels free.
Pic. 5
THE LIFT IS DESIGNED TO RAISE THE LOAD FROM A VERTICALSTROKE OF AT LEAST 75MM, THAT
MEANS HEIGHT FROM THE GROUND OF THE PLATFORM OF AT LEAST 180 MM. LOWER THE LIFT UNDER
THIS LIMIT WHEN THERE IS A VEHICLE ON IT, IT COULD DAMAGE THE STRUCTURE AND CREATE LOSS OF
STABILITY OF THE LOAD.
Wizard Up30 Rev. 4 28/04/2017
8

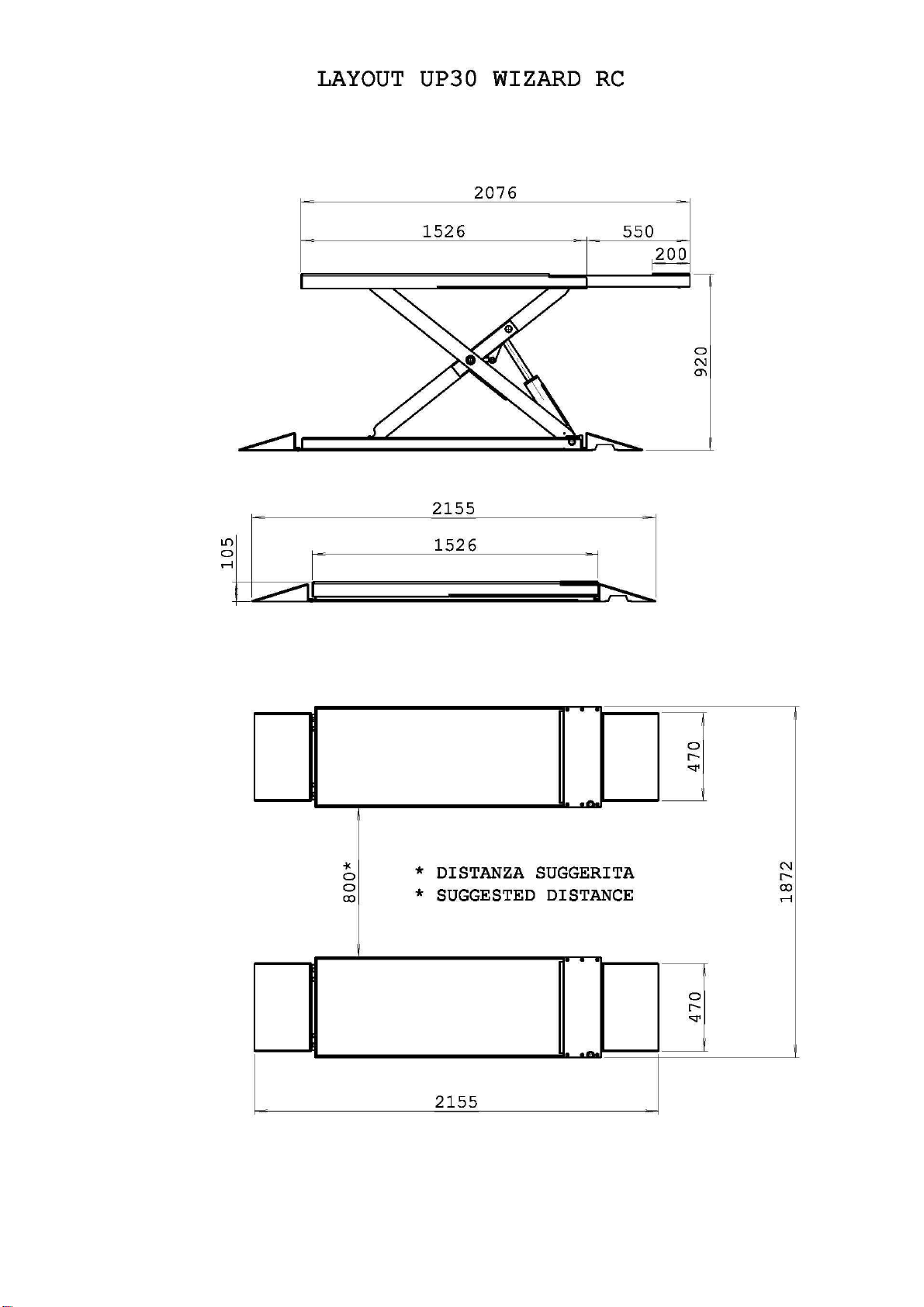

OVERALL DIMENSIONS:
Pic. 6
Wizard Up30 Rev. 4 28/04/2017
9
Pic. 6
