MSI MPC 400 Manuale utente
○○○○○○○○○○○○○○○○○○○○○○○○○○○
1
Version 1.0
Multilingual
G52-B6253X2
QuicQuic
QuicQuic
Quick Insk Ins
k Insk Ins
k Instt
tt
tallall
allall
allaa
aa
ation Guidetion Guide
tion Guidetion Guide
tion Guide
○○○○○○○○○○○○○○○○○○○○○○○○○○
2
Copyright Notice
The material in this document is the intellectual property of MICRO-STAR
INTERNATIONAL. We take every care in the preparation of this document, but
no guarantee is given as to the correctness of its contents. Our products are
under continual improvement and we reserve the right to make changes without
notice.
Trademarks
All trademarks used in this manual are the property of their respective owners.
About this Manual
This manual is designed to provide the user a quick reference for barebone setup.
As MEGA400 is shipped out in a barebone, we assume you need the information
regarding how to assembly the system, such as CPU, RAM, HDD..., etc. Based
on this assumption, we make this manual of quick installation guide. Please
follow the description step by step to assembly the components. If you have any
question in assembling the system, you can contact your dealer or our technical
support.
Revision History
Revision Revision History Date
V 1.0 First Release Dec. 2003
○○○○○○○○○○○○○○○○○○○○○○○○○○○
3
CONTENTS
English ......................................................................................................... 5
French (FRANÇAIS).............................................................................................. 15
German (DEUTSCH) ............................................................................................. 25
Spanish (ESPAÑOL) .............................................................................................. 35
Italy (ITALIANO).................................................................................................... 45
Russian ( ) ................................................................... 55
Polish (POLSKI)..................................................................................................... 65
Chinese (繁體中文) ..................................................................................................... 75
Simplified Chinese (簡体中文) ................................................................................. 85
Japanese (日本語) ........................................................................................ 95
NOTE: This manual is written just for system assembly. For complete
information about the system, please refer to the user’s manual in CD.
РУССКИЙ
○○○○○○○○○○○○○○○○○○○○○○○○○○
4
Technical Support
If a problem arises with your system and no solution can be
obtained from the user’s manual, please contact your place
of purchase or local distributor. Alternatively, please try the
following help resources for further guidance.
Visit the MSI website for FAQ, technical guide, BIOS
updates, driver updates, and other information: http://
www.msi.com.tw/
○○○○○○○○○○○○○○○○○○○○○○○○○○○
5
overview
The MEGA400 is shipped out as a bare bone. Some components are
equipped while some are optional. See the following for the standard and op-
tional items:
This manual provides you with the information of system setup. Before
assembling your system, please be prepared for the installation tools and appro-
priate items. If you are not clear about the items, contact your dealer for the
information.
Installation Tools
Screws
You will find two types of screws in the package.
Fastening HDD
Screw Driver Gloves
Type 1 Type 2
Standard Mainboard, Power Supply, Case, Cables, Cooler,
Radio Antenna, Remote Controller, Card Reader,
CD, Manual
Optional TV-Tuner Card MS-8606
Fastening CD-ROM
○○○○○○○○○○○○○○○○○○○○○○○○○○
6

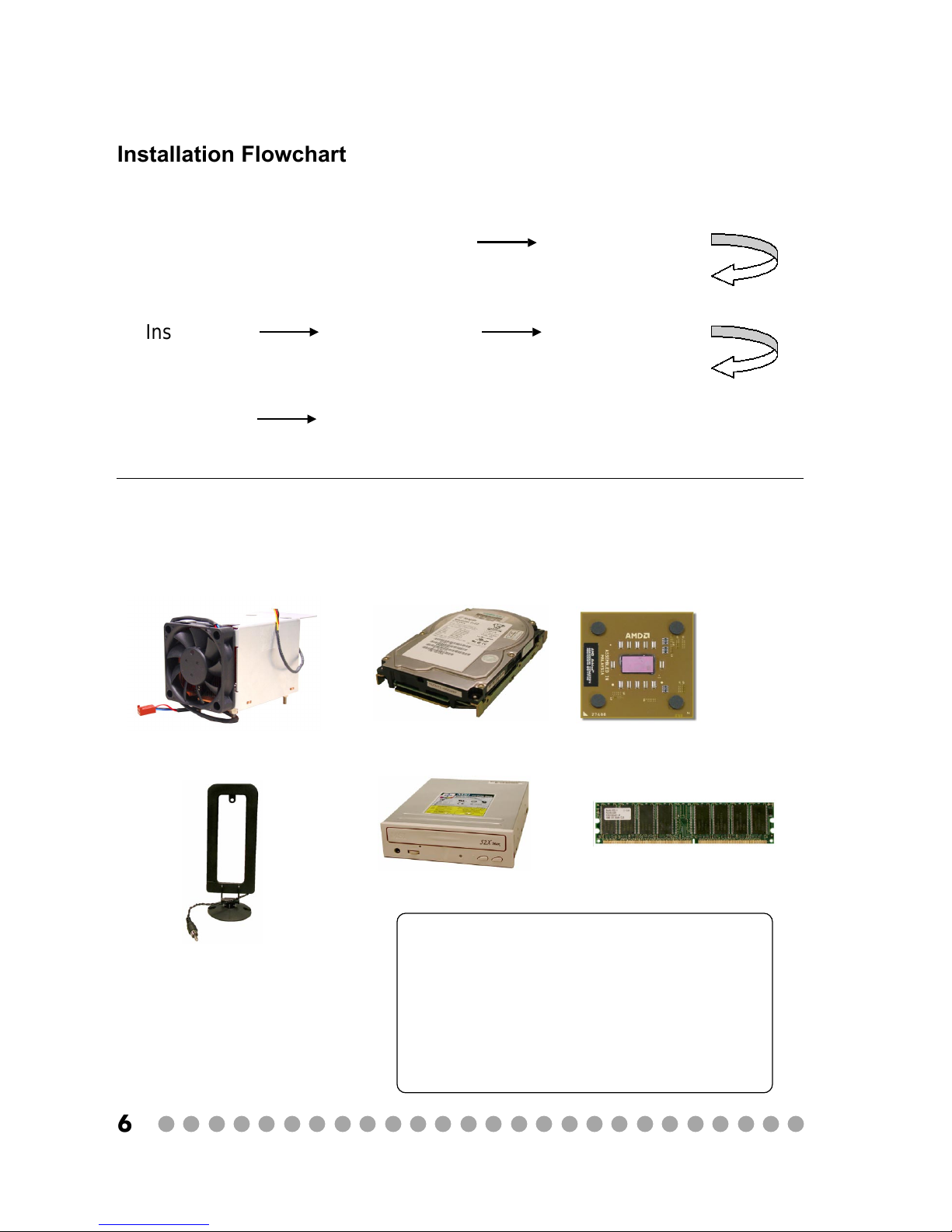

Installation Flowchart
Install HDD Install CPU&
Cooler Install Optical
Drives
Checking the Items
Before starting the assembling, check the items you need.
HDD Module CPU
CPU Cooler
CD-ROM Module DDR DIMM
Radio Antenna
NOTICE!!!
To provide you with the complete steps
from mechanical view, we STRONGLY
suggest you to follow the installation
procedures from p. 7~ p. 13.
Start Remove Cover
Install RAM Replace Cover
○○○○○○○○○○○○○○○○○○○○○○○○○○○
7
Removing Cover
Check the bare bone inside. The Card Reader
is already equipped in.
Use your hand to free and remove the three
thumb screws on the back panel.
Use your two hands to remove the cover.
Follow the direction indicated to remove the
cover.
Card Reader
○○○○○○○○○○○○○○○○○○○○○○○○○○
8

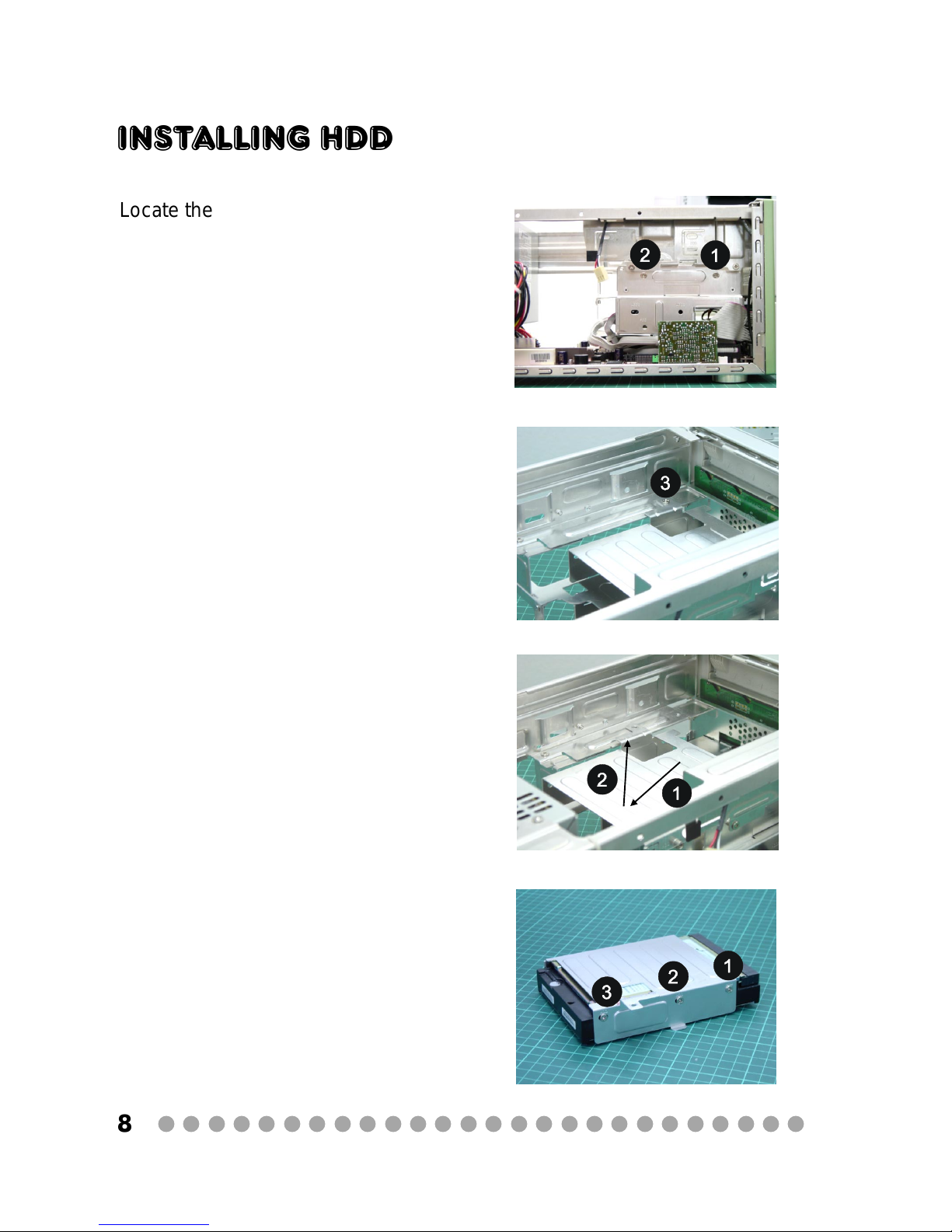

Installing hdd
Locate the bracket. Remove the screws to
take out the bracket.
Insert the HDD module into the bracket. Use
Type 2 screws to secure the module from the
right side.
Follow the direction indicated to take out
the bracket.
○○○○○○○○○○○○○○○○○○○○○○○○○○○
9

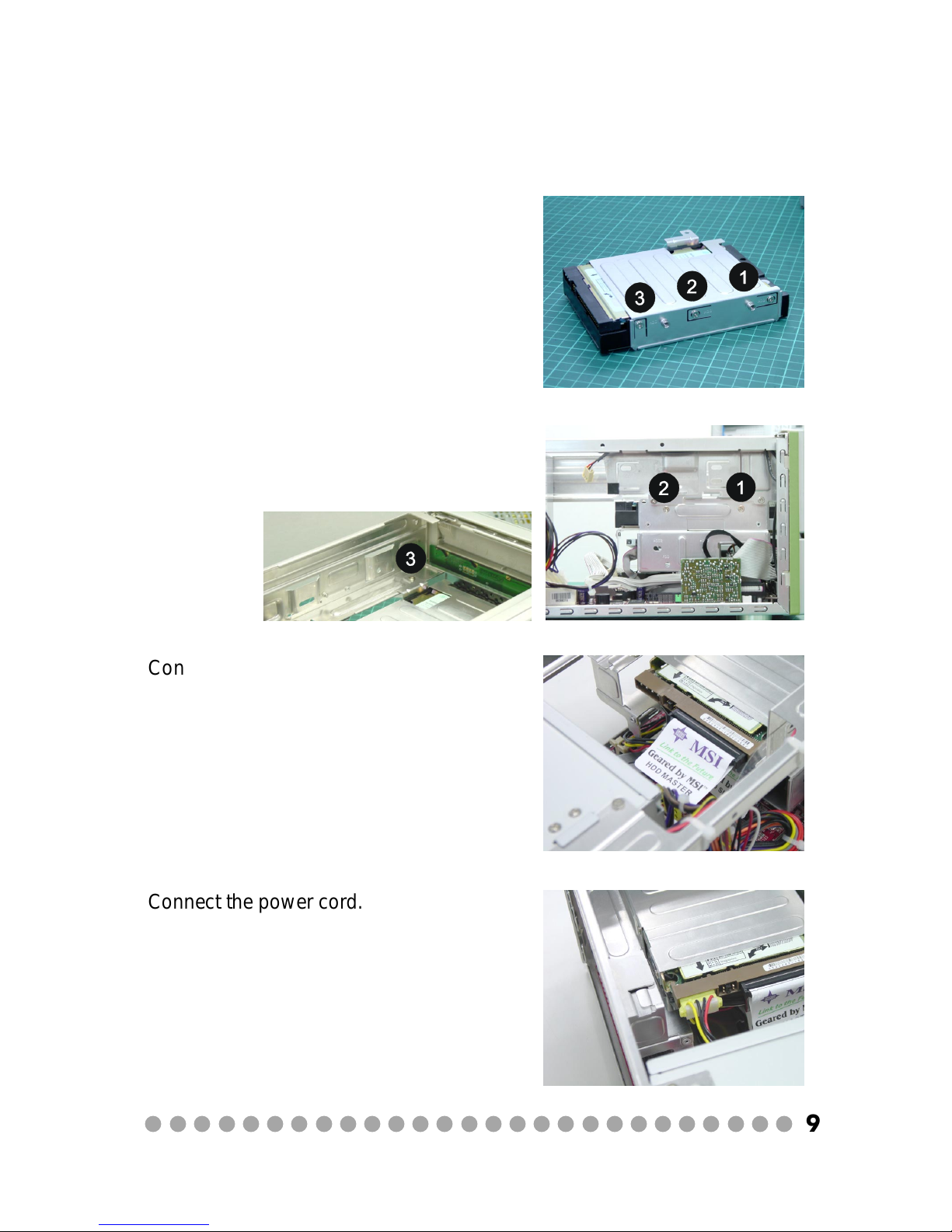

Connect the power cord.
Connect the specific HDD cable which is
marked “HDD Master”.
Insert the HDD bracket into the case. Use
Type 2 screws to secure the HDD bracket
from the left side.
Use Type 2 screws to secure the module from
the left side.
○○○○○○○○○○○○○○○○○○○○○○○○○○
10
Installing CPU
Put the CPU onto the socket. Make sure the
pins are completely embedded into the
socket. The CPU can only fit in the correct
direction.
Pull the lever away from the socket and raise
it up to a 90-degree angle.
Close the lever to complete the installation.
Locate the CPU socket.
