MSI M510C Manuale utente

Notice

Please note that the setting diagrams or values in this guide are FOR YOUR REFER-

ENCE ONLY. The model you bought may be slightly different from the illustrations

and descriptions in this guide. If you are not sure about these information, such as the

computer’s specification and equipment, please ask your local vendor for help.

Trademarks

* All trademarks are the properties of their respective owners.

* Microsoft is a registered trademark of Microsoft Corporation. Windows® 98/ME

2000/XP are registered trademarks of Microsoft Corporation.

* AMI® is a registered trademark of American Megatrends Inc.

* PCMCIA and CardBus are registered trademarks of the Personal Computer

Memory Card International Association.

Release History

Version Revision Note Date

1.0 First release February 2004

G52-B10003XO

Table of Contents

1 ENGLISH........................................... 3

2 FRANCAIS........................................ 11

3 DEUTSCH......................................... 19

4 NEDERLANDS................................. 27

5 ČEŠTINA........................................... 35

6 SVENSKA.......................................... 43

7 SRPSKI.............................................. 51

Thank you for purchasing your M510C Notebook PC. The M510C Notebook

PC is an Intel-based mobile platfrom, implementing the latest Centrino processor

to increase excellent performance and wireless Internet access. In addition, its

built-in 4-in-1 card reader, high-speed optical storage drive, IEEE 1394 and USB

2.0 ports, as well as its 15" high-brightness LCD monitor, make this computer

act as your media center to have you fully enjoy the modern digital life.

This Quick Guide provides you with a common instruction on using this

computer by the following sections:

Introduction

ENGLISH

The package should contain the following items:

One M510C Notebook PC.

One Software CD containing the drivers and utilities.

One Recovery CD (optional).

One User’s Guide and one Quick Guide.

One Warranty Card.

Accessories:

- High-capacity Li-ion battery pack.

- AC adapter and power cord.

- Phone cable/Phone jack (optional).

- Notebook PC carry bag (optional).

Unpacking

If you want to... refer to...

check the package contents page 3

glance at this computer page 4, 5

install the battery page 6

turn on the computer to work page 7

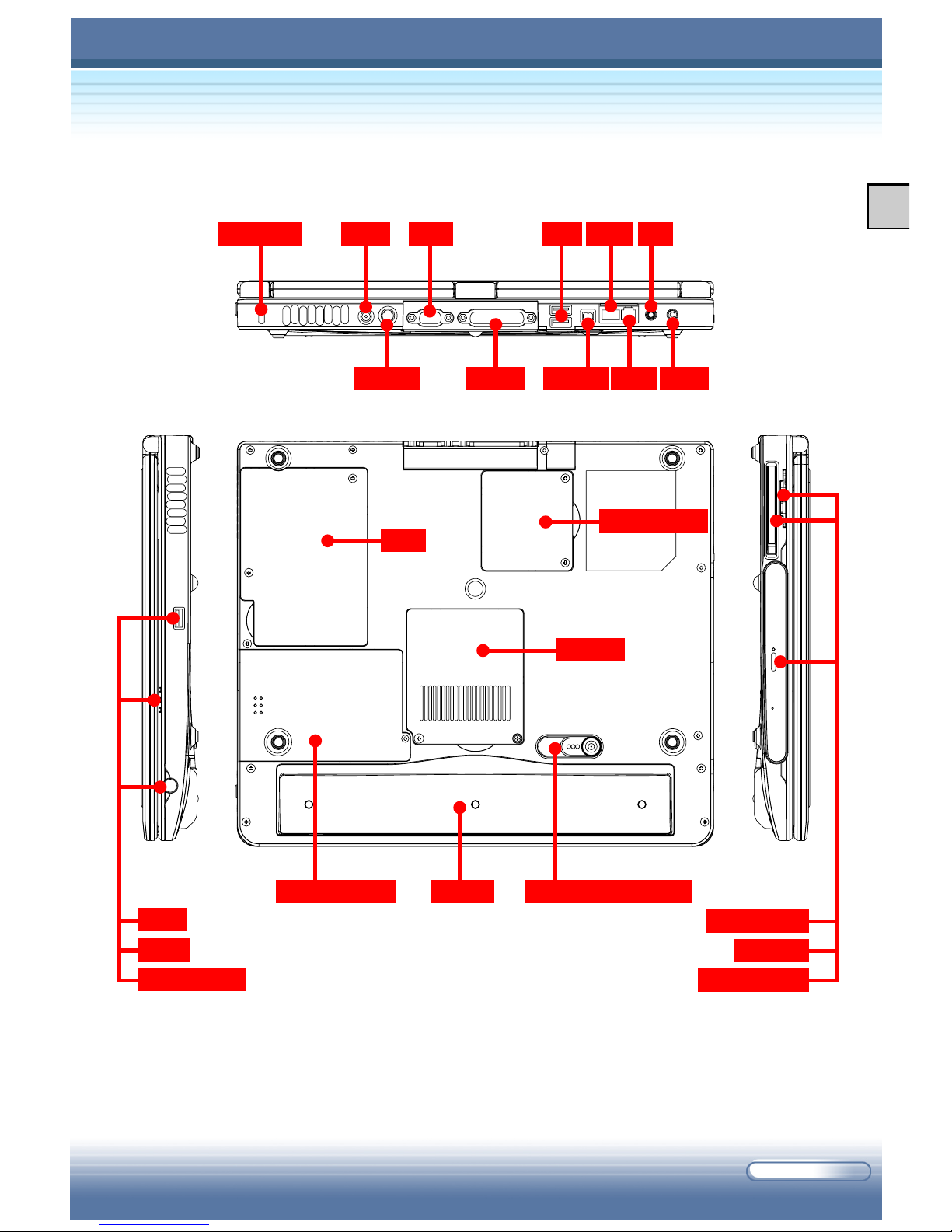

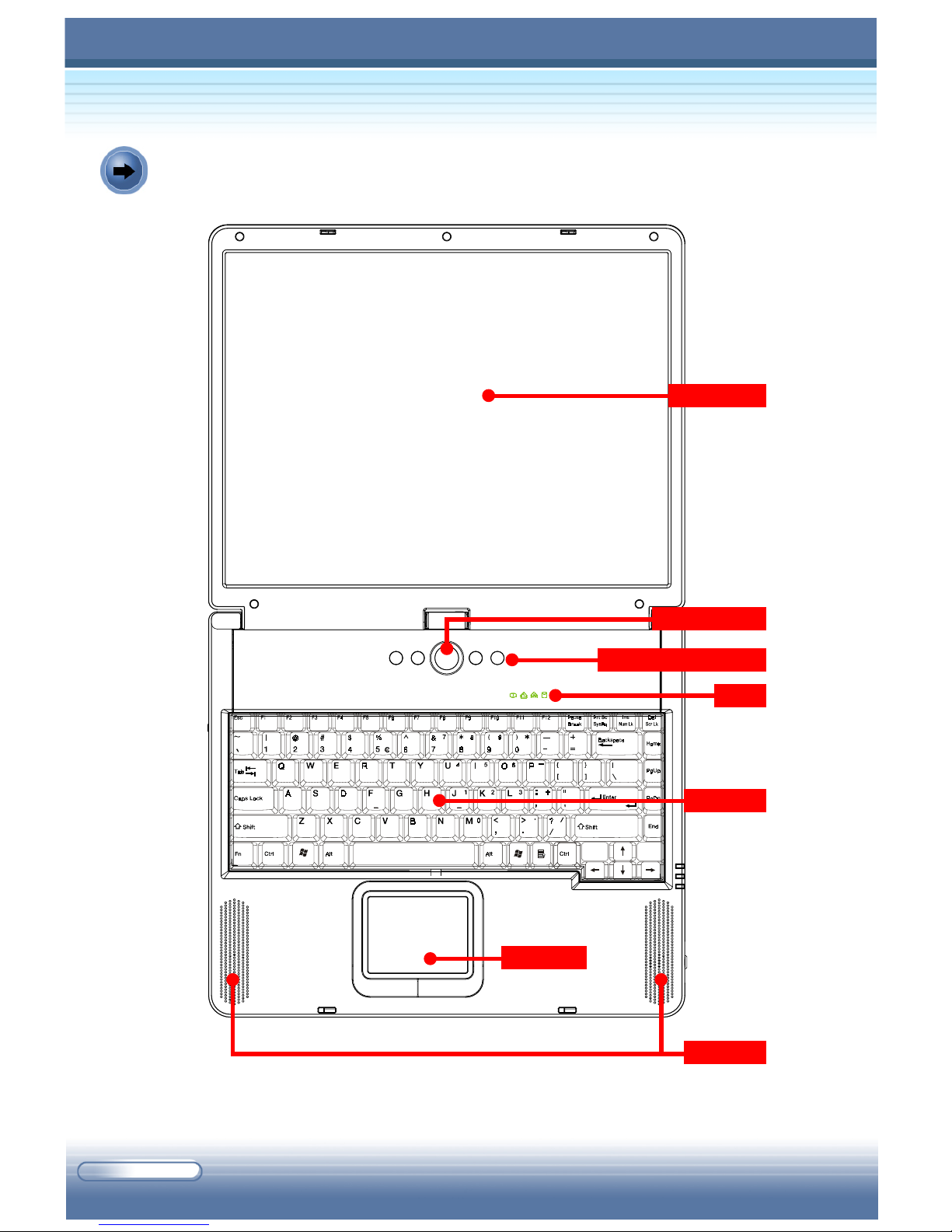

Product View

Touchpad

LCD Screen

Quick Launch Buttons

Keyboard

Speakers

LEDs

Power Button

Memory

MiniPCI Card

CPU

USB

IEEE1394

RJ-45

Audio

Power VGA

S-Video Printer

Mic

RJ-11

USB

LEDs

Cover Button

Card Reader

PC Card

Optical Device

Battery Battery Unlock ButtonHard Disk Drive

ENGLISH

Lock Hole

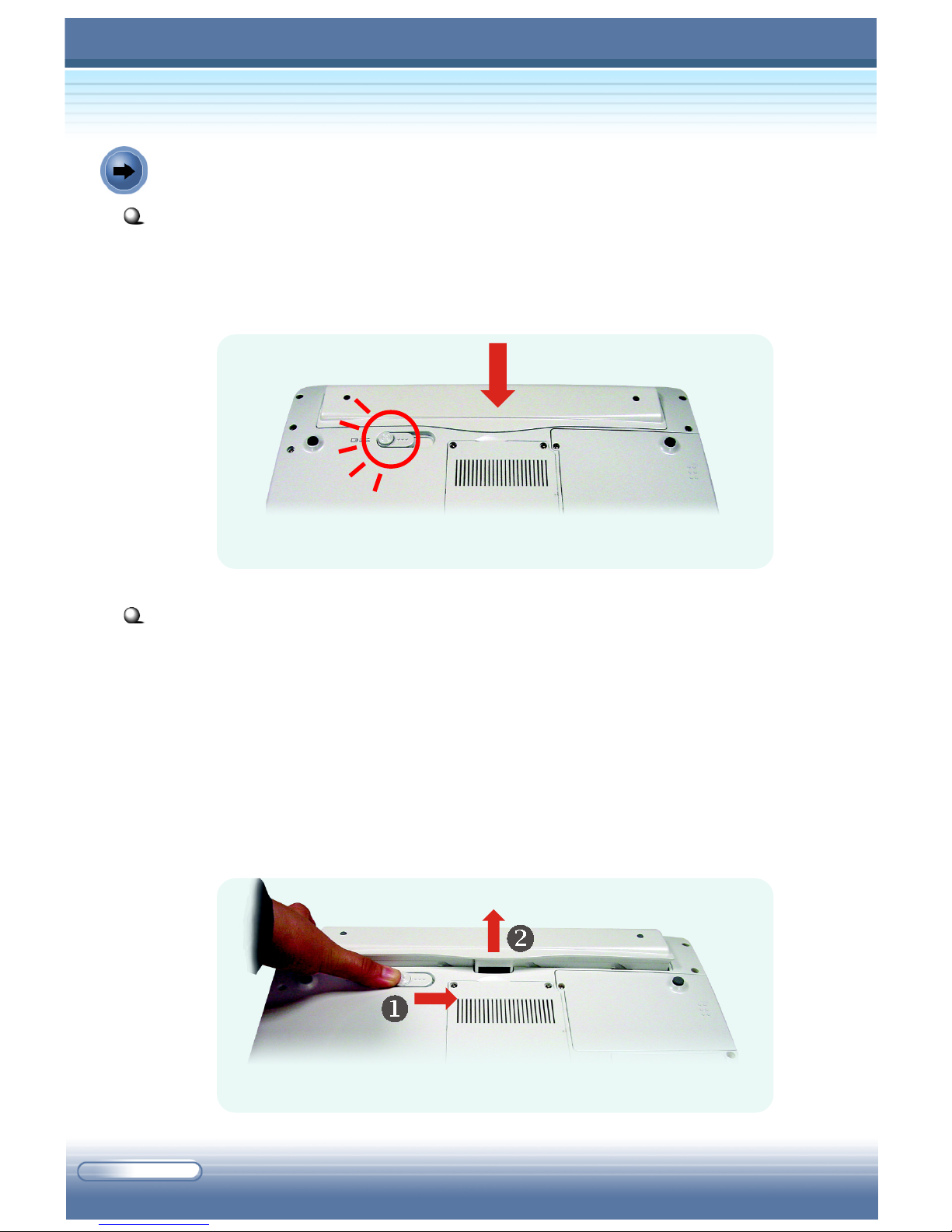

Removing the Battery Pack

1. Confirm that the computer is turned off.

2. Place the computer upside down gently.

3. Locate the Battery Unlock Button on the bottom side of the

computer.

4. Press and hold the button, and then push it outwards (). The

battery pack will bound upwards slightly ().

5. Remove the battery pack from the compartment.

Installing the battery pack

1. Place the battery pack into the compartment.

2. Press down the battery pack until a “click” sound. The battery pack

will be locked automatically.

Installing the Battery Pack

Replacing the Battery Pack

Removing the Battery Pack

Starting Up

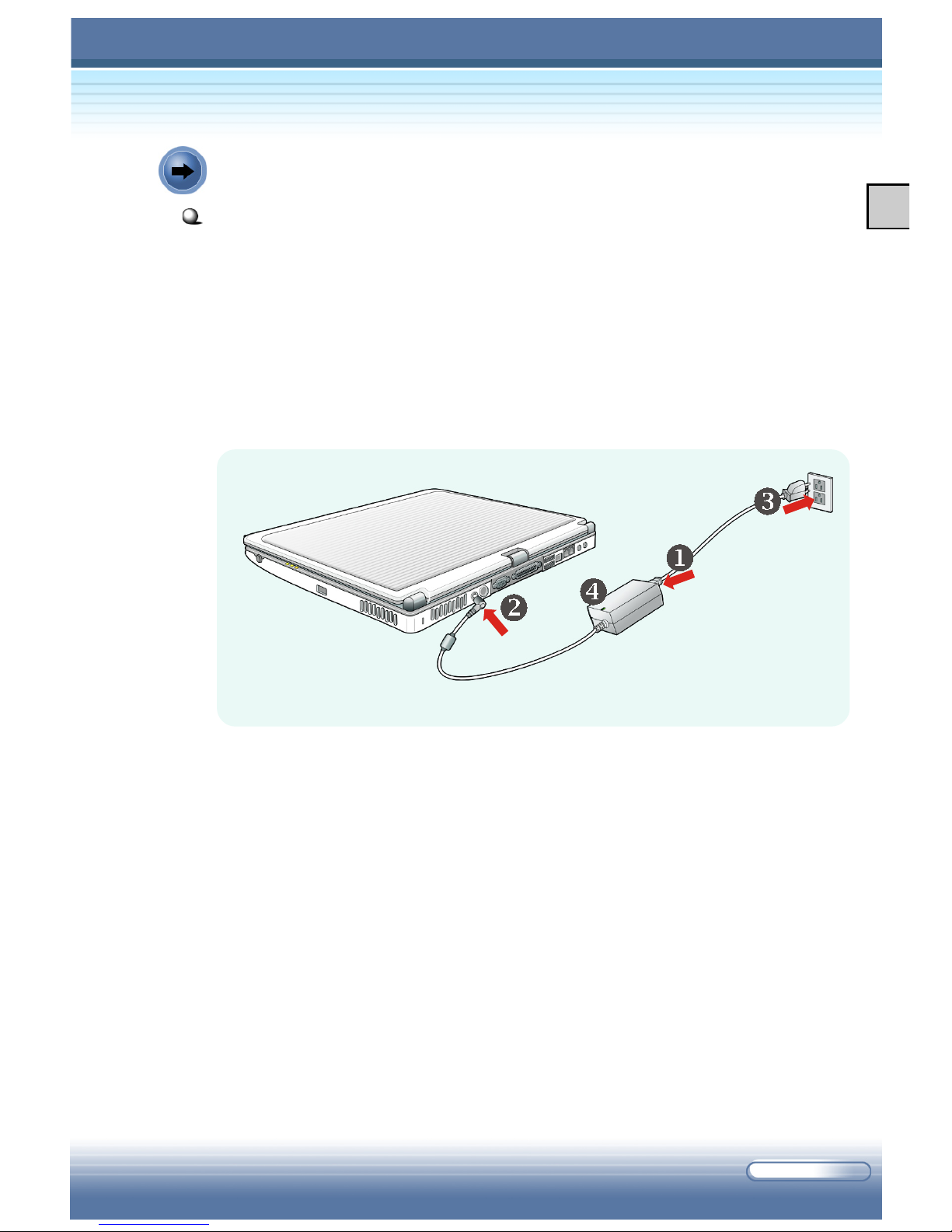

Connecting/Disconnecting the AC Power

1. Unpack the package to find the AC adapter and power cord.

2. Attach the power cord to the connector of the AC adapter ().

3. Plug the DC end of the adapter to the computer (), and the male end

of the power cord to the electrical outlet ().

4. When the AC adapter is connected, the green LED on the AC adapter

will light up () to indicate that the computer is powered from the

electrical outlet.

Connecting the AC power

5. To disconnect the AC adapter, you should unplug the power cord

from the electrical outlet first, and then unplug the connector from the

computer. When unplugging the power cord, always hold the

connector part of the cord, never pull the cord.

Note: The AC adapter included in the package is correct for your Notebook

PC; using other adapter model may damage the computer or other devices on

the computer.

ENGLISH

Turning On the Computer

1. Make sure that the computer is connected to the AC power.

2. Open the top cover by pressing the Cover Button.

3. Press the Power Button.

Pressing the power button

Tip: Once pressed, the Power Button will light Blue to indicate that

the computer is turned on; meanwhile, the Power LED on the right

side of computer lights Green.

4. When the computer is turned on, it will first perform a series of

diagnostic tests that is called Power-On Self Test (POST). Then, the

operating system (such as Microsoft Windows XP in this manual)

should start, and you can start to work with your Notebook PC!

LEDs on the Computer

Status LEDs

Num Lock: glows Green when the Num Lock function is activated.

Caps Lock: glows Green when the Caps Lock function is activated.

Scroll Lock: glows Green when the Scroll Lock function is activated.

Hard Disk In-use: blinks Green when the computer is accessing the

hard disk drive.

System LEDs

Wireless LAN: glows Green when the wireless LAN function of the

computer is enabled.

Power On/Off/Suspend: glows Green when the computer is

turned on; blinks Green when the system is in suspend mode.

Battery Status: glows Green when the battery is being charged (with

AC adapter connected); glows Orange when low battery power (less

than 5%); blinks Orange when the battery failed.

Quick Launch Buttons

Email: to launch the E-mail application (such as Outlook Express)

to receive and send your E-mail.

Internet: to launch the web browser (such as Internet Explorer) to

surf the Internet.

Wireless LAN: to enable or disable the wireless LAN function of

your computer.

User-defined: allows you to define a software application to

launch.

ENGLISH
