1332G

(55AD210Q195)

,1336G

(55AE210R195)

Walk-BehindCommercial

RotaryMowers

ProfessionalTurfEquipment

ILLUSTRATEDPARTS LIST

®

2

This Page Left Blank Intentionally

3

TABLE OF CONTENTS

1332G / 32"FabricatedCutter Deckand Parts List.. . . . .. . . . 4 and 5

1332G / 32"FabricatedDeck Cover.. . . . . . . . . . . . . . . . . . . . . . . . . . 6

1332G, 1336G / 32"& 36" ChuteAssembly. . . . . . . . . . . . . . . . . . . . . 7

1332G / 32"Spindle Assembly.. . .. . . . . . .. . . . . . .. . . . . . .. . . . . .8

1336G / 36"FabricatedDeck Cover.. . . . . .. . . . . . .. . . . . . .. . . . . .9

1336G / 36"DeckAssembly &Parts List.. . . .. . . . . . .. . . . . .10&11

1336G / 36" Spindle Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

1332G, 1336G / Caster Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

1332G, 1336G / Tank Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

1332G, 1336G / Handle Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . .15

1336G / Deck Assembly Standard Track. . . . . . . . . . . . . . . . . . . . . . . 16

1332G / Deck Assembly Narrow Track. . . . . . . . . . . . . . . . . . . . . . . . .17

1336G / Brake Assembly Standard Track. . . . . . . . . . . . . . . . . . . . . . .18

1332G / Brake Assembly Narrow Track. . . . . . . . . . . . . . . . . . . . . . . . 19

1332G, 1336G / Vari-Touch Drive Assembly. . . . . . . . . . . . . . . . . . . . 20

1332G, 1336G / 13HP Kohler Engine Assembly. . . . . . . . . . . . . . . . . 21

4

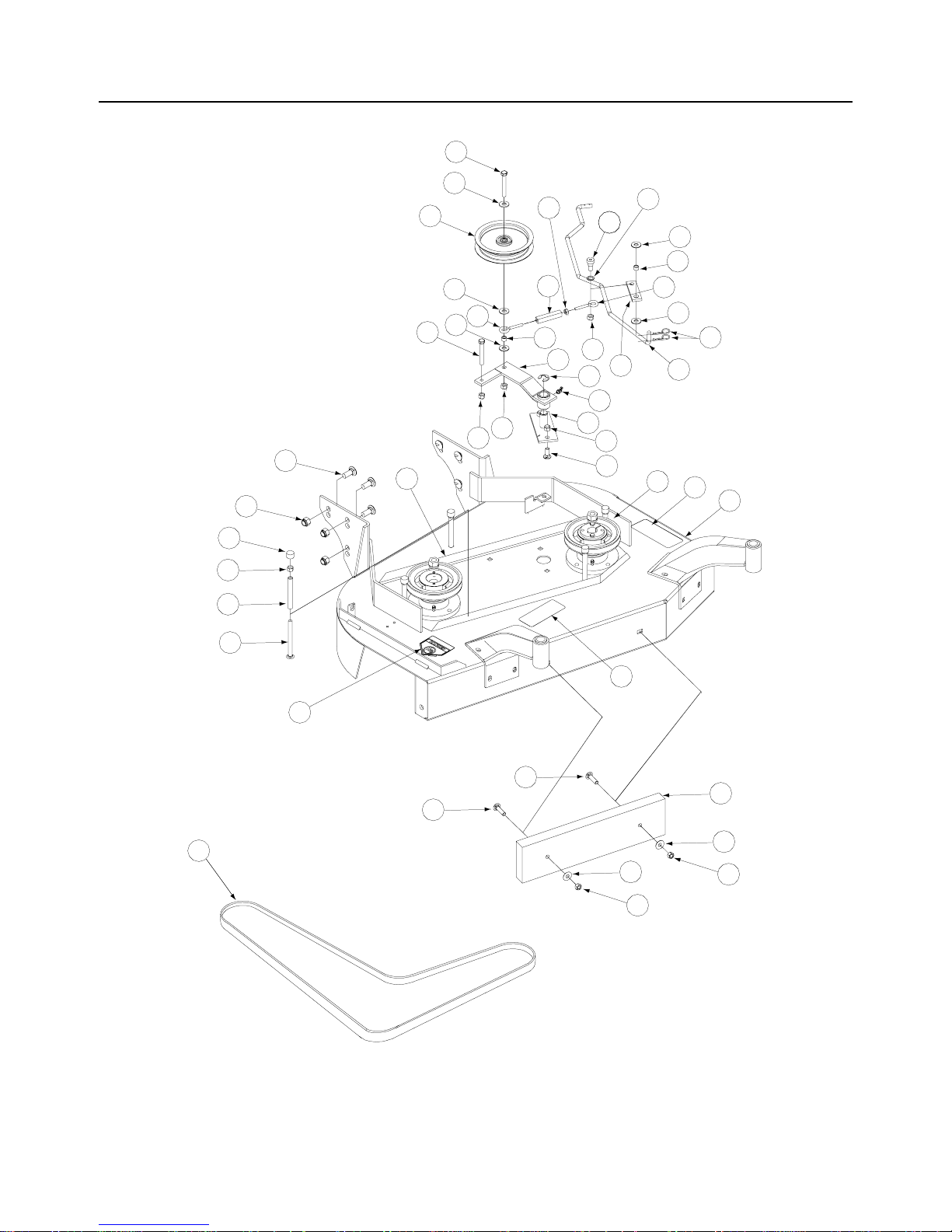

1332G / 32" Fabricated Cutter Deck-Figure 1

26

3

13

16

5

12

17

15

32

18 22

35

29

14

5

2

16

10

2

8

9

25

6

37

2

28

7

11

20

38

5

27

23

30

33

31

4

31

24

36

24

4

19

25

5

2

2

5

3

34

5

1332G / 32" Fabricated Cutter Deck -Parts List for Figure 1

Ref.

No. Part No. Description Qty.

1-- -- --

2 00006168 Flat Washer, 3/8 Zinc 5

3 01001371 Hex Cap Screw, 3/8-16, 2.75 2

4 00012158 Flat Washer, 3/8 Zinc 4

5 00012173 Lock Nut, Nylon Insert, 3/8-16 10

6 00012402 Shim Washer 1

7 00012428 Lock Nut, Nylon Insert, 1/2-13 6

8 00013433 Hex Nut, 5/16-18 2

9 00014439 Shoulder Bolt 1

10 00014459 Eye Bolt, Right Hand 1

11 00018468 Cap, Black Vinyl 5

12 00021958 Grease Fitting, 1/4-28; 45° 1

13 00019271 Eye Bolt, Left Hand 1

14 00021884 Blade Clutch, Rod 1

15 00021895 Idler Arm 1

16 00021956 Hair Pin, 3/8"-1/2" 2

17 00021961

E-Ring, Retainer

1

18 00021970 Pulley Deck 2

19 00021977 Idler Deck Take-up 1

20 00030633 Decal Rotating Blade 1

21 -- -- --

22 00030635 Decal, Warning Shield Missing 1

23 00030779 Belt Drive 1

24 00034224 Lock Nut, 3/8-16 4

25 00062715 Turnbuckle, Sleeve 2

26 00092370 Turnbuckle 1

27 01000160 Spacer, Belt Guide 5

28 01000517 Carriage Bolt, 1/2-13 x 1-1/4 6

29 01000643 Carriage Bolt, 3/8-16 x 2 2

30 01000644 Carriage Bolt, 3/8-16 x 4.5 5

31 01002010 Carriage Screw, 3/8-16 x 1.25 4

32 01002150 Deck 32" 1

33 01002166 Decal, Danger, Hands and Feet 1

34 00063043 Idler Base 1

35 01003050 Bumper, Deck 32" 1

36 01003052 Bumper, Deck 32" 1

37 01003154 Pivot Arm 1

38 01005048 Deck Stiffener 1

6

1332G / 32" Fabricated Deck Cover- Figure2 &Parts List

Ref.

No. Part No. Description Qty.

1 01002144 Deck Cover, 32" 1

2 01001073 Decal, 32" 1

3 00021951 Rubber Hood Latch 2

4 00008745 Machine Screw, 10-24 x 1/2 8

5 00006194 Lock Nut, Nylon Insert, 10-24 8

2

1

5

5

4

4

4

3

7

1332G, 1336G / 32" & 36"Chute Assembly - Figure 3 &Parts List

Ref.

No. Part No. Description Qty.

1 00003107 Cotter Pin, 5/32 x 1 1/2 Zinc 1

2 00012158 Flat Washer, 3/8, Zinc 1

3 00013597 Decal, Cut Line 1

4 00030644 Pin, Deflector Assembly, Weldment1 1

5 01002037 Torsion Spring 1

601004047ChuteAssembly Discharge1

1

2

3

4

6

5

8

1332G / 32" Spindle Assembly - Figure 4 &Parts List

Ref.

No. Part No. Description Qty.

1 00002766 Flat Washer, 1-1/2 x 5/8 x .05 1

2 00011444 Hex Cap Screw, 3/8-16 x 1-1/4 4

3 00011807 Hex Nut, 5/8-11 1

4 00013091 Hex Cap Screw, 5/8-11 x 9-1/2 1

5 00013131 Hex Cap Screw, 1/4-20, .75 2

6 00013432 Flat Washer, 5/8 Zinc 1

7 00021517 Key Stick, 1/4 x 1/4 x 2 1

8 00021871 Rotary Blade, 16-1/2 1

9 00021924 Blade Spacer, 5/8 ID, 1/4 Thick 5

10 00021973 Bushing 1

11 00034224 Lock Nut, 3/8-16 4

12 00057412 Spindle Assembly 1

13 01005048 Deck Stiffener 1

6

8

9

12

113

10

9

5

11

11

2

2

4

5

7

3

9

1336G / 36" Fabricated Deck Cover - Figure 5 & Parts List

Ref.

No. Part No. Description Qty.

1 00006194 Lock Nut, Nylon Insert 8

2 00008745 Machine Screw, 10-24 x 1/2 8

3 00021951 Rubber Hood Latch 2

4 01001067 Deck Cover, 36 1

5 01001071 Decal 36 MTD 1

4

5

1

3

2

2

1

10

1336G / 36" Deck Assembly - Figure 6

23

4

31

18

28

5

36

12

25

15 34

17

533

2

10

2

99

14

8

25

6

16

35

30

4

32

29

26

5

11

7

27 21 20

32

2

19

2

3

13

55

22

32

23

24
