Service Kit

753-0877

CODE:

DATE:

SUBJECT:

T-151

November 8, 2000

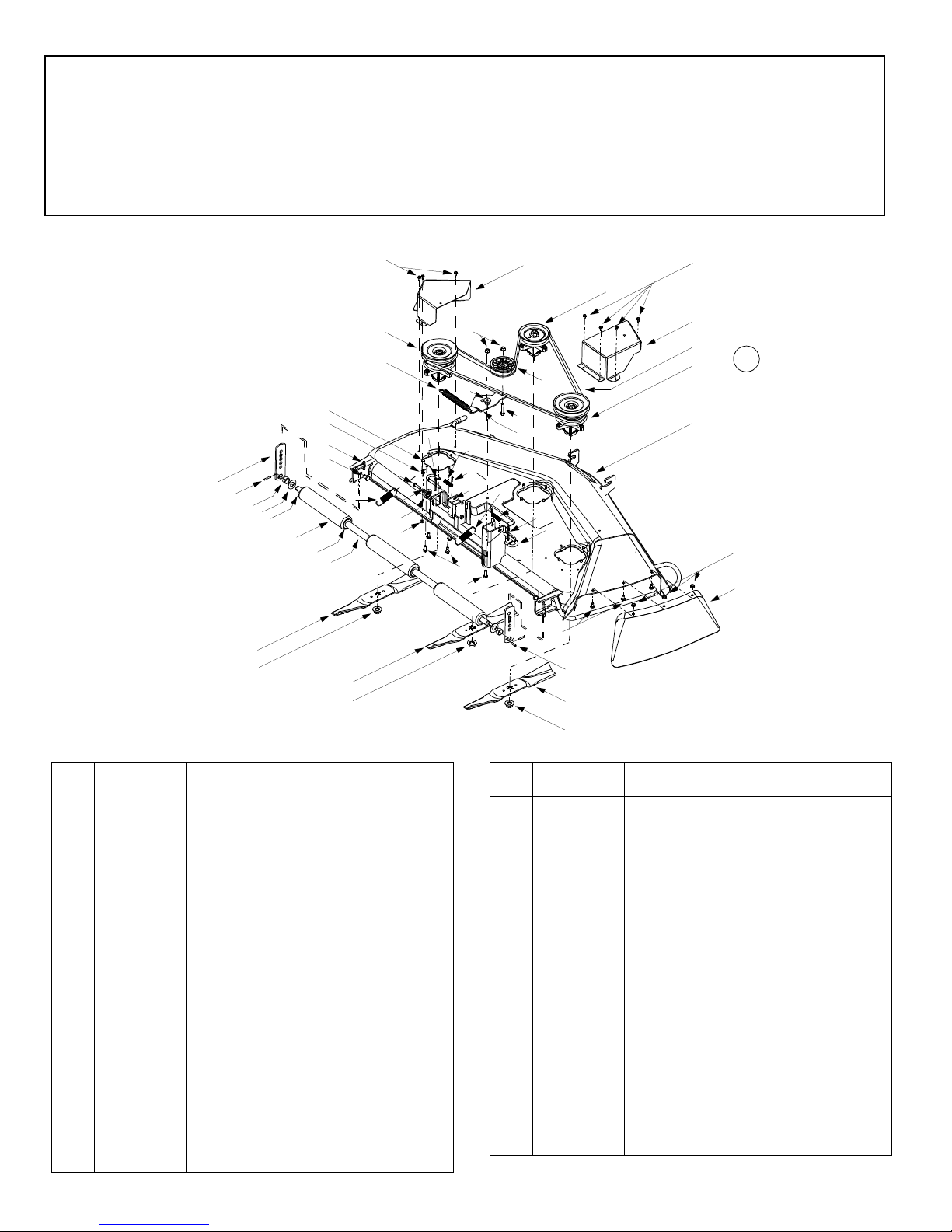

50” Deck Replacement

Use this parts sheet when ordering any replacement parts for the cutting deck.

52

10

61

44

60

45

24

18

35

7

28 34

45

10

63

46

43

57

54

55

53

5458

56

17

56

17 56

17

51

49

32

42

8

13

50

48

19

21

27

920

23

23

62

64

16

6

47

1

1

22

Form No. 770-1668

(11/00)

MODELS AFFECTED: 800 through 819 with Electric

PTO

REF.

NO.

PART

NO. DESCRIPTION

1 714-0470 Cotter Pin, 1/8 x 1.25

2 732-0934 Extension Spring, 1.15 Dia. x 5,99

4 683-0254 Deck Adjustment Bracket w/ Weld Nut

7 710-0347 Hex Cap Screw, 3/8-16 x 1.75

8 710-0514 Hex Cap Screw, 3/8-16 x 1.0

9 710-0528 Hex Cap Screw, 5/16-18 x 1.25

10 710-0599 Self Tapping Screw,1/4-20 x .5

11 710-0650 Self Tapping Screw, 5/16-18 x .875

16 712-0291 Center Lock Nut, 1/4-20

17 712-0417A Hex Flange Nut, 5/8-18

18 712-0431 Flange Lock Nut, 3/8-16

19 712-3027 Hex Flange Lock Nut, 1/4-20

21 717-1553A Deck Adjustment Gear

23 732-0306 Compression Spring, .406 x .531 x 1.75

24 732-0594A Extension Spring, .91 x 7.33

27 736-0119 Lock Washer, 5/16

28 738-0347 Shoulder Spacer, .625 x .169

32 747-1116 Deck Release Pin

34 756-0627B Flat Idler Pulley, 3.5 OD

35 783-0139A Idler Bracket

42 12649 Chute Guard

43 12650 Height Adjustment Bracket

44 618-0428 Center Spindle Ass’ly, 5 Dia. w/ Fitting

45 618-0429 Double Pulley Spindle Ass’y w/ Fitting

46 683-0196 50-inch Deck Shell

47 710-0260 Carriage Bolt, 5/16-18 x .62

48 711-0332 Clevis Pin, .50 Dia. x .78

49 712-3004A Hex Flange Lock Nut, 5/16-18 (Grade 5)

50 714-0145 Click Pin, .092 x 1.64

51 715-0108 Spring Pin, 1/4 Dia. x 1

52 715-0246 Spring Pin, 3/16 x 1.25

53 731-0335 Deck Roller

54 736-0316 Flat Washer, .78 x 1.59 x .06

55 738-0295 Deck Roller Shaft, .75 Dia. x 47.12

56 742-0623 Blade, Star Center, 17.3

57 750-0212 Spacer, .752 x 1.0 x .53

58 750-0288 Spacer, .82 x 1.0 x 5.75

59 754-0291A PTO Belt (Not shown)

60 783-0746 Belt Cover, L.H.

61 783-0793 Belt Cover, R.H.

62 710-0501 Hex Cap Screw. 1/4 - 20 x 2.00

63 754-0475 Deck Belt

64 753-0877 50-inch Deck Assembly Complete

REF.

NO.

PART

NO. DESCRIPTION

50-inch Deck for Electric PTO
