OPERATION MANUAL

THIS MANUAL MUST ACCOMPANY THE EQUIPMENT AT ALL TIMES.

SERIES

MODEL MVHeR60

REVERSIBLE PLATE COMPACTOR

(HONDA GXE2.OH DC POWER UNIT

HONDA DP72104Z BATTERY)

Revision #0 (02/09/22)

To ﬁnd the latest revision of this publication or

associated parts manual, visit our website at:

www.discount-equipment.com

Discount-Equipment.com

We sell worldwide for the brands: Genie, Terex, JLG, MultiQuip, Mikasa, Essick, Whiteman,

Mayco, Toro Stone, Diamond Products, Generac Magnum, Airman, Haulotte, Barreto, Power

Blanket, Nifty Lift, Atlas Copco, Chicago Pneumatic, Allmand, Miller Curber, Skyjack, Lull,

Skytrak, Tsurumi, Husquvarna Target, Stow, Wacker, Sakai, Mi-T-M, Sullair, Basic, Dynapac,

MBW, Weber, Bartell, Bennar Newman, Haulotte, Ditch Runner, Menegotti, Morrison, Contec,

Buddy, Crown, Edco, Wyco, Bomag, Laymor, EZ Trench, Bil-Jax, F.S. Curtis, Gehl Pavers, Heli,

Honda, ICS/PowerGrit, IHI, Partner, Imer, Clipper, MMD, Koshin, Rice, CH&E, General Equip-

ment ,Amida, Coleman, NAC, Gradall, Square Shooter, Kent, Stanley, Tamco, Toku, Hatz,

Kohler, Robin, Wisconsin, Northrock, Oztec, Toker TK, Rol-Air, APT, Wylie, Ingersoll Rand /

Doosan, Innovatech, Con X, Ammann, Mecalac, Makinex, Smith Surface Prep,Small Line,

Wanco, Yanmar

Discount-Equipment.com is your online resource for

commercial and industrial quality parts and equipment sales.

561-964-4949

visit us on line @ www.discount-equipment.com

TO PURCHASE THIS PRODUCT PLEASE CONTACT US

Select an option below to find your Equipment

Equipment Financing and

Extended Warranties Available

Discount-Equipment.com

MVHeR60 COMPACTOR • OPERATION MANUAL — REV. #0 (02/09/22) — PAGE 3

TABLE OF CONTENTS

MVHeR60

Plate Compactor

Proposition 65 Warning ........................................... 2

Safety Information ................................................ 4-6

Speciﬁcations ....................................................... 8-9

Dimensions............................................................ 10

General Information............................................... 11

Components ..................................................... 12-13

Inspection ......................................................... 14-15

Wheel Kit (Optional) ......................................... 16-17

Operation.......................................................... 18-19

Maintenance..................................................... 20-21

Long Term Storage ................................................ 22

Troubleshooting ..................................................... 23

Wiring Diagram...................................................... 24

NOTICE

Speciﬁcations and part numbers are subject to change

without notice.

Discount-Equipment.com

PAGE 4 — MVHeR60 COMPACTOR • OPERATION MANUAL — REV. #0 (02/09/22)

SAFETY INFORMATION

Do not operate or service the equipment before reading

the entire manual. Safety precautions should be followed

at all times when operating this equipment.

Failure to read and understand the safety

messages and operating instructions could

result in injury to yourself and others.

SAFETY MESSAGES

The four safety messages shown below will inform you

about potential hazards that could injure you or others.The

safety messages speciﬁcally address the level of exposure

to the operator and are preceded by one of four words:

DANGER, WARNING, CAUTION

or NOTICE.

SAFETY SYMBOLS

DANGER

Indicates a hazardous situation which, if not avoided,

WILL result in DEATH or SERIOUS INJURY.

WARNING

Indicates a hazardous situation which, if not avoided,

COULD result in DEATH or SERIOUS INJURY.

CAUTION

Indicates a hazardous situation which, if not avoided,

COULD result in MINOR or MODERATE INJURY.

NOTICE

Addresses practices not related to personal injury.

Potential hazards associated with the operation of this

equipment will be referenced with hazard symbols which

may appear throughout this manual in conjunction with

safety messages.

Discount-Equipment.com

MVHeR60 COMPACTOR • OPERATION MANUAL — REV. #0 (02/09/22) — PAGE 5

SAFETY INFORMATION

GENERAL SAFETY

CAUTION



NEVER operate this equipment without proper protective

clothing, shatterproof glasses, respiratory protection,

hearing protection, steel-toed boots and other protective

devices required by the job or city and state regulations.



NEVER operate this equipment when not

feeling well due to fatigue, illness or when

under medication.



NEVER operate this equipment under the inﬂuence of

drugs or alcohol.



ALWAYS check the equipment for loosened threads or

bolts before starting.



DO NOT use the equipment for any purpose other than

its intended purposes or applications.



ALWAYS clear the work area of any debris, tools, etc.

that would constitute a hazard while the equipment is

in operation.

NOTICE



This equipment should only be operated by trained and

qualiﬁed personnel 18 years of age and older.



Whenever necessary, replace nameplate, operation and

safety decals when they become difﬁcult read.



Manufacturer does not assume responsibility for any

accident due to equipment modiﬁcations. Unauthorized

equipment modiﬁcation will void all warranties.

NEVER

use accessories or attachments that are not

recommended by Multiquip for this equipment. Damage

to the equipment and/or injury to user may result.

ALWAYS know the location of the nearest

ﬁre extinguisher.

ALWAYS know the location of the nearest

ﬁrst aid kit.

ALWAYS know the location of the nearest phone or

keep

a phone on the job site.

Also, know the phone numbers

of the nearest ambulance, doctor and

ﬁre department.

This information will be invaluable in the case of an

emergency.

Discount-Equipment.com

PAGE 6 — MVHeR60 COMPACTOR • OPERATION MANUAL — REV. #0 (02/09/22)

SAFETY INFORMATION

COMPACTOR SAFETY

DANGER



NEVER operate the equipment in an explosive

atmosphere or near combustible materials.An

explosion or ﬁre could result causing severe

bodily harm or even death.

WARNING



NEVER disconnect any emergency or safety devices.

These devices are intended for operator safety.

Disconnection of these devices can cause severe injury,

bodily harm or even death. Disconnection of any of these

devices will void all warranties.

CAUTION



NEVER lubricate components or attempt service on a

running machine.

NOTICE



ALWAYS keep the machine in proper running condition.



Fix damage to machine and replace any broken parts

immediately.



ALWAYS store equipment properly when it is not being

used. Equipment should be stored in a clean, dry location

out of the reach of children and unauthorized personnel.

BATTERY SAFETY

CAUTION



Remove or attach battery in a clear and ﬂat location

without any combustible materials nearby.



After attaching the battery, make sure that the battery

hook and fastener are securely attached.

DC POWER UNIT

CAUTION



DO NOT touch the DC power unit during work or soon

after work, because it is very hot.

TRANSPORTING SAFETY

CAUTION



NEVER allow any person or animal to stand underneath

the equipment while lifting.

NOTICE



Before lifting, make sure that the equipment parts (hook

and vibration insulator) are not damaged and screws are

not loose or missing.



Always make sure crane or liﬁtng device has been

properly secured to the lifting bail (hook) of the

equipment.

ALWAYS shutdown DC power before transporting.

NEVER lift the equipment with power on.



Use adequate lifting cable (wire or rope) of sufﬁcient

strength.



Use one point suspension hook and lift straight upwards.

DO NOT lift machine to unnecessary heights.

ALWAYS

tie down equipment during transport by

securing the equipment with rope.

ENVIRONMENTAL SAFETY

NOTICE

Dispose of hazardous waste properly.

Examples of potentially hazardous waste

are used motor oil, fuel and fuel ﬁlters.

DO NOT

use food or plastic containers to dispose of

hazardous waste.

DO NOT

pour waste, oil or fuel directly onto the ground,

down a drain or into any water source.

Discount-Equipment.com

MVHeR60 COMPACTOR • OPERATION MANUAL — REV. #0 (02/09/22) — PAGE 7

NOTES

Discount-Equipment.com

PAGE 8 — MVHeR60 COMPACTOR • OPERATION MANUAL — REV. #0 (02/09/22)

Table 1. MVHeR60 Speciﬁcations

Centrifugal Force 2,698 lbf (12 kN)

Vibration Frequency 6500 vpm (108 Hz)

Lubrication Oil API Service Categories SE or higher SAE 10W-30

Plate Size (L x W) 18.9 x 13.8 in (480 x 350 mm)

Maximum Travel Speed 0 to 78.7 ft/min (0 to 24 m/min)

Operating Weight 179 lbs. (81 kg)

Vibrating Oil Capacity 0.211 quarts (0.20 liters)

Water Tank Capacity 8.98 quarts (8.5 liters)

V-belt Size RPF3310

Rated Operating Time Approximately 25 - 35 min/1.6 kW

Table 2. DC Power Unit Speciﬁcations

Model Honda GXE2.OH

Type Three-phase brushless DC motor

Weight (without battery) 40.8 lbs. (18.5 kg)

Maximum Output 2.4 HP (1.8 KW) @ 3600 R.P.M.

Voltage 72 V

SPECIFICATIONS

Table 3. Battery Speciﬁcations

Model Honda DP72104Z

Type Rechargeable Lithium Ion Battery

Dimensions (L x Wx H 9.2 x 10.6 x 5.9 in (233 x 268 x 150 mm)

Weight 14.1 lbs. (6.4 kg)

Voltage 72 V

Charging Temperature Range 41 - 86 °F (5 - 30 °C)

Operating Temperature Range 41 - 104 °F (5 - 40 °C)

Storage Temperature Range 23 - 86 °F (-5 - 30 °C)

Discount-Equipment.com

MVHeR60 COMPACTOR • OPERATION MANUAL — REV. #0 (02/09/22) — PAGE 9

SPECIFICATIONS

Table 4. Battery Charger Speciﬁcations

Model Honda CV7285Z

Dimensions (L x Wx H) 10.5 x 13.9 x 9.7 in (266 x 352 x 247 mm)

Weight 24.2 lbs. (11 kg)

Cable Length 78.7 in (2000 mm)

Input Voltage 100-240 VAC

Input Frequency 50/60 Hz

Output Voltage 82.8 VDC

Charging Temperature Range 41 - 86 °F (5 - 30 °C)

Charging Time: 80%

100%

1 hour

1.5 hours

Table 5. Noise and Vibration Emissions

Measured Sound Power Level in dB(A) 104

Guaranteed Sound Power Level in dB(A) 105

Guaranteed Sound Pressure Level at Operator Station in dB(A) 89

Hand-Arm Vibration in m/s24.6

NOTES:

1. Products are tested for sound pressure level in accordance with European Directives 2000/14/EC and 2005/88/EC, relating to Noise

Emission in the Environment by equipment for use outdoors.

2. Products are tested for hand/arm vibration (HAV) level in accordance with European Directives 2002/44/EC and EN500-4 and ISO

5349-1:2001, ISO 5349-2:2001.

Discount-Equipment.com

PAGE 10 — MVHeR60 COMPACTOR • OPERATION MANUAL — REV. #0 (02/09/22)

DIMENSIONS

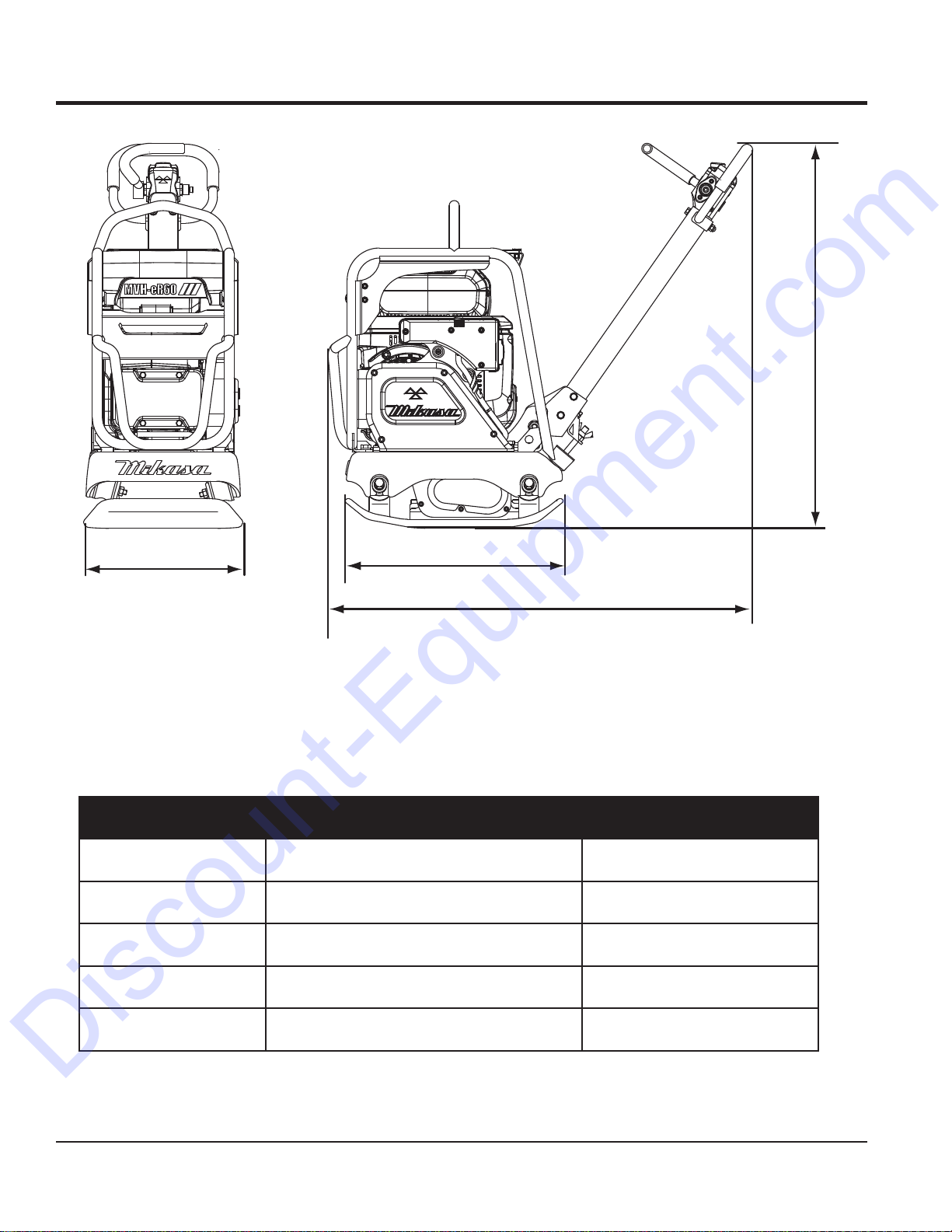

Figure 1. MVHeR60 Dimensions

Table 6. Dimensions

Reference Description Measurement

A Width of Plate 13.8 in (350 mm)

B Length of Plate 18.9 in (480 mm)

C Length (including handle) 37.0 in (940 mm)

D Height (including handle) 37.2 in. (945 mm)

920

480

988

920

480

988

920

480

988

920

480

988

920

480

988

920

480

988

920

480

988

920

480

988

920

480

988

920

480

988

920

480

988

920

480

988

920

480

988

920

480

988

920

480

988

920

480

988

920

480

988

920

480

988

920

480

988

920

480

988

Discount-Equipment.com

Altri manuali per Mikasa Series

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali MULTIQUIP Attrezzature per l'edilizia

MULTIQUIP

MULTIQUIP MC94PH8 Guida

MULTIQUIP

MULTIQUIP Mikasa Series Guida

MULTIQUIP

MULTIQUIP MC94SK Manuale utente

MULTIQUIP

MULTIQUIP Mikasa Series Guida

MULTIQUIP

MULTIQUIP Whiteman WM90SLF Manuale utente

MULTIQUIP

MULTIQUIP Whiteman WM120PH Series Guida

MULTIQUIP

MULTIQUIP Mikasa MTR-35W Manuale utente

MULTIQUIP

MULTIQUIP Whiteman MC94P Guida

MULTIQUIP

MULTIQUIP Mikasa Series Manuale utente

MULTIQUIP

MULTIQUIP PRO12C Manuale utente

MULTIQUIP

MULTIQUIP Mikasa Series Manuale utente

MULTIQUIP

MULTIQUIP Mikasa Series Manuale utente

MULTIQUIP

MULTIQUIP WM70SLF Manuale utente

MULTIQUIP

MULTIQUIP Whiteman series Guida

MULTIQUIP

MULTIQUIP MC64SH Guida

MULTIQUIP

MULTIQUIP MC64SK Manuale utente

MULTIQUIP

MULTIQUIP Mikasa MVH508DE Manuale utente

MULTIQUIP

MULTIQUIP WHITEMAN PRX Manuale utente

MULTIQUIP

MULTIQUIP Mikasa MVH408DE Manuale utente

MULTIQUIP

MULTIQUIP Stow C10SH8 Guida

MULTIQUIP

MULTIQUIP Mikasa MRH800GS Guida

MULTIQUIP

MULTIQUIP Stow MS-63 Guida

MULTIQUIP

MULTIQUIP Mikasa Series Manuale utente

MULTIQUIP

MULTIQUIP Mikasa Series Manuale utente

Manuali Attrezzature per l'edilizia popolari di altre marche

SASFORKS

SASFORKS EXTREME Manuale utente

Hailo

Hailo H-50 Manuale utente

Graco

Graco LineLazer ES 1000 Manuale per l'uso e la cura

Greenlee

Greenlee 555RSC Manuale utente

Manitowoc

Manitowoc Grove CD3340B Manuale utente

Lux Tools

Lux Tools A-FMR-20 Set Manuale utente

SIP

SIP 03683 Manuale utente

Volvo

Volvo L30G Manuale utente

Grizzly

Grizzly G8712 Manuale utente

Modulift

Modulift CMOD 12 Manuale utente

Case

Case DV201 Manuale utente

Sealey

Sealey SC10.V2 Manuale utente

Wacker Neuson

Wacker Neuson DT05 Manuale utente

HYVA

HYVA AMCO VEBA 81 Series Manuale utente

Atlas Copco

Atlas Copco Dynapac V5100TV Manuale utente

Toro

Toro 323 Manuale utente

Manitowoc

Manitowoc National Crane 1400A Manuale utente

SGS

SGS EC1500 Manuale utente
