Multitech RouteFinder RF600VPN Manuale utente

RF760/660/600VPN

Internet Security Appliance

Quick Start Guide

Multi-Tech Systems, Inc. RF760/660/600VPN Quick Start Guide (82013762L) 3

Quick Start Guide

RouteFinder VPN RF760/660/600VPN

82013762L, Revision C

This publication may not be reproduced, in whole or in part, without prior expressed written permission from Multi-Tech Systems, Inc. All

rights reserved.

Multi-Tech Systems, Inc. makes no representations or warranty with respect to the contents hereof and specifically disclaims any implied

warranties of merchantability or fitness for any particular purpose.

Furthermore, Multi-Tech Systems, Inc. reserves the right to revise this publication and to make changes from time to time in the content

hereof without obligation of Multi-Tech Systems, Inc. to notify any person or organization of such revisions or changes.

Record of Revisions

Revision Date Description

A 01/15/04 Initial release for RF760VPN.

Include RF600VPN and RF660VPN to create a combo guide.

B 10/26/04 & New software – version 3.20 and

01/25/05 New software – version 3.21. POP3 Proxy added to the software.

C 12/02/05 New software – version 3.25. New Hardware: compact flash.

Patents

This device is covered by one or more of the following U.S. Patent Numbers: 6,219,708; 5,301,274; 5,309,562; 5,355,365; 5,355,653;

5,452,289; 5,453.986.

The modem is covered by one or more of the following U.S. Patent Numbers: 6,031,867; 6,012,113; 6,009,082; 5,905,794; 5,864,560;

5,815,567; 5,815,503; 5,812,534; 5,809,068; 5,790,532; 5,764,628; 5,764,627; 5,754,589; D394,250; 5,724,356; 5,673,268; 5,673,257;

5,644,594; 5,628,030; 5,619,508; 5,617,423; 5,600,649; 5,592,586; 5,577,041; 5,574,725; D374,222; 5,559,793; 5,546,448; 5,546,395;

5,535,204; 5,500,859; 5,471,470; 5,463,616; 5,453,986; 5,452,289; 5,450,425; D361,764; D355,658; D355,653; D353,598; D353,144;

5,355,365; 5,309,562; 5,301,274 Other Patents Pending

Copyrights and Trademarks

Trademarks of Multi-Tech Systems, Inc.: Multi-Tech, the Multi-Tech logo and RouteFinder.

Windows is a registered trademark of Microsoft Corporation in the United States and other countries. Kaspersky Anti-Virus engine

copyrighted by Kaspersky Labs. GNU General Public License copyrighted by Free Software Foundation, Inc. Surfcontrol is the registered

product of Surfcontrol PLC. All products or technologies are the trademarks or registered trademarks of their respective holders.

Warranty, Repairs & Service, Licenses

The following statements and policies are printed in the RouteFinder User Guide.

They are also available on the RouteFinder CD and the Multi-Tech Web site at www.multitech.com.

•Multi-Tech Systems, Inc. Warranty Statement

•Multi-Tech Systems, Inc. Repairs and Service Policy

•Multi-Tech Systems, Inc End User License

•GNU General Public License

•SurfControl URL Filtering End-User Terms

•Kasperkey Standard End User License Agreement.

Technical Support

Country By Email By Phone

France: [email protected] (33) 1-64 61 09 81

India: [email protected] 91 (124) 6340778

U.K.: [email protected] (44) 118 959 7774

U.S. and Canada: [email protected] (800) 972-2439

Rest of the World: [email protected] (763) 717-5863

World Headquarters

Multi-Tech Systems, Inc.

2205 Woodale Drive

Mounds View, Minnesota 55112

(763) 785-3500 or (800) 328-9717

Fax 763-785-9874

Internet Address: http://www.multitech.com

Table of Contents

4 Multi-Tech Systems, Inc. RF760/660/600VPN Quick Start Guide (82013762L)

Contents

Chapter 1 – Introduction ...................................................................................................................................................... 5

The RouteFinder and Its Documentation .......................................................................................................................... 5

Other References ............................................................................................................................................................. 5

Safety Warnings ............................................................................................................................................................... 5

Safety Recommendations for Rack Installations............................................................................................................... 6

Ship Kit Contents .............................................................................................................................................................. 6

License Keys .................................................................................................................................................................... 6

Typical Applications .......................................................................................................................................................... 7

Chapter 2 – Installation ........................................................................................................................................................ 8

Installation – Planning the Network................................................................................................................................... 8

Establishing an Address Table ......................................................................................................................................... 8

Cabling Procedure ............................................................................................................................................................ 9

Setting up a Workstation and Starting the RouteFinder VPN.......................................................................................... 10

Navigating Through the Screens .................................................................................................................................... 12

Initial Web Administration Steps ..................................................................................................................................... 14

Chapter 3 – Using the Wizard Setup ................................................................................................................................. 14

Initial Configuration Using the Wizard Setup................................................................................................................... 14

Using the Setup Wizard .................................................................................................................................................. 16

Chapter 4 – Configuration Examples................................................................................................................................ 17

Example 1: LAN-to-LAN VPN (Branch Office) ............................................................................................................... 17

Example 2: Remote Client-to-LAN VPN Configuration ................................................................................................... 22

Example 3: Remote Client-to-LAN Configuration Using DNAT and Aliasing .................................................................. 23

Example 4: Client-to-LAN Configuration Using PPTP Tunneling .................................................................................... 24

Chapter 5 - URL Categorization ........................................................................................................................................ 25

Chapter 1 – Introduction

Multi-Tech Systems, Inc. RF760/660/600VPN Quick Start Guide (82013762L) 5

Chapter 1 – Introduction

The RouteFinder and Its Documentation

The RouteFinder VPN is both a Virtual Private Network (VPN) and a firewall. It also offers an optional email antivirus

protection subscription.

Using the RouteFinder VPN is a cost-effective, manageable way for small to medium businesses to add a remote user VPN,

a Branch Office VPN, and/or Firewall Security applications to their networks.

This Quick Start Guide is intended to provide the experienced system administrator the information needed to quickly get the

RouteFinder VPN up and running. A User Guide with more detailed information is provided on the RouteFinder VPN CD.

Other References

In addition to the User Guide, the following Reference Guides are available on the CD as well as the Multi-Tech Web site at

www.multitech.com:

1. The RouteFinder configured with DNAT and aliases.

2. Setting up a PPTP server and a PPTP remote client.

3. The VPN tunnel configured for manual mode example and IPSec pass-through in manual mode example.

4. A guide for the add-on product, IPSec SSH client.

5. Hard-Disk Drive Recovery.

Safety Warnings

Lithium Battery Caution

Danger of explosion if battery is incorrectly replaced. A lithium battery on the RouteFinder VPN PC board provides backup

power for the time-keeping capability. The battery has an estimated life expectancy of ten years. When it starts to weaken,

the date and time may be incorrect. If the battery fails, send the board back to Multi-Tech for battery replacement.

Ethernet Ports Caution

The Ethernet ports are not designed to be connected to a Public Telecommunication Network.

Software Recovery CD Warning

Do not use the Software Recovery CD for any purpose except for re-installing software onto the RouteFinder VPN hard

drive.

Telecom Warnings for Modem Operation

•Never install telephone wiring during a lightning storm.

•Never install telephone jacks in a wet location unless the jack is specifically designed for wet locations.

•This product is to be used with UL and cUL listed computers.

•Never touch uninsulated telephone wires or terminals unless the telephone line has been disconnected at the

network interface.

•Avoid using a telephone during an electrical storm. There may be a remote risk of electrical shock from lightening.

•Do not use the telephone to report a gas leak in the vicinity of the leak.

•To reduce the risk of fire, use only No. 26 AWG or larger Telecommunications line cord.

Chapter 1 – Introduction

6Multi-Tech Systems, Inc. RF760/660/600VPN Quick Start Guide (82013762L)

Safety Recommendations for Rack Installations

•Ensure proper installation of the RF760/660VPN in a closed or multi-unit enclosure by following the recommended

installation as defined by the enclosure manufacturer.

•IMPORTANT: Do not place the RF760/660VPN directly on top of other equipment or place other equipment directly

on top of the RF760/660VPN.

•If installing the RF760/660VPN in a closed or multi-unit enclosure, ensure adequate airflow within the rack so that

the maximum recommended ambient temperature is not exceeded.

•Ensure that the RF760/660VPN is properly connected to earth ground via a grounded power cord. If a power strip is

used, ensure that the power strip provides adequate grounding of the attached apparatus.

•Ensure that the main supply circuit is capable of handling the load of the RF760/660VPN. Refer to the power label

on the equipment for load requirements.

•Maximum ambient temperature for the RF760/660VPN is 50 degrees Celsius (120°F).

•This equipment should only be installed by properly qualified service personnel.

•Only connect like circuits. In other words, connect SELV (Secondary Extra Low Voltage) circuits to SELV circuits

and TN (Telecommunications Network) circuits to TN circuits.

Ship Kit Contents

The RouteFinder VPN is shipped with the following:

•One Multi-Tech Systems, Inc. RouteFinder VPN

•One Power Cord

•One printed Quick Start Guide

•One external Power Supply for the RF600VPN.

Note: The power supply for the RF760VPN and RF660VPN is internal.

•Two Rack Mounting Brackets and four mounting screws.

Note: See the User Guide on the documentation CD for rackmounting directions.

•One RouteFinder VPN documentation CD which contains documentation, license agreements, Adobe Acrobat

Reader, and License keys.

•One RouteFinder VPN Software Recovery CD.

Warning: Do not use the Software Recovery CD for any purpose except for re-installing software onto the RouteFinder VPN

hard drive.

Note: If any of these items are missing, contact Multi-Tech Systems or your dealer or distributor. Inspect the contents for

signs of any shipping damage. If damage is observed, do not power up the RouteFinder VPN; contact Technical Support at

Multi-Tech Systems, Inc. for advice.

License Keys

Where to find the License Key Number Label: The VPN License Key number and the URL License Key number are

printed on labels and are placed on the bottom of the RouteFinder chassis, on the hard drive inside the chassis, and on the

front cover of the Quick Start Guide. These license numbers will have to be entered into the RouteFinder configuration setup

using the RouteFinder built-in software.

Chapter 1 – Introduction

Multi-Tech Systems, Inc. RF760/660/600VPN Quick Start Guide (82013762L) 7

Typical Applications

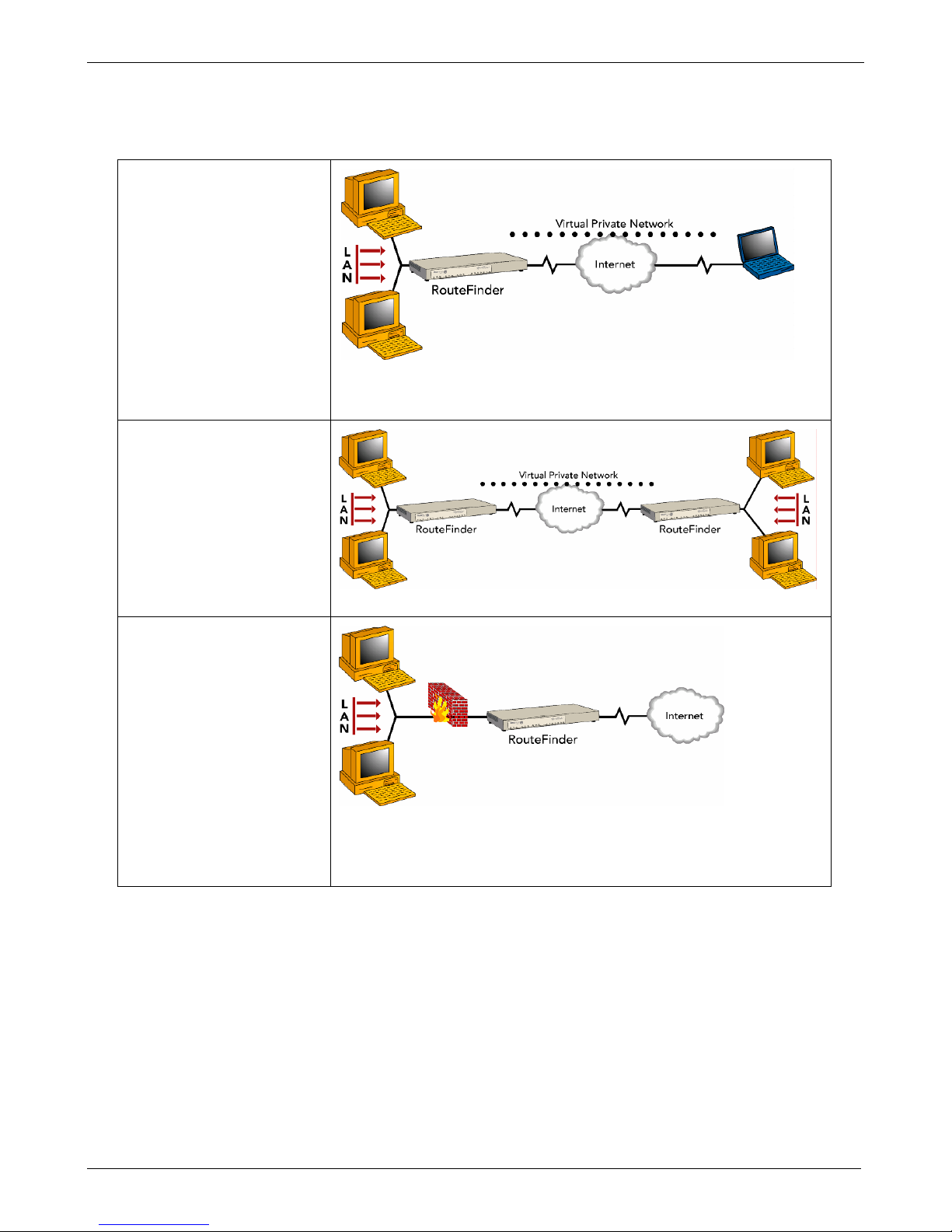

Remote User VPN.The

client-to-LAN VPN application

replaces traditional dial-in

remote access by allowing a

remote user to connect to the

corporate LAN through a

secure tunnel over the

Internet. The advantage is that

a remote user can make a

local call to an Internet Service

Provider, without sacrificing

the company’s security, as

opposed to a long distance

call to the corporate remote

access server.

Branch Office VPN.The

LAN-to-LAN VPN application

sends network traffic over the

branch office Internet

connection instead of relying

on dedicated leased line

connections. This can save

thousands of dollars in line

costs and reduce overall

hardware and management

expenses.

Firewall Security.As

businesses shift from dial-up

or leased line connections to

always-on broadband Internet

connections, the network

becomes more vulnerable to

Internet hackers.

The RouteFinder VPN

provides a full-featured firewall

based on Stateful Packet

Inspection technology and

NAT protocol to provide

security from intruders

attempting to access the office

LAN.

Chapter 2 – Installation

8Multi-Tech Systems, Inc. RF760/660/600VPN Quick Start Guide (82013762L)

Chapter 2 – Installation

Installation – Planning the Network

Before you begin the installation process, you should plan your network and decide which computer is to have access to

which services. This simplifies configuration and saves you a lot of time that you would otherwise need for corrections and

adjustments.

RouteFinder VPN Connection between Your Internal Network and the External Network

Establishing an Address Table

Enter your configuration information into the appropriate field of the Address Table below. You can use this table to keep

track of your specific RouteFinder VPN and network information (e.g., the IP address used, email lists, etc.) and keep for

future reference.

IP Address Net Mask Default Gateway

Network Card connected to the

internal network (LAN on eth0)

___.___.___.___

Network Card connected to the

external network (WAN on eth1)

___.___.___.___

Network Card connected to the

DMZ (eth2) ___.___.___.___ ___.___.___.___

Chapter 2 – Installation

Multi-Tech Systems, Inc. RF760/660/600VPN Quick Start Guide (82013762L) 9

Cabling Procedure

Cabling your RouteFinder VPN involves making the proper Power, DMZ, WAN and LAN connections as illustrated and

described below.

RF760VPN

RF660VPN

RF600VPN

1. Using an RJ-45 Ethernet cable, connect the DMZ RJ-45 jack to the DMZ device or network (Optional – for example,

a Voice over IP gateway).

2. Using an RJ-45 Ethernet cable, connect the WAN RJ-45 jack to the device for the external network.

3. Using an RJ-45 Ethernet cable, connect the LAN RJ-45 jack to the internal network switch or hub.

Note: Use a cross-over Ethernet cable if connecting to a single device.

4. With the RF760 or RF660 RouteFinder VPN Power switch in the off (Ο) position and using the supplied power cord,

plug one end into the RouteFinder VPN connect power plug and the other end into a live power outlet.

Note: The status LED blinks continuously after power-up.

5. Wait for the RouteFinder VPN to beep five times, indicating that it is ready to be configured with a Web browser.

Shutdown Caution

Never switch off the RouteFinder VPN Power until after you have performed the Shutdown process. If the RouteFinder

VPN is not properly shut down before switching off Power, the next startup may take a little longer, or in the worst case,

data could be lost.

Chapter 2 – Installation

10 Multi-Tech Systems, Inc. RF760/660/600VPN Quick Start Guide (82013762L)

Setting up a Workstation and Starting the

RouteFinder VPN

This section of the Quick Start Guide covers the steps for setting up a workstation that is connected to the RouteFinder VPN,

starting up the RouteFinder VPN, opening the RouteFinder VPN Web Management program, performing the time zone

setup, and using the Menu bar to navigate through the Web Management software screens.

Connections

1. Connect a workstation to the RouteFinder's LAN port via Ethernet. Connections are described on the previous

page.

Note: If not using a hub, use a cross-over cable to connect a PC NIC to the RouteFinder's Ethernet 10/100

LAN Port.

2. Set the workstation IP address to 192.168.2.x subnet.

3. Obtain an Internet Public IP address so it can be assigned to the WAN port.

4. Connect to the Internet at the RouteFinder WAN port.

Power Up

5. Turn on power to the RouteFinder VPN. After several minutes, you will hear 5 beeps signifying the software

has fully booted.

Note: If you hear a continuous beep or no beep, cycle RouteFinder VPN power, connect an external monitor

and check the hard drive.

Open a Web Browser

6. Bring up a Web browser on the workstation. Type the default Gateway address: https://192.168.2.1 and press

the Enter key.

IMPORTANT: Be sure to type https (http will not work).

Note: Make sure your PC’s IP address is in the same network as the router’s IP address. WINIPCFG and

IPCONFIG are tools for finding a computer’s default gateway and MAC addresses. In Windows 98/ME you can

type WINIPCFG. In Windows 2000/NT/ME/XP, you can type IPCONFIG.

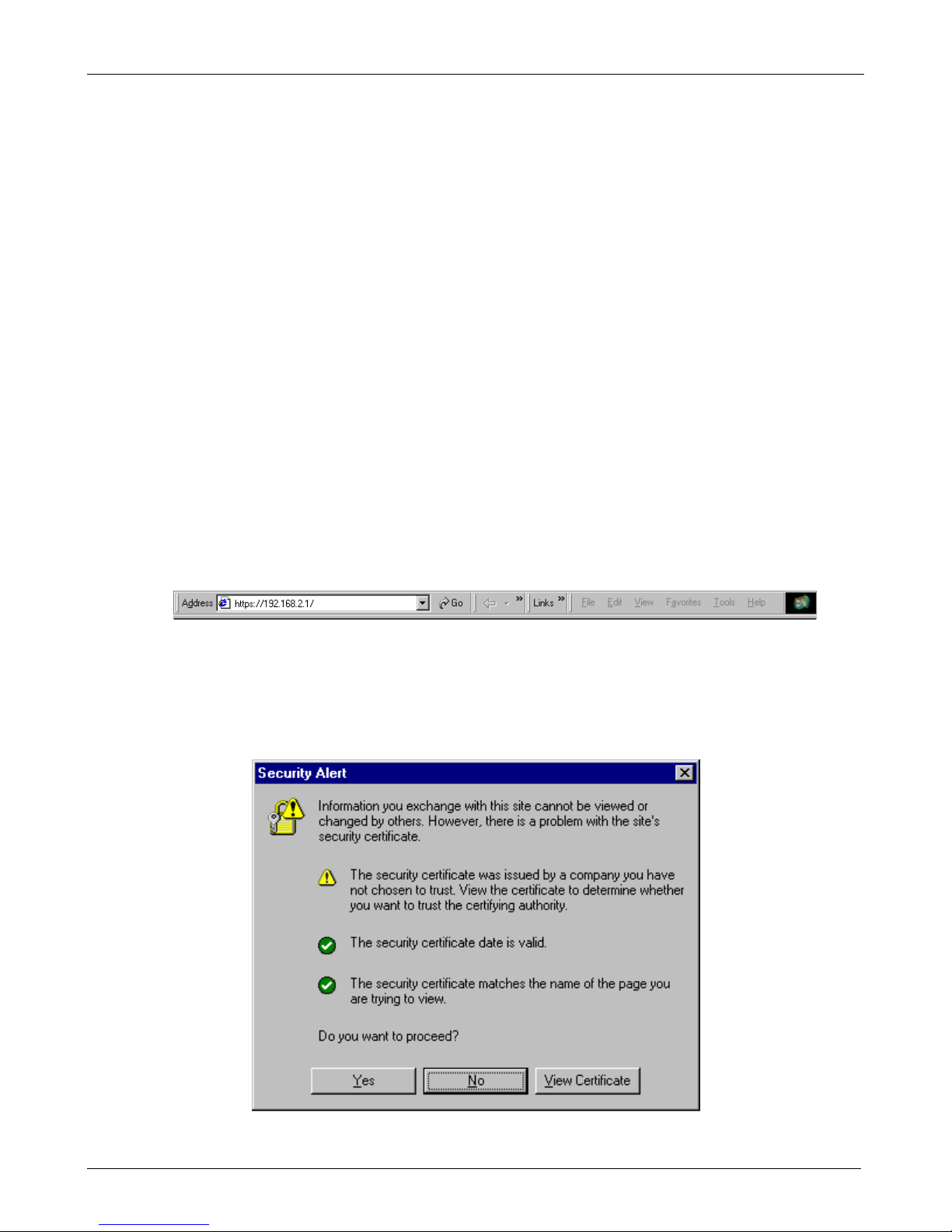

7. In some environments, one or more Security Alert screen(s) may display. At the initial Security Alert screen,

click Yes and follow any additional on-screen prompts.

Altri manuali per RouteFinder RF600VPN

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Multitech Router di rete

Multitech

Multitech RouteFinder MTASR1-100 Manuale utente

Multitech

Multitech ROUTE FINDER RFIPSC-10 Manuale utente

Multitech

Multitech MultiConnect rCell 100 Series Manuale utente

Multitech

Multitech RouteFinder RF560VPN Manuale utente

Multitech

Multitech MultiConnect rCell 100 Series Istruzioni per l'installazione

Multitech

Multitech MultiFrad FR3060 Manuale utente

Multitech

Multitech MultiConnect rCell 100 MTR-H5 Manuale utente

Multitech

Multitech MultiConnect rCell100 Cat M1/NB-IoT Series Istruzioni per l'installazione

Multitech

Multitech MultiFRAD FR220 Manuale utente

Multitech

Multitech RouteFinder RF102S Manuale utente

Multitech

Multitech MultiConnect rCell MTR-H6 Manuale utente

Multitech

Multitech MultiFRAD FR221 Manuale utente

Multitech

Multitech RouteFinder RF560VPN Manuale utente

Multitech

Multitech RouteFinder RF102S Manuale utente

Multitech

Multitech MultiConnect rCell MTR-H5 Manuale di istruzioni

Multitech

Multitech RouteFinder MTASR2-203 Manuale utente

Multitech

Multitech RouteFinder MTASR1-100 Manuale tecnico

Multitech

Multitech MultiConnect rCell 100 Series Istruzioni per l'installazione

Multitech

Multitech MultiConnect rCell 100 Series Manuale utente

Multitech

Multitech MultiConnect rCell 100 Series Manuale utente

Multitech

Multitech RouteFinder RF825-C-Nx Manuale utente

Multitech

Multitech RouteFinder RF550VPN Manuale utente

Multitech

Multitech MultiConnect rCell 100 Series Foglio di istruzioni

Multitech

Multitech RouteFinder MTASR2-201 Manuale utente

Manuali Router di rete popolari di altre marche

Allnet

Allnet ALL0333AU Manuale utente

HomeSeer

HomeSeer HT-SEL Manuale utente

Sercomm

Sercomm Genesis OC3505D Manuale utente

Billion

Billion BIPAC 5102 Series Manuale utente

TP-Link

TP-Link TD-8817 Manuale utente

Motorola

Motorola MR1900 Manuale utente

Digi

Digi IX14 Manuale utente

Cisco

Cisco NCS 540 Manuale

XAVi

XAVi X8821e Manuale utente

BEC

BEC 6200WZL Manuale utente

MikroTik

MikroTik hAP ac3 Series Manuale utente

Korenix

Korenix JetNet 5428G Series Manuale utente

NETGEAR

NETGEAR FS526T - Switch Manuale utente

Korenix

Korenix JetNet 5710G Series Manuale utente

Automated Logic

Automated Logic ZN551 Manuale del proprietario

Cisco

Cisco ASR 1000 Series Manuale dell'operatore

EnGenius

EnGenius ESR-9710 Manuale utente

Cisco

Cisco 805 Series Istruzioni operative e di sicurezza
