Murray Parklander2690997 Manuale utente
Part No. 1752618
Revision ‘-’
Riding Mower Model MT60
Model No. Description
2690997 Parklander, 14.5HP w/38" Mower Deck
2690998 Parklander, 15.5HP w/38" Mower Deck
2690999 Parklander, 15.5HP w/42" Mower Deck
Operator’s Manual
!
Not for
Reproduction
Thank you for purchasing this quality-built MURRAY PARKLANDER mower. We are pleased that you’ve placed your confidence
in the MURRAY PARKLANDER brand. When operated and maintained according to the instructions in this manual, your
MURRAY PARKLANDER mower will provide many years of dependable service.
This manual contains safety information to make you aware of the hazards and risks associated with mowers and how to
avoid them. Because the manufacturer does not necessarily know all the applications this mower could be used for, it is
important that you read and understand these instructions. Save these original instructions for future reference.
This mower requires final assembly before use. Refer to the Assembly section of this manual for instructions on final
assembly procedures. Follow the instructions completely.
Where to Find Us
You never have to look far to find support and service for your mower. There are many authorized service dealers who provide
quality service. You can also contact Customer Service by phone at 02 9584 7700, or on the Internet at www.murray.com or
www.parklands.net.
Mower
Model Number _____________________________________
Serial Number _____________________________________
Engine
Model/Type/Code _____________________________________
Date Purchased
PARKLANDS POWER PRODUCTS
(AUST) PTY LTD.
106 BELMORE ROAD-RIVERWOOD
2210 NEW SOUTH WALES
AUSTRALIA
Manual Content Copyright © 2011 Briggs & Stratton Corporation.
All rights reserved. No part of this material may be reproduced or
transmitted in any form by any means without the express written
permission of Briggs & Stratton Power Products Group, LLC.
Not for
Reproduction

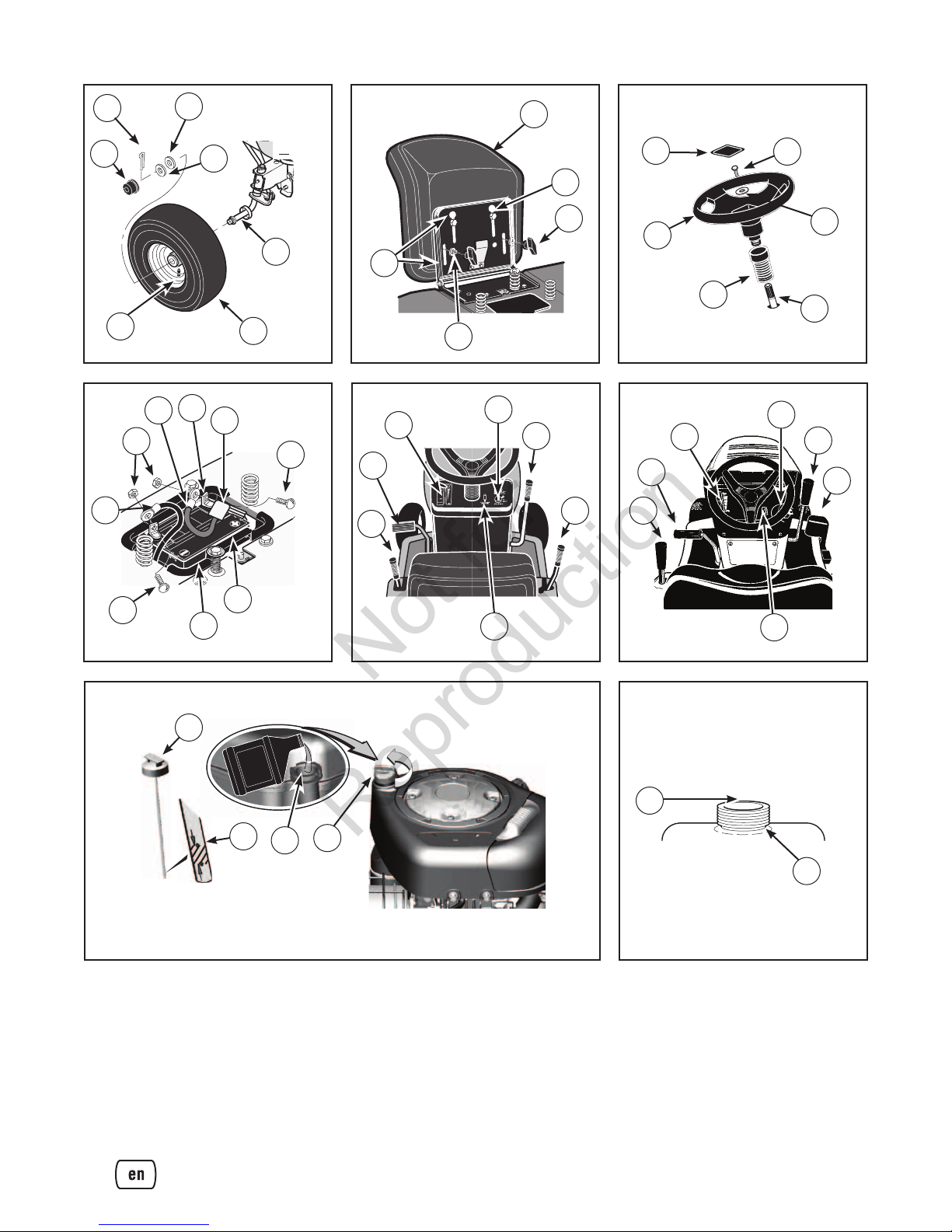

3
1
4
7
2
5
3
DA
A
C
F
E(#4)
(#9)
(#8)
G
BD
C
(#7)
B
E
(#5)
CB
D
AE
F(#3)
(#6)
F
(#1) C
A
A
A
F
B
B
C
D
E
(#2)
HE
B
G
C
A
D
F
6
E
B
G
C
A
D
F
8
B
A
G
Not for
Reproduction

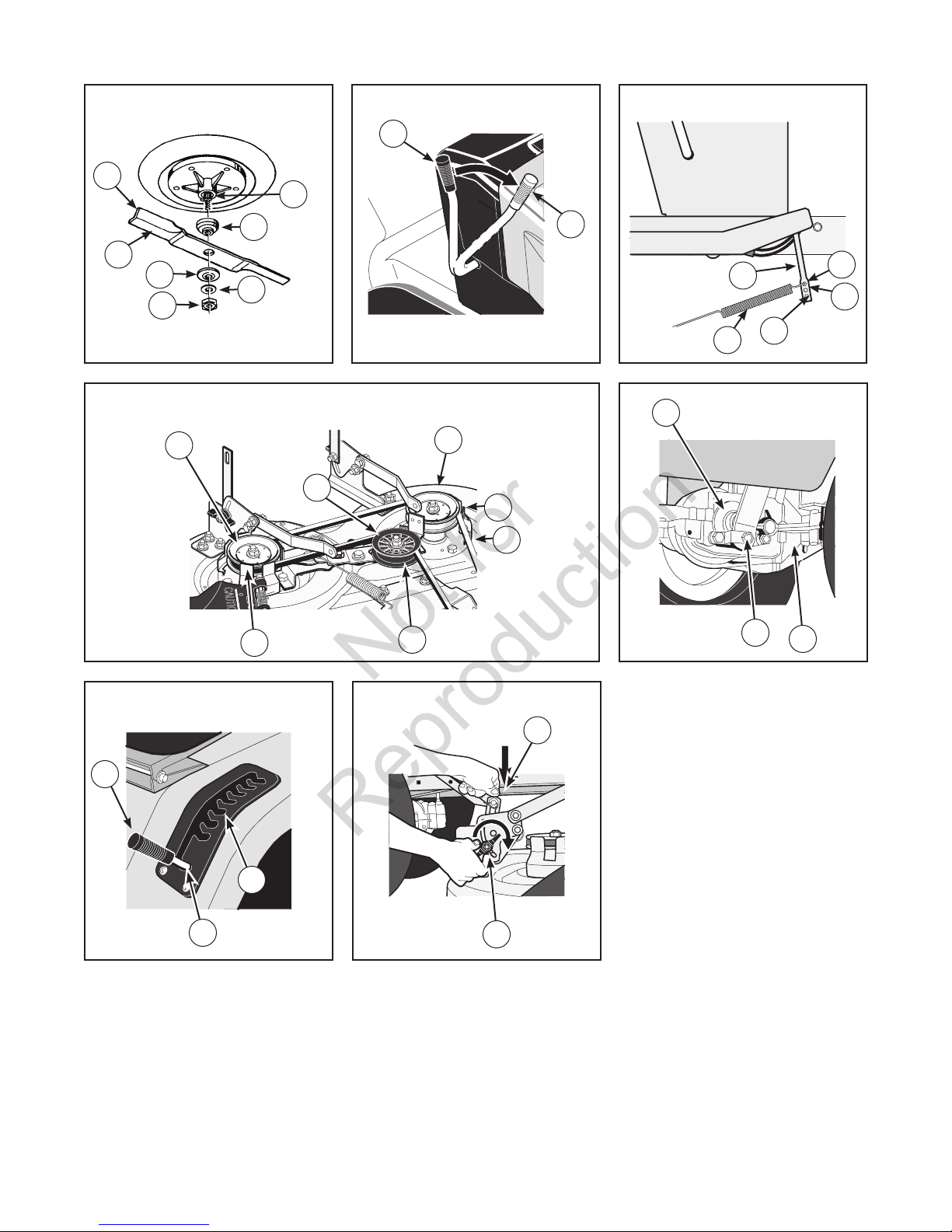

4 www.murray.com www.parklands.net
11
C
D
E
A
B
12
E
D
A
B
C
D
F
13
14 15
A
BC
A
B
C
A
B
9 10
A
B
G
A
B
D
C
E
F
Not for
Reproduction

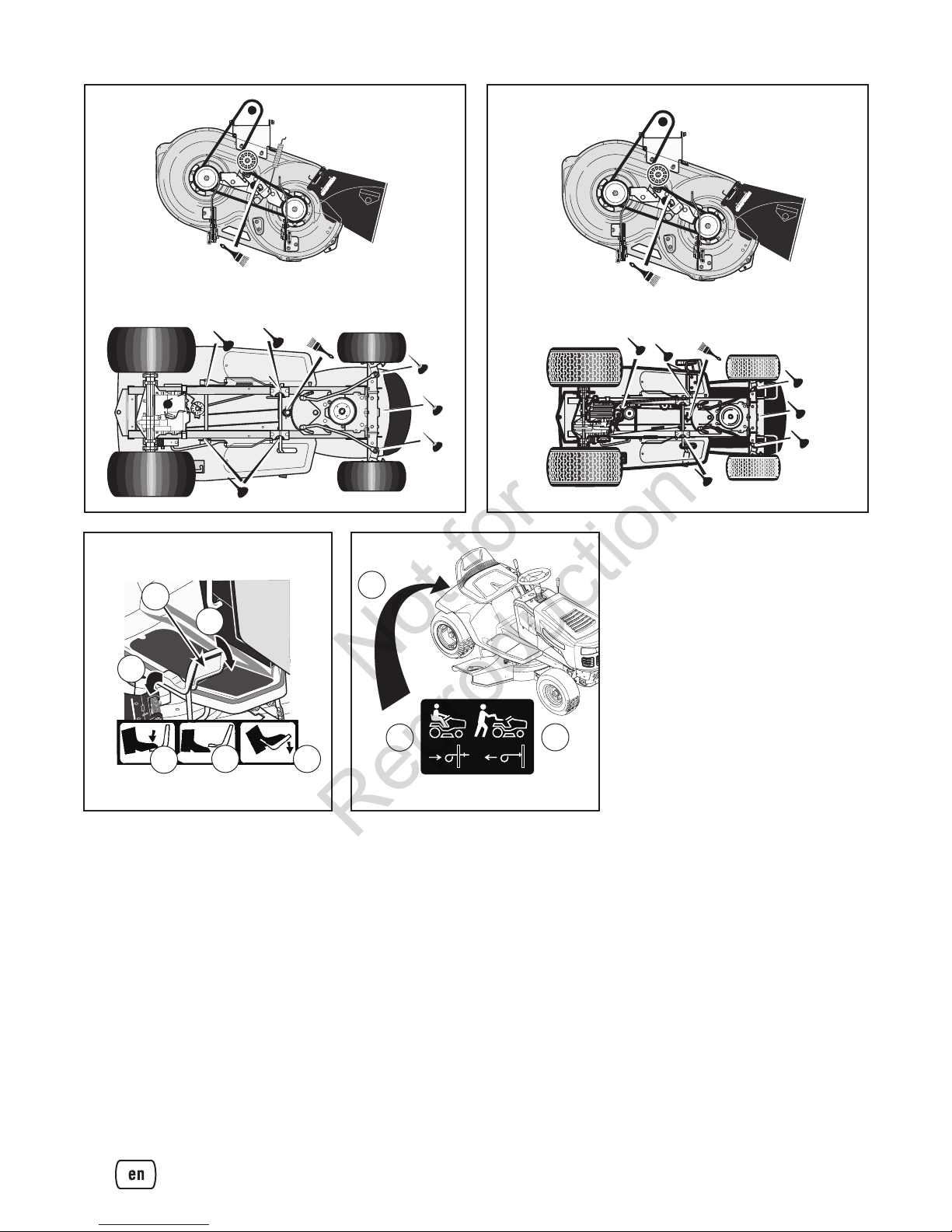

5
16 17
1918
A
BC
A
B
D
BC D
7101935
Not for
Reproduction

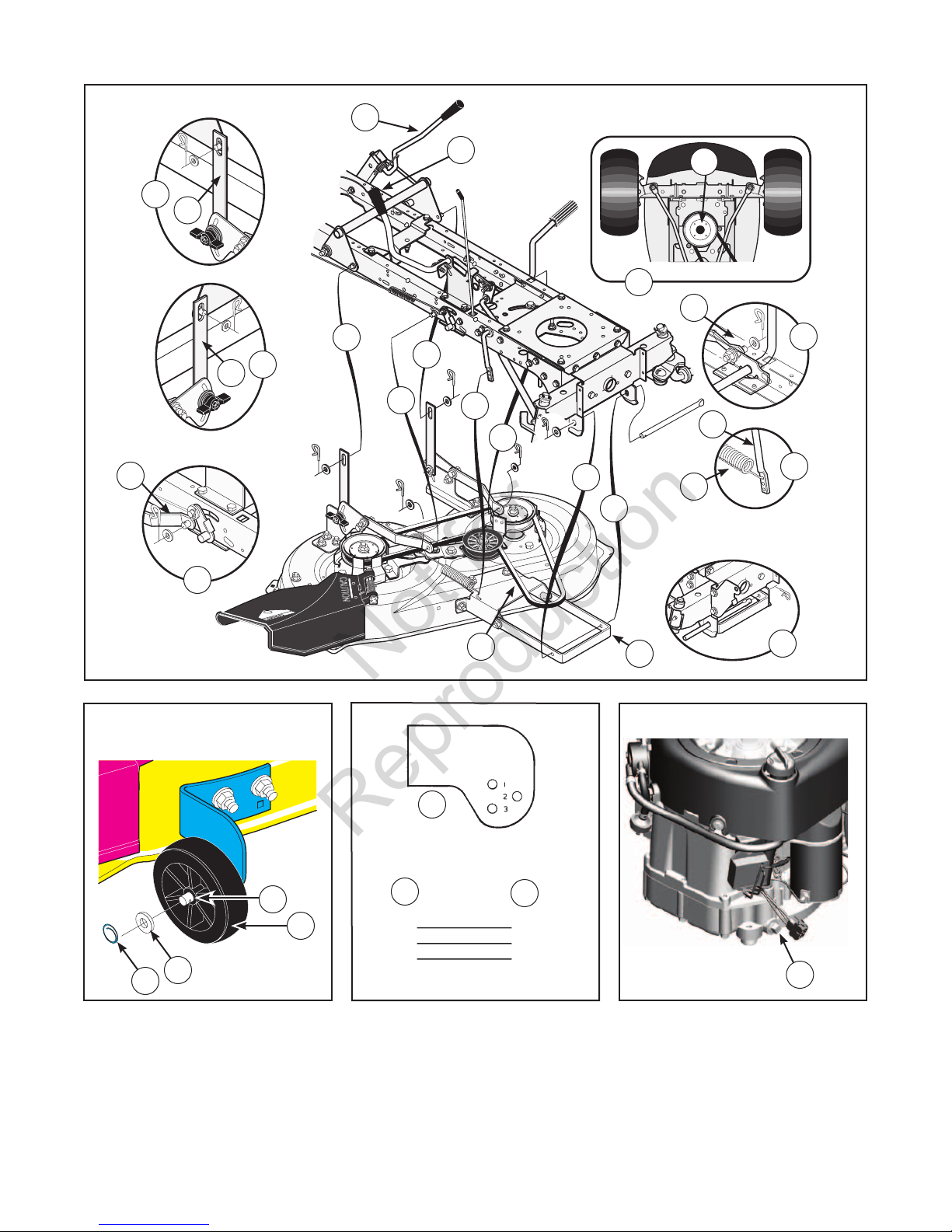

6 www.murray.com www.parklands.net
B
C
D
A
A
11
22
3 3,4,5,6
A
21 23
11
22
3 3,4,5,6
22
20
D
1
2
3
4
5
6
A
D
C
1
3
2
5
4
6
6
7
C
F
E
I
H
G
B
BC
Not for
Reproduction

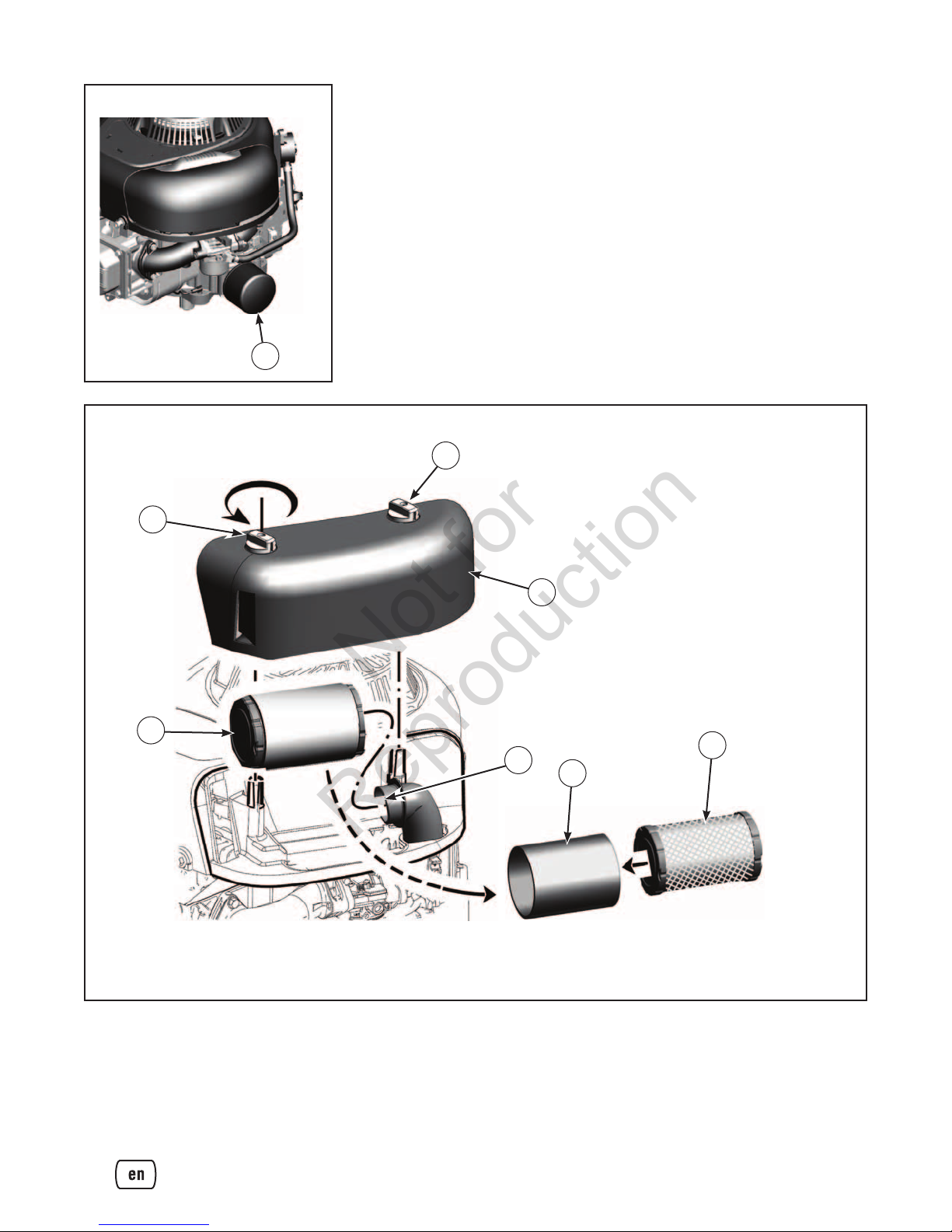

7
A
24
25
A
A
B
C
DE
C
Not for
Reproduction
8 www.murray.com www.parklands.net
28
(#1) (#2) (#3)
(#5)
(#6)
(#7)
(#8)
(#9)
(#10)
(#4)
26
27
A B C DE
F G HI J
K M N OL
AB C D E F G H
IJ K L M
max 10°
max ±150N max ±90N
Not for
Reproduction
English
9
Table of Contents
Operator Safety.................................. 10
Assembly ...................................... 15
Front Wheels................................................. 15
Seat........................................................ 15
Steering Wheel ............................................... 15
Maintenance Free Battery ....................................... 15
Important! Before You Start Mowing .............................. 16
Features and Controls ............................. 17
Location of Controls ........................................... 17
Attachments ................................................. 17
Operation...................................... 18
Before Operating .............................................. 18
Operation - Gear Drive Models ................................... 19
Operation - Hydro-Drive Models .................................. 21
Maintenance ................................... 25
Maintenance Chart ............................................ 25
General Recommendations ...................................... 26
Maintenance - Tractor.......................................... 26
Maintenance - Engine .......................................... 29
Storage (over 30 days) ......................................... 31
How to Order Replacement Parts ................................. 31
Troubleshooting ................................. 32
Warranties ..................................... 34
Not for
Reproduction
10 www.murray.com www.parklands.net
Operator Safety
International Pictorials
IMPORTANT: The following pictorials are located on your
unit or on literature supplied with the product. Before you
operate the unit, learn and understand the purpose for each
pictorial.
NOTE: Illustrations and pictorials begin on page 3.
Safety Warning Pictorials (Figure 26)
A - SAFETY ALERT: Read Important Safety Information.
B - IMPORTANT: Read Owner’s Manual Before Operating
This Machine.
C - WARNING: Thrown Objects. Keep Bystanders Away.
Read User Instructions Before Operating This Machine.
D - WARNING: Do Not Use This Machine On Slopes Greater
Than 10 Degrees.
E - DANGER: Keep People, Especially Children, Away From
Unit.
F - DANGER: Keep Feet And Hands Away From Rotating
Blade.
G - DANGER: Keep Hands And Feet Away.
H - DANGER: Fire Hazard. Petrol And Yard Debris Are
Flammable.
I - WARNING: Hot Surface.
J - DANGER: No Sparks, Flames or Smoking.
K - DANGER: Carbon Monoxide Hazard. The Engine Emits
Poisonous Carbon Monoxide Gas.
L - WARNING: Use Caution When Connecting Or
Disconnecting Accessories.
M - DANGER: Shield Eyes. Explosive Gases Can Cause
Blindness Or Injury.
N - DANGER: Sulfuric Acid Can Cause Blindness Or Severe
Burns.
O - DANGER: Flush Eyes With Water. Get Medical Help Fast.
Control and Operating Pictorials (Figure 27)
A - Engine Start
B - Lights
C - Stop / Off
D - Run / On
E - Brake
F - Parking Brake
G - Clutch
H - Slow
I - Fast
J - Choke
K - Oil
L - Blade Rotation Control
M - Fuel
Responsibility of the Owner
Know your product: If you understand the unit and how the
unit operates, you will get the best performance. As you read
this manual, compare the illustrations to the unit. Learn the
location and the function of the controls. To help prevent
an accident, follow the operating instructions and the safety
rules. Keep this manual for future reference.
WARNING: Look for this symbol to indicate
important safety precautions. This symbol
indicates: “Attention! Become Alert! Your Safety Is
At Risk.”
WARNING: This cutting machine is capable of
amputating hands and feet and throwing objects.
Failure to observe the following safety instructions
could result in serious injury or death to the
operator or bystanders.
The responsibility of the owner is to follow the instructions
below.
Not for
Reproduction
