CONGRATULATIONS ON YOUR PURCHASE
You have selected an exceptional turntable. Each component used in the
construction of the mmf-2.2 was selected to provide you with superior
performance and the highest level of sound reproduction available today. We
know of no turntable that costs as much to produce yet sells for so little. The
precise and elegant design of this turntable makes it easy to install and operate.
Please take a few moments to read over the operating instructions to ensure that
you get the best performance from your deck and years of trouble-free service.
SAFETY GUIDELINES
This product is designed and manufactured to strict quality and safety standards.
However, you should be aware of the following installation and operation
precautions:
1. Take heed of warnings and instructions
Read all the instructions before connecting or operating the turntable.
Keep this manual so you can refer to these safety instructions. Heed all
warnings and safety information in these instructions and on the turntable.
Follow all operating instructions.
2. Water and Moisture
To reduce the risk of fire or electric shock, do not expose the turntable to
moisture or water. If the turntable is exposed to moisture, immediately disconnect
the power cord from the wall. Take the deck to an authorized music hall service
center for inspection. Do not touch the turntable, power cord, or plug with wet
hands.
3. Object or liquid entry
Do not allow foreign objects or liquids into the unit. If this happens, immediately
disconnect the power cord from the wall and take the unit to an authorized music
hall service center for inspection.
4. Heat
Keep the turntable away from naked flames, radiators, heat registers, stoves, or
any other heat-producing appliances (including amplifiers).
5. Climate
The turntable has been designed for use in moderate climates. Do not attempt to
use below 41 degrees Fahrenheit (5 degrees Celsius) or above 95 degrees
Fahrenheit (35 degrees Celsius).
6. Racks and Stands
Place the turntable on a fixed, level surface strong enough to support its weight.
Do not place it on a moveable cart that could tip over. We recommend only
using stands approved for use with audio equipment. See the SITING section for
further suggestions.
3
7. Cleaning
Please refer to the MAINTENANCE section for detailed cleaning instructions.
8. Power Sources
Connect the turntable only to a power supply of the type and voltage described in
the operating instructions or specified on the rear panel of the unit.
9. Power-cord protection
Connect the turntable to the power outlet only with the cord supplied. Do not
modify the supplied cable in any way. Do not attempt to defeat grounding and/or
polarization provisions.
Do not use extension cords.
Do not route the power cord where it will be crushed, pinched, bent at severe
angles, exposed to heat, or damaged in any way.
10.Non-use periods
If the deck is to be left unused for a long period of time, the power cord should be
unplugged from the wall outlet and the belt removed.
11.Damage Requiring Service
Stop using the turntable immediately and have it inspected by an authorized
music hall service center whenever:
1. The power supply cord or plug has been damaged.
2. Liquid has been spilled onto the motor or into the bearing well.
3. The turntable has been exposed to rain.
4. The turntable does not operate properly.
5. The turntable has been dropped or damaged.
6. Smoke or any unusual smell is detected from the turntable.
4
5

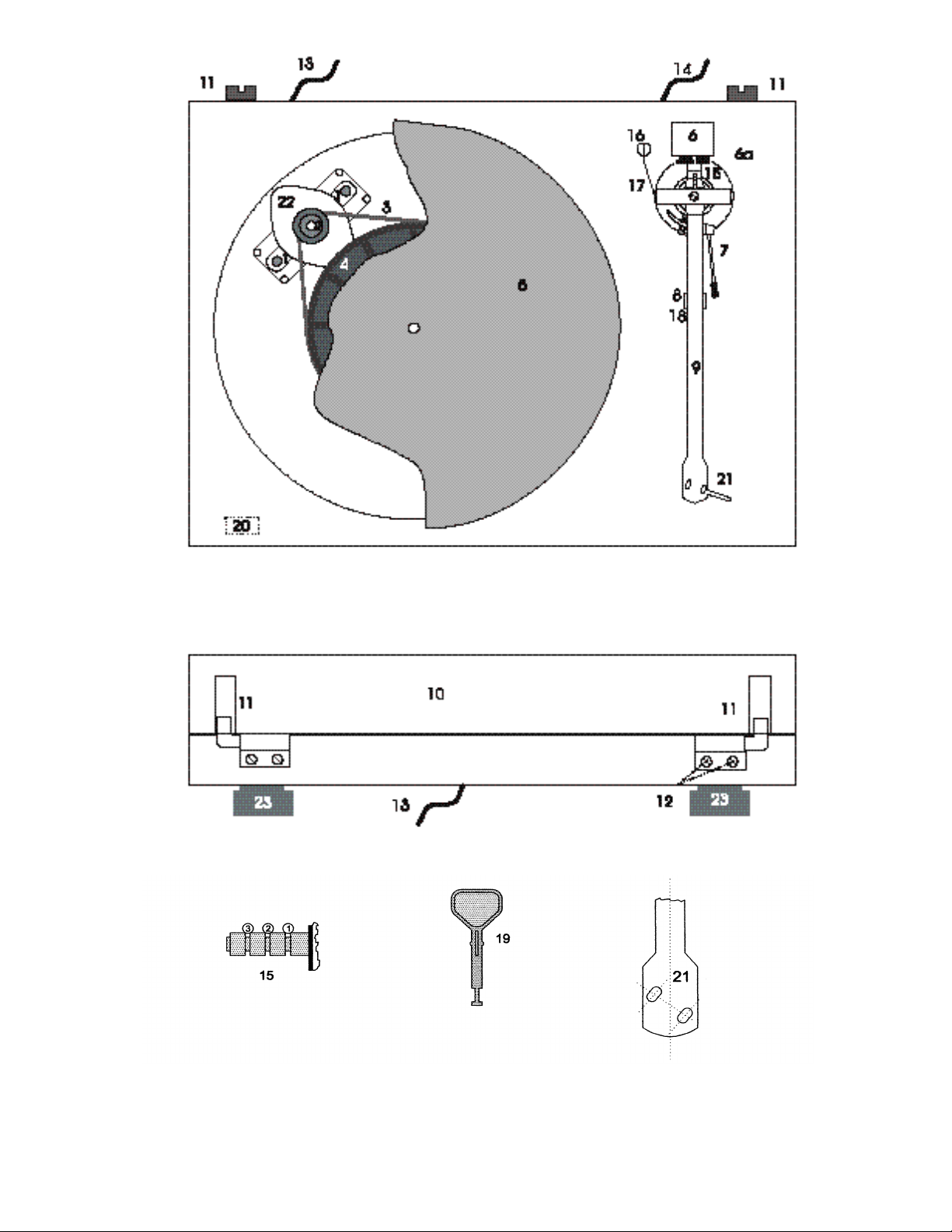

PARTS INVENTORY AND OPERATION CONTROL DIAGRAM
1. 2 x motor transport screws (marked red)
2. 1 x stepped motor pulley
3. 1 x drive belt, packaged in parts bag
4. 1 x sub-platter
5. 1 x platter with felt mat, packaged in bottom of box
6. 1 x tonearm counterweight (located in bottom set of packing material)
7. 1 x tonearm lift lever/cueing lever
8. 1 x tonearm rest
9. 1 x tonearm
10. 1 x dust cover
11. 2 x dust-cover hinges
12. 4 x dust-cover hinge screws
13. 1 x mains wire connected to wall transformer (in a small white box set into
the underside of the packing foam)
14. 1 x audio cable
15. 1 x anti-skating rod
16. 1 x anti-skating weight, (packaged in a pink bag inside the parts bag)
17. 1 x anti-skating hanger
18. 1 x arm lock
19. 1 x belt changing tool packaged in parts bag
20. 1 x on/off switch
21. 1 x head shell fitted with music hall Tracker cartridge
22. 1 x motor
23. 4 x feet
Parts bag includes:
1 x 45 rpm adapter
1 x belt
1 x cartridge alignment (tangency) guide
1 x anti-skate weight (16) (tiny weight attached to small piece of fishing line)
1 x belt changing tool (19)
6
GETTING STARTED
Thank you for purchasing the music hall mmf-2.2 turntable. It is a 2-speed belt-
driven, audiophile turntable that comes complete with a music hall Tracker
cartridge mounted in a high-quality tonearm. The alloy platter runs on a
precision, stainless steel and bronze bearing assembly to provide fluid and quiet
operation. These features combine to ensure that the mmf-2.2 delivers superior
audio performance that will provide years of enjoyment.
FOR YOUR INFORMATION
This manual provides valuable information that will help you get optimum
performance from your system. Please contact your authorized music hall dealer
for any additional clarifications you may require. Save the music hall mmf-2.2
shipping carton and all enclosed packing material for future use. Shipping or
moving the mmf-2.2 in anything other than the original packing material may
result in severe damage that is not covered by the warranty. Be sure to keep the
original sales receipt; it is your best record of the date of purchase, which you will
need in the event warranty service is required.
SET-UP
The music hall mmf-2.2 is supplied partially disassembled and carefully
packaged for safe transport. To assemble the turntable, please follow the
instructions carefully.
1. Clear a level (use a spirit level) and suitable workspace to assemble the
turntable. This may be the final playing location.
2. Remove the turntable and all parts from the carton.
3. Remove both red motor-transport screws (1). Keep the screws for possible
future use.

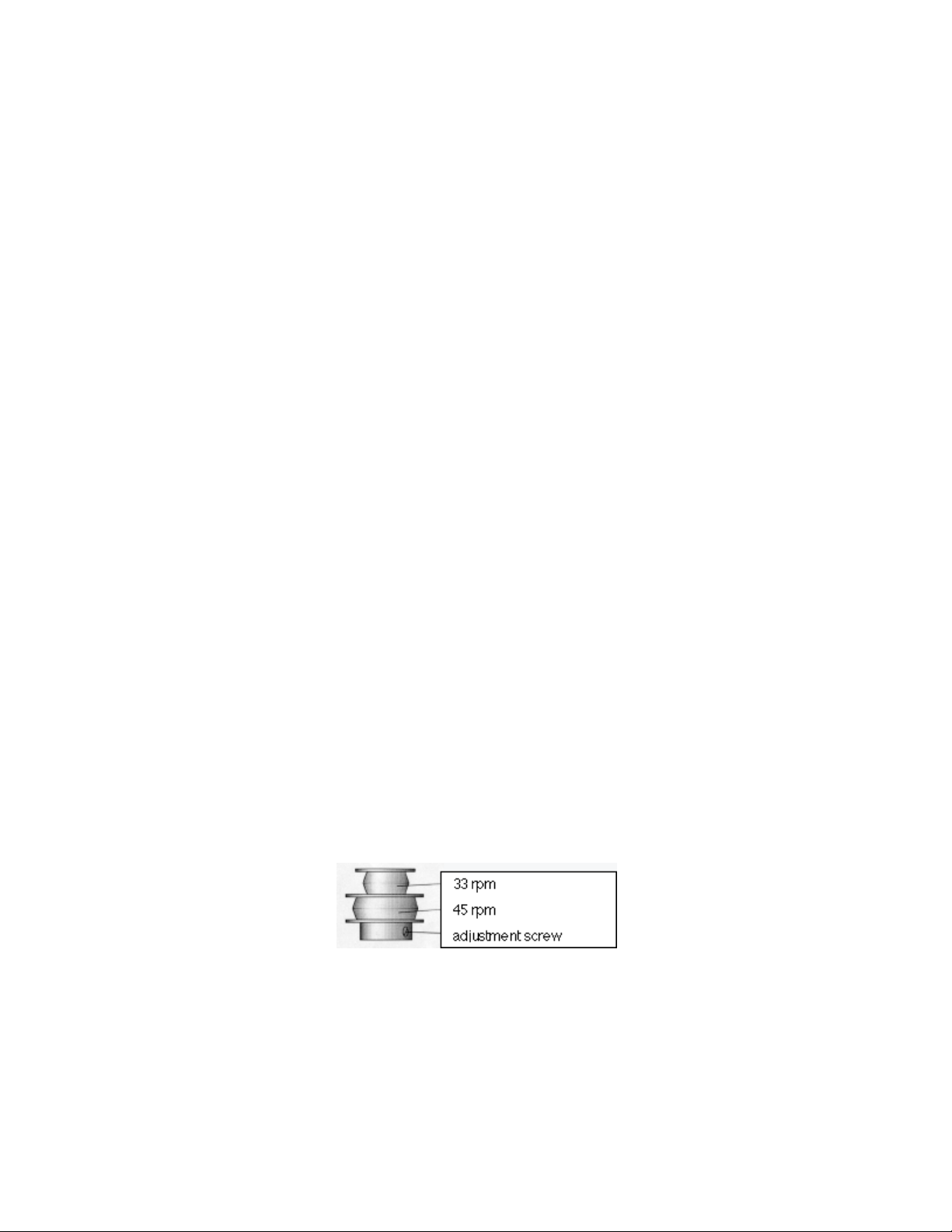

4. Install the drive belt (3) for 33⅓ rpm play. Loop the belt around the smaller
diameter rim of the stepped motor pulley (2) and around the rim of the sub-
platter (4). (For 45 rpm. play, use the large diameter rim of the motor pulley).
5. Center the platter (5) over the spindle of the sub-platter (4) and lower it until it
rests securely on the sub-platter.
6. Place the counterweight (6) onto the tonearm. To do this, you are positioned
in front of the turntable. Orient the counterweight so that the tracking force
scale (6a) is closest to you. Carefully, screw the counterweight
7
counterclockwise onto the back of the tonearm. Don't worry about the exact
position of the counterweight or the tracking force scale, they will soon be
adjusted.
7. Remove the tonearm-locking strap (18). Place it in a safe position for
possible future transport.
8. Make sure the tonearm is in the tonearm rest (8). Carefully, remove the
stylus guard (the piece of clear plastic on the bottom of the cartridge). It slips
off of the cartridge by pulling it towards you in a downward motion. Place it in
a safe place for future use.
9. You will now set the cartridge tracking force. The mmf-2.2 comes complete
with a factory installed music hall Tracker cartridge. We recommend a
tracking force of 1.75g. Please note; the tracking force scale (6a) on the
counterweight (6) has no decimal point. 10 on the tracking force scale (6a) is
actually 1.0 g. 15 is actually 1.5g, etc. 1.75 g is between 17 and 18g on the
scale (6a). To set the tracking force you must first balance (zero) the tonearm
(9).
The objective of balancing or zeroing the tonearm is to get the tonearm to
float parallel to the platter.
First, lower the cueing lever (7).
Using your left hand, lift, position, and hold the tonearm (9) between the
tonearm rest (8) and the platter (5). To avoid damage, be careful not to allow
the cartridge to contact the plinth (the turntable base).
With your free hand turn the counterweight counterclockwise or clockwise
until the tonearm floats freely, without the aid of your hand, in mid-air and
parallel to the platter. Don't worry about the number on the tracking force
scale, you will soon calibrate and set it properly. Once you have balanced the
tonearm, return it to the tonearm rest.
You are now going to set the ring with numbers on the counterweight to zero.
This is called the tracking force scale.
The tracking force scale (6a) turns independently of the counterweight.
IMPORTANT
With your right hand hold the rear part of the counterweight to make
sure that it does not move.
With your left hand, lightly grip and turn the tracking force scale until the
number zero is in the twelve o' clock position (dead center on top of the
counterweight).
The tonearm is now zeroed. Check it, by once again floating the tonearm
between the tonearm rest and the platter. If the tonearm doesn’t float parallel
8
to the platter at zero, return to the previous steps and make the necessary
adjustments.
Return the tonearm to the tonearm rest.
IMPORTANT
Do not touch the tracking force scale again.
Turn the counterweight counterclockwise with your right hand.
You will notice that the tracking force scale will also turn.
Turn it through numbers 5, 10, 15 to the position centered between 17 and 18
on the scale). This is equivalent to 1.75 grams. The correct tracking force has
now been set.
Every arm and cartridge combination has an optimum tracking force. This
can easily be set by ear. Increments of 0.1g can produce significant
differences. Once the cartridge has run-in (usually about 24 -50 hours of
playing time) feel free to experiment with a slightly higher or lower tracking
force and pick the one you prefer.

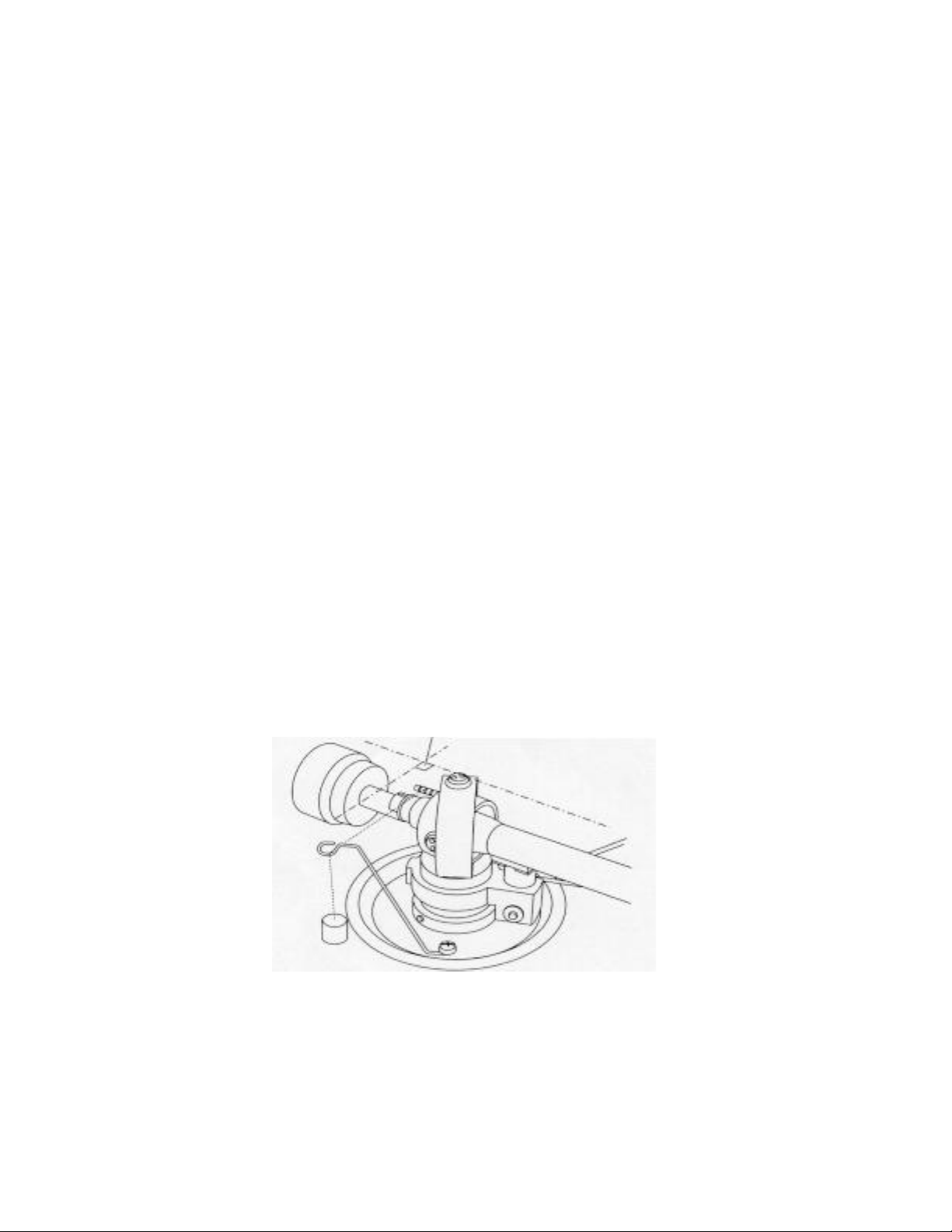

10.Locate the anti-skating weight (16). You will notice a small fishing line
attached to the anti-skating weight (16). Slip the looped end of the fishing line
over the anti-skating rod (15) and into notch number 2 (See diagram below).
Lift the anti-skating weight (16) over the anti-skating hanger (17) and feed the
fishing string through the looped end of the anti-skating hanger (17). The
anti-skating weight (16) should now be dangling in free space to the left of the
hanger. If it is not dangling, simply bend the anti-skating hanger (17) by
pushing it away from the tonearm pillar with your finger.
11.Slide the dust cover (10) onto the dust cover hinges (11) on the back of the
plinth. If necessary, adjust the tightness of the hinges by turning the dust
cover hinge screws (12).
9
NOTE
If you are substituting another cartridge for the Music Hall 'Tracker', you may
need to make the following further adjustments to the tonearm (9) and cartridge:
If you are a novice, music hall recommends getting professional help.
All cartridges with half inch mounting holes can be fitted. Leaving the stylus
guard on, fit the cartridge to the head shell (21) using the screws supplied with
the cartridge by passing one screw through each slot in the finger lift and the
head shell (21). Snug the nuts.
Connect the tonearm (9) wires to the cartridge pins as follows:
white left channel positive (L+)
red right channel pos. (R+)
green right channel return (R -)
blue left channel return (L -)

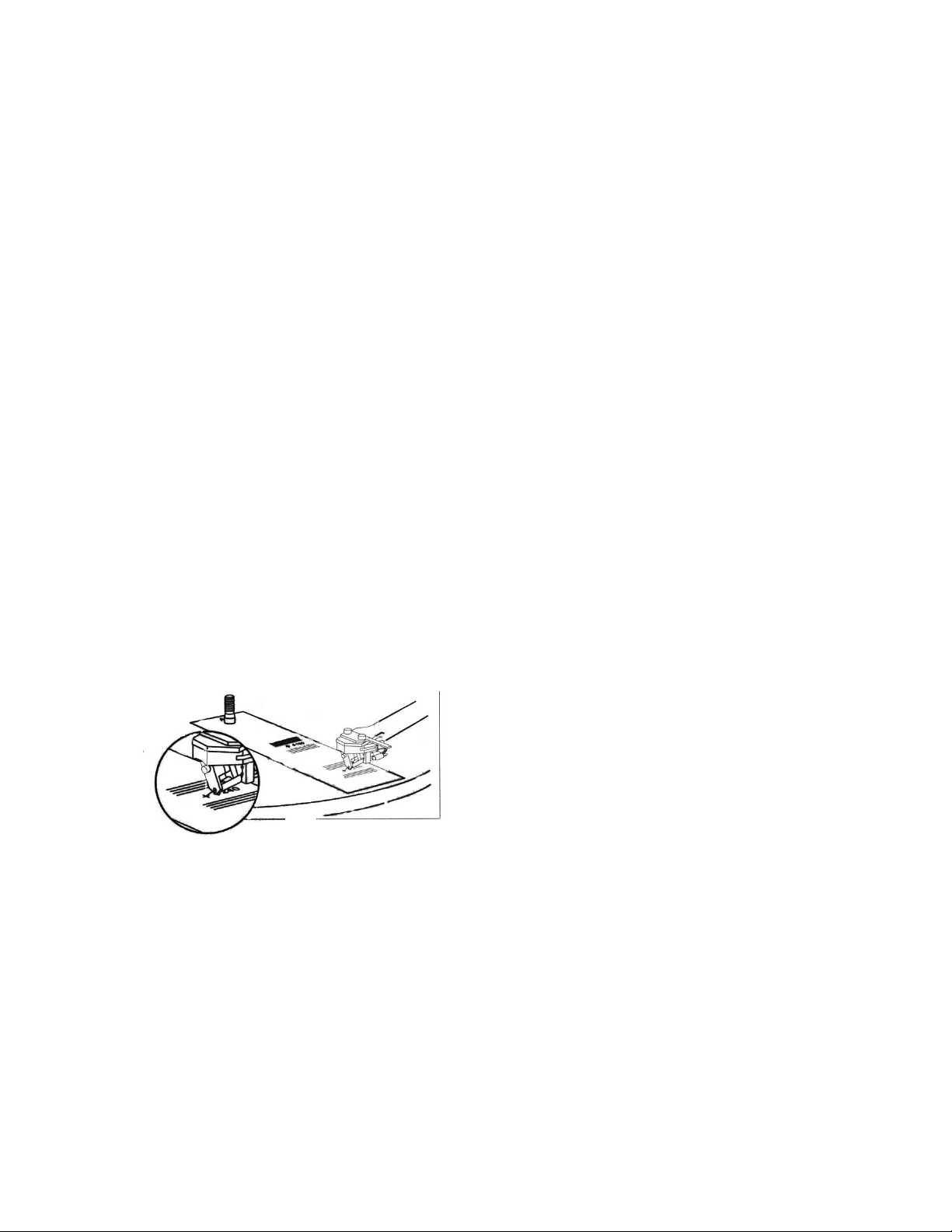

To achieve the best sound reproduction, the cartridge must be positioned
precisely in the head shell. To do this, fit the tangency guide (you'll find this in
the parts bag. It's a white rectangular piece of cardboard with black lines) over
the spindle at point 'A’ and onto the platter, black lines side up (See diagram
below). Remove the stylus guard. Move the tonearm (9) (adjusted for the
correct tracking force of your cartridge) to the pattern. When the stylus tip of the
cartridge is at points 130mm and 250mm, the front of the cartridge should be
parallel to the lines on the pattern. If necessary, slide the cartridge back and
forth until the stylus tip is positioned correctly. Tighten the cartridge mounting
screws.
VTA Adjustment: The VTA for the installed music hall cartridge has been
properly set at the factory. To adjust the VTA for other cartridges, lay a record on
the platter (5). Slacken the horizontal adjustment screws (two Allen screws
located near the plinth on the back of the tonearm pillar) with the Allen Key
provided.
IMPORTANT
Do not loosen the vertical screws that hold the anti skate arm to the base.
Move the tonearm (9) up or down until it is parallel to the record surface when
viewed from the side. Tighten the horizontal adjustment screws.
10
VTA like Tracking Force can also be set by ear. Feel free to experiment with
VTA positions slightly above or below parallel and choose the position you prefer.
If you have any further questions regarding the adjustment of your turntable,
please contact your music hall dealer.
*Save all packing materials, parts, and screws for possible future transport.
SITING
FLOOR MOUNTING - Place the deck on a small, light, rigid table, e.g., coffee
table. Ensure that the table is level on the floor and not rocking.
WALL MOUNTING - Wall mounting may be preferable when the floor is springy
or when there is risk of damage by children or pets. The shelf should be light
and rigid, and fully supported by, but not firmly screwed or glued to its brackets.
To allow the lid to open fully, a clearance of 3 inches (7.5 cm.) is required behind
the plinth and at least 13 inches (33 cm.) above.
MAINS CONNECTION
Locate the wall transformer. It’s in a small white box set into the underside of the
packing foam. Plug the small male end of the wall transformer wire into the
female receptacle on the power socket for the motor. The power socket for the
motor is located on the underside of the turntable near the back. Plug the
transformer into the wall. Turn the motor ‘ON’ (20) and check that the platter (5)
spins.
AUDIO CONNECTION
The Music Hall Tracker is a moving- magnet cartridge. Connect the audio cable
(14) to the MM (Moving Magnet) phono input on your receiver or pre-amplifier.
OPERATION
Place a record on the platter and push the mains switch (20) to the 'ON' position.
Remove the stylus guard and lift up the tonearm with the cueing lever (7).
Position the cartridge stylus tip above the initial groove of the record. Gently
lower the cueing lever (7) to drop the arm onto the record.
To stop play, lift the cueing lever (7) to raise the arm and then bring the tonearm
back to the tonearm rest (8). Push the mains switch (20) to 'OFF'.
It is recommended to replace the stylus guard (optional) when the turntable is not
in use.
To play 45 rpm records, first remove the felt mat and platter then move the drive
belt (3) from the small to the large diameter rim of the stepped motor pulley (2).
Do this using the belt-changing tool (19) so as not to touch the belt with your
hands. Replace the platter and felt mat. Please note, for singles (7 inch records
Questo manuale è adatto per i seguenti modelli
1
Indice
Altri manuali MUSIC HALL Giradischi
MUSIC HALL
MUSIC HALL MMF-2.1 Manuale utente
MUSIC HALL
MUSIC HALL MMF-3.3 Series Manuale utente
MUSIC HALL
MUSIC HALL us-1 Manuale utente
MUSIC HALL
MUSIC HALL mmf-1.3 Manuale utente
MUSIC HALL
MUSIC HALL mmf-5.1se Manuale utente
MUSIC HALL
MUSIC HALL mmf-1.5 Manuale utente
MUSIC HALL
MUSIC HALL cruise control 2.0 Manuale utente
MUSIC HALL
MUSIC HALL stealth Manuale utente
MUSIC HALL
MUSIC HALL ikura Manuale utente
MUSIC HALL
MUSIC HALL mmf-3.3 LE Manuale utente
