Mustek 600 CP Manuale utente
Flatbed Scanner (EPP)
with
TWAIN Data Source (for PC)
User's Guide
82-023-00240 Rev. 1.0
UK-2
Copyright © 1996 All brand or product names mentioned in this manual are trademarks or
registered trademarks of their respective owners.
Alle anderen in diesem Handbuch genannten Marken- oder
Produktbezeichnungen sind Warenzeichen oder eingetragene Warenzeichen
der jeweiligen Eigentümer.
Toutes les autres marques commerciales et marques déposées appartiennent à
leurs propriétaires respectifs.
Los demás nombres de producto o de empresa son marcas registradas de sus
respectivos propietarios.
Tutti gli altri nomi dei prodotti o delle compagnie menzionati in questo
manuale sono proprietà dei rispettivi depositari. September 1996
UK-3
Contents
Installation UK-5
Unpacking the Scanner Package ..................................................................................... UK-5
The Scanner Parts ............................................................................................................ UK-5
Connecting the Scanner to the PC and Printer ............................................................... UK-6
Operating the Scanner .................................................................................................... UK-7
Power Up Procedure............................................................................................ UK-7
Document Positioning.......................................................................................... UK-8
Using the Printer ............................................................................................................. UK-8
ScanningTips .................................................................................................................. UK-9
Scanning an Image UK-11
Acquire the F/B Scanner (EPP) Dialog Box.................................................................... UK-11
To Scan an Image ........................................................................................................... UK-11
Prescan the Image .............................................................................................. UK-12
Set the Image Size............................................................................................... UK-12
Set the Scan Mode.............................................................................................. UK-12
Set the Resolution............................................................................................... UK-12
Execute the Scan ................................................................................................ UK-13
Doing BatchScans ......................................................................................................... UK-13
Tonal Adjustment........................................................................................................... UK-14
Appendix A: Specifications UK-15
UK-4
Installation UK-5
UK
Installation
Thischaptercoversthescannerpartsanddescribeshowtoconnect
thescannertoyourcomputerandprinter.Youwillalsofind
informationusefulinoperatingthescanner.
UnpackingtheScannerPackage
Carefullyunpackthecontentsofthescannerpackage.Inspectthe
itemscloselyandifyoufindanyitemdamaged,pleasecontactyour
dealerimmediately.Also,savetheboxandpackingmaterialfor
futureuseincaseyouhavetoshiptheunit.
TheScannerPartsThefollowingillustrationshowsthemajorpartsofthescanner.
TheFlatbedScanner
Note: Thescrewlocklocatedabovethescanwindowglassprotects
thescanningmechanismduringshipping.Itisimportantthatyou
unlockthecarriagebeforeoperatingtheunittopreventcausing
damagetothescanner.Usingascrewdriverorasmallcoin,point
thearrowonthescrewto"unlock."
UK-6 FlatbedScannerUser'sGuide
ConnectingtheScannertothePCandPrinter

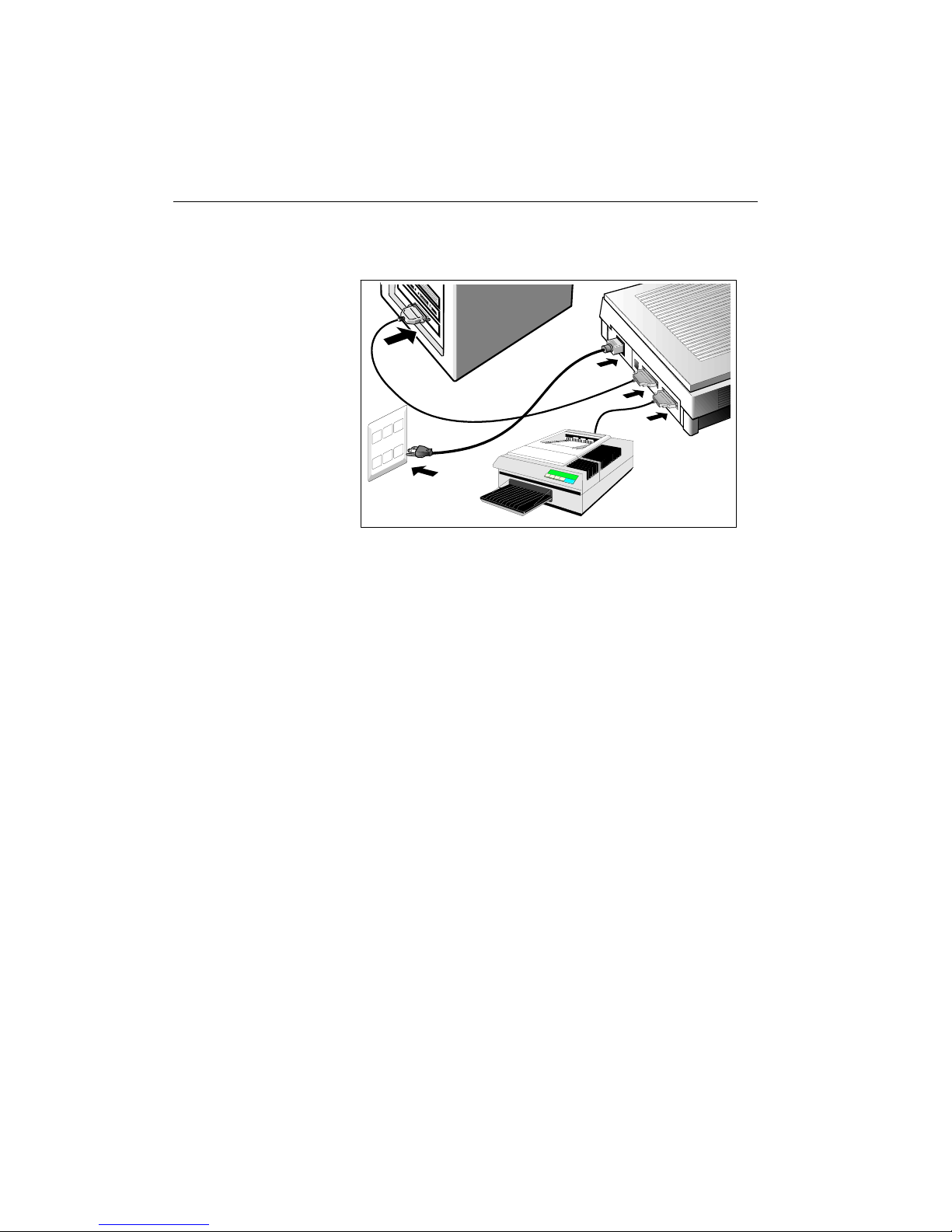

Refertothefollowingillustrationandstepstoinstallyourscanner.
1. Poweroffthecomputerandanydevicesthatareconnectedtoit
(e.g.,monitor,printer,modem).
2. Disconnecttheprintercablefromtheprinterportintheback
ofyourPC.
3. Takethedisconnectedendoftheprintercableandattachitto
theportinthebackofthescannermarkedPrinter.Tighten
theretainingscrews.
4. Connectoneendofthescannercabletotheprinterportinthe
backofyourPCandtightentheretainingscrews.
5. Connecttheotherendofthescannercabletotheportinthe
backofthescannermarkedHost.
6. Connectthepowercabletothescannerandplugitintoan
appropriatepoweroutlet.
7. Poweronthecomputerandwaitforthecomputertofinish
booting.
8. Poweronthescannerandwaituntilthereadylightstops
flashingandremainslit.
Installation UK-7
UK
ConfiguringtheSoftware
InordertoscanwithTWAINDataSource,youmustfirstconfigure
theTWAIN-compliantapplicationsoftwarethatcamewithyour
scannerorwhichwaspurchasedseparately.Configurationinvolves
settinguptheapplicationsoftwareasa“host”programforTWAIN
DataSourceandselectingthescannerasanimagesourceforthe
applicationsoftware.
Theconfigurationprocessonlyhastobedoneonce.Afterthe
configurationprocessiscomplete,theTWAINDataSourcewill
controlallinteractionsbetweenyourscannerandthehost
program.Toconfigurethesoftware:
1. Makesureyourscannerisstillon.
2. LaunchWindows.
3. Launchthehostapplicationsoftwarethatcamewiththe
scanner.
4. Openthehostapplication’sSelectSourcecommand(usually
undertheFilemenu)andchooseSelectSourcetodisplaythe
SelectSourcedialogbox.
5. Fromthelistofsources,choose“F/BScanner(EPP)”asyour
imagesourceandclickSelect.Youwillreturntothemain
screenofthehostapplication.Softwareconfigurationisnow
complete.
OperatingtheScanner
PowerUpProcedure
1. Poweronthecomputerandwaitforittofinishbooting.
2. Poweronthescannerbyflippingthepowerswitchfrom0to|.
Whenturnedon,thescannerundergoesaseriesofself-
diagnostictests.TheLEDindicatoronthefrontpanelofthe
scannerflashesbrieflyandthenremainslit,signifyingthatthe
scannerisready.
DocumentPositioning
Forthebestpossibleimagescans,itisimportantthatyouposition
yourdocumentscorrectlyandcarefully.
1. Liftthedocumentcover.
UK-8 FlatbedScannerUser'sGuide

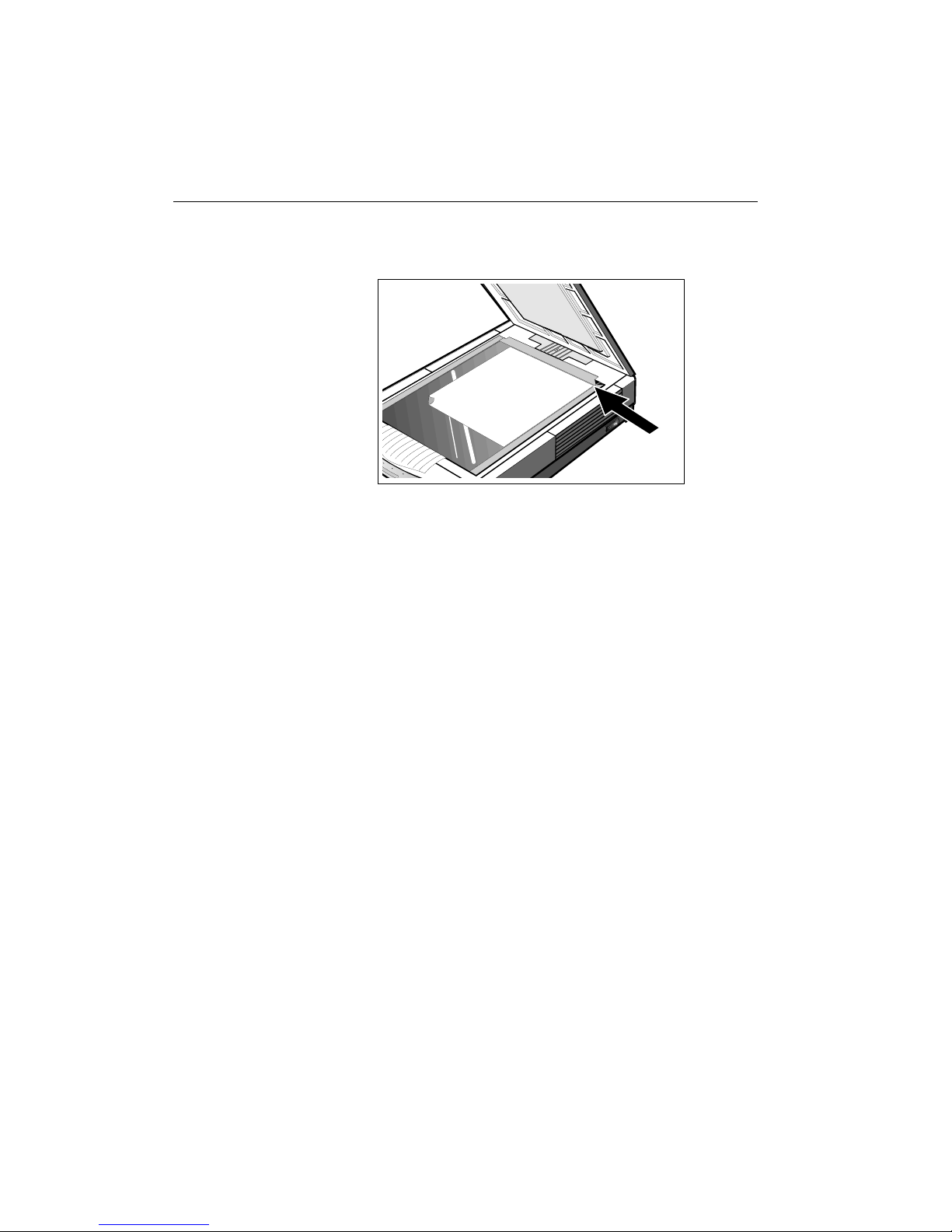

2. Placethedocumentfacedownontheglassandintheupper
rightcornerwherethealignmentmarksarelocated:
3. Slowlylowerthedocumentcover,makingsurethedocument
remainsinposition.
4. Inyourscanningprogram,setupthescanningparameterssuch
asscanmode,resolution,etc.SeeChapter2formore
information.
5. Executethescancommand.
6. Removethedocumentafterscanningiscomplete.
UsingthePrinter Unlessyouwanttoscan,itisnotnecessarytoturnonyour
scannerwhenyouwishtousetheprinter.
ScanningTips Thefollowingtablesprovidehelpfulinformationyoucanusewhen
settingthescanmodeand/orresolution.Recommendedscanning
resolutionsforvariousoutputdevicesarelistedasfollows:
Installation UK-9
UK
PRINTER TYPE INPUT
MATERIAL SUGGESTED
SCAN MODE RESOLUTION
Color Grayscale 150 dpi
600 dpi laser Grayscale Grayscale 150 dpi
or inkjet printer Halftone Halftone 600 dpi
Line Art/Text Line Art/Text 600 dpi
Color Grayscale 75 dpi
300 dpi laser Grayscale Grayscale 75 dpi
or inkjet printer Halftone Halftone 300 dpi
Line Art/Text Line Art/Text 300 dpi
Color Color Ckeck with
Color Grayscale Grayscale manufacturer
inkjet printer Halftone Halftone recommended
Line Art/Text Line Art/Text settings
Dye Color Color Use maximum
sublimation Grayscale Grayscale printer
printer Halftone Halftone resolution
Line Art/Text Line Art/Text
Spacerequirementsfordifferentscanmodes:
10x10 cm 100 dpi 100 dpi 100 dpi 100 dpi
Line Art 19,5 Kb 44 Kb 175 Kb 703 Kb
Grayscale 156 Kb 352 Kb 1,37 MB 5,5 MB
Color 469 Kb 1 MB 4,12 MB 16,5 MB
UK-10 FlatbedScannerUser'sGuide
