Mustek ScanExpress 1200 CU Manuale utente

The Scan Dialog Box

Appendices

The TWAIN Dialog Box

SCANNER

USER’S GUIDE

Allrightsreserved. Nopartofthispublicationmaybereproduced,

transmitted, stored in a retrieval system, or translated into any

languageinanyformbyanymeans,mechanical,optical,electronic,

recording, or otherwise, without the our written permission.

Wereservetherighttorevisethismanualandtomakechangesto

anyorallpartsatanytime,withoutobligationtonotifyanyperson

orentityofsuchrevisionsandchanges.

All other brand or product names mentioned in this manual are

trademarksorregisteredtrademarksoftheirrespectiveowners.

Printed in Taiwan, May 1998.

FCC Statement

Thisdigitalequipmenthasbeen testedandfoundtocomplywiththe

limitsforaClassBdigitaldevice,pursuanttoPart15oftheFCCRules.

Theselimitsaredesignedtoprovidereasonableprotectionagainst

harmfulinterference when theequipment is operatedin a residential

installation. This equipment generates, uses, and can radiate radio

frequencyenergyandifitisnotinstalledandusedaccordingtothe

instruction manual, it may cause harmful interference to radio

communications.However,thereisnoguaranteethatinterferencewill

notoccur in a particularinstallation. If thisequipment causes harmful

interferencetoradioortelevisionreception,whichcanbedetermined

byturningtheequipmentoffor on,youareencouraged totrytocorrect

theinterferencebyoneormoreofthefollowingmeasures:

•Reorientthereceivingantenna

•Increasethedistancebetweentheequipmentandthereceiver

•Connectthe equipment intoanoutlet on acircuitdifferent from that

towhichthereceiverisconnected

•Consultthedealeroranexperiencedradio/TVtechnicianforhelp

NOTE:

1. Thechangesormodificationsnotexpresslyapprovedbytheparty

responsibleforcompliancecouldvoidtheuser’sauthoritytooperate

theequipment.

2. ShieldedinterfacecablesandACpowercord,ifany,mustbeusedin

orderto complywith theemission limits.

Scanning Methods ............................................................4

The Scan Dialog Box ........................................................5

To Acquire the Scan Dialog Box ...............................6

Function Buttons ........................................................7

Menu Pages .................................................................7

Scan Page ...............................................................7

Copy Page ..............................................................7

Fax Page..................................................................8

OCR Page ...............................................................8

E-Mail Page ............................................................8

The TWAIN Dialog Box ...................................................9

To Acquire the TWAIN Dialog Box .......................10

Performing a Simple Scan .........................................11

(1) Position the Document .................................11

(2) Preview the Image .........................................11

(3) Select the Scan Size.......................................12

(4) Use the Crop Frame.......................................12

(5) Set the Scan Mode ........................................12

(6) Set the Resolution ........................................12

(7) Execute the Scan............................................12

The TWAIN Dialog Box (Details) ............................... 13`

The Preview Window and Buttons .........................14

The Image Setting Buttons ......................................16

Scan Settings..............................................................17

The Main Tab.......................................................17

The Enhance Tab.................................................20

The Filters Tab .....................................................23

About Tab ............................................................24

Using Batch Scan ......................................................25

Batch Scan Controls ...........................................25

Batch Scan Status ...............................................26

To Perform a Batch Scan ...................................26

Appendices

A: Scanning Tips .......................................................27

B: Troubleshooting ...................................................28

Table of Contents

ScanningMethods

Thereare two separate methods toscanan image. The Scan dialogboxwhich is ideal for quickandsimple scans and

the TWAIN dialog box which offers more control over the output. The following pages contain more details about

these different scanning methods.

Scan Dialog Box TWAIN Dialog Box

TheScanDialogBox

The Scan dialog box allows you to perform several

functions using your scanner (e.g. scan, copy, and fax).

Simplyselect thefunction thatyou wish touse byclicking

ontheappropriatepageiconand thecorrespondingmenu

pagewill appear. Be sure to make the properadjustments

in regards to Paper Size, Scan Mode, and/or Resolution

before clicking on the Scan icon.

Scan Page

Icon

Copy Page

Icon

E-Mail Page

Icon

OCR Page

Icon

Fax Page

Icon

Exit

Help

Information

Mailing IconMenu Page

Scan Icon

The Cover Sensor:

Simply lift the cover and begin scanning. This

scanner is equipped with a Cover Sensor feature that

automaticallyopens theScan dialogbox.

To disable the Cover Sensor, right-clicktheDirect

Scan icon (below) in your

Windows taskbar. Apop-upmenu

appears allowing you to disable

or enable the Cover Sensor

feature.

To Acquire the Scan Dialog Box

The Direct Scan Icon:

Double-click the Direct Scan icon located in your

Windows taskbar and the Scan dialog box opens.

Menu Pages

ScanPage:

Scan an image or document to the computer via any

image editing software.

Use the Browseicontoselect the image-editing

software from your

computer. Photo

Express is

automatically

installed as your

default software .

Click the Scan icon to begin scanning!

CopyPage:

Copy an image or document to your printer.

Prior to scanning, use the Print icon to select

the appropriate

printer from within

your computer.

Click the Scan icon

to begin copying!

Function Buttons

Scan Icon:

Initializes the function of the Menu page currently

selected (e.g. Copy Page=Copy, Fax Page=Fax).

Exit:

Exits the Scan dialog box.

Help:

Enters the scanner’s on-line help system.

Information:

Shows product information.

E-MailPage:

Scan and send an image or document to the Internet

using your SMTP address/account.

Enteryour SMTP address, the

destination address (To:), and

your full address (From:).

(For SMTP details, contact your Internet Service Provider)

Clicking the Mailing icon opens the Mailbox,

which allows you to

type an attachment.

Clicking the To:

button opens the

Address book, which

allows you to store

addresses and add

additional destination

addresses to your e-mail.

Click the Scan icon to begin sending your information

across the Internet!

OCRPage:

Convert an image document to a text file using

TextBridge.

Click the Scan icon to execute the OCR function!

TextBridge will automatically open showing an image

thumbnail of the scanned document. Save the

document as desired, then open the document using

your word processing software.

Fax Page:

Scan and fax an image or document via your fax

modem.

Prior to scanning, use the Print icon to select the

appropriate printer

(Faxdriver)fromyour

computer.

Click the Scan icon

to begin faxing!

TheTWAINDialog Box

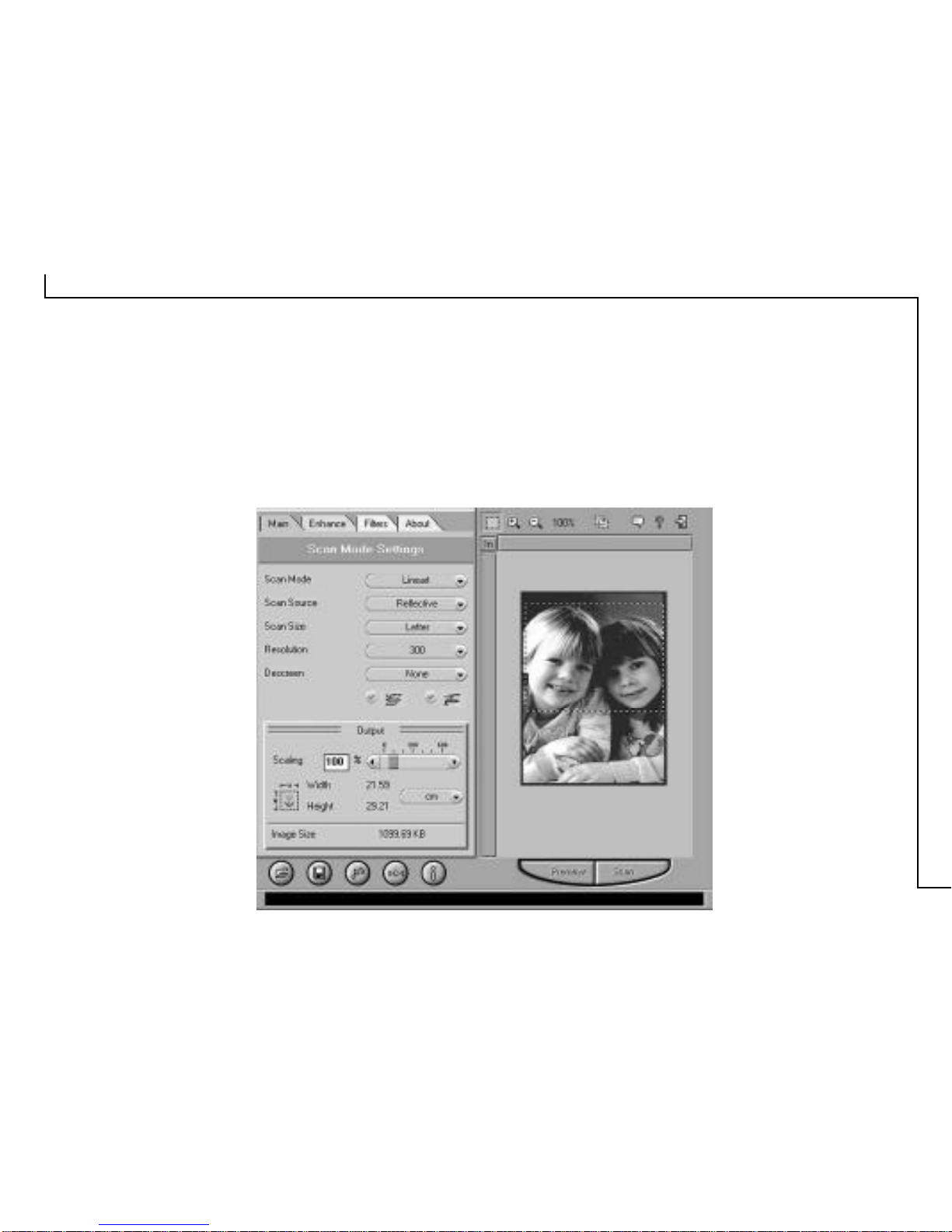

The TWAIN dialog box is another scanning option

provided with your scanner. TWAIN is an industry

standard that allows scanning directly into any TWAIN-

compliant software. It eliminates most compatibility

problems associated with software and input devices

supplied by different vendors.

You can access the TWAIN dialog box from within most

image editing software such as the application software

bundled with the scanner (e.g. Photo Express).

To Acquire the TWAIN DialogBox

You can acquire the TWAIN dialog box from within any

TWAIN-compliant software (i.e. Picture Publisher). To

acquire the TWAIN dialog box, using Photo Express as

an example, the steps are:

1.Launch Windows.

2.Launch Photo Express (TWAIN-compliant program) .

3.Under the File menu, open the Acquirecommand and

choose Scanner OR Click the Scanner icon.

The Select Data Source dialog box appears.

4.Choose your scanner model in the Select Source

dialog box. If there is only one source available, it is

automatically selected.

5.Click on the Acquire button.

The Select Data Source dialog box closes.

The TWAIN Dialog box appears.
