1.IMPORTANT SAFETY INSTRUCTIONS
2.OVERVIEW OF THE MACHINE
3.PACKAGE
4.INSTALLATION
5.HYDRAULIC & ELECTRICAL
6.STANDARD PARTS
7.OPERATION
8.SURFACE CLEANING & PROTECTION
9.MAINTENANCE & SERVICING
10. PACKING LIST
11. WARRANTY POLICY
12.CERTIFICATE
Hydro-Park 1127 & 1123 USER MANUAL
01
MUTRADE INDUSTRIAL CORP.
1 Important Safety Instructions
1.1 Requirements of installation
Generally, the parking lis are to be installed on the following condions:
1) Supply voltage: 0.9 – 1.1 nominal supply voltage
2) Source frequency: 0.99 – 1.01 nominal frequency
3) Ambient temperature: +5℃ – 40℃
4) Altude: shall be at altudes up to 1000m above mean sea level
5) Relave humidity: not exceed 50% at 40℃
6) Atmosphere: Free from excessive dust, acid fume, corrosive gases and salt.
7) Avoid exposing to direct sunlight or heat rays which can change the environmental temperature.
8) Avoid exposing to abnormal vibraon.
9) Electrical parts shall withstand the effects of transportaon and storage temperature within a range of -25℃
to 55℃ and for short periods not exceed 24 hours at up to +70℃.
Hydro-Park 1127 & 1123 are designed for cars parking under stated maximum weight, any other use is to be
considered improper and irraonal and thus highly forbidden. The constructor cannot be held responsibilies for
any damage or injuries caused by an improper use or by the non-observance of the following instrucons.
The parking li is designed for indoor use only. Appropriate roof and fencing are to be placed to prevent from rain
or snow when the parking lis have to be installed outdoor. A protecon set for outdoor use is supplied as an
opon, please contact Mutrade or local Mutrade partner for more info.
Read this manual carefully before using the machine and follow the instrucons in this manual to ensure the
parking li with excellent performance and long lifeme.
1.2 Qualified personnel
1.2.1 The parking li shall only be installed, operated and maintained by authorized and trained staff, properly
trained for the specific use of the parking li.
1.2.2 The wiring work must comply with local code and be carried out by a cerfied electrician according to local
laws/regulaons.
1.2.3 All adjustments, whether mechanical or electrical, shall only be carried out by authorized persons in
accordance with manufacturer’s instrucons.
1.3 Notes
1.3.1 Do not install the parking li on any asphalt surface. Please contact Mutrade or local Mutrade partner if in the
need of installaon on asphalt surface.
1.3.2 Read and understand all safety warning procedures before operang the parking li.
1.3.3 Keep hands and feet away from any moving parts. Keep feet clear of the parking li when plaorm lowering.
1.3.4 Make sure there is no person staying in the car before every operaon.
1.3.5 The parking li is only designed to li the enre body of vehicle with maximum weight not more than the
rated capacity.
1.3.6 Always ensure the safety devices in good condion before operaon of the parking li or parking/retrieve
vehicle.
1.3.7 To drive car backwards into parking li and forwards out is strongly recommended.
1.3.8 Vehicle shall be parked on the le-right center of plaorm, with rear res reaching backboard of plaorm.
1.3.9 Do not modify the parking li without manufacturer’s permission.
Hydro-Park 1127 & 1123 USER MANUAL
02
MUTRADE INDUSTRIAL CORP.
1.3.10 If not to be used anymore, it’s recommended to turn off the power supply, empty the oil tank and dispose
the fluid properly according to local regulaons.
1.3.11 If the parking li is to be le unused for a long period, it’s recommended to:
■1.3.11.1 Turn off power switch of control box and main switch of power supply
■1.3.11.2 Empty the oil tank and dispose unused oil properly according to local environmental laws and
regulaons.
■1.3.11.3 Apply rust prevenve oil on chains regularly
■1.3.11.4 Grease the moving parts which might be damaged by dust or damp
1.4 Warning signs
Presence of safety warning signs on the parking li is essenal to protect users from mis-operaon. Read carefully
and keep in mind of the warnings before operaon. The labels must be kept clean and have to be replaced once
unrecognizable or damaged.
(1)Warning sign
Hydro-Park 1127 & 1123 USER MANUAL
03
MUTRADE INDUSTRIAL CORP.
2 Overview of Parking Lift
2.1 Product Introduction
The Hydro-Park 1127 and 1123 are the latest version of two post parking li developed by Mutrade. A two post
parking li mainly consists of two posts, two carriages, one cylinder, one control box, one operaon panel, one
power pack and one plaorm covered by waving plates.
The le and right post can be used in common, and the post can be shared if several units are installed in a line.
This parking li is driven by hydraulic power pack, which delivers the hydraulic fluid to hydraulic cylinder behind the
primary post, then transmied to the liing chain which carries the plaorm.
The mechanical an-falling block can automacally lock the plaorm from 500mm up to 2100mm to prevent the
plaorm from falling all the way.
2.2 Scope of application
Suitable for residenal buildings, office buildings and business premises, hotels
Only for long-term users that have been instructed on how to use the system
For frequently changing users (e.g. for office, hotel and business premises or similar):
- only parking on ground level
- performance of technical system adjustments in necessary
- consultaon with Mutrade or local Mutrade partner is mandatory
2.3 General parts
Galvanized
waving plate
Control box
Transparent oil tank
(steel oil tank is oponal)
Front support
Power pack
Key switch &
emergency stop buon
Photocell sensor
Carriage
Limit switch
Dynamic
an-falling lock
(2) Parts descripon
2.4 Dimensions of standard models
Hydro-Park 1127 & 1123 USER MANUAL
04
MUTRADE INDUSTRIAL CORP.
1726mm
3858mm
4217mm
2100mm
3080mm
1805mm
2100mm
2386mm
2551mm
3321mm
(3) Dimensions of Hydro-Park 1127
2386mm
2551mm
3320mm
2100mm
1726mm
4081mm
4214mm
3362mm
1801mm
2100mm
(4) Dimensions of Hydro-Park 1123
2.5 Sharing post feature
Hydro-Park 1127 & 1123 USER MANUAL
05
MUTRADE INDUSTRIAL CORP.
Unit A
2551
2651
2751
2851
2100
2200
2300
2400
Total width
required
Clear platform
width
Unit A+B
4937
5137
5337
5537
2100
2200
2300
2400
Total width
required
Clear platform
width
Unit A+B+B
7323
7523
7723
7923
2100
2200
2300
2400
Total width
required
Clear platform
width
Notes:
Clear plaorm width of 2100 mm for car widths of 1850 mm. Layout dimensions should fit for specific order details
if the plaorm width is customized.
According to ISO 3864 the floor has to be marked with 100 mm wide yellow-black at a distance of 500 mm from
the plaorm edge by the purchaser (to be performed according to local regulaons.)
The lowering speed of an empty plaorm is considerably lower than a loaded one.
It is not possible to have channels or undercuts and/or concrete haunches along the floor-to-wall joints. If channels
or undercuts are necessary, the system width needs to be reduced or the installaon width needs to be wider.
The manufacturer reserves the right to construcon or model modificaons and/or alteraons. Furthermore, the
right to any subsequent part modificaon and/or variaons and amendments in procedures and standards due to
technical and engineering progresses in the art or due to environmental regulaon changes, are also hereby
reserved.
2.6 Noise protection
Insulaon figure of the construcon of min. Rw = 57 dB
Walls which are bordering the parking lis must be done as single wall and deflecon resistant with min. m = 300 kg/ m²
Solid ceiling above the parking lis with min. m = 400 kg/ m²
At differing construconal condions addional sound absorbing measures are to be provided by the customer
The best results are reached by separated sole plates from the construcon.
2.7 Protection against corrosion
Independent of a maintenance working has to be carried out regularly according to Surface Cleaning and
Protecon menoned in chapter 8 of this manual.
Clean up galvanized parts and plaorms of dirt and road salt as well as other polluon (corrosion danger)!
2.8 Fire safety
Each and every fire safety requirement and all possible mandatory item(s) and equipment(s) (fire exnguishing
systems and fire alarm systems, etc.) are to be provided by the customer.
2.9 Railings
If walkways are arranged directly to the side or behind the lis, railings have to be provided acc. EN ISO 13857 by
client acc. to local requirements, height min. 2000mm.
(5) Width dimensions
Hydro-Park 1127 & 1123 USER MANUAL
06
MUTRADE INDUSTRIAL CORP.
(6) Plaorm package
(7) Post Package
3 Package
Hydro-Park 1127 & 1123 are packed by packing frame, straps and paper board to avoid damage during the
transportaon.
One unit of mechanical structure contains one flatpack from the posts package and one from plaorm package.
Check carefully if there is any damage or shortage when receives the parking lis. Before installaon, record the
damage or shortage in document related to find out the reason and guarantee the user’s benefit.
A dry and clean storage area with enough space is essenal to keep all parts of the parking li in good condion.
Hydro-Park 1127 & 1123 USER MANUAL
07
MUTRADE INDUSTRIAL CORP.
4 Installation
4.1 Important note
4.1.1 Before install the parking li, please read and learn the safety warning in detail
4.1.2 Keep the working site dry, clean and dy.
4.1.3 Check the working environment of the product. Do not leave the products in the rain. Do not use the product
in the damp environment. Keep good venlaon and enough light of the working area.
4.1.4 The installaon work has to be carried out only by trained staff. The staff untrained should be away from the
working area.
4.1.5 Motor must be grounded to avoid electric shock.
4.1.6 Do not power on before installaon finishes to avoid geng an electric shock.
4.1.7 Be careful in all acvies during working to avoid any accident.
4.1.8 Strictly follow this manual to install, operate and maintain the parking lis. Do not modify this parking li or
use any part which is not from the manufacturer.
4.1.9 Do not dismantle any part from the parking li without manufacturer’s instrucon.
4.1.10 Safety devices should be well protected.
4.1.11 The unfinished equipment, unused parts/package, installaon tools should be well arranged, protected and
labelled with warning noce, to avoid unauthorized usage, mis-operaon, item lost or stolen.
4.1.12 Warning: Keep any flammable item away from the parking li as there may be electric spark when electrical
system works.
4.1.13 This mark means safety warning.
4.2 Preparation
Before installing this parking li, check the following:
4.2.1 The working area should be well planned and has enough space.
4.2.2 Keep obstacle away from installing area.
4.2.3 Check carefully if there is crack on the concrete ground where the parking lis will be installed and check if
the foundaon intensity achieves the following requirements. The compressive strength should be no less than
200kg/cm. And the thickness of concrete basement should be no less than 200mm, the strength should be no less
than 250 class, the finished concrete slab must be solidified for appropriate days. Otherwise, the parking li may
crush the ground, that will cause the damage of parking li and injury/death of people.
4.2.4 Make sure the concrete slab must be level; over 5mm tolerance is not allowed, the tolerance within this limit
can be adjusted by shims. Ground slab should be constructed according to Foundaon Treatment menoned in
chapter 4.4 of this manual if it is uneven seriously or untreated.
4.2.5 Do not install the parking li on the pitch ground or other non-concrete ground.
4.2.6 Do not install the parking li on the ground with crack or rubbish on concrete ground.
4.2.7 Do not install the parking li on second floor or higher floor without approval by architect and/or municipal
authories.
4.2.8 If there is no proper protecon, do not install the parking li outdoor to avoid unnormal damage of parts due
to too high and too low temperature or high humidity environment.
Hydro-Park 1127 & 1123 USER MANUAL
08
MUTRADE INDUSTRIAL CORP.
4.2.9 The proper wiring route from main power supply to the parking li is good for easier installaon and
long-term usage. Make sure all wires are connected correctly and protected well.
4.2.10 Draw up posions of the post baseplates with chalk with less than 3mm tolerance.
4.2.11 Check carefully to make sure the layout is correct.
4.3 Necessary tools
4.4 Foundation treatment
4.4.1 Concrete ground with minimum 150mm depth is essenal to install the parking li. The concrete grade
should be at least C30.
For reinforced concrete, the foundaon thickness should be at least 100mm.
4.4.2 Pour concrete above rammed earth at the base of posts as shown in below diagram.
4.4.3 Pre-embedded of anchor bolts is not needed.

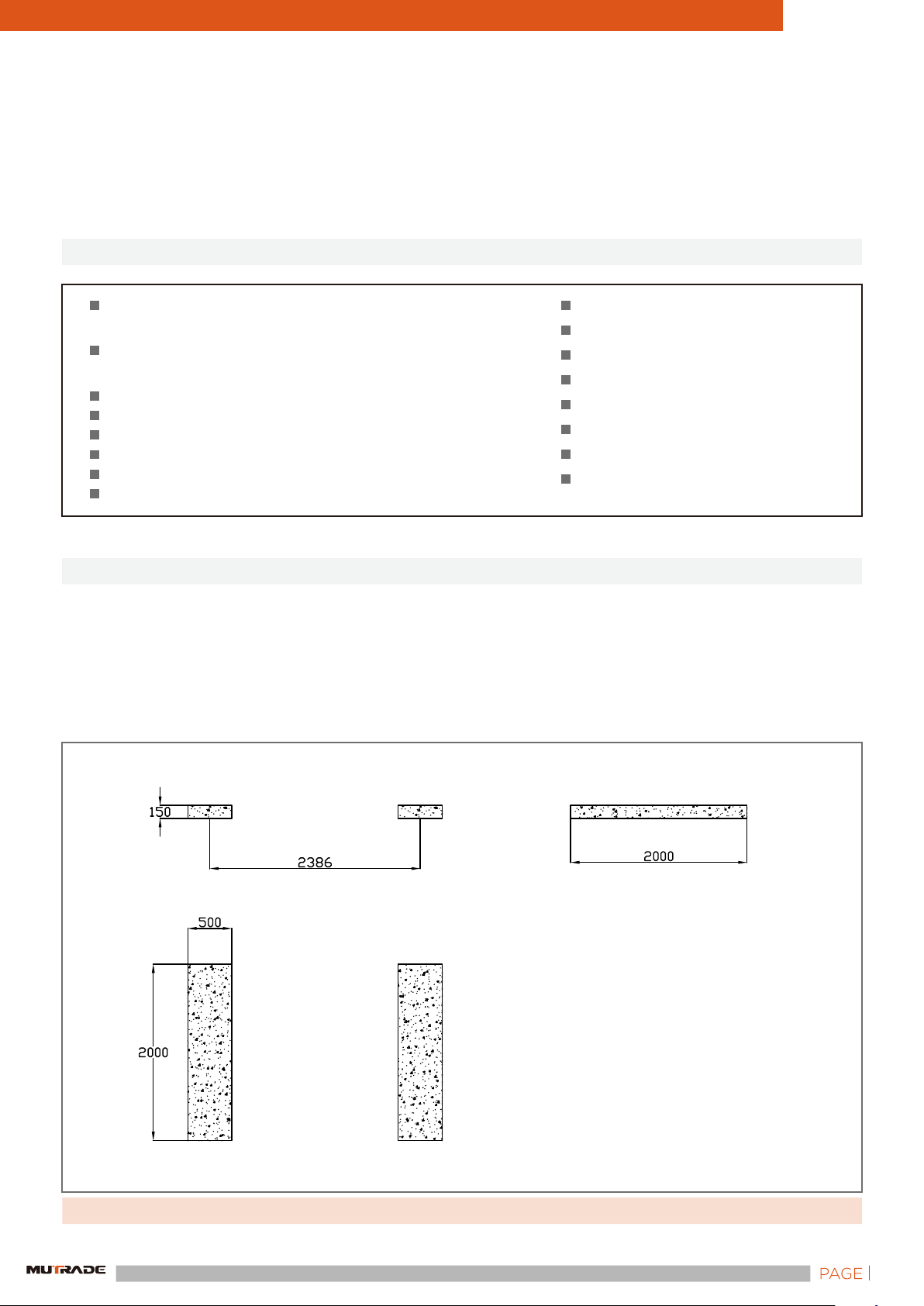

(8) Foundaon diagram
1 set of non-adjustable spanner, adjustable
spanner and allen wrench.
1 set of screwdriver (including sloed screwdriver
and phillips screwdriver)
1 piece of leveling instrument for 1M and 3M.
1 unit of forkli with 2T capacity.
1 piece of percussion drilling with 12x200 aiguille.
Insulated rubber tape
Sealing tape
1 electric welding machine
1 cung machine
1 piece of electric portable drill
Some power line
1 piece of hammer
Some duster cloth
1 piece of grease gun
1 piece of tapeline for 5M
Altri manuali per Hydro-Park 1127
1
Questo manuale è adatto per i seguenti modelli
1
Indice
Altri manuali MUTRADE Sistema di sollevamento
Manuali Sistema di sollevamento popolari di altre marche
Genie
Genie Z-60/34 Manuale utente
Screen Technics
Screen Technics INTERFIT Vertical Up Lift Manuale utente
Mortuary Lift
Mortuary Lift ULTIMATE 1000 Manuale utente
Custom Equipment
Custom Equipment Hy-Brid 3 Series Manuale di programmazione
Custom Equipment
Custom Equipment Hy-Brid Lifts 2 Series Manuale di programmazione
Hy-Brid Lifts
Hy-Brid Lifts HB-P3.6 Manuale di programmazione
