MWf Spark Gold Nugget Manuale utente

Metal and Water Finder
User’s Manual

Page
Metal and Water Finder
Contents
1
Contents
Technical specification
Safety information
Device parts
Interfaces and components of Device
Overview
Assembly
Setup wizard
Page 1
Page 2
Page 3
Page 5
Page 7
Page 8
Page 10
Page 11
Start searching Page 13
Notes Page 17

The user must practice before starting the detecting operations and
discoveries
Store in Cool and dry place 15-40 C 5%-75% humidity Read & Understand
The User's manual
before using this device
Page
Safety information
2
The operating in high voltage areas
would limit the results and
performance
Don't operate two devices with
same method of search at the
same place
The operator Must remove any
metals that might affect the
opreatin eg:Rings,watch, belt....
Any attempt to tamper the device
or unapproved maintenance
would void the warranty
For best power endurance and
reliability. use heavy duty and high
quality batteries thats for the devices
which work on removable batteries
Don't store in high temperature or
high humidity
The cell signal interferes with the
device signal, so turn off the cell
while operating
Disconnect the batteries before
long time storage

Page
Technical specification
3
Bluetooth none
Wireless: none
Search system : long distance sensing system (LDS)
Operating processor: MICROCONTLLER PIC18
Operating frequency: From 1 kHz to 9 kHz
4AAA batteries 1.5 volts / Equivalent of -6volt interchangeable
Power consumption: Maximum of consumption 25 mAh
Battery life: 32 work hours
Charger: none
Display Type: LEDs Interface
Specialized to detects: Gold nugget (Small, Medium, Big and Tiny).
Targets Discrimination: Yes
Target Selection System: Yes, can choose the target type before the start search
Depth Search: 10m, With controlling system in the depth level
Distance Search: 200m, With controlling system in the distance level
Search principle:
Digital Frequency Signal Processing (DFSP) / To Receiving
Electrostatic Fields of the targets
Results feedback:
Through orientation toward to the target location
accompanied by acoustic Alerts
Power:

Technical specification
Page 4
Voice alerts: Yes
Vibrating alert: Yes
Operating temperature: From -15° C to 60° C
Storage temperature: From -15° C to 40° C
Humidity:
It can be stored and work in the degree rate of air humidity
of level 90%.
Weight: Compound: 700 gr – disjointed in the bag: 1 kg
Dimensions: 16X9.5X2.5 cm
Bag dimensions: 20X15X5 cm
none
Automatic smart
guidance system:

Page
Device parts
5
Transceiver Antennas
Antennas is responsible for transmit and receive signals and
searching waves. It has a special and unique properties .
Handel Grip
Coms with the device . Used to carry the device through for
the searching process, it has capability to rotation 360 degree.
Main Control Unit
فﺪﻬﻟا
ﻖﻤﻌﻟا
مﺎﺧ ﺐﻫذ
ﺮﯿﻐﺻ
ﺚﺤﺒﻟا ﺮﺷﺆﻣ
ﻖﯿﻗد
ﻂﺳو ﺮﯿﺒﮐ
ﻖﻤﻌﻟا
The unit which is responsible for adjusting the device and
setting inaddition to full exploration search through this it.

Page
Interfaces and components of Device
6
1
10
2
3
12
11
6
8
9
5
4
7
فﺪﻬﻟا
ﻖﻤﻌﻟا
مﺎﺧ ﺐﻫذ
ﺮﯿﻐﺻ
ﺚﺤﺒﻟا ﺮﺷﺆﻣ
ﻖﯿﻗد
ﻂﺳو ﺮﯿﺒﮐ
ﻖﻤﻌﻟا
Front-end
1
2
3
4
5
6
7
8
9
10
11
12
User interface.
Signal port ,connected with antennas
Depth levels interface .
Distance levels interface .
Target type interface .
Control buttons.
Sound and vibration controlling button
Scan button
LED Indicators for signal.
Battery level indicators.
Selection keys (depth, distance & target)
On / Off button.

Interfaces and components of Device
Page 7
13
14
15
13
14
Backend
15
Handle socket.
Battery compartment.
Audio out.

Page
Overview
8
Spark gold nugget is working on remote sensing system (LDS) developed
and compact with voice selection system to Gold path and point.
The Spark gold nugget device features in high precision waves to identify
and locate gold nugget with high specific. Where the device can locate
targets from a distance of 200 meters forward at 360 degree angle with
precise control in distance search front end.
Spark gold nugget device search depth up to 10m below the surface of the
earth with strict control on deep research of device control interface the
device of features a small size and ease of use. Where you can fit in your
pocket and navigates it conveniently and easily any one can use it without
having any experience or knowledge in the detectors.
The principle of search depends on digital frequency signal processing
(DFSP) to receive the energy of static electric field from the targets.
Provider device automatic tuning system (ATS) to operate in all types of
terrain, rocky soils, mountainous, sandy and clay.

Page
Overview
9
This electronic device works on gold finder technology transmitter and receiver. It
sends waves and receives at the same time and do the search for gold by
frequency depending on the combination of physical and chemical interaction gold
too if the presence of gold underground they are affected by the magnetic fields
of the earth. It also acquires gold static electrical currents gained the soil through
the soil affected by different currents like ( power stations, broad casters radio,
satellites, lightening and a lot of stuff generated electrical energy and static
energy.
This machine adopts the gold detectors and targets underground through the
influence of waves emerging from the device by electrostatic fields formed on the
gold as a result he was underground and gold frequency at the same time. Device
waves work on inflate the size of these field and escalation of soil surface which
helps the device to locate the target from long distance, the device receives a
signal amplification and heading toward the target site directly and precise
destination.

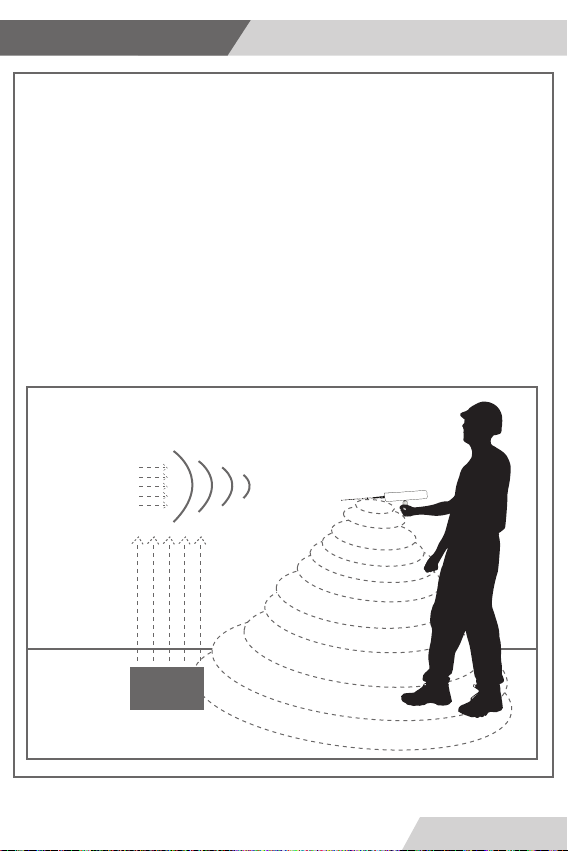

Soil
Target
