NAD D 3020 Manuale
Simplicity in Design. Clarity in Sound.
At NAD Electronics an obsession for music, and a traditional commitment to
sonic and visual delity, have remained steadfast over our 36 year history. So
has our quest for ever-greater simplicity, innovation, and user-friendliness. Since
these also happen to be the values of many of the world’s most demanding
reviewers, the critics have raved about NAD audio excellence and have made
us something of a performance standard in the audio/video world.
Distinctive products seek a selective audience. NAD’s intent, by design, is to
meet and even exceed the highest audio and video expectations of serious
performance enthusiasts. Artistic authenticity—the ambition to achieve the
highest accuracy in the reproduction of the artist’s original creation—drives
every design decision at NAD. Whether the medium is music or movies; our
objective is to place the NAD owner in the heat of the action of a theatrical
blockbuster, or third-row-center stage of a favourite musical event. Solid
engineering, honest power, and a passion for realism are NAD’s recipe for
achieving this goal.
Given the excitement and impact of home theatre, it can be easy to overlook
that music remains the truest test of any audio system. Every NAD component is
conceived and engineered with this “Music First” design mandate: a commitment to
deliver a true high-delity music listening experience. So while we insist that NAD
designs reproduce the full impact of a surround sound movie, we equally demand
the purity of a brilliantly played and masterfully recorded classical composition or jazz
session. Only components that deliver this with effortless power and resolve, can
satisfy NAD’s “Music First” credo.
Just as essential, NAD components preserve the artistic intent of musicians, producers,
and directors, despite the obstacles that system-setup and room acoustics can so often
present. Put another way, NAD receivers, ampliers, and source components don’t
just work perfectly in ideal setups, they’re engineered to deliver benchmark-quality
sound and picture for real people, living in the real world. Listen, and read beyond the
hype. Visit your NAD audio-video specialist to discover rst-hand how everything you’ll
hear is true.
NAD performance is supported by our
“Full-Disclosure” specications, rather than
specs created by engineers to fulll the
needs of marketing-driven brochures.
Paradoxically, plenty of engineers do
in fact choose NAD. So do thousands
of others; less technical but no less
demanding music and lm lovers who
make the effort to research, listen, and
read beyond the hype.
NAD’s home theatre designs reect a philosophy quite distinct from that of
most mass-market receivers, separate components, and DVD players today.
Our “Music First” credo mandates that we enrich our audio/video products
with the same tonally pure, dynamically thrilling performance that makes
listening to music through our world-renowned stereo components so very
compelling. This stands in stark contrast to our competitors, so many of whom
conceive audio/video components overwhelmingly from a “feature content”
point of view—with sound quality found well down the list of priorities.
Yet NAD AV receivers, AV component separates, and DVD players are
second to none in terms of exibility, usability and highly developed digital
technology. While they may avoid features that are of purely “gee-whiz”
value, they are richly endowed with sophisticated, thoughtful functions whose
genuine usefulness have proven themselves beyond question.
As an example, take NAD’s uniquely enhanced Audyssey™ MultEQ
XT auto set-up and room-calibration—perhaps the most advanced
and most musically and sonically effective application of audio digital
processing on any AV component. Examine NAD’s well-considered
approach to HDMI™, the single-cable, High-Denition Multimedia
Interface that is a key enabling technology of today’s AV gear. Every one
of the NAD AV receivers and preamp-processor features HDMI inputs
and switching supporting native resolutions up to and including 1080p.
The T175, T785 and T775 add even more HDMI functionality—with
audio processing and On-Screen Display. Our intuitive on-screen menu/
display system, makes operation fast and user friendly. Look at our
receivers’ and preamp’s simple but comprehensive iPod® integration,
via NAD’s optional IPD-1 Dock, or our equally simple, one-cable XM
Satellite Radio/DAB options.
NAD T175 AV Tuner Preamplier
Audio. Video. NAD.
Audio-Video separate components dene the height of AV reproduction. The NAD T175 AV
Tuner Preamp marries sophisticated performance to a most welcome simplicity of setup and
operation, while the 5-channel NAD T955 and 7-channel T975 power ampliers form the perfect
accompaniments. Together, our AV separates combine the exibility and up-to-the-minute digital
technology and connectivity to control even the most sophisticated home theatre and multi-
room system. Whether watching the latest lm or enjoying your most cherished music, you’ll be
immersed in detailed, convincing sound and pristine picture as never before.
Using the supplied
microphone, Audyssey™ Auto
Setup performs all speaker
settings. NAD’s proprietarily
enhanced Audyssey MultEQ
XT technology enables home
theatres to sound the way they
were intended in every seat by
removing the distortion caused
by room acoustics.
Audyssey Auto Setup and Room Calibration
Utilizing the latest HDMI 1.3
chips from Analog Devices
all resolutions (480, 576, 720
and 1080) are supported.
Analogue inputs are up-
converted to HDMI and HDMI
sources preserve their original
resolutions up to 1080p, so you
know you are getting the purest
audio and video performance.
HDMI and Format Conversion
A modular design concept
places all input circuitry on ve
easily removable plug-in cards.
This superior construction
technique “future-proofs” your
investment via the capability for
easy upgrades, fast and easy
service and improved sound
and video performance due to
the neat internal layout.
Modular Design Concept
NAD AV Separates
NAD T975 7-Channel Power Amplier (bottom) & T955 5-Channel Power Amplier
It is performance rst that makes these components unmistakably
NAD. There’s no magic formula, but it begins by following our “Music
First” credo. NAD designs are shaped by dedicated professionals
such as Bjorn Erik Edvardsen, the company’s Director of Advanced
Development, whose reputation for innovative audio design is as
thoroughly established internationally as is NAD’s at large. Superior circuit
design, critical parts selection, and meticulous construction techniques
lead to superior performance, as does a design philosophy that values
concentrated, expert listening and viewing evaluations just as highly as
test-bench measurements. Today, when all too many manufacturers
seem content to deliver marketing-driven, unnecessarily feature-laden
“brochure performers,” and thus an ever-more complex user experience.
NAD chooses to pursue a path less followed. Our AV receivers and amp-
liers produce more usable, real-world power, so regardless of published

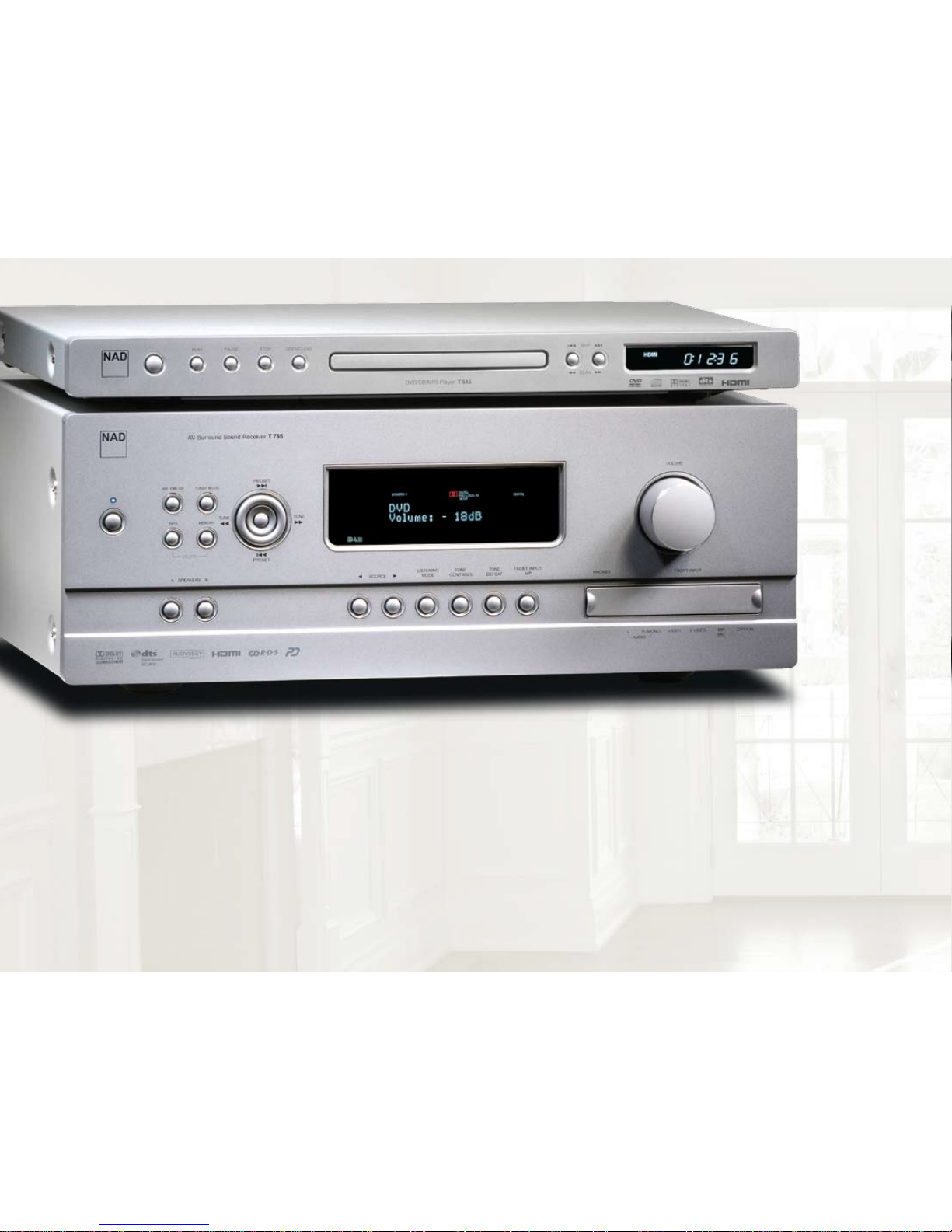

NAD T535 DVD/SACD Player (top) & T775 AV Surround Sound Receiver
NAD’s multi-channel AV receivers bring music and movies to life with a minimum of fuss and a
maximum of pure enjoyment. True AV power-houses of exceptional sound and pristine video,
each incorporates a range of genuinely useful features: NAD’s proprietary PowerDrive™ amplier
technology to ensure fully dynamic, distortion-free performance with any type of loudspeaker; four
zone capability with independent source and volume control; Audyssey™ DSP auto setup and
room calibration; Made for iPod™ connectivity; full HDMI 1080p bandwidth—and many more,
each honestly valuable. NAD’s DVD players featuring audiophile-quality DACs are renowned for
their superb performance and great value.
Get so much more from
your iPod®. Studio quality
performance is available
from your iPod by adding the
optional NAD IPD-1 Dock for
iPod. NAD offers a functional
solution for home use
including meta-data display,
remote controllable operation
and recharging.
Made for iPod
NAD AV Receivers & DVD Players
With NAD, you can enjoy
the pleasures of a whole-
house system that allows
you to independently control
sources and volumes in
up to four different zones.
There’s even RS-232 serial
connectivity, for integrating
advanced touch-screen
based control systems.
4 Zone Capability
4 zone
The exciting new world of
digital radio is available in
many countries, and NAD can
deliver its expansive content
and clarity, via DAB or XM
Satellite Radio. DAB-region
owners need only purchase the
NAD DB-1 module; in North
America, a third-party XM mini
tuner module plugs right in.
Digital Radio Ready
NAD T515 (top), T535 & T585 DVD/CD Players
specs our amplier designs reproduce sound that exhibits greater dynamic
impact and pure, lifelike musicality. Our DVD players’ advanced digital-to-
analogue designs specify key converter-circuit components from the most
respected chipmakers, so they can reconstruct digital data more precisely,
and thus play digitally recorded sound and picture more convincingly.
If a component, a feature, or a control doesn’t legitimately contribute to
accurate, involving music and lmsound or pristine video quality, you
won’t nd it in an NAD. If it doesn’t demonstrably enhance accessibility,
convenience, or user-interface elegance, or genuinely add value and
enjoyment to the home entertainment experience, it will not be included.
We design our user interfaces, including control “software”, in order to
make NAD components as intuitive, uncluttered, and simple to use as
possible. Our goal? That NAD owners can spend their time enjoying music
or movies, instead of fussing with buttons or puzzling over manuals.
NAD T515 DVD/CD/MP3 Player & T765 AV Surround Sound Receiver*
*Titanium nish not available in North America
Unlike most “home-theatre-in-a-box” systems our innovative DVD/CD Receivers combine
NAD’s award-winning, high-performance design with unique value and unmatched operational
simplicity. What’s more, they deliver the freedom to select speakers that meet your standards of
performance and décor as well as your budget. These models combine powerful receivers with
progressive-scan DVD/CD players in one elegant package. The L54 creates enveloping sound
from just two speakers. The visually stunning VISO FIVE delivers fully dynamic 5.1 multichannel
home theatre, while both bring the simplicity of controlling a full home-entertainment system from
one ergonomic, illuminated learning remote control.
NAD Solutions

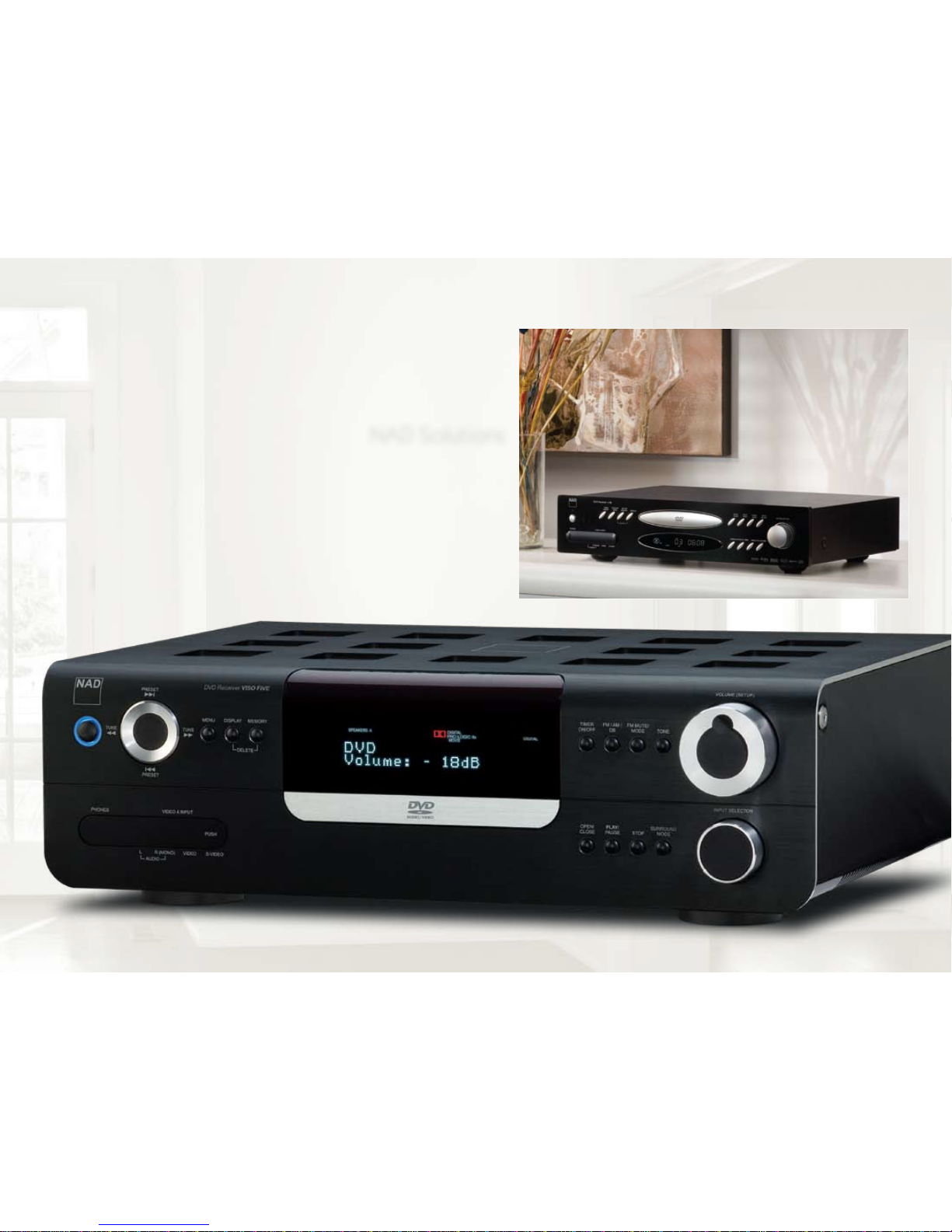

NAD L54 DVD/CD Receiver
NAD VISO FIVE DVD Receiver
Music. Pure and Simple.
NAD C515BEE CD Player (top) & C315BEE Stereo Integrated Amplier
Reputations are earned through performance, not purchased with
marketing budgets. NAD’s reputation has been cultivated across three-
plus decades of unagging innovation, beginning with the iconic model
3020, the integrated amplier that captured the attention of serious
audiophiles and redened just what high-value performance could
mean. Today, NAD’s products reect our ongoing commitment to music
listening. They similarly reect NAD’s grasp of the fact that the over-
whelming majority of our customers’ musical enjoyment continues to
be derived from stereo recordings, and will continue doing so for the
foreseeable future.
Consequently, the NAD range of stereo components is no less ad-
vanced, and no less sonically compelling than our current AV models.
NAD’s component stereo ensemble enjoys advanced technology
and audio performance well beyond our original integrated amplifier.
While our designs have evolved, they maintain a durable thread to our
past: true value for our customers. NAD hi-fi components continue to
employ premium components at all sonically critical circuit locations,
to ensure the transparency and transient purity that all NAD owners
have come to expect. We also retain all-discrete-component amplifier
designs in all our models, rather than substituting the cheaper but
less desirable chip-based op-amp modules many of our competitors
exploit. NAD remains true to our pedigree by developing music
amplifiers that are purpose-designed, specifying high-current power
supplies for each model throughout our extended electronic family.
You enjoy the benefits.
Altri manuali per D 3020
9
Questo manuale è adatto per i seguenti modelli
26
Indice
Altri manuali NAD Ricevitore
NAD
NAD 7220PE Manuale utente
NAD
NAD 7000 Monitor series Manuale utente
NAD
NAD 120 Manuale
NAD
NAD T773 ADDENDUM Istruzioni per l'installazione e il funzionamento
NAD
NAD VISO FIVE Manuale utente
NAD
NAD T741 Manuale utente
NAD
NAD 2150 Manuale utente
NAD
NAD T 751751 Manuale utente
NAD
NAD T773 ADDENDUM Manuale utente
NAD
NAD T765 Manuale utente
