Nanosat NANO Premium Manuale utente
User's Manual 1
Table of Contents
Safety Warning
General Information
Package Contents & Features
Front Panel
Rear Panel
Remote Control Unit (RCU)
Programing the Remote Control
Installing Equipment
Channel List Guide
Menu Guide
Main Page
I. CHANNEL MANAGER
II. INSTALLATION
III. OPTIONS
IV. UTILITY
Troubleshooting
Specifications
Brand List
TABLE OF CONTENTS
Table of Contents
1
2
3
3
4
5
6
8
10
11
13
13
13
15
20
22
23
24
26
User's Manual
2
SAFETY WARNING
Warning
Please read the following recommended instructions carefully to avoid the risk of your physical Injury
before the product is operated.
Safety Instructions and Precautions
-Do not cover the receiver and keep clear space around the receiver for sufficient.
-Check the receiver's operation voltage 90~250V, 50Hz~60Hz, Max 30W Keep liquid away from the
receiver.
-The receiver shall not be exposed to dripping or splashing and no objects that filled with liquid shall
not be placed on the receiver.
-Unplug the receiver from the wall outlet before cleaning.
-Use a soft cloth and a mild solution of washing-up liquid to clean the casing.
- Do not block the receiver's ventilation slots which are provided for ventilation and protection from
overheating.
-Please maintain the receiver in a free airflow.
-Do not allow the receiver to be exposed to hot, cold or humid condition.
-Do not use any cable and attachment that are not recommended as these may damage your equip-
ment.
-Please unplug the receiver from the wall outlet and disconnect the cable between the receiver and the
antenna when you will not use it for long time.
- Do not remove the cover to reduce the risk of electric shock.
-Do not attempt to service the receiver yourself.
-Refer all serving to qualified service personnel.
-The contents of manual may be updated without notice.
NOTE: To disconnect the apparatus from the mains, the plug must be pulled out from the mains sock-
et, therefore the mains plug shall be readily operable.
User’s
Manual
User’s
Manual
Please ensure that the following items are included with the receiver in your packing.
Remote Control
Unit
User's Manual
Batteries 2EA
(for RCU)
User's Manual 3
GENERAL INFORMATION
Package Contents & Features
User’s
Manual
AV/TV
Package Contents
Features
•Home streaming
•Live IP Movie/Radio
• 2 x USB 2.0 Hosts (Access to HDD, USB memory, Others etc)
•Wi-Fi Ready (Optional)
• Universal Remote
•Built-In Ethernet Port
•MP3 File Play by USB 2.0
•PVR Ready via USB
•Recorded file play on PC
•Reservation Recoding by EPG function
•MPEG-II Digital & Fully DVB Compliant.
•C/KU band control for each antenna
•LNB Tone Switch 22KHz mode on/off'
•Multi-LNB controlled by DiSeqC =>DiSEqC 1.0, 1.1, 1.2 and USALS
•Total 8,000 Channels Programmable
•Blind Scan
•Picture In Graphic (PIG)
• Electronic Program Guide (EPG) for On Screen Channel Information
•Multi-language supported for Menu and OSD
•Zoom Function by 2x...4x
•Parental Lock
•Closed Caption Support
•CVBS Video & Audio Output via RCA
•Component YUV Output via RCA
•7-Segment(4-digit) Type of Front Panel Display
•Upgrade Software & Update Channel Database through USB 2.0 Port
User’s
Manual
A/V Cable
User's Manual
4
GENERAL INFORMATION
1
2
3
4 96
11
15 16
10
12
7
5
8
13
14
1 4
2
3
1. CH Up/Down
Channel up / down or select the item of Menu.
2. VOL Left/Right
Volume left/right or select the item of Menu.
3. POWER Button
Switch between Power on and Standby modes.
4. USB Port
To upgrade firmware.
NOTE: The front panel of the product is subject to change without notice.
Front Panel
User's Manual 5
GENERAL INFORMATION

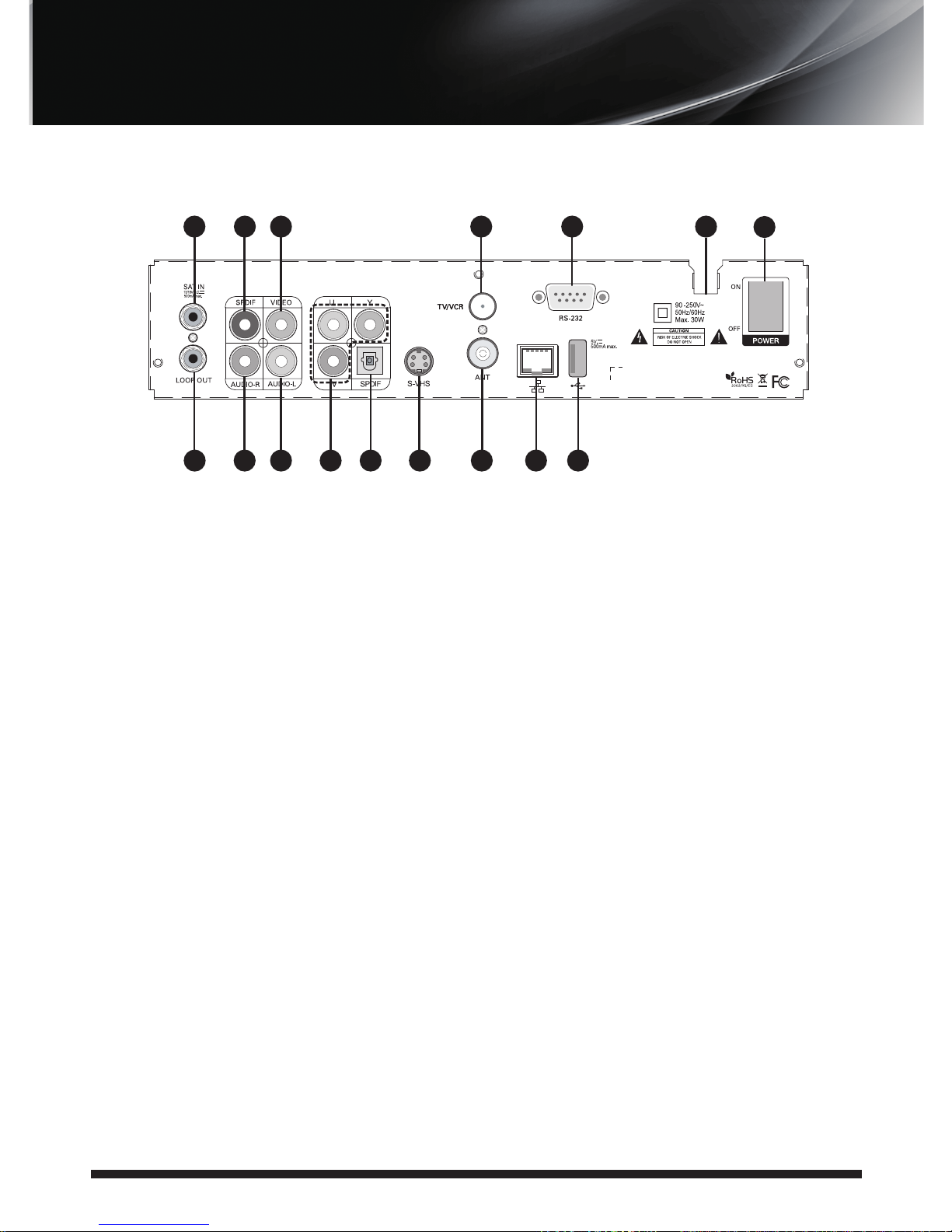

Rear Panel
1
2
3
4 96
11
15 16
10
12
7
5
8
13
14
1. SAT IN
Connect to Satellite antenna cable.
2. LOOP OUT
Connect to another STB.
3. DIGITAL AUDIO
Output for connecting to a digital amplifier.
4. AUDIO-R
Connect to AUDIO RIGHT to TV or other equipment.
5. VIDEO
Connect VIDEO to the TV or other equipment.
6. AUDIO-L
Connect to AUDIO LEFT to TV or other equipment.
7. YUV
Connect to the YUV jack of TV.
8. DIGITAL AUDIO
Output for connecting to a digital amplifier.
9. S-VHS
Connect to the S-VHS jack of TV.
10. TV / VCR
Connect to TV or VCR.
11. ANT
Connect to TV antenna input.
12. ETHERNET
Connect to Lan cable. (RJ-45)
13. RS 232
Connect to personal computer for software upgrade.
14. USB PORT
Connect to USB device.
15. POWER SUPPLY
90~250V AC, 50/60Hz, 30W.
16. POWER BUTTON
Turn On/Off.
NOTE: The rear panel of the product is subject to change without notice.
GENERAL INFORMATION
Remote Control Unit (RCU)
1 2
3 4
5 6
7
10 11
14 15
16 17
18
21
20
23 24
27
29
31 33
35
19
22
25 26
28
30
32
34 36
37
38
AV/TV
39
89
12 13
User's Manual
6
User's Manual 7
GENERAL INFORMATION
Remote Control Unit (RCU)
1. POWER
Switch the receiver between operation and standby mode.
2. TV POWER
Turn on/off the TV.
4. STB
Switch to STB mode.
4. TV
Switch to TV mode.
5. VCR
Switch to VCR mode.
6. DVD
Switch to DVD mode.
7. Numeric buttons
Select the TV or Radio service channels and individual
menu.
8. TV / RADIO
Switch between TV and Radio.
9. AV / TV
Select the TV or AV mode.
10. RECALL
Select the previously viewed channel.
11. INPUT
Select the TV external input.
12.
Move down a page in the channel list.
13.
Move up a page in the channel list.
14. MENU
Display the main menu on screen.
15. EXIT
Return to the previous menu or normal viewing mode
from a menu.
16.
Change channel or move to the item in the menu.
17.
Adjust the volume or move to left or move item in the
menu.
18. OK
OK button.
19. FAV
Toggle the selected favorite mode.
20. SAT
Toggle the selected Satellite list.
21. PAL / NTSC
Switch PAL or NTSC mode.
22. INFO
Display the program information box on the screen and
edit the name of favorite channel list.
23. AUDIO
Change the audio languages.
24.
Select the sound mode(LEFT/RIGHT/STEREO).
25. EPG (Electronic Program Guide)
Display the TV or Radio program guide.
26.
Enable subtitle and teletext mode.
27. V+ / V-
Turn volume up or down.
28. P+ / P-
Change channels up or down on normal mode.
29. MUTE
Enable or disable the audio.
30. RF CH
Select the RF channel.
31. Fn
Reserved.
32. V.Format
Switche to HD Type.
33.
PR
Reserved.
34. REWIND
Start reverse playback and change the speed of reverse
playback.
35. F / F
Start fast forward or fast motion playback and change the
speed of forward playback.
36. PLAY
Display file lists and plays slow/normal.
37. STOP
Stop recording or playing.
38. PAUSE
Pause the playing picture or go to normal mode.
39. RECORD
Record the program.
GENERAL INFORMATION

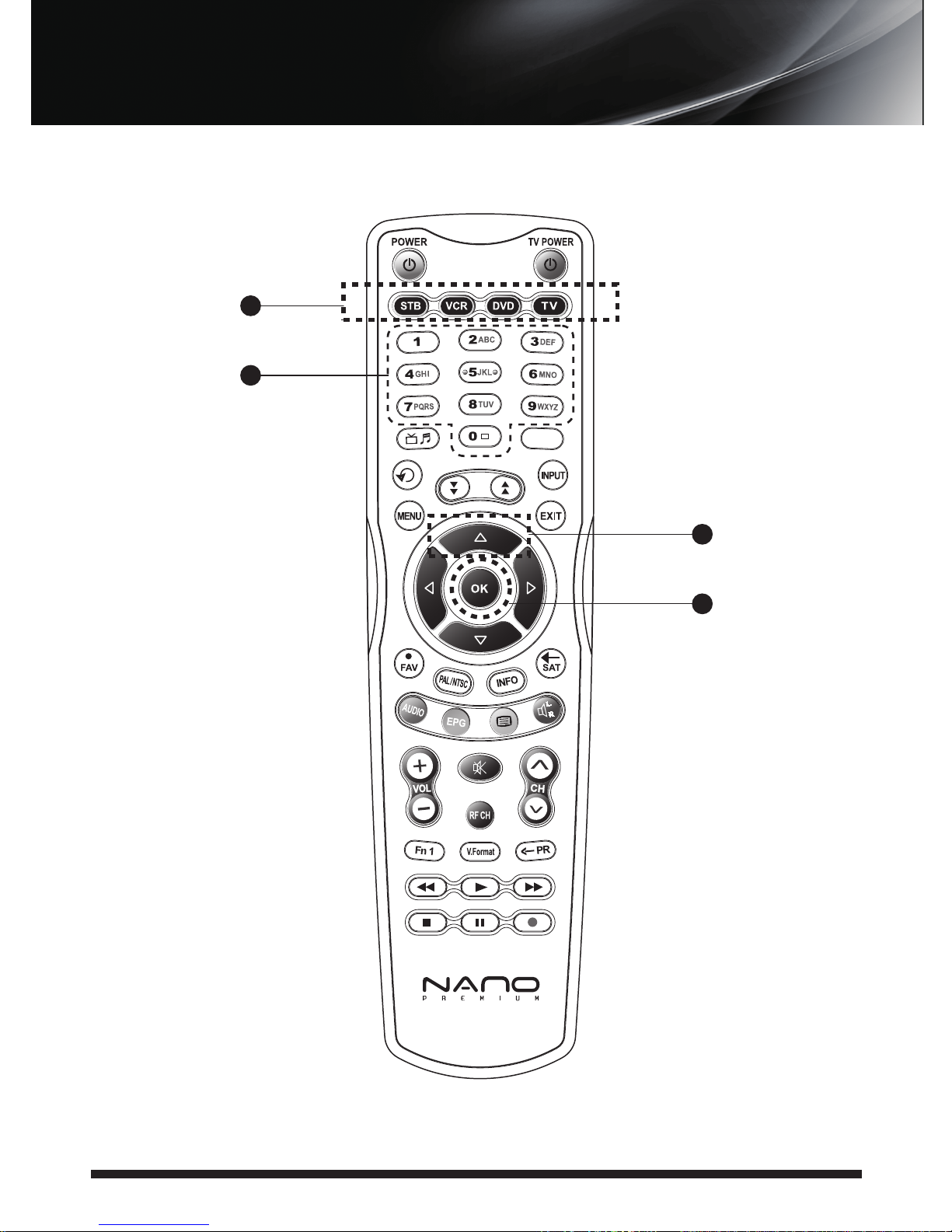

Programing the Remote Control
1 2
34
56
7
10 11
14 15
16 17
18
21
20
23 24
27
29
31 33
35
19
22
25 26
28
30
32
34 36
37
38
AV/TV
39
89
12 13
AV/TV
1
2
3
4
User's Manual
8
