OPERATING GUIDE for your

GEM-DXRP3 KEYPAD

The GEM-DXRP3 is a “smart”, interactive,

menu-driven keypad designed for your

Napco control panel. A digital display is

provided to show the status of your system.

This booklet contains important information

about the operation of your system with this

GEM-DXRP3 Keypad. Read it carefully

and keep it handy for future reference.

Check the Glossary for an explanation of

terms that may be unfamiliar to you.

You'll probably find subjects mentioned in

this booklet that do not apply to your

system. Napco control panels have such a

wide variety of features that few security

systems, if any, will ever need them all.

Your alarm professional has chosen

appropriate features for your particular

needs.

Regardless of how your system has been

configured, rest assured that it has been

carefully designed and engineered to the

highest industry standards. To assure

optimum safety and security, familiarize

yourself with this equipment. Periodically

check its condition and state of readiness by

testing it at least once a week in both the ac/

battery and battery-only modes (ask your

alarm professional how to make these

tests).

INTRODUCTION

Test your sounding device and backup battery

1. While disarmed, press A.

2.Answer NO (press F) until “3” (Bell Test) appears in the

window.

3. Press YES (E) to execute the test. The alarm will sound

for about two seconds.

•If the alarm does not sound, call for service.

•If the battery is low, a system trouble E02 will appear in

the display. Allow 24 hours for the battery to recharge. If

the trouble continues, call for service.

Test your central station communicator

1. While disarmed, press A.

2. Answer NO (press F) until “15” (Telephone Test)

appears in the window.

3. Press YES (E) to send a test code to the central

station.

4. If the test is not successful, “E03” will display, indicating a

communication failure. Call for service.

IMPORTANT - TEST YOUR SYSTEM WEEKLY

TABLE OF CONTENTS

Section Page

KEYPAD CONTROLS & INDICATORS............................................... 4

SETTING THE ALARM (ARMING) WHEN LEAVING .......................... 6

PROTECTING YOURSELF WHILE ON THE PREMISES ................... 8

TURNING OFF THE ALARM (DISARMING) WHEN RETURNING...... 10

FIRE PROTECTION............................................................................ 11

KEYPAD FUNCTIONS ........................................................................ 15

CENTRAL-STATION MONITORING ................................................... 20

ADVANCED FEATURES .................................................................... 21

PROGRAMMING USER CODES ........................................................ 22

GLOSSARY ........................................................................................ 24

SYSTEM TROUBLE ERROR CODES ................................................ 27

TROUBLESHOOTING ........................................................................ 31

TO SILENCE AN ALARM, ENTER YOUR

CODE, AND PRESS J.

FOR SERVICE, CALL: __________________

CENTRAL STATION: __________________

EXIT DELAY: _________________________

ENTRY DELAY: ______________________

FIRE ALARM SOUND*:

________________________________

BURGLAR ALARM SOUND*:

________________________________

KEYPAD FIRE ENABLED? YES NO

KEYPAD PANIC ENABLED? YES NO

KEYPAD AUX. ENABLED? YES NO

*FIRE HAS PRIORITY OVER BURGLARY.

96 INTERIOR BYPASS FIRE/TBL SYS TBL CHIME

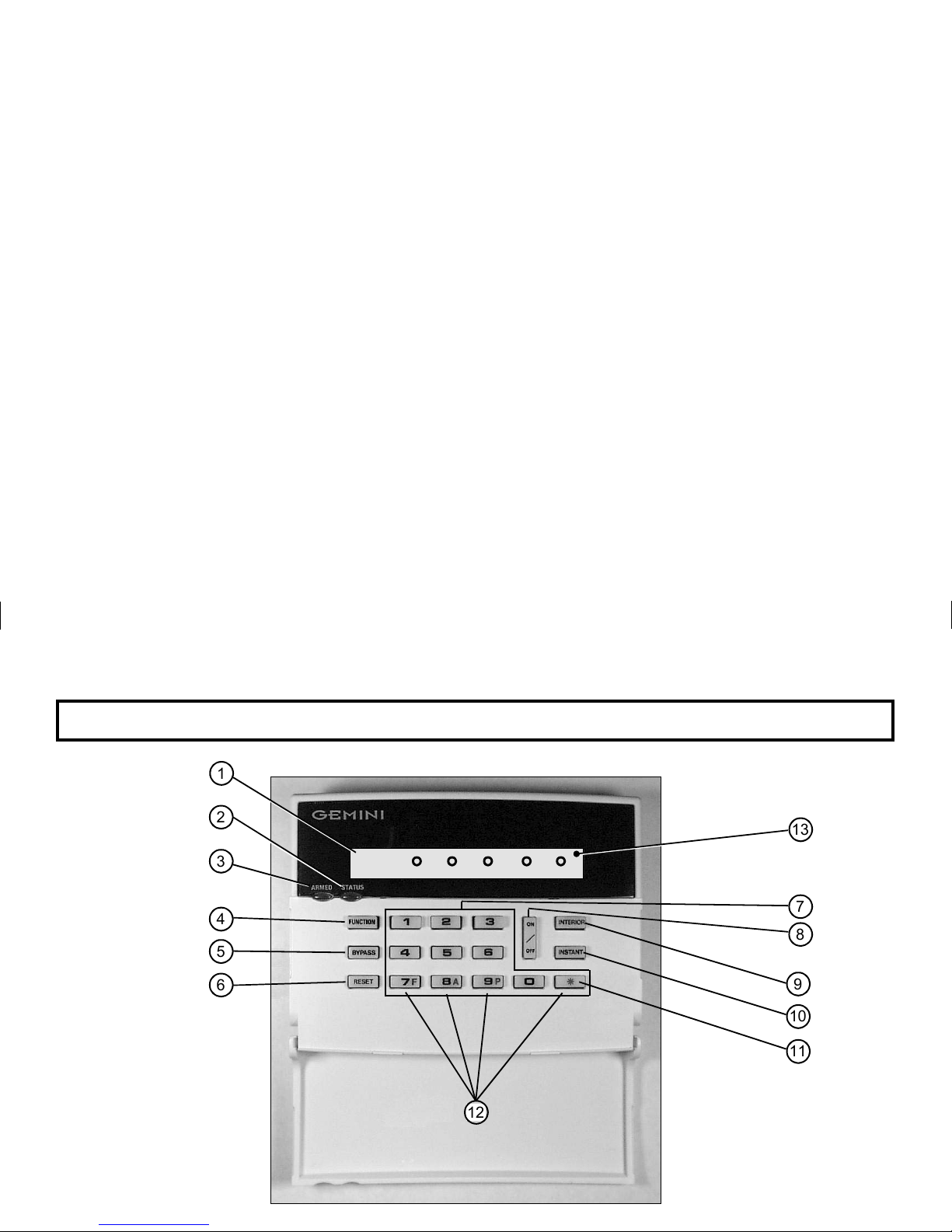

KEYPAD CONTROLS & INDICATORS

Window. Lights indicate system

status messages; digit display

indicates related zone, function or

error message numbers.

STATUS Light. Lights (green) to

indicate that the system is ready

for arming. If a zone is not

secured, the light will be off and

the zone will display in the

window. If a zone has been

bypassed, the STATUS light will

blink while armed.

ARMED Light. Lights (red) to

indicate that the system is armed.

If an alarm has occurred, the

ARMED LED will be flashing.

FUNCTION Button. Selects

available system functions as

displayed in the window. The

selected function is executed by

pressing J, or YES (E).

BYPASS Button. (1) Deactivates

selected zones from the system.

(2) Unbypasses a bypassed zone.

(GEM-P3200/9600 panels only).

RESET Button. (1) Resets

various system troubles, displays,

etc. (See text.) (2) Resets

residential smoke detectors.

Numerical Keys (1-9, 0). Used to

enter codes, zone numbers, etc.

ON/OFF Button. Entry key.

Causes the entered code or

selected function to be executed.

INTERIOR Button. (1) Bypasses

all Interior Zones simultaneously

to allow free movement within the

premises. (2) Scrolls the window

display forward (NEXT). (3)

Answers “YES” to questions in

the window display.

INSTANT Button. (1) Cancels

entry delay on Exit/Entry Zones,

causing an instant alarm upon

violation. (2) Scrolls window

display backward (PRIOR). (3)

Answers “NO” to questions in the

window display.

AREA Button (G). Selects

other areas.

•Emergency Buttons. (Optional)

Used with the Gbutton to

signal an emergency, as follows:

•Press the 7and the G

buttons for Fire Emergency.

•Press the 8and the G

buttons for Auxiliary Emergency.

•Press the 9and the G

buttons for Police Emergency.

AC Light. Indicates AC Power is

present.

SETTING THE ALARM (ARMING) WHEN LEAVING

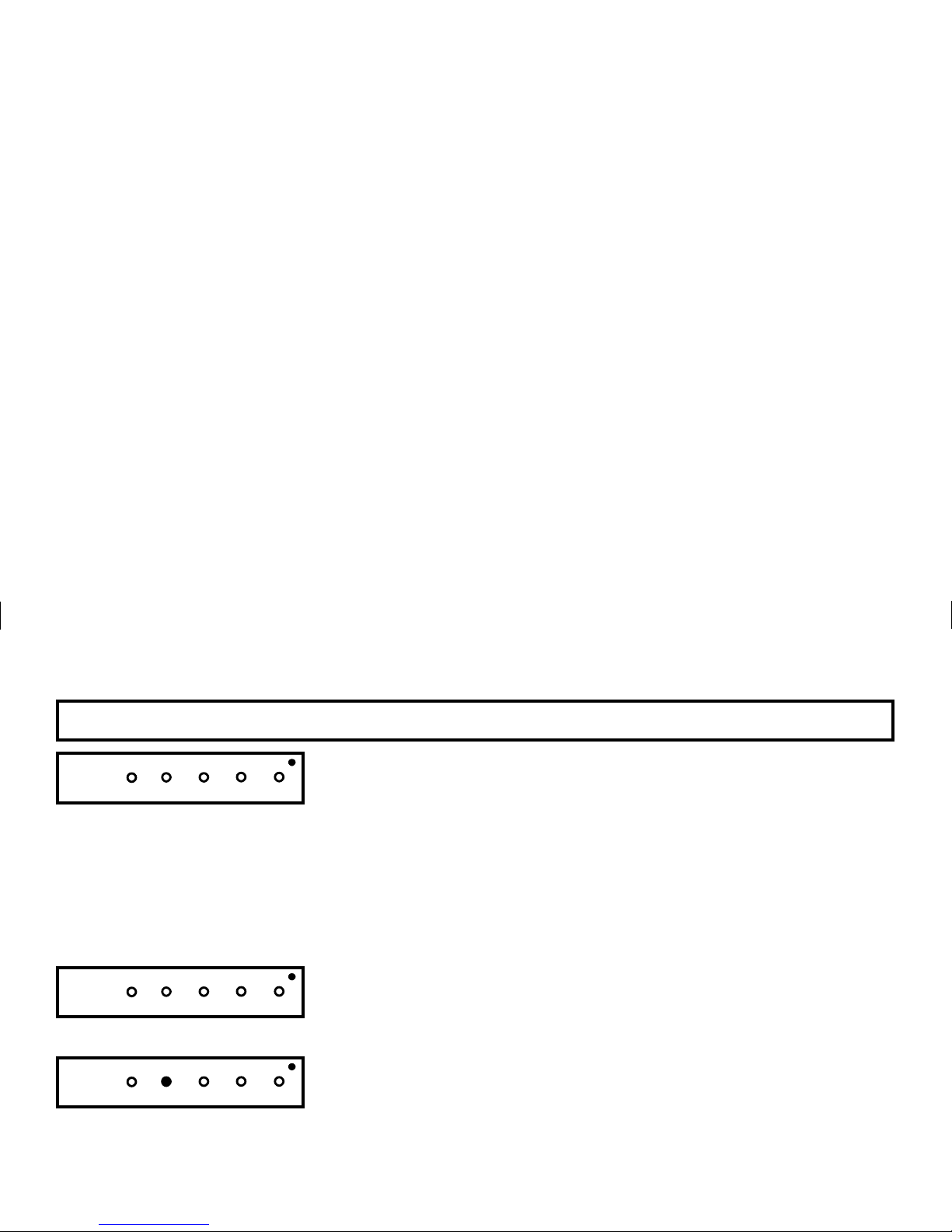

Arming the System

1. Check the keypad. The green STATUS light must be on in order to arm.

If the green light is off, the number(s) of any unsecured zone(s) will display in

the window. Refer to the pull-up zone list for the location of each problem

zone and secure by closing windows, doors, etc. When all zones are secure,

the green STATUS light will come on.

2. Arm the system. Enter your User Code followed by D. The green STATUS

light will go off, the red ARMED light will come on. Note: If you enter an

invalid code, the keypad will beep 4 times, indicating an error. Re-enter your

code.

3. Leave the premises. Leave through the exit door before the exit time expires.

Priority Arming

If you attempt to arm the system with a faulted Zone, a 3-second tone will sound

at the keypad and “P” will display in the window, indicating that the zones must be

secured before the panel can be armed.

Selectively Bypassing Zones

If you cannot locate or repair a faulted zone, it can be removed from the system,

or bypassed. Bypass the zone(s) from the system by pressing B, followed

by the zone number (or vice versa). The yellow BYPASS light will turn on to

indicate that the zone has been bypassed.

Note: Bypassed zones are unprotected. If a faulted zone cannot be secured,

have the system checked as soon as possible.

12 INTERIOR BYPASS FIRE/TBL SYS TBL CHIME

INTERIOR BYPASS FIRE/TBL SYS TBL CHIME

P INTERIOR BYPASS FIRE/TBL SYS TBL CHIME

SETTING THE ALARM (ARMING) WHEN LEAVING

System Trouble If you attempt to arm with the SYS TBL light on, a 3-second tone will

sound and a “P” will display in the window. This indicates that the system has detected

a problem which may prevent it from operating properly. A number corresponding to the

trouble will then appear in the display. Refer to SYSTEM TROUBLE ERROR CODES

for descriptions of these troubles. If you cannot correct the problem immediately, press

Cand you will then be able to arm the system in this condition. Note: If you

cannot clear the trouble, have the system checked as soon as possible.

Area Arming (Optional)

In a system that has been partitioned into multiple areas, one or more areas may be armed while others remain disarmed.

Manager's Mode.

The Manager's Mode allows the user to arm / disarm other areas in a partitioned system. To arm a different area:

1. Press the numerical key representing the other area number.

2. Press Gfollowed by J. The keypad will now provide status and control of that area.

3. Enter your code followed by Jto arm.

4. Press Gfollowed by Jto return to the home area.

Global Arming (Optional) (Available only with the GEM-P9600/3200 panels)

To arm all areas simultaneously (including the area you are in), press 9, Gand enter your code followed by D.

To disarm all areas simultaneously, press 0, Gand enter your code followed by J.

•The User Code must be valid in all area(s).

•If any zone is not secured, the keypad will display “P”. All faulted zones in the respective area(s) must be secured or

bypassed. Note: If a system trouble is indicated, the system cannot be armed using this method.

P INTERIOR BYPASS FIRE/TBL SYS TBL CHIME

Bypassing Interior Zones

Interior Zones, when bypassed, allow free movement within the home while the

protection of armed perimeter zones is maintained. To bypass Interior Zones, press

Eand enter your User Code followed by D. The red ARMED light will light and

the green STATUS light will blink, indicating zones bypassed. The INTERIOR and BYPASS lights will display in the window.

Your system may have provisions for two groups of Interior Zones. (Optional--Interior Groups programmed? YES NO)

•Press E, followed by Jto Bypass Interior Group 1: [ ____________________________________ ]

•Press Etwice followed by Jto Bypass Interior Group 2: [ ______________________________________ ]

•Press Ethree times followed by Jto Bypass both Interior Groups 1 & 2.

Automatic Interior Bypass (Optional - Automatic Interior Bypass programmed? YES NO)

Your system may have been programmed for Automatic Interior Bypass, which allows it to recognize that you have armed the

system and remained in the house, prompting it to automatically adjust the interior protection accordingly.

•If you arm the system and remain in the house, all Interior Zones are automatically bypassed. The INTERIOR and/or

BYPASS lights which will remain lit, indicating that it is safe to move about.

•If the system is armed and you leave, the Interior Zones will unbypass, providing complete interior protection.

Instant Protection

When retiring for the evening, after all family members are home, you can cancel the entry delay on the Entry Zone(s).

To arm with instant protection, press Fjust prior to arming, or at any time after the system is armed. When armed with

Instant Protection opening the entry door will cause an immediate alarm.

•When arming with Instant Protection, the exit delay will remain in effect, allowing exit of the house just after arming.

While armed, the red ARMED light will flicker rapidly to indicate instant protection.

PROTECTING YOURSELF WHILE ON THE PREMISES

INTERIOR BYPASS FIRE/TBL SYS TBL CHIME

PROTECTING YOURSELF WHILE ON THE PREMISES

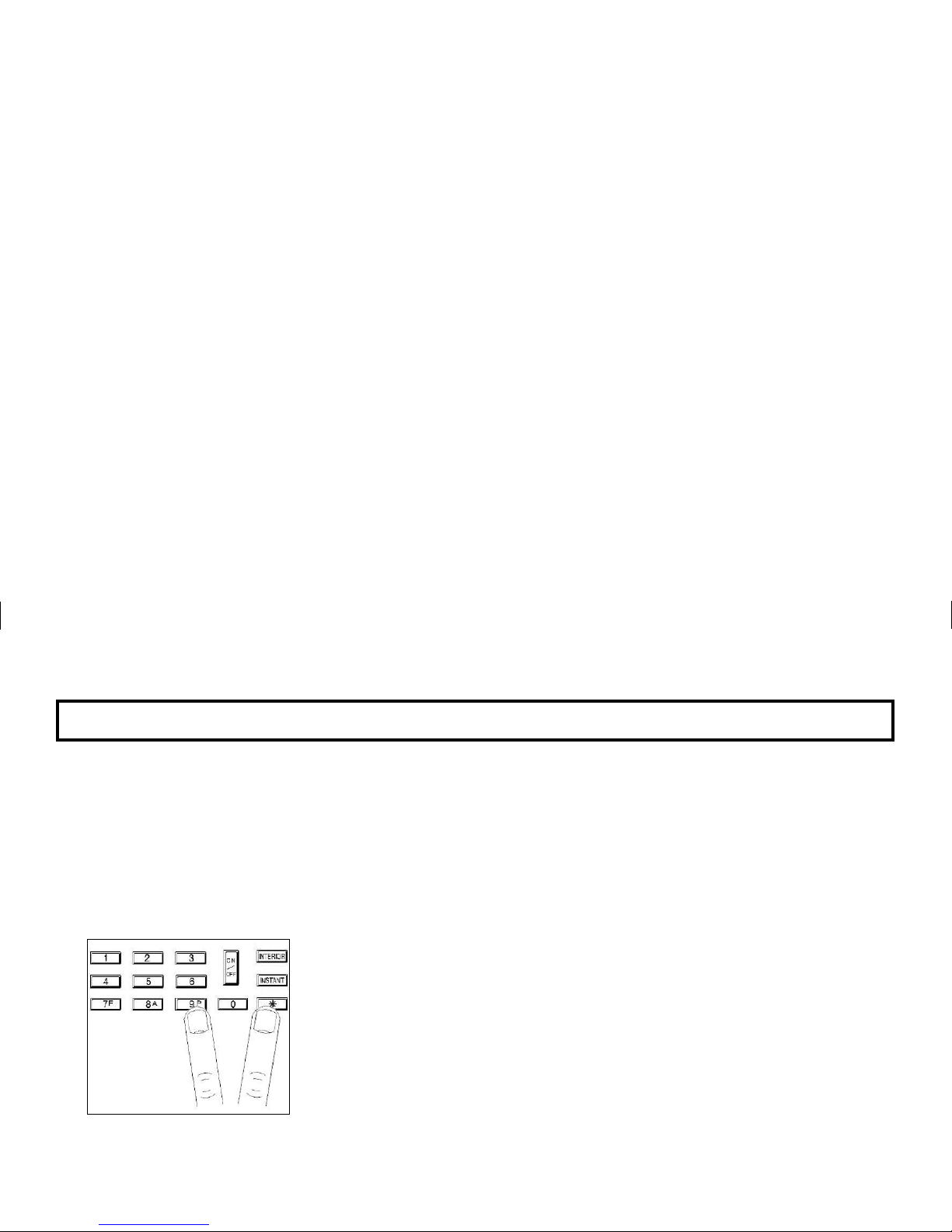

Emergency Buttons (Only available if programmed)

The Blue Emergency Buttons (7, 8& 9), if programmed, are always

active, whether the system is armed or disarmed. The emergency signal will only be

transmitted when an Emergency Button and Gare pressed at the same time.

•Fire Emergency Simultaneously press 7and Gto alert the central

station of a fire emergency.* (Fire Emergency programmed? YES NO)

•Auxiliary Emergency Simultaneously press 8and Gto alert the central

station of an Auxiliary emergency.* (Auxiliary Emergency programmed? YES NO)

•Police Emergency Simultaneously press 9and Gto alert the central

station of a police emergency.* (Police Emergency programmed? YES NO)

Easy Exit (Optional - Easy Exit programmed? YES NO)

Your system may have been programmed for Easy Exit, which allows a user to exit the premises while the system is

armed. By activating Easy Exit while the system is armed, the Exit Delay countdown will take place, during which time

you are permitted to leave through the exit door. The Easy Exit Delay time will be identical to the Exit Delay time the

system gives you each time it is armed. This will allow, for example, an early morning commuter to exit the house,

without having to disarm and rearm the system, awaking the family.

Press Eto activate Easy Exit on your system. (GEM-P3200/GEM-P9600 V11D or less, GEM-P1632 V8G or less)

Press Dto activate Easy Exit on your system. (GEM-P3200/GEM-P9600 V20 or greater, GEM-P816/P1632 V9A or greater)

*Note: Discuss your Emergency

Features with your Installation

Company.

TURNING OFF THE ALARM (DISARMING) WHEN RETURNING

Disarming the System

1. Enter your premises through the Entry/Exit door. The keypad will sound a steady tone to remind you to disarm the system

before your Entry Delay time expires.

2. Enter your User Code and press D. The red ARMED light will go out, indicating that the system has been disarmed.

•If you enter an invalid code, the keypad will beep 4 times, signifying an error. Re-enter your code immediately. 10 seconds

before Entry Delay expires, the keypad will emit a pulsing warning tone.

Alarm Indication / Silencing an Alarm

If the red ARMED light is flashing upon entry, an alarm occurred while you were out. (The display will scroll the number(s) of the

violated zone(s). Proceed with caution! If you suspect that an intruder may still be in the premises, leave immediately and call

authorities from a neighbor's phone.

To silence an audible alarm:

1. Enter your code and press J. After the system is disarmed, the window will continue to display the number(s) of the zone(s)

violated.

2. To reset the display, note the zones violated, then press C.

Ambush (Optional) Your Ambush Code Type is: TYPE 1 (Prefix) TYPE 2 (Unique) My Ambush Code is ___________________

If an intruder forces you to disarm your system, enter your Ambush Code and press J. There are two types of Ambush Codes: (1) A 2-

digit code (prefix) entered just prior to your normal User Code and (2) A separate and unique User Code.

Example Type 1 (Prefix): If your User Code is 1234 and your Ambush Code is 99, press 991234J.

Example Type 2 (Unique): If your User Code is 1234 and your Ambush Code is 8899, press 8899J

Using your Ambush Code will send a silent alarm to the central station. The red ARMED light will go out and the window will display

“SYSTEM READY” as if the system were normally disarmed. There will be no indication that a silent alarm has been sent.

Indice

Altri manuali NAPCO Tastiera

NAPCO

NAPCO MAGNUM ALERT RP1016E KEYPAD Manuale utente

NAPCO

NAPCO MAGNUM ALERT RP1016 LCD KEYPAD Manuale utente

NAPCO

NAPCO GEM-K800 Manuale utente

NAPCO

NAPCO MAGNUM ALERT RP1000E LCD KEYPAD Manuale utente

NAPCO

NAPCO RP1054D KEYPAD Manuale utente

NAPCO

NAPCO GEM-RP8LCD Manuale utente

NAPCO

NAPCO Gemini GEM-RP3DGTL Manuale utente

NAPCO

NAPCO Gemini GEM-K4RF Manuale utente

NAPCO

NAPCO Gemini GEM-P816 Manuale utente

NAPCO

NAPCO MAGNUM ALERT RP1000E LCD KEYPAD Manuale utente

NAPCO

NAPCO RP1054e Manuale utente

NAPCO

NAPCO Magnum Alert RP1000ELCD Manuale utente

NAPCO

NAPCO RP2000LED Manuale utente

NAPCO

NAPCO RP1054e Manuale utente

NAPCO

NAPCO iSecure ISEC-WL-KEYPAD Manuale utente

NAPCO

NAPCO GEM-RP1Ca Manuale utente

NAPCO

NAPCO GEM-RP8LCD Manuale utente

NAPCO

NAPCO Gemini GEM-RP4C Manuale utente

NAPCO

NAPCO RP1054e Manuale utente

NAPCO

NAPCO MAGNUM ALERT RP1016D KEYPAD Manuale utente

NAPCO

NAPCO Gemini GEM-RP1CAe2 Manuale utente

NAPCO

NAPCO Gemini GEM-K3DGTL Manuale utente

NAPCO

NAPCO Gemini GEM-RP2ASe2 Manuale utente

NAPCO

NAPCO RP1016LCD Manuale utente

Manuali Tastiera popolari di altre marche

BFT

BFT SELETTO Manuale utente

Micro Id

Micro Id MP7G3BL Manuale di istruzioni

WindowMaster

WindowMaster WLI 130 Manuale utente

ACT

ACT ACT PRO 1030 Manuale utente

Cardin

Cardin SSB Series Manuale utente

Harman Kardon

Harman Kardon KP 1 Manuale utente

Chamberlain

Chamberlain KPR2000 Guida utente

CYP

CYP CR-KP1 Manuale utente

Aeware

Aeware k-35 Series Guida di riferimento

Aritech

Aritech CS-175 Series Manuale utente

GE NetworX NX-1600E Series Manuale utente

Lenze AC Tech

Lenze AC Tech MC SERIES Manuale utente

Burg Wächter

Burg Wächter secuENTRY 7711 Manuale utente

Aeware

Aeware in.k450 Manuale utente

Lenze

Lenze EPM-H410 Manuale utente

Toshiba

Toshiba RKP007Z Manuale utente

Gemini

Gemini GEM-DXK1 KEYPAD Manuale utente

Russound

Russound MDK-C5 Manuale operativo
