USER GUIDE

NI USB-6211/6218 OEM

This document provides information about the dimensions, mounting

options, connectors, and other components of the NI USB-6211/6218

OEM devices.

Caution There are no product safety, electromagnetic compatibility (EMC), or

CE marking compliance claims made for the USB-6211/6218 OEM devices.

Conformity to any and all compliance requirements rests with the end product

supplier.

Figure 1 shows the USB-6211 OEM and USB-6218 OEM devices.

Figure 1. USB-621xOEM Devices

Refer to the NI USB-621x Specifications document for USB-6211/6218

specifications and the NI USB-621x User Manual for more information

about USB-6211/6218 devices. You can find all documentation at

ni.com/manuals.

USB-6211 USB-6218

NI USB-6211/6218 OEM User Guide 2 ni.com

Dimensions

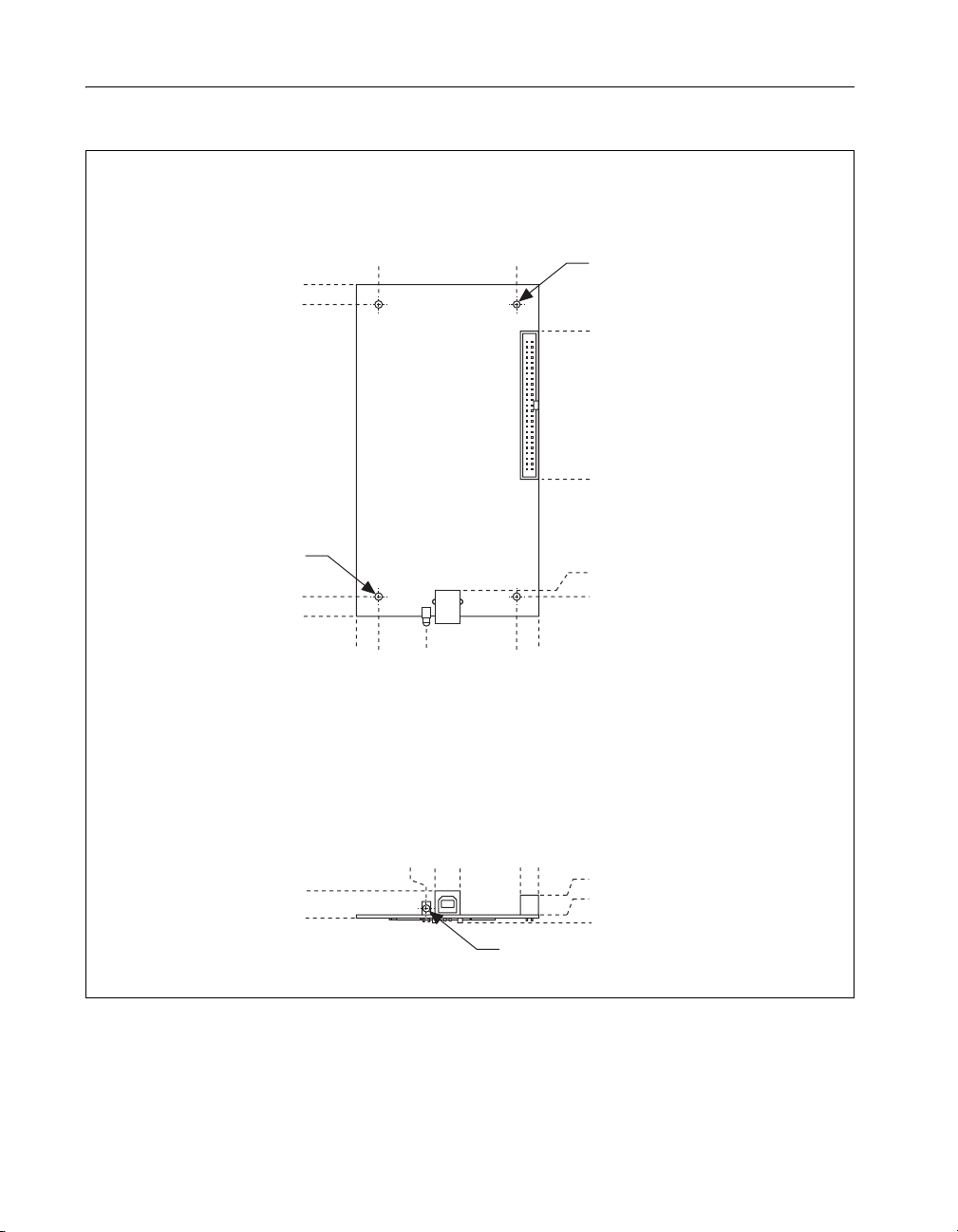

Figure 2 shows the dimensions of the USB-6211 OEM device.

Figure 2. USB-6211 OEM Dimensions in Inches (Millimeters)

0.000 (0.00)

0.373 (9.47)

0.000 (0.00)

0.420 (10.66)

1.321 (33.54)

3.022 (76.75)

3.441 (87.40)

2.582 (65.58)

5.372 (136.45)

5.877 (149.28)

6.250 (158.75)

0.373 (9.47)

0.489 (12.42)

Ø 0.130 (3.30)

3X Ø 0.142 (3.61)

3.441 (87.40)

3.101 (78.77)

1.958(49.72)

0.420 (10.66)

3.022 (76.75)

1.484 (37.68)

1.321 (33.54)

Ø 0.144 (Drill Size 27) Recommended

Front Panel Hole Cutout for LED

0.091 (2.31)

0.000 (0.00)

0.433 (11.00)

0.063 (1.60)

0.516 (13.11)

©National Instruments Corporation 3 NI USB-6211/6218 OEM User Guide

Figure 3 shows the dimensions of the USB-6218 OEM device.

Figure 3. USB-6218 OEM Dimensions in Inches (Millimeters)

0.091 (2.31)

0.000 (0.00)

0.373 (9.47)

0.000 (0.00) 0.000 (0.00)

0.420 (10.66)

1.321 (33.54)

3.022 (76.75)

3.441 (87.40)

0.433 (11.00)

2.582 (65.58)

5.372 (136.45)

5.877 (149.28)

6.250 (158.75)

0.063 (1.60) 0.516 (13.11)

0.373 (9.47)

0.489 (12.42)

Ø 0.130 (3.30)

3X Ø 0.142 (3.61)

3.441 (87.40)

3.101 (78.77)

1.958(49.72)

0.420 (10.66)

3.022 (76.75)

1.484 (37.68)

1.321 (33.54)

0.340 (8.64)

Ø 0.144 (Drill Size 27) Recommended

Front Panel Hole Cutout for LED

NI USB-6211/6218 OEM User Guide 4 ni.com

I/O Connector Pinouts

Figure 4 shows the connector pinout on the USB-6211 OEM device.

Figure 4. USB-6211 OEM Connector Pinout

AI GND

AI 7

AI 14

AI GND

AI 5

AI 12

AI GND

AI 3

AI 10

AI GND

AI 1

AI 8

AI GND

AO 1

AO 0

D GND

+5 V

AI 15

AI 6

AI 13

AI 4

AI 11

AI GND

AI 2

AI GND

AI 9

AI GND

AI 0

AI SENSE

AI GND

AO GND

PFI 7

PFI 6

PFI 5

PFI 4

PFI 3

PFI 2

PFI 1

PFI 0

+5 V

NC = No Connect

©National Instruments Corporation 5 NI USB-6211/6218 OEM User Guide

Figure 5 shows the connector pinouts on the USB-6218 OEM device.

Figure 5. USB-6218 OEM Connector Pinout

Note In non-referenced single-ended (NRSE) mode, the USB-6218 OEM device

measures AI <0..15> relative to the AI SENSE input, and AI <16..35> relative to

AI SENSE 2.

Refer to the NI USB-621x User Manual at ni.com/manuals for more

information about USB-6211/6218 signals and how to connect them.

AI GND

AI 23

AI 30

AI GND

AI 21

AI 28

AI GND

AI 19

AI 26

AI GND

AI 17

AI 24

AI GND

D GND

+5 V

AI 31

AI 22

AI 29

AI 20

AI 27

AI GND

AI 18

AI GND

AI 25

AI GND

AI 16

AI SENSE 2

AI GND

PFI 15

PFI 14

PFI 13

PFI 11

PFI 10

PFI 9

PFI 8

+5 V

NC = No Connect

AI GND

AI 7

AI 14

AI GND

AI 5

AI 12

AI GND

AI 3

AI 10

AI GND

AI 1

AI 8

AI GND

AO 1

AO 0

D GND

+5 V

AI 15

AI 6

AI 13

AI 4

AI 11

AI GND

AI 2

AI GND

AI 9

AI GND

AI 0

AI SENSE

AI GND

AO GND

PFI 7

PFI 6

PFI 5

PFI 4

PFI 3

PFI 2

PFI 1

PFI 0

+5 V

NC = No Connect

PFI 12

NI USB-6211/6218 OEM User Guide 6 ni.com

Board Mounting the USB-621xOEM

The USB-621xOEM device can be mounted on a motherboard using the

50-pin connector(s) and board mount socket(s), as shown in Figures 6

and 7.

Note You can use either one or both 50-pin connectors to board mount the USB-6218

OEM device.

Figure 6. USB-621xOEM Mounting Using 50-Pin Connectors

(USB-6218 OEM Device Shown)

Figure 7. USB-621xOEM Device Installed on Motherboard

(USB-6218 OEM Device Shown)

Refer to the Device Components section for more information about

mounting components.

1 Mounting Standoff

2 Board Mount Socket

3 50-Pin Connector

4USB-6218OEM Device

5 Mounting Screws

National Instruments, NI, ni.com, and LabVIEW are trademarks of National Instruments Corporation.

Refer to the Terms of Use section on ni.com/legal for more information about National

Instruments trademarks. Other product and company names mentioned herein are trademarks or trade

names of their respective companies. For patents covering National Instruments products, refer to the

appropriate location: Help»Patents in your software, the patents.txt file on your CD, or

ni.com/patents.

Device Components

Table 1 contains information about the components used for interfacing

and interacting with the USB-621xOEM device.

Table 1. USB-621xOEM Components

Component

Reference

Designator(s)

on PCB Manufacturer

Manufacturer

Part Number

50-pin connector J6*, J7 3M N2550-6002UB

USB connector J5 AMP 787780-1

50-pin board mount socket†— 3M 8550-4500PL (or equivalent)

Mounting standoff,

using board mount socket

—RAF Electronic

Hardware

M1261-3005-SS‡

with M3 ×0.5 screw

Mounting standoff,

using ribbon cable

—RAF Electronic

Hardware

2053-440-SS**

with 4-40 screw

*J6 is available on USB-6218 OEM devices only.

†You can use either one or both 50-pin connectors to board mount the USB-6218 OEM device.

‡3/16 in. HEX female-to-female, 14 mm long.

** 3/16 in. HEX female-to-female, 1/4 in. long.
