USER MANUAL

NI 9753

NI Powertrain Controls Differential Digital I/O Module

Contents

Introduction .............................................................................................................................. 2

Pinout........................................................................................................................................ 2

Hardware .................................................................................................................................. 3

Powering the Module................................................................................................................ 3

Platform Compatibility ............................................................................................................. 4

Inputs and Outputs.................................................................................................................... 5

Compliance and Certifications ................................................................................................. 5

Output Characteristics .............................................................................................................. 7

Input Characteristics ................................................................................................................. 7

Physical Specifications and Characteristics ............................................................................. 7

2|ni.com |NI 9753 User Manual

Introduction

The National Instruments 9753 Differential Digital I/O Module includes a CompactRIO (cRIO)

module with eight individually controlled inputs or outputs with 50 ns resolution. When the

channels are configured as outputs, the channels can be controlled by a customized Boolean

logic or by specialized fuel and spark VIs included with the NI 9753, in which case, an Engine

Position Tracking (EPT) VI is also required.The NI 9753 fuel and spark VIs provide control

similar to that of NI’s fuel and spark driver module kits. The NI 9753 outputs do not drive current

sufficient for driving fuel injectors or ignition coils. The outputs can be used for commands to

external custom driver circuits or smart actuators with built-in driver circuits. Multiple fuel and

spark VIs can be wired together through OR logic gates to deliver multi-pulse

engine-synchronous commands to a single output. When the channels are configured as inputs,

the Boolean signals from these channels can be used as general purpose Boolean Trigger signals

within the LabVIEW FPGA application.

Each I/O channel uses an RS485/422 compatible differential transceiver with a voltage range of

0 V to 5 V.

Features

• 8-channel differential digital I/O with RS485/422 compatible transceivers

• Individual channel direction selection

• Protected 5 V, 1 A supply output

• 50 ns input and output resolution

Pinout

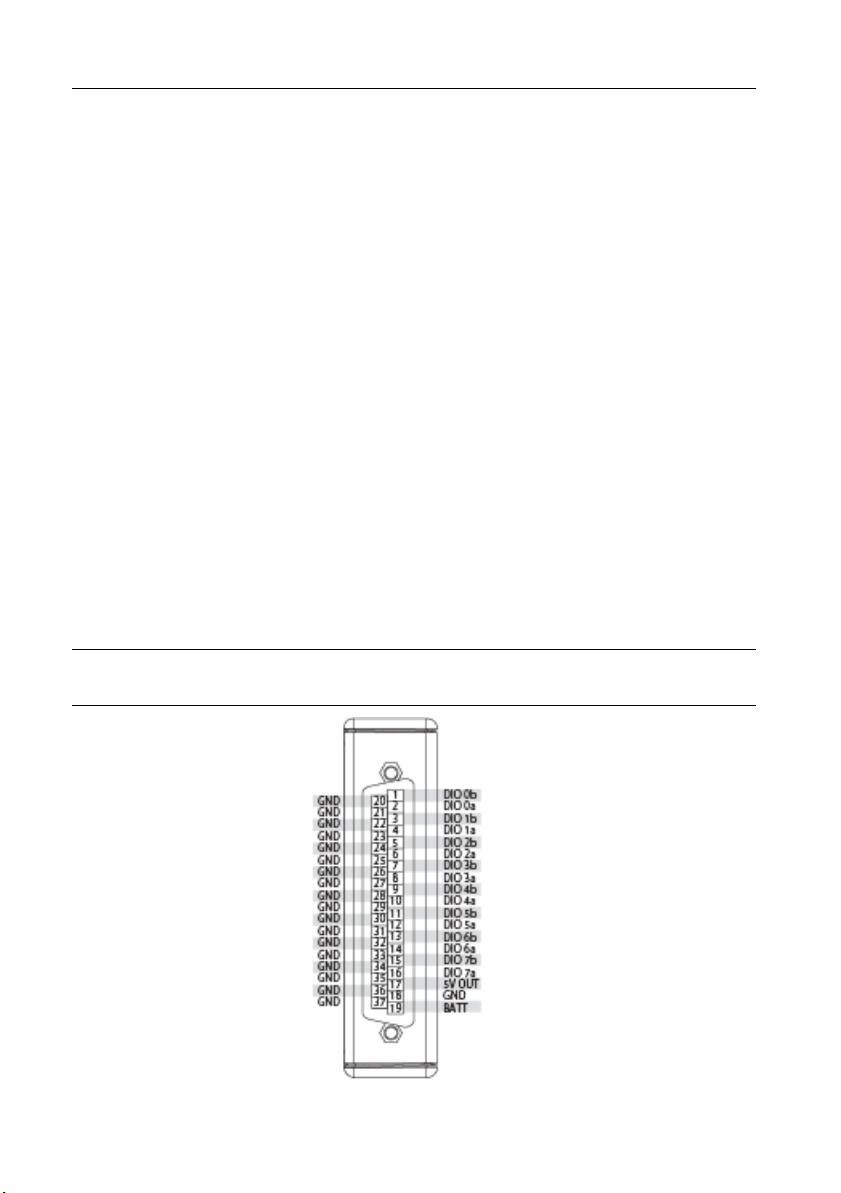

Figure 1. NI 9753 Pin Assignments

NI 9753 User Manual |© National Instruments |3

Hardware

The NI 9753 has eight channels of RS485/422 compatible differential digital inputs or outputs

in a NI CompactRIO module form factor and provides a 5 V sensor power output and ground.

NI recommends using the NI 9923 Connector Kit for connections to the NI 9753. The NI 9923

provides proper strain relief for NI 9753 connections. Visit ni.com/info and enter Info Code

DIFFIO for more information on parts and accessories for the NI 9753.

Powering the Module

The NI 9753 requires power from two different sources, the CompactRIO backplane male high

density D-SUB 15-pin (HD15) connector and the external DB-37 connector.

The HD15 connector mates with the module’s female HD15 connector. It provides a regulated

5 V and ground to various digital logic functions within the NI 9753. It is active whenever the

CompactRIO or R Series Expansion Chassis is properly powered. The NI 9753 should be

powered at the HD15 connector by plugging it into a CompactRIO or R Series Expansion

Chassis. The module’s HD15 connector should not be connected to any other device.

The other power connection is at the external DB-37 connector labeled BATT (19) and GND

(18). Typical power sources will be from automotive 12 V or 24 V battery systems. The NI 9753

can accept power from a range of 6 V to 32 V. The maximum power to the NI 9753 is limited to

5 W. When the 5 V supply output is not being utilized, the NI 9753 requires up to 2 W from the

external supply, depending on the number of channels operated as outputs and on their switching

frequency. The external 5 V supply output can be used for the remainder of the 5 W power limit.

If the external 5 V supply output is shorted or overloaded, then the voltage output level will be

reduced in order to limit the total power to 5 W. This will cause the I/O transceivers to shutdown.

The NI 9753 requires both external power and power from the CompactRIO backplane. The

NI 9753 directs the high current path through the BATT and GND terminals on the front of the

module and not through the HD15 backplane connector.

Note The NI 9753 will not be recognized by software without both power supplies

active.

Note The external battery supply is not required in order for the NI 9753 to be

recognized by LabVIEW FPGA software. The RS485/422 channel transceivers will

not be active without the external battery supply.

4|ni.com |NI 9753 User Manual

Platform Compatibility

NI Powertrain Control modules require a hardware support system to function. You cannot use

the modules independently or interfaced with third-party devices at the backplane HD15

connector. NI Powertrain Control modules are compatible with the following National

Instruments platforms:

• CompactRIO, which consists of a CompactRIO controller, chassis, or integrated

controller/chassis.

• NI PXI, which consists of any NI PXI chassis, NI PXI RT controller, and NI PXI-78xxR R

Series FPGA card. The NI Powertrain Control modules insert into an NI R Series expansion

chassis. Connect an NI R Series expansion chassis to the NI PXI FPGA card using a

SHC68-68-RDIO cable.

Note NI Powertrain Control modules are not compatible with the National

Instruments CompactDAQ chassis.

You can use NI Powertrain Control modules with NI cRIO-911x, NI cRIO-907x, and NI R Series

Expansion systems under the following conditions:

• Leave one empty chassis slot between NI Powertrain Control modules and other NI

modules.

• Maintain an ambient system operating temperature of 0 °C to 45 °C.

Note Typical specifications of National Instruments modules might not apply when

used in a system with NI Powertrain Control modules.

Note National Instruments guarantees warranted specifications for all National

Instruments modules except thermocouple modules when used in a system with NI

Powertrain Control modules.

Note National Instruments recommends the NI 9214 for thermocouple

measurements in CompactRIO systems using NI Powertrain Control modules.

Note NI Powertrain Control modules do not support Scan Interface mode,

auto-detection, or ID mode.

NI 9753 User Manual |© National Instruments |5

Inputs and Outputs

Each differential I/O channel can be individually configured for input or output and meets or

exceeds TIA/EIA RS-485 requirements. Channels with signaling rates up to 10 Mbps are

configured for input or output via the provided LabVIEW FPGA VI.

Overvoltage Protection

The RS485 input/output pins of the NI 9753 can be shorted together, shorted to ground, or

shorted to -7 V to +12 V without damaging the channels. The RS485 input/output pins may be

subjected to ±50 V, 15 µs wide, 1% duty cycle pulses via a minimum of 100 Ωresistance without

damage. A channel differential pin pair can withstand a differential input voltage of ±12V.

Compliance and Certifications

Safety

This product meets the requirements of the following standards of safety for electrical equipment

for measurement, control, and laboratory use:

• IEC 61010-1, EN 61010-1

• UL 61010-1, CSA 61010-1

Electromagnetic Compatibility

This product meets the requirements of the following EMC standards for electrical equipment

for measurement, control, and laboratory use:

• EN 61326-1 (IEC 61326-1): Class A emissions; Industrial immunity

• EN 55011 (CISPR 11): Group 1, Class A emissions

• AS/NZS CISPR 11: Group 1, Class A emissions

• FCC 47 CFR Part 15B: Class A emissions

• ICES-001: Class A emissions

Caution When operating this product, use shielded cables and accessories.

CE Compliance

This product meets the essential requirements of applicable European Directives as follows:

• 2006/95/EC; Low-Voltage Directive (safety)

• 2004/108/EC; Electromagnetic Compatibility Directive (EMC)

6|ni.com |NI 9753 User Manual

Environmental Management

NI is committed to designing and manufacturing products in an environmentally responsible

manner. NI recognizes that eliminating certain hazardous substances from our products is

beneficial to the environment and to NI customers.

For additional environmental information, refer to the Minimize Our Environmental Impact web

page at ni.com/environment. This page contains the environmental regulations and

directives with which NI complies, as well as other environmental information not included in

this document.

Waste Electrical and Electronic Equipment (WEEE)

EU Customers At the end of the product life cycle, all products must be sent to

a WEEE recycling center. For more information about WEEE recycling centers,

National Instruments WEEE initiatives, and compliance with WEEE Directive

2002/96/EC on Waste and Electronic Equipment, visit ni.com/environment/

weee.

Battery Replacement and Disposal

Battery Directive This device contains a long-life coin cell battery. If you need

to replace it, use the Return Material Authorization (RMA) process or contact an

authorized National Instruments service representative. For more information

about compliance with the EU Battery Directive 2006/66/EC about Batteries

and Accumulators and Waste Batteries and Accumulators, visit ni.com/

environment/batterydirective.

Cd/Hg/Pb

⬉ᄤֵᙃѻક∵ᶧ᥻ࠊㅵ⧚ࡲ⊩ ˄Ё೑ RoHS˅

Ё೑ᅶ᠋ National Instruments ヺড়Ё೑⬉ᄤֵᙃѻકЁ䰤ࠊՓ⫼ᶤѯ᳝ᆇ⠽䋼ᣛҸ

(RoHS)Ǆ݇Ѣ National Instruments Ё೑ RoHS ড়㾘ᗻֵᙃˈ䇋ⱏᔩ ni.com/

environment/rohs_chinaǄ(For information about China RoHS compliance,

go to ni.com/environment/rohs_china.)

NI 9753 User Manual |© National Instruments |7

Output Characteristics

Digital Output Logic Levels at 8 mA loads

High .................................................................. 4.0 V to 5.0 V

Low................................................................... 0.1 V to 0.4 V

Input Characteristics

Differential Input Logic Levels

High .................................................................. (a - b) > 200 mV

Low................................................................... (a - b) < -200 mV

Physical Specifications and Characteristics

Weight............................................................... 170 g

Maximum Altitude ........................................... 2000 m

Maximum Ambient Temperature ..................... 70 ºC

Operating Humidity.......................................... 10% to 90% RH, noncondensing

Pollution Degree ............................................... 2

Ingress Protection ............................................. IP40

For indoor use only.

If you need to clean the module, wipe it with a dry towel.

Safety Guidelines

Caution Do not operate the NI 9753 in a manner not specified in these operating

instructions. Product misuse can result in a hazard. You can compromise the safety

protection built into the product if the product is damaged in any way. If the product

is damaged, return it to National Instruments for repair.

376102A-01 Jun13

Refer to the NI Trademarks and Logo Guidelines at ni.com/trademarks for more information on National Instruments trademarks. Other

product and company names mentioned herein are trademarks or trade names of their respective companies. For patents covering National

Instruments products/technology, refer to the appropriate location: Help»Patents in your software, the patents.txt file on your media, or the

National Instruments Patents Notice at ni.com/patents. You can find information about end-user license agreements (EULAs) and third-party

legal notices in the readme file for your NI product. Refer to the Export Compliance Information at ni.com/legal/export-compliance

for the National Instruments global trade compliance policy and how to obtain relevant HTS codes, ECCNs, and other import/export data.

Indice

Altri manuali National Instruments Sistema I/O

National Instruments

National Instruments 6527 Manuale operativo e di manutenzione

National Instruments

National Instruments SC-206 Series Manuale utente

National Instruments

National Instruments SC Express PXIe-4309 Manuale

National Instruments

National Instruments 653 Series Manuale utente

National Instruments

National Instruments PCI-445 Series Manuale utente

National Instruments

National Instruments NI 6115 Manuale utente

National Instruments

National Instruments 9225E Manuale utente

National Instruments

National Instruments NI 6115/6120 Manuale utente

National Instruments

National Instruments PCI-6154 Guida rapida

National Instruments

National Instruments PXIe-4339 Manuale utente

National Instruments

National Instruments SC Express PXIe-4309 Manuale utente

National Instruments

National Instruments 9215E Manuale utente

National Instruments

National Instruments NI-9207 Manuale utente

National Instruments

National Instruments NI-9244 Manuale utente

National Instruments

National Instruments PXIe-5164 Manuale utente

National Instruments

National Instruments 6508 PCI-DIO-96 Manuale utente

National Instruments

National Instruments USB-621 Series Manuale utente

National Instruments

National Instruments NI 9209 Manuale utente

National Instruments

National Instruments SCC-DI01 Manuale utente

National Instruments

National Instruments NI REM-11100 Manuale utente

National Instruments

National Instruments 9237 Manuale

National Instruments

National Instruments 9232 Manuale

National Instruments

National Instruments Data Acquisition Device NI USB-621x Manuale utente

National Instruments

National Instruments Interface Device NI PCI-1426 Manuale utente

Manuali Sistema I/O popolari di altre marche

WAGO

WAGO 750-344 Manuale utente

Teknim

Teknim TWM-1887 Manuale di istruzioni

Intelligent Appliance

Intelligent Appliance IA-2662-E Manuale utente

BERGHOF

BERGHOF ECC DIO 16/16 Manuale di istruzioni

Advantech

Advantech PCM-27J3AU Manuale di installazione e funzionamento

Festo

Festo CP-E08-M12-CL Manuale utente

Measurement Computing

Measurement Computing PCI-DAS64/M1/16 Manuale utente

Hitachi

Hitachi HX-RIO3 Series Manuale utente

NUUO

NUUO SCB-A08 Manuale utente

M-system

M-system R3Y-RS8 Manuale utente

jablotron

jablotron JB-110N Manuale utente

Omron

Omron SYSMAC C200H Manuale utente

DOLD

DOLD SAFEMASTER M Manuale utente

ABB

ABB OPT-MF-001 Manuale utente

Omron

Omron SYSMAC C2000H Manuale utente

Helmholz

Helmholz TB20 Manuale utente

ICP DAS USA

ICP DAS USA tM-AD2 Manuale utente

Automationdirect.com

Automationdirect.com DL305 Manuale utente
