FD-11634
Quick Start
Démarrage rapide
Erste Schritte
クイックスター ト
시작하기
快速入门
Sound and Vibration Input Device for FieldDAQTM
376068A-01 Feb19
©2019 National Instruments
All rights reserved.
Caution Before installing your device, read all product
documentation to ensure compliance with safety, EMC, and
environmental regulations.
Attention Avant d’installer votre périphérique, lisez toute la
documentation se rapportant au produit pour vous assurer du respect
des règles concernant la sécurité, la CEM et l’environnement.
Achtung Lesen Sie vor der Inbetriebnahme des Geräts die
Produktdokumentation, um die Einhaltung der Sicherheitsvorschriften,
EMV-Vorschriften und Umweltrichtlinien sicherzustellen.
注意 デバイスを取り付ける前に、すべての製品ドキュメントをお読みに
なり、安全、EMC、環境規制を遵守してください。
주의 디바이스를 설치하기 전에 모든 제품 관련 문서를 읽고 안전,
EMC, 환경 규정을 준수하는지 확인하십시오.
警告 安装设备之前，请阅读所有产品文档，确保符合安全性、电磁
兼容性和环境法规。
Documentation
FD-11634
FD-11634
±1V/±10V 24-Bit IEPE Input
0
10/100/1000
LINK/ACT
SYNC
1
IN
10 A TOTAL
9-30V
FieldDAQ
STATUS
OUT
(1)(11)
Caps
0 1
BANK 1
2 3
0 1
BANK 2
2 3

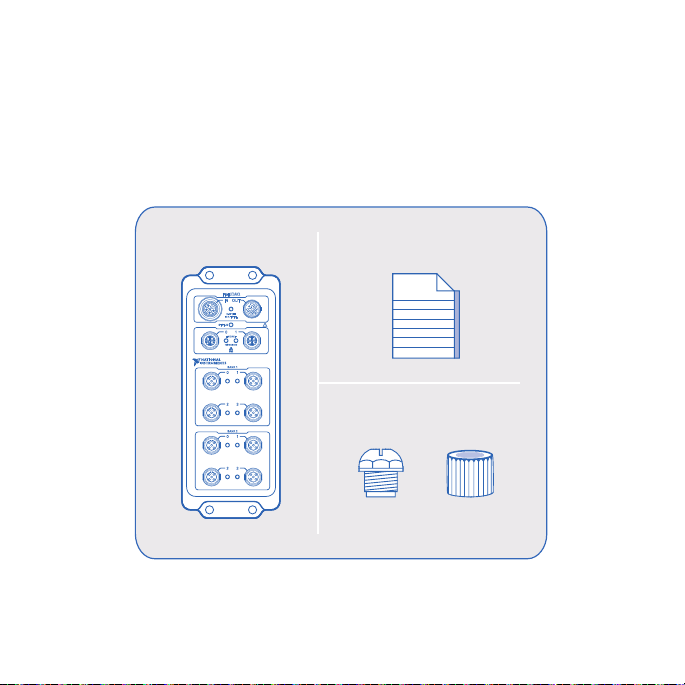

Contents I Contenu I Inhalt
内容 I 내용 I 内容
Information is subject to change without notice. Refer to the NITrademarks and Logo Guidelines at ni.com/trademarks
for more information on National Instruments trademarks. Other product and company names mentioned herein are
trademarks or trade names of their respective companies. For patents covering National Instruments products/technology,
refer to the appropriate location:
Help»Patents
in your software, the patents.txt file on your media, or the National
Instruments Patents Notice at ni.com/patents. You can find information about end-user license agreements (EULAs)
and third-party legal notices in the readme file for your NI product. Refer to the Export Compliance Information at
ni.com/legal/export-compliance for the National Instruments global trade compliance policy and how to obtain
relevant HTS codes, ECCNs, and other import/export data. NI MAKES NO EXPRESS OR IMPLIED WARRANTIES AS TO
THE ACCURACY OF THE INFORMATION CONTAINED HEREIN AND SHALL NOT BE LIABLE FOR ANY ERRORS. U.S.
Government Customers: The data contained in this manual was developed at private expense and is subject to the applicable
limited rights and restricted data rights as set forth in FAR 52.227-14, DFAR 252.227-7014, and DFAR 252.227-7015.
1
NI-DAQmx
LabVIEW
NI-DAQmx

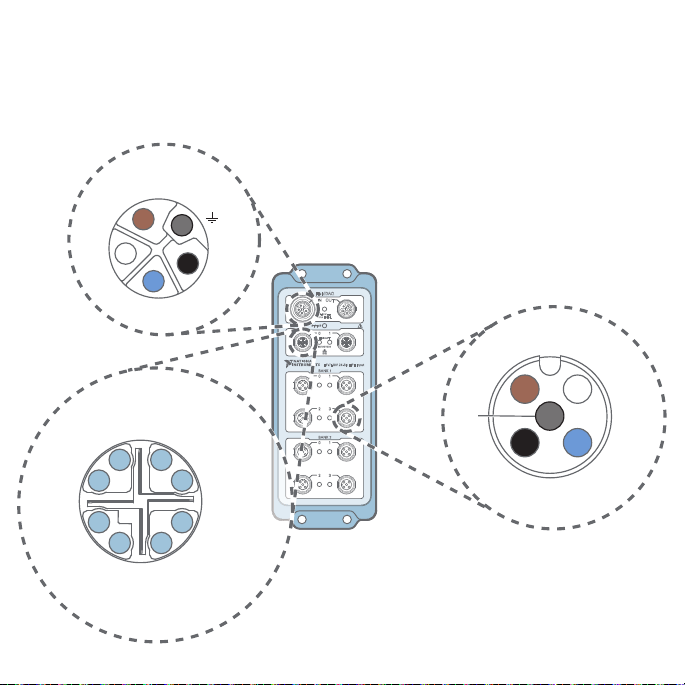

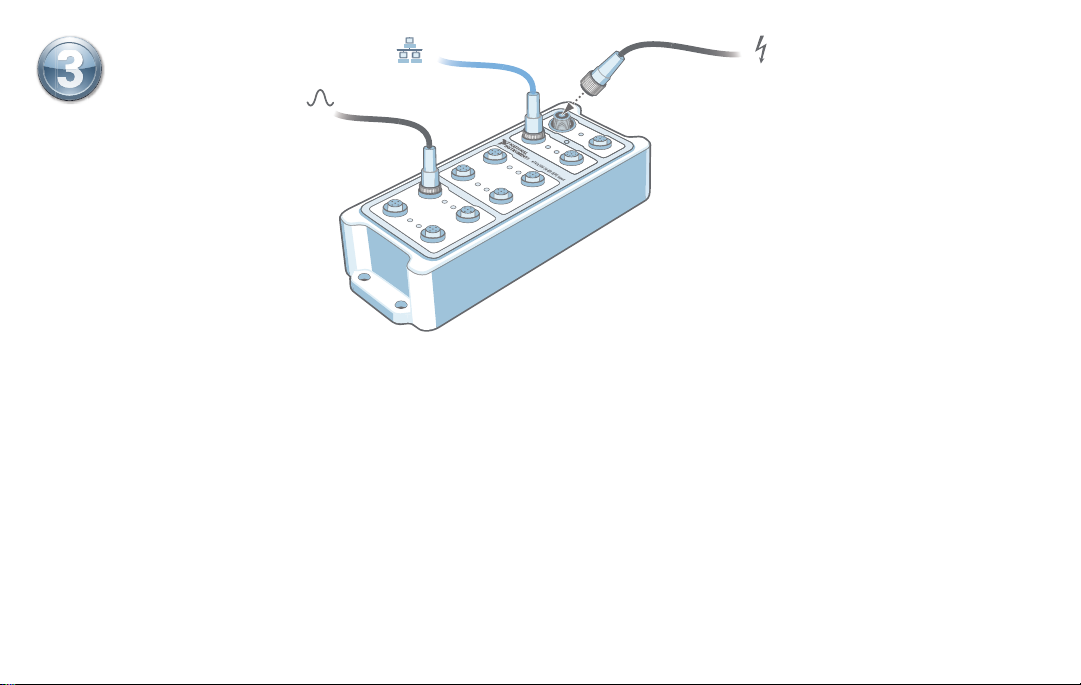

Pinout I Brochage I Pinbelegung
ピン配列 I 핀출력 I 引脚
FD-11634
±1V/±10V 24-Bit IEPE Input
0
10/100/1000
LINK/ACT
SYNC
1
IN
10A TOTAL
9-30V
FieldDAQ
STATU S
OUT
0 1
2 3
BANK 1
0 1
2 3
BANK 2
Aux2
Aux1
C
VChassis
Ground
BI_DA+
(TX+)
BI_DC–
(No Connect)
BI_DC+
(No Connect)
BI_DD–
(No Connect)
BI_DB–
(RX–)
BI_DD+
(No Connect)
BI_DA–
(TX–)
BI_DB+
(RX+) 3
4 5
6
7
8
2
1
NC
AI+
AI–
NC
NC
5
34
21
5
1
2
3
4
Software
ni.com/downloads/drivers
NI-DAQmx
Demonstrations
ni.com/daq/videos
Pinouts

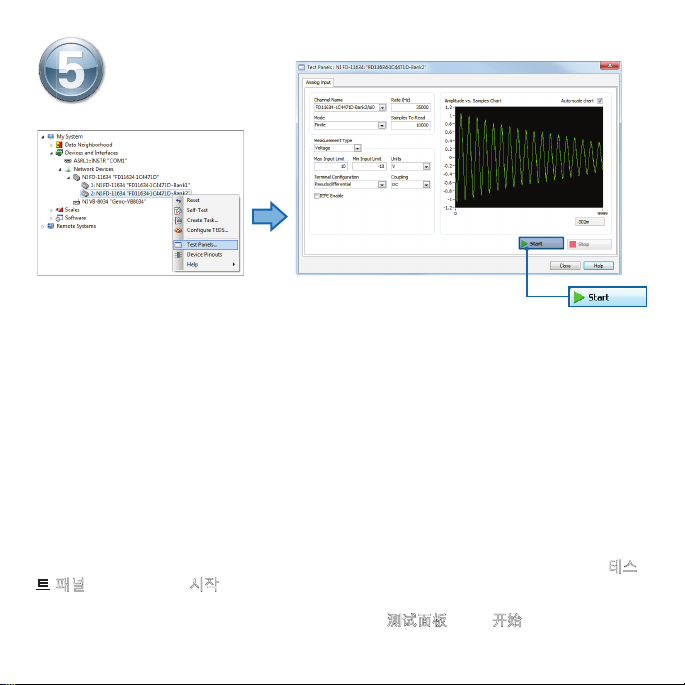

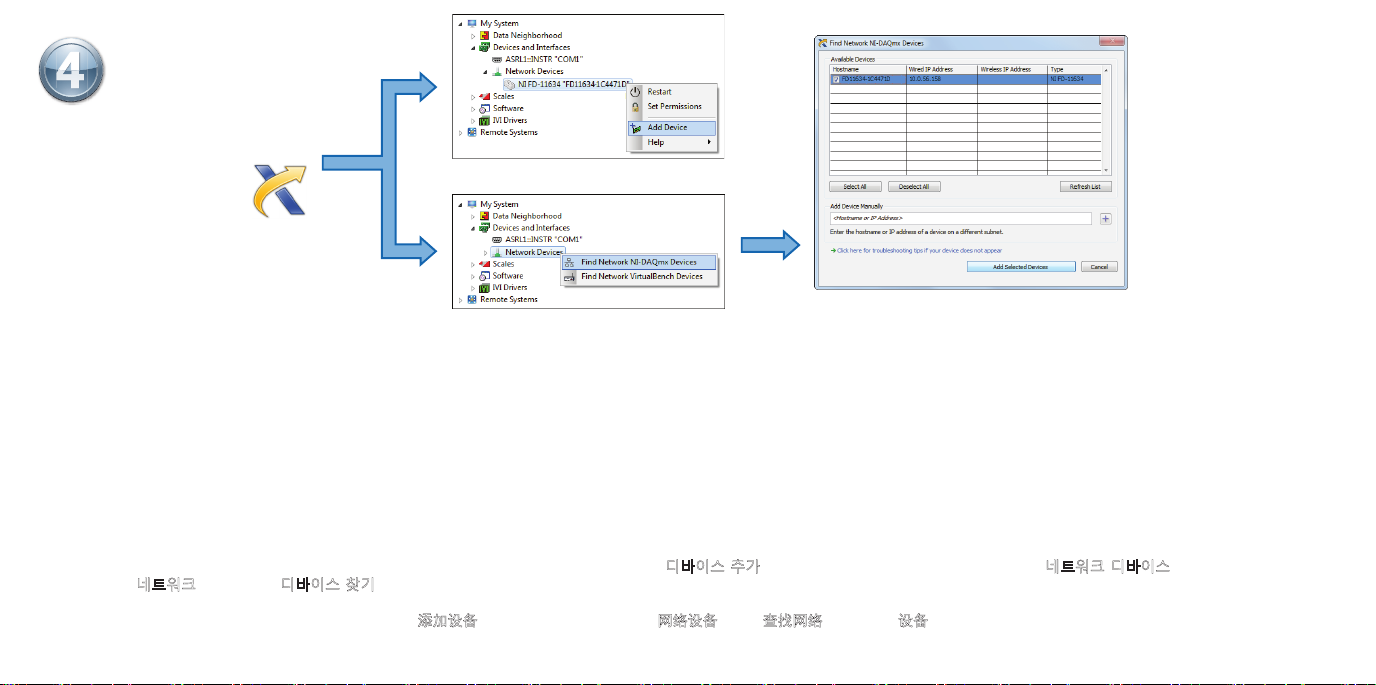

In MAX, right-click FieldDAQ
Examples
ni.com/info daqmxexp
Services and Support
ni.com/services
FD-11634 Documentation
ni.com/manuals FD-11634
Designing TSN Systems
ni.com/info fdenet
Getting Started with a
Real-Time Host
ni.com/manuals
FD-11634 User Guide

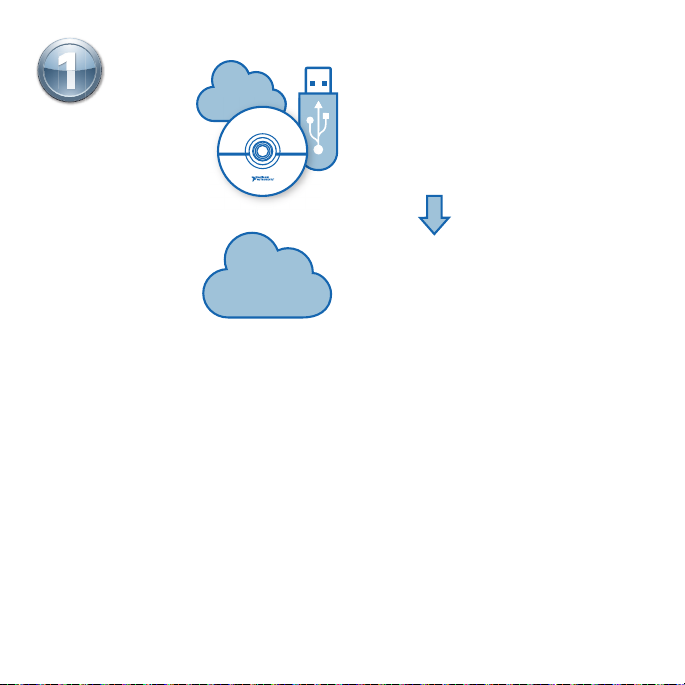

First install application development software (if applicable). Then install the most current
supported version of NI-DAQmx.
Installez d’abord le logiciel de développement d’application (le cas échéant). Ensuite,
installez la version la plus récente supportée de NI-DAQmx.
Installieren Sie zuerst die Entwicklungsumgebung (sofern zutreffend). Installieren Sie
anschließend die neueste unterstützte Version von NI-DAQmx.
アプリケーション開発ソフトウェアを最初にインストールします（必要な場合）。その後に、サポート
されているNI-DAQmxの最新バージョンをインストールしてください。
먼저 어플리케이션 개발 소프트웨어가 필요한 경우 이를 설치합니다. 그 다음 지원되는 가
장 최신 버전의 NI-DAQmx를 설치하십시오.
安装应用程序开发软件（如适用）。然后安装当前支持的最新版本NI-DAQmx。
