USER GUIDE AND SPECIFICATIONS

NI USB-9211/9211A

4-Channel, 24-Bit Thermocouple Input Devices

This user guide describes how to use the National Instruments

USB-9211/9211A devices and lists the specifications.

Introduction

The NI USB-9211/9211A data acquisition device provides a USB interface

for four channels of 24-bit thermocouple inputs with integrated signal

conditioning.

The NI USB-9211 consists of two components: an NI 9211 module and an

NI USB-9161 carrier, as shown in Figure 1. The NI USB-9211A consists

of two components: an NI 9211 module and an NI USB-9162 carrier,

as shown in Figure 1.

Figure 1. NI USB-9211/9211A Components

NI 9211

NI USB-9161/9162

NI USB-9211/9211A

NI USB-9211/9211A User Guide and Specifications 2 ni.com

Dimensions

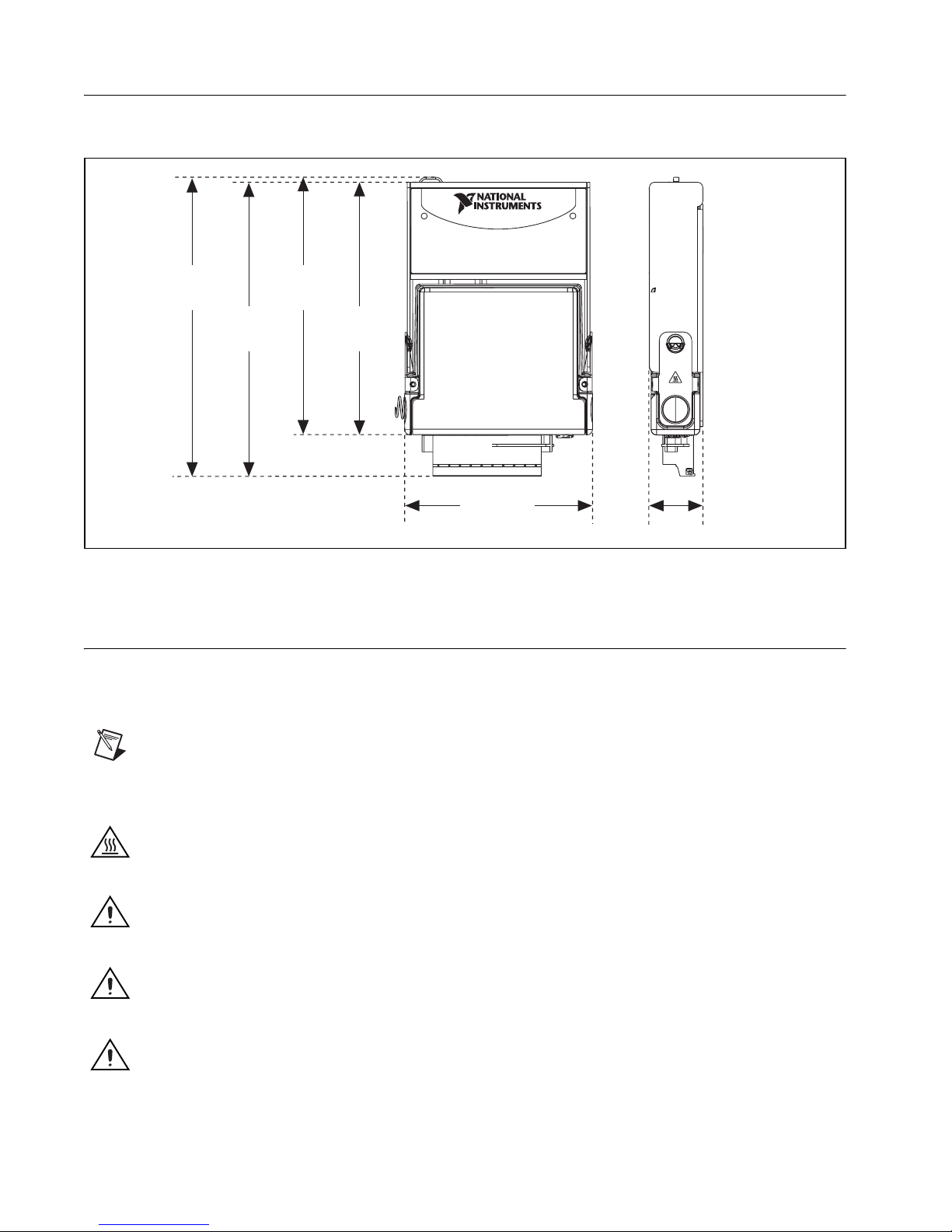

Figure 2 shows the NI USB-9211/9211A device dimensions.

Figure 2. NI USB-9211/9211A Device in Millimeters (Inches)

Safety Guidelines

Operate the NI USB-9211/9211A only as described in these operating

instructions.

Note Although the NI 9211 module may have more stringent certification standards than

the NI USB-9211/9211A, when used with the NI USB-9161/9162 carrier, the combined

system may be limited. Refer to the Specifications section for more details.

Hot Surface This icon denotes that the component may be hot. Touching this component

may result in bodily injury.

Caution Do not disconnect I/O-side wires or connectors unless power has been switched

off or the area is known to be nonhazardous.

Caution Do not remove modules unless power has been switched off or the area is known

to be nonhazardous.

Caution The NI USB-9211/9211A is not certified for use in hazardous locations.

Hi-Speed USB Carrier

NI USB-9162

140.23 mm

(5.521 in.)

137.82 mm

(5.426 in.)

120.68 mm

(4.751 in.)

118.26 mm

(4.656 in.)

88.12 mm

(3.469 in.)

25.34 mm

(0.998 in.)

©National Instruments Corporation 3 NI USB-9211/9211A User Guide and Specifications

Safety Guidelines for Hazardous Voltages

If hazardous voltages are connected to the module, take the following

precautions. A hazardous voltage is a voltage greater than 42.4 Vpk or

60 VDC to earth ground.

Caution Ensure that hazardous voltage wiring is performed only by qualified personnel

adhering to local electrical standards.

Caution Do not mix hazardous voltage circuits and human-accessible circuits on the same

module.

Caution Make sure that devices and circuits connected to the module are properly

insulated from human contact.

Caution When module terminals are live with hazardous voltages, make sure that the

terminals are not accessible by using the high voltage screw terminal enclosure. Refer to

the Assembling the High Voltage Screw Terminal Backshell section for more information.

Related Documentation

Each application software package and driver includes information about

writing applications for taking measurements and controlling measurement

devices. The following references to documents assume you have

NI-DAQmx 8.7 or later, NI-DAQmx Base 3.x, and where applicable,

version 7.1 or later of the NI application software.

NI-DAQmx for Windows

The DAQ Getting Started Guide describes how to install your NI-DAQmx

for Windows software, how to install your NI-DAQmx-supported DAQ

device, and how to confirm that your device is operating properly. Select

Start»All Programs»National Instruments»NI-DAQ»DAQ Getting

Started Guide.

The NI-DAQ Readme lists which devices are supported by this version of

NI-DAQ. Select Start»All Programs»National Instruments»NI-DAQ»

NI-DAQ Readme.

The NI-DAQmx Help contains general information about measurement

concepts, key NI-DAQmx concepts, and common applications that

are applicable to all programming environments. Select Start»

All Programs»National Instruments»NI-DAQ»NI-DAQmx Help.

Note For information about non-Windows operating system support, refer to

ni.com/info and enter BaseGSGML.

NI USB-9211/9211A User Guide and Specifications 4 ni.com

LabVIEW

If you are a new user, use the Getting Started with LabVIEW manual to

familiarize yourself with the LabVIEW graphical programming

environment and the basic LabVIEW features you use to build data

acquisition and instrument control applications. Open the Getting Started

with LabVIEW manual by selecting Start»All Programs»National

Instruments»LabVIEW»LabVIEW Manuals or by navigating to the

labview\manuals directory and opening LV_Getting_Started.pdf.

Use the LabVIEW Help, available by selecting Help»Search the

LabVIEW Help in LabVIEW, to access information about LabVIEW

programming concepts, step-by-step instructions for using LabVIEW, and

reference information about LabVIEW VIs, functions, palettes, menus, and

tools. Refer to the following locations on the Contents tab of the LabVIEW

Help for information about NI-DAQmx:

•Getting Started»Getting Started with DAQ—Includes overview

information and a tutorial to learn how to take an NI-DAQmx

measurement in LabVIEW using the DAQ Assistant.

•VI and Function Reference»Measurement I/O VIs and

Functions—Describes the LabVIEW NI-DAQmx VIs and properties.

•Taking Measurements—Contains the conceptual and how-to

information you need to acquire and analyze measurement data in

LabVIEW, including common measurements, measurement

fundamentals, NI-DAQmx key concepts, and device considerations.

LabWindows/CVI

The Data Acquisition book of the LabWindows/CVI Help contains

measurement concepts for NI-DAQmx. This book also contains Taking an

NI-DAQmx Measurement in LabWindows/CVI, which includes

step-by-step instructions about creating a measurement task using the DAQ

Assistant. In LabWindows™/CVI™, select Help»Contents, then select

Using LabWindows/CVI»Data Acquisition.

The NI-DAQmx Library book of the LabWindows/CVI Help contains

API overviews and function reference for NI-DAQmx. Select Library

Reference»NI-DAQmx Library in the LabWindows/CVI Help.

Measurement Studio

If you program your NI-DAQmx-supported device in Measurement Studio

using Visual C++, Visual C#, or Visual Basic .NET, you can interactively

create channels and tasks by launching the DAQ Assistant from MAX or

from within Visual Studio .NET. You can generate the configuration code

©National Instruments Corporation 5 NI USB-9211/9211A User Guide and Specifications

based on your task or channel in Measurement Studio. Refer to the DAQ

Assistant Help for additional information about generating code. You also

can create channels and tasks, and write your own applications in your

ADE using the NI-DAQmx API.

For help with NI-DAQmx methods and properties, refer to the NI-DAQmx

.NET Class Library or the NI-DAQmx Visual C++ Class Library included

in the NI Measurement Studio Help. For general help with programming in

Measurement Studio, refer to the NI Measurement Studio Help, which is

fully integrated with the Microsoft Visual Studio .NET help. To view

this help file in Visual Studio. NET, select Measurement Studio»

NI Measurement Studio Help.

To create an application in Visual C++, Visual C#, or Visual Basic .NET,

follow these general steps:

1. In Visual Studio .NET, select File»New»Project to launch the New

Project dialog box.

2. Find the Measurement Studio folder for the language you want to

create a program in.

3. Choose a project type. You add DAQ tasks as a part of this step.

ANSI C without NI Application Software

The NI-DAQmx Help contains API overviews and general information

about measurement concepts. Select Start»All Programs»National

Instruments»NI-DAQ»NI-DAQmx Help.

The NI-DAQmx C Reference Help describes the NI-DAQmx Library

functions, which you can use with National Instruments data acquisition

devices to develop instrumentation, acquisition, and control applications.

Select Start»All Programs»National Instruments»NI-DAQ»

NI-DAQmx C Reference Help.

.NET Languages without NI Application Software

With the Microsoft .NET Framework version 1.1 or later, you can use

NI-DAQmx to create applications using Visual C# and Visual Basic

.NET without Measurement Studio. You need Microsoft Visual Studio

.NET 2003 or Microsoft Visual Studio 2005 for the API documentation to

be installed.

The installed documentation contains the NI-DAQmx API overview,

measurement tasks and concepts, and function reference. This help is fully

integrated into the Visual Studio .NET documentation. To view the

NI-DAQmx .NET documentation, go to Start»Programs»National

Instruments»NI-DAQ»NI-DAQmx .NET Reference Help. Expand

NI Measurement Studio Help»NI Measurement Studio .NET Class

NI USB-9211/9211A User Guide and Specifications 6 ni.com

Library»Reference to view the function reference. Expand

NI Measurement Studio Help»NI Measurement Studio .NET Class

Library»Using the Measurement Studio .NET Class Libraries to view

conceptual topics for using NI-DAQmx with Visual C# and Visual Basic

.NET.

To get to the same help topics from within Visual Studio, go to Help»

Contents. Select Measurement Studio from the Filtered By drop-down

list and follow the previous instructions.

Device Documentation and Specifications

NI-DAQmx includes the Device Document Browser, which contains online

documentation for supported DAQ and SCXI devices, such as documents

describing device pinouts, features, and operation. You can find, view,

and/or print the documents for each device using the Device Document

Browser at any time by inserting the CD. After installing the Device

Document Browser, device documents are accessible from Start»

All Programs»National Instruments»NI-DAQ»Browse Device

Documentation.

Note You can download these documents at ni.com/manuals.

NI-DAQmx Base (Linux/Mac OS X/LabVIEW PDA 8.x)

The NI-DAQmx Base Getting Started Guide describes how to install your

NI-DAQmx Base software, your NI-DAQmx Base-supported DAQ device,

and how to confirm that your device is operating properly. In Windows,

select Start»All Programs»National Instruments»NI-DAQmx Base»

Documentation»Getting Started Guide.

Getting Started with NI-DAQmx Base for Linux and Mac Users describes

how to install your NI-DAQmx Base software, your NI-DAQmx

Base-supported DAQ device, and how to confirm that your device is

operating properly on your Mac/Linux machine.

The NI-DAQmx Base Readme lists which devices are supported by this

version of NI-DAQmx Base. In Windows, select Start»All Programs»

National Instruments»NI-DAQmx Base»DAQmx Base Readme.

The NI-DAQmx Base VI Reference Help contains VI reference and general

information about measurement concepts. In LabVIEW, select Help»

NI-DAQmx Base VI Reference Help.

The NI-DAQmx Base C Reference Help contains C reference and general

information about measurement concepts. In Windows, select Start»

All Programs»National Instruments»NI-DAQmx

©National Instruments Corporation 7 NI USB-9211/9211A User Guide and Specifications

Base»Documentation»

C Function Reference Help.

Note All NI-DAQmx Base documentation for Linux is installed at /usr/local/

natinst/nidaqmxbase/documentation.

Note All NI-DAQmx Base documentation for Mac OS X is installed at /Applications/

National Instruments/NI-DAQmx Base/documentation.

Training Courses

If you need more help getting started developing an application with

NI products, NI offers training courses. To enroll in a course or obtain a

detailed course outline, refer to ni.com/training.

Technical Support on the Web

For additional support, refer to ni.com/support or zone.ni.com.

Installing the Software

Software support for the NI USB-9211/9211A for Windows

Vista/XP/2000 is provided by NI-DAQmx or NI-DAQmx Base depending

on the software you are using. Software support for your hardware depends

on the carrier being used. Refer to Table 1 for a list of software support.

The DAQ Getting Started Guide, which you can download at ni.com/

manuals, offers NI-DAQmx users step-by-step instructions for installing

software and hardware, configuring channels and tasks, and getting started

developing an application.

Note For information about non-Windows operating system support, refer to ni.com/

info and enter BaseGSGML.

Table 1. Devices and Corresponding Components

Device Carrier Software Support

NI USB-9211 NI USB-9161 NI-DAQmx Base 2.2 and previous

NI USB-9211A NI USB-9162 NI-DAQmx or NI-DAQmx Base 3.0 and later

NI USB-9211/9211A User Guide and Specifications 8 ni.com

Installing Other Software

If you are using other software, refer to the installation instructions that

accompany your software.

Note If your device uses NI-DAQmx Base, refer to ni.com to download the software.

Example Programs

The NI-DAQmx CD contains example programs that you can use to get

started programming with the NI USB-9211A. Refer to the NI-DAQmx for

USB Devices Getting Started Guide that shipped with your device, and is

also accessible from Start»All Programs»National Instruments»

NI-DAQ,for more information.

The NI-DAQmx Base software ships with example programs you can use

to get started programming with the NI USB-9211/9211A. Refer to the

NI-DAQmx Base Getting Started Guide that shipped with your device, and

is also accessible from Start»All Programs»National Instruments»

NI-DAQmx Base»Documentation, for more information.

Installing the NI USB-9211/9211A Device

Before installing the device, you must install the software you plan to use

with the device. Refer to the Installing the Software section of this guide

and the documentation included with the software for more information.

Installing the NI 9211 in the NI USB-9161/9162 Carrier

The NI 9211 module and the NI USB-9161/9162 carrier are packaged

separately. Refer to Figure 3, while completing the following assembly

steps:

1. Make sure that no signals are connected to the NI 9211 module and the

USB cable is not connected to the device.

2. Remove the protective cover from the 15-pin D-SUB connector.

©National Instruments Corporation 9 NI USB-9211/9211A User Guide and Specifications

3. Align the I/O module with the carrier, as shown in Figure 3.

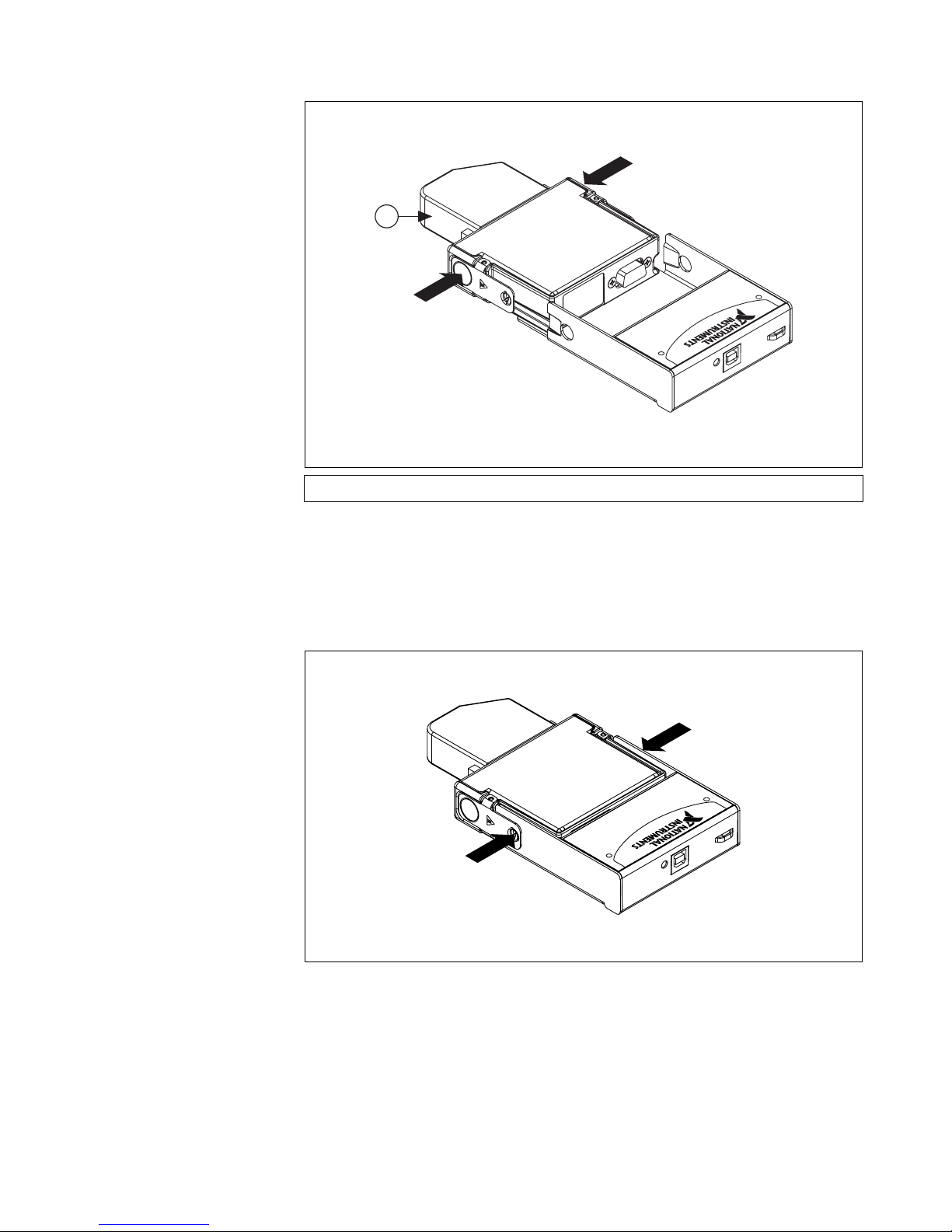

Figure 3. Module Installation

4. Squeeze the latches and insert the NI 9211 module into the carrier.

5. Press firmly on the connector side of the NI 9211 module until the

latches lock the module into place, as shown in Figure 4.

Figure 4. Locking Module into Place

1 High Voltage Screw Terminal Backshell

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali National Instruments Sistema I/O

National Instruments

National Instruments PXI-6040E Manuale utente

National Instruments

National Instruments NI REM-11100 Manuale utente

National Instruments

National Instruments NI 9208E Manuale utente

National Instruments

National Instruments FOUNDATION Manuale utente

National Instruments

National Instruments NI 9251 Manuale

National Instruments

National Instruments PCIe-784 R Series Manuale utente

National Instruments

National Instruments SCC-ACC01 Manuale utente

National Instruments

National Instruments 9224 Manuale

National Instruments

National Instruments NI 9225 Manuale utente

National Instruments

National Instruments SCC-AI Series Manuale utente

National Instruments

National Instruments NI USB-6008 Manuale utente

National Instruments

National Instruments NI 9263 Manuale utente

National Instruments

National Instruments Quadrature Input Module FP-QUAD-510 Manuale utente

National Instruments

National Instruments Isolated Analog Input Modules SCC-AI01 Manuale utente

National Instruments

National Instruments 9263 Manuale utente

National Instruments

National Instruments SCXI-1104 Manuale utente

National Instruments

National Instruments FieldPoint FP-DO-400 Manuale utente

National Instruments

National Instruments PXI-7830R Manuale utente

National Instruments

National Instruments NI 9226 Manuale

National Instruments

National Instruments NI 9485 Manuale utente

National Instruments

National Instruments NI-9244 Manuale utente

National Instruments

National Instruments NI 783xR Manuale utente

National Instruments

National Instruments 9242 Manuale utente

National Instruments

National Instruments 9220 Manuale utente

Manuali Sistema I/O popolari di altre marche

WAGO

WAGO 750-344 Manuale utente

Teknim

Teknim TWM-1887 Manuale di istruzioni

Intelligent Appliance

Intelligent Appliance IA-2662-E Manuale utente

BERGHOF

BERGHOF ECC DIO 16/16 Manuale di istruzioni

Advantech

Advantech PCM-27J3AU Manuale di installazione e funzionamento

Festo

Festo CP-E08-M12-CL Manuale utente

Measurement Computing

Measurement Computing PCI-DAS64/M1/16 Manuale utente

Hitachi

Hitachi HX-RIO3 Series Manuale utente

NUUO

NUUO SCB-A08 Manuale utente

M-system

M-system R3Y-RS8 Manuale utente

jablotron

jablotron JB-110N Manuale utente

Omron

Omron SYSMAC C200H Manuale utente

DOLD

DOLD SAFEMASTER M Manuale utente

ABB

ABB OPT-MF-001 Manuale utente

Omron

Omron SYSMAC C2000H Manuale utente

Helmholz

Helmholz TB20 Manuale utente

ICP DAS USA

ICP DAS USA tM-AD2 Manuale utente

Automationdirect.com

Automationdirect.com DL305 Manuale utente
