USER GUIDE AND SPECIFICATIONS

NI USB-9233

4-Channel, ±5 V, 24-Bit IEPE Analog Input Device

This user guide describes how to use the National Instruments USB-9233

and lists the device specifications.

Introduction

The NI USB-9233 data acquisition device provides a USB interface for

four channels of 24-bit analog inputs with integrated signal conditioning.

The NI USB-9233 consists of two components: an NI 9233 module and an

NI USB-9162 carrier, as shown in Figure 1.

Figure 1. NI USB-9233 Components

NI 9233

NI USB-9162

NI USB-9233

HI-Speed USB Carrier

NI USB-9162

Hi-Speed USB Carrier

NI USB-9162

NI USB-9233 User Guide and Specifications 2 ni.com

Dimensions

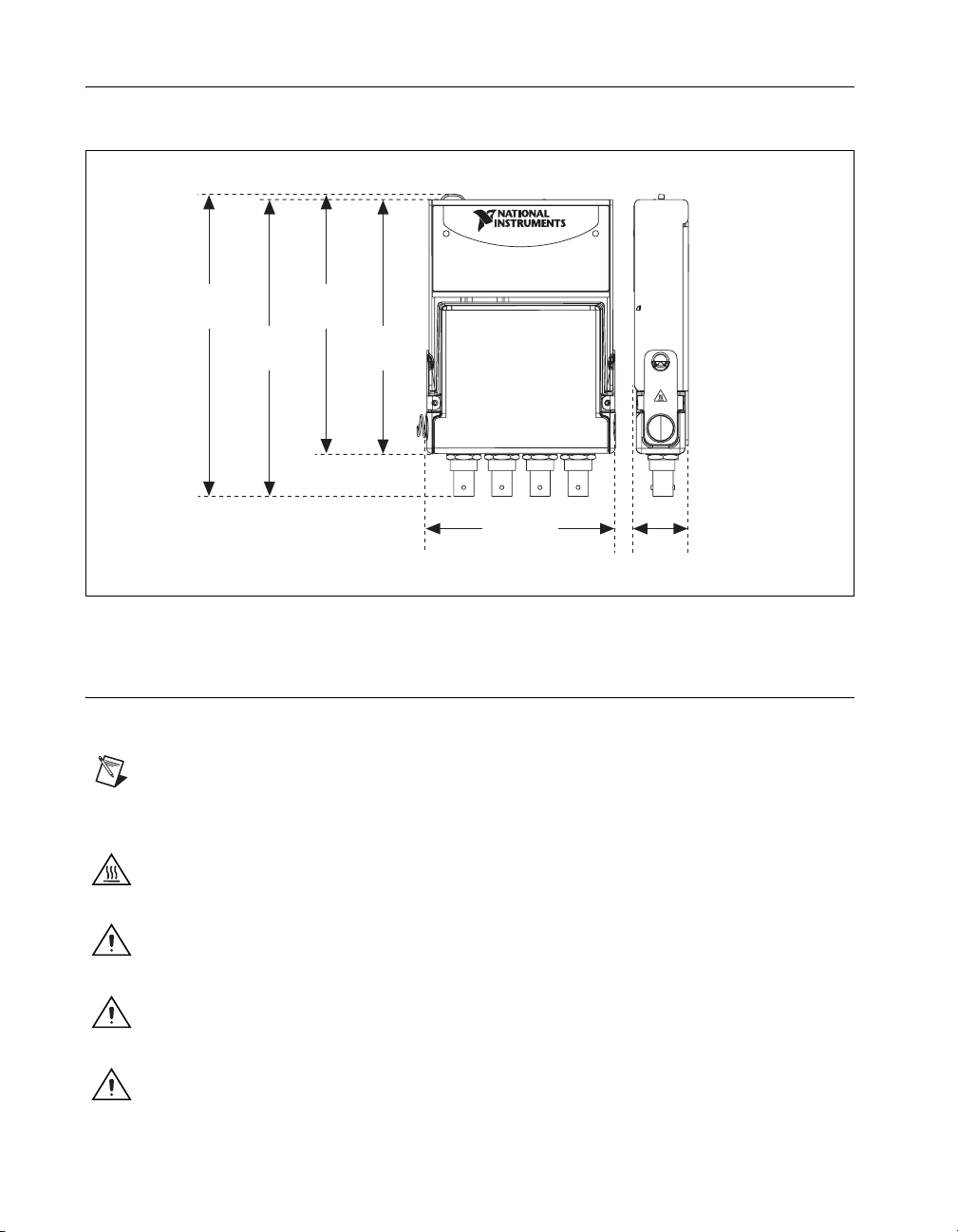

Figure 2 shows the NI USB-9233 device dimensions.

Figure 2. NI USB-9233 Device in Millimeters (Inches)

Safety Guidelines

Operate the NI USB-9233 only as described in these operating instructions.

Note Although the NI 9233 module may have more stringent certification standards than

the NI USB-9233, when used with the USB-9162 carrier, the combined system may be

limited. Refer to the Specifications section for more details.

Hot Surface This icon denotes that the component may be hot. Touching this component

may result in bodily injury.

Caution Do not disconnect I/O-side wires or connectors unless power has been switched

off or the area is known to be nonhazardous.

Caution Do not remove modules unless power has been switched off and the area is known

to be nonhazardous.

Caution The NI USB-9233 is not certified for use in hazardous locations.

Hi-Speed USB Carrier

NI USB-9162

140.66 mm

(5.538 in.)

138.30 mm

(5.445 in.)

120.68 mm

(4.751 in.)

118.26 mm

(4.656 in.)

88.12 mm

(3.469 in.)

25.34 mm

(0.998 in.)

©National Instruments Corporation 3 NI USB-9233 User Guide and Specifications

Related Documentation

Each application software package and driver includes information about

writing applications for taking measurements and controlling measurement

devices. The following references to documents assume you have

NI-DAQmx 8.7 or later, and where applicable, version 7.1 or later of the

NI application software.

NI-DAQmx for Windows

The DAQ Getting Started Guide describes how to install your NI-DAQmx

for Windows software, your NI-DAQmx-supported DAQ device, and how

to confirm that your device is operating properly. Select Start»All

Programs»National Instruments»NI-DAQ»DAQ Getting Started

Guide.

The NI-DAQ Readme lists which devices are supported by this version of

NI-DAQ. Select Start»All Programs»National Instruments»NI-DAQ»

NI-DAQ Readme.

The NI-DAQmx Help contains general information about measurement

concepts, key NI-DAQmx concepts, and common applications that are

applicable to all programming environments. Select Start»All

Programs»National Instruments»NI-DAQ»NI-DAQmx Help.

LabVIEW

If you are a new user, use the Getting Started with LabVIEW manual to

familiarize yourself with the LabVIEW graphical programming

environment and the basic LabVIEW features you use to build data

acquisition and instrument control applications. Open the Getting Started

with LabVIEW manual by selecting Start»All Programs»National

Instruments»LabVIEW»LabVIEW Manuals or by navigating to the

labview\manuals directory and opening LV_Getting_Started.pdf.

Use the LabVIEW Help, available by selecting Help»Search the

LabVIEW Help in LabVIEW, to access information about LabVIEW

programming concepts, step-by-step instructions for using LabVIEW, and

reference information about LabVIEW VIs, functions, palettes, menus, and

tools. Refer to the following locations on the Contents tab of the LabVIEW

Help for information about NI-DAQmx:

•Getting Started»Getting Started with DAQ—Includes overview

information and a tutorial to learn how to take an NI-DAQmx

measurement in LabVIEW using the DAQ Assistant.

•VI and Function Reference»Measurement I/O VIs and

Functions—Describes the LabVIEW NI-DAQmx VIs and properties.

NI USB-9233 User Guide and Specifications 4 ni.com

•Taking Measurements—Contains the conceptual and how-to

information you need to acquire and analyze measurement data in

LabVIEW, including common measurements, measurement

fundamentals, NI-DAQmx key concepts, and device considerations.

LabWindows/CVI

The Data Acquisition book of the LabWindows/CVI Help contains

measurement concepts for NI-DAQmx. This book also contains Taking an

NI-DAQmx Measurement in LabWindows/CVI, which includes

step-by-step instructions about creating a measurement task using the DAQ

Assistant. In LabWindows™/CVI™, select Help»Contents, then select

Using LabWindows/CVI»Data Acquisition.

The NI-DAQmx Library book of the LabWindows/CVI Help contains API

overviews and function reference for NI-DAQmx. Select Library

Reference»NI-DAQmx Library in the LabWindows/CVI Help.

Measurement Studio

If you program your NI-DAQmx-supported device in Measurement Studio

using Visual C++, Visual C#, or Visual Basic .NET, you can interactively

create channels and tasks by launching the DAQ Assistant from MAX or

from within Visual Studio .NET. You can generate the configuration code

based on your task or channel in Measurement Studio. Refer to the DAQ

Assistant Help for additional information about generating code. You also

can create channels and tasks, and write your own applications in your

ADE using the NI-DAQmx API.

For help with NI-DAQmx methods and properties, refer to the NI-DAQmx

.NET Class Library or the NI-DAQmx Visual C++ Class Library included

in the NI Measurement Studio Help. For general help with programming in

Measurement Studio, refer to the NI Measurement Studio Help, which is

fully integrated with the Microsoft Visual Studio .NET help. To view

this help file in Visual Studio. NET, select Measurement Studio»

NI Measurement Studio Help.

To create an application in Visual C++, Visual C#, or Visual Basic .NET,

follow these general steps:

1. In Visual Studio .NET, select File»New»Project to launch the New

Project dialog box.

2. Find the Measurement Studio folder for the language you want to

create a program in.

3. Choose a project type. You add DAQ tasks as a part of this step.

©National Instruments Corporation 5 NI USB-9233 User Guide and Specifications

ANSI C without NI Application Software

The NI-DAQmx Help contains API overviews and general information

about measurement concepts. Select Start»All Programs»National

Instruments»NI-DAQ»NI-DAQmx Help.

The NI-DAQmx C Reference Help describes the NI-DAQmx Library

functions, which you can use with National Instruments data acquisition

devices to develop instrumentation, acquisition, and control applications.

Select Start»All Programs»National Instruments»NI-DAQ»

NI-DAQmx C Reference Help.

.NET Languages without NI Application Software

With the Microsoft .NET Framework version 1.1 or later, you can use

NI-DAQmx to create applications using Visual C# and Visual Basic

.NET without Measurement Studio. You need Microsoft Visual Studio

.NET 2003 or Microsoft Visual Studio 2005 for the API documentation to

be installed.

The installed documentation contains the NI-DAQmx API overview,

measurement tasks and concepts, and function reference. This help is fully

integrated into the Visual Studio .NET documentation. To view the

NI-DAQmx .NET documentation, go to Start»Programs»National

Instruments»NI-DAQ»NI-DAQmx .NET Reference Help. Expand

NI Measurement Studio Help»NI Measurement Studio .NET Class

Library»Reference to view the function reference. Expand NI

Measurement Studio Help»NI Measurement Studio .NET Class

Library»Using the Measurement Studio .NET Class Libraries to view

conceptual topics for using NI-DAQmx with Visual C# and Visual

Basic .NET.

To get to the same help topics from within Visual Studio, go to

Help»Contents. Select Measurement Studio from the Filtered By

drop-down list and follow the previous instructions.

Device Documentation and Specifications

NI-DAQmx includes the Device Document Browser, which contains

online documentation for supported DAQ, SCXI, and switch devices, such

as help files describing device pinouts, features, and operation, and PDF

files of the printed device documents. You can find, view, and/or print the

documents for each device using the Device Document Browser at any

time by inserting the CD. After installing the Device Document Browser,

device documents are accessible from Start»All Programs»National

Instruments»NI-DAQ»Browse Device Documentation.

Note You can also download these documents at ni.com/manuals.

NI USB-9233 User Guide and Specifications 6 ni.com

Training Courses

If you need more help getting started developing an application with

NI products, NI offers training courses. To enroll in a course or obtain a

detailed course outline, refer to ni.com/training.

Technical Support on the Web

For additional support, refer to ni.com/support or zone.ni.com.

Installing the Software

Software support for the NI USB-9233 for Windows Vista/XP/2000 is

provided by NI-DAQmx. The DAQ Getting Started Guide, which you can

download at ni.com/manuals, offers NI-DAQmx users step-by-step

instructions for installing software and hardware, configuring channels and

tasks, and getting started developing an application.

Installing Other Software

If you are using other software, refer to the installation instructions that

accompany your software.

Example Programs

The NI-DAQmx CD contains example programs that you can use to get

started programming with the NI USB-9233. Refer to the NI-DAQmx for

USB Devices Getting Started Guide, that shipped with your device and is

also accessible from Start»All Programs»National Instruments»

NI-DAQ for more information.

Installing the NI USB-9233 Device

Before installing the device, you must install the software you plan to use

with the device. Refer to the Installing the Software section of this guide

and the documentation included with the software for more information.

Installing the NI 9233 in the NI USB-9162 Carrier

The NI 9233 module and NI USB-9162 carrier are packaged separately.

Refer to Figure 3, while completing the following assembly steps:

1. Make sure that no signals are connected to the NI 9233 module and

that the USB cable is not connected to the device.

2. Remove the protective cover from the 15-pin D-SUB connector.

©National Instruments Corporation 7 NI USB-9233 User Guide and Specifications

3. Align the I/O module with the carrier, as shown in Figure 3.

Figure 3. Module Installation

4. Squeeze the latches and insert the NI 9233 module into the

NI USB-9162 carrier.

5. Press firmly on the connector side of the NI 9233 module until the

latches lock the module into place, as shown in Figure 4.

Figure 4. Locking Module into Place

Hi-Speed USB Carrier

NI USB-9162

Hi-Speed USB Carrier

NI USB-9162

NI USB-9233 User Guide and Specifications 8 ni.com

Mounting the NI USB-9233 to a Panel

Threaded inserts are located in the NI USB-9233 for mounting it to a panel.

Refer to Figure 5 for dimensions.

Figure 5. Module Dimensions in Millimeters (Inches)

Connecting the NI USB-9233 to a Computer

Plug one end of the USB cable into the NI USB-9233 and the other end into

an available USB port on the computer. Refer to the NI-DAQmx for USB

Devices Getting Started Guide that shipped with your device, and is also

accessible from Start»All Programs»National Instruments»NI-DAQ,

for more information.

LED Indicator

The NI USB-9233 device has a green LED next to the USB connector. The

LED indicator indicates device status, as listed in Table 1. When the device

is connected to a USB port, the LED blinks steadily to indicate that the

device is initialized and is receiving power from the connection.

If the LED is not blinking, it may mean that the device is not initialized or

the computer is in standby mode. In order for the device to be recognized,

the device must be connected to a computer that has NI-DAQmx installed

on it. If your device is not blinking, make sure your computer has the latest

version of NI-DAQmx installed on it, and the computer is not in standby

mode.

Threaded Insert

M3 x 0.5

8.5 mm (0.34 in.) Max Depth

72.2 mm

(2.84 in.)

85.7 mm

(3.37 in.)

76.1 mm

(3.00 in.)

©National Instruments Corporation 9 NI USB-9233 User Guide and Specifications

Wiring the NI USB-9233 Device

The NI USB-9233 has four BNC connectors that provide connections for

four simultaneously-sampled analog input channels. Each channel has

a BNC connector to which you can connect an integrated electronic

piezoelectric (IEPE) sensor. The center pin of the connector, AI+, provides

the DC excitation and AC signal connection. The shell of the connector,

AI–, provides the excitation return path and AC signal ground reference.

Refer to Figure 6 for the connector assignments for each channel.

Figure 6. Connector Assignments

Table 1. LED State/Device Status

LED State Device Status

Not lit Device not connected or in suspend.

On, not blinking Device connected, but no module installed.

Single-blink Operating normally.

Double-blink Connected to USB Full-Speed port. Device

performance might be affected. Refer to the

Specifications section for more information.

Quadruple-blink Device error. Refer to ni.com/support.

AI3+

AI3–

AI2+

AI2–

AI0+

AI0–

AI1+

AI1–

NI USB-9233 User Guide and Specifications 10 ni.com

Connecting IEPE Sensors to the NI USB-9233

You can connect ground-referenced or floating IEPE sensors to the

NI USB-9233. You can avoid picking up ground noise by using a floating

connection. Typical IEPE sensors have a case that is electrically isolated

from the IEPE electronics, so connecting the sensor to the NI USB-9233

results in a floating connection even though the case of the sensor is

grounded.

If you make a ground-referenced connection between the IEPE sensor

and the NI USB-9233, make sure the voltage on the AI– shell is in the

common-mode range to ensure proper operation of the NI USB-9233. The

AI– shell is protected against accidental contact with overvoltages within

the overvoltage protection range. Refer to the Specifications section for

more information about operating voltages and overvoltage protection.

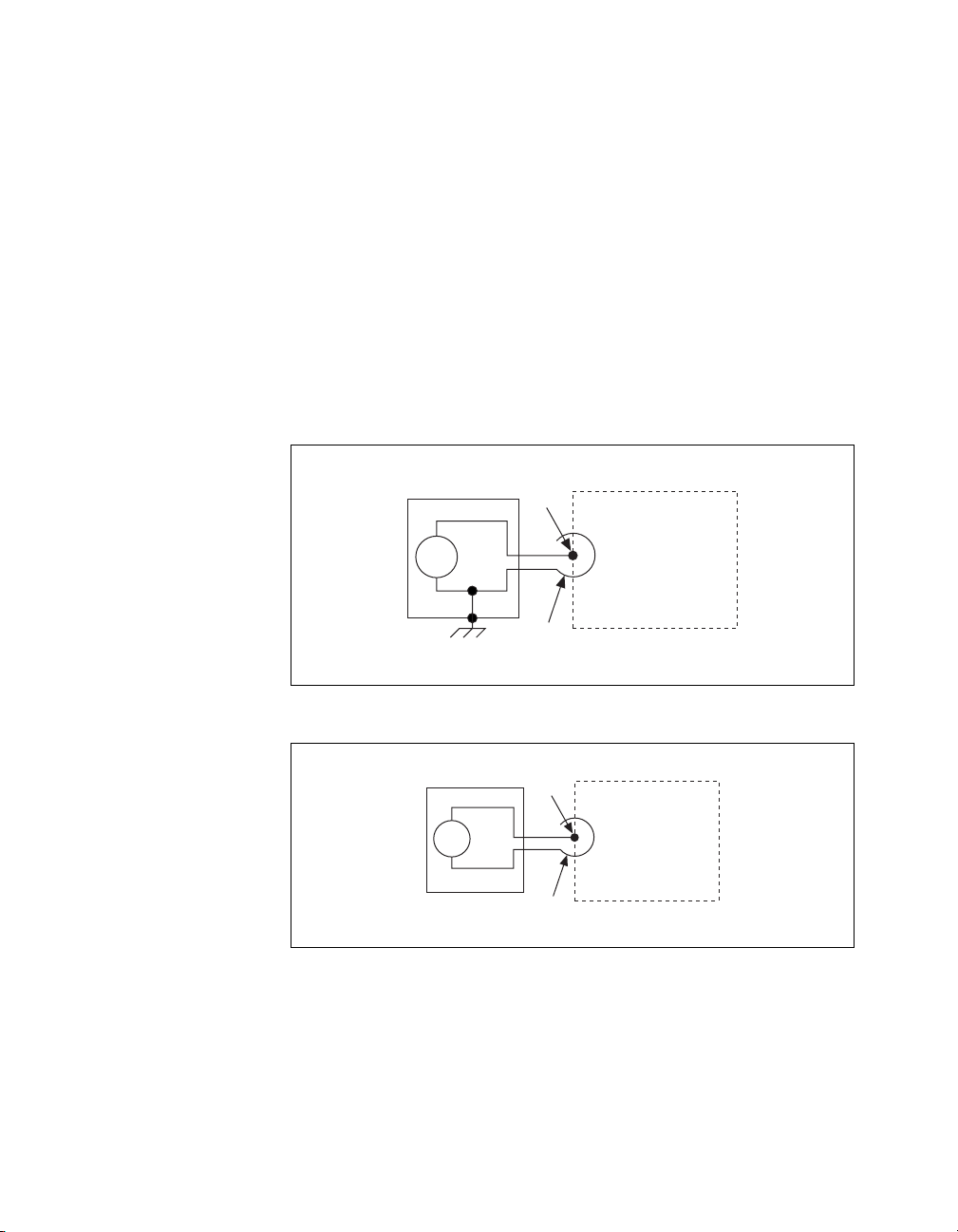

Figures 7 and 8 illustrate connecting a grounded and floating IEPE sensor

to the NI USB-9233.

Figure 7. Connecting a Grounded IEPE Sensor to the NI USB-9233

Figure 8. Connecting a Floating IEPE Sensor to the NI USB-9233

NI USB-9233

IEPE Sensor

AI+

AI–

–

NI USB-9233

IEPE Sensor

AI+

AI–

–

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali National Instruments Sistema I/O

National Instruments

National Instruments Interface Device NI PCI-1426 Manuale utente

National Instruments

National Instruments R Series Manuale utente

National Instruments

National Instruments FIELDPOINT cFP-AI-118 Manuale utente

National Instruments

National Instruments NI 9231 Manuale

National Instruments

National Instruments PXI-8211 Manuale utente

National Instruments

National Instruments SCXI-1126 Manuale utente

National Instruments

National Instruments 9252 Manuale

National Instruments

National Instruments 9213E Manuale utente

National Instruments

National Instruments PXI-6238 Manuale utente

National Instruments

National Instruments NI 9239 Manuale utente

National Instruments

National Instruments SC Express PXIe-4309 Manuale utente

National Instruments

National Instruments Low-Cost Multifunction I/O Board for ISA... Manuale utente

National Instruments

National Instruments NI 9205 Manuale utente

National Instruments

National Instruments 24-Bit Half/Full-Bridge Analog Input Module NI... Manuale utente

National Instruments

National Instruments SCXI-1121 Manuale

National Instruments

National Instruments roboRIO Manuale utente

National Instruments

National Instruments NI-9228 Manuale

National Instruments

National Instruments USB-6221 OEM Manuale utente

National Instruments

National Instruments SC Express PXIe-4309 Manuale

National Instruments

National Instruments PXIe-7822R Manuale utente

National Instruments

National Instruments PXIe-4480 Manuale

National Instruments

National Instruments NI 9754 Manuale utente

National Instruments

National Instruments IMAQ SCB-100 Manuale utente

National Instruments

National Instruments NI USB-6008 Manuale utente

Manuali Sistema I/O popolari di altre marche

WAGO

WAGO 750-344 Manuale utente

Teknim

Teknim TWM-1887 Manuale di istruzioni

Intelligent Appliance

Intelligent Appliance IA-2662-E Manuale utente

BERGHOF

BERGHOF ECC DIO 16/16 Manuale di istruzioni

Advantech

Advantech PCM-27J3AU Manuale di installazione e funzionamento

Festo

Festo CP-E08-M12-CL Manuale utente

Measurement Computing

Measurement Computing PCI-DAS64/M1/16 Manuale utente

Hitachi

Hitachi HX-RIO3 Series Manuale utente

NUUO

NUUO SCB-A08 Manuale utente

M-system

M-system R3Y-RS8 Manuale utente

jablotron

jablotron JB-110N Manuale utente

Omron

Omron SYSMAC C200H Manuale utente

DOLD

DOLD SAFEMASTER M Manuale utente

ABB

ABB OPT-MF-001 Manuale utente

Omron

Omron SYSMAC C2000H Manuale utente

Helmholz

Helmholz TB20 Manuale utente

ICP DAS USA

ICP DAS USA tM-AD2 Manuale utente

Automationdirect.com

Automationdirect.com DL305 Manuale utente
