Current as of 2019-03-18

Instruction Manual for

M67 Double Flip Holder

for M67 Macro Ports

PN# 25108

FOREWORD

Thank you for your purchase of a NAUTICAM product.

At NAUTICAM, we pride ourselves in the ability to recognize the

requirements of professional as well as amateur underwater

photographers and fulfill them through the innovative designs of our

products. We strive to achieve a high level of user-friendliness by

allowing stress-free installation and easy operation of all important

functions of the camera.

Please read this manual carefully before using the product, this will

maximize its performance as well as its lifetime.

WARRANTY

All NAUTICAM Products are warranted against any material and

manufacturing defects for two years from the date of purchase for

consumer use. This warranty only applies to products purchased from

authorized NAUTICAM dealers and does not extend beyond the original

retail purchaser.

To return your product for service, please contact your regional

authorized service center(s). Please note that this warranty only applies

when the product is purchased in the territory where the service center

is located.

NAUTICAM does not hold responsibility for damage, of any nature, to

any equipment used with and/or placed within our products.

NAUTICAM accepts no liability for any loss of captured images or the

inability to capture images even if it is due to the malfunctioning of our

products.

Unauthorized modifications and/or repairs of our products will

automatically invalidate the warranty.

INSTALL TO THE PORT

1. Press the lever and flip the holder to the side

2. Remove the locking ring from the flip holder

3. Align the two positioning screws on the back

of the holder with the slots on the front of

the port.

The position of the flip holder can be

changed by relocating the two screws in the

threaded holes around holder.

Current as of 2019-03-18

Soak the flip holder in fresh water after each dive and use

air blower to remove any sands or dusts in the hinge part.

*This M67 Double flip holder has been designed to use with

Naticam Wet Lenses, such as MWL, SMC and CMC, which means

that this holder has to support the weight of those lenses. Hence,

tightness of the hinge is necessary and normal.

Remark: All Nauticam product manual will be changed to e-manual in end of

2018. Please download corresponding product manuals on Nauticam.com

website, or contact us for e-manuals.

CARE AND MAINTENANCE

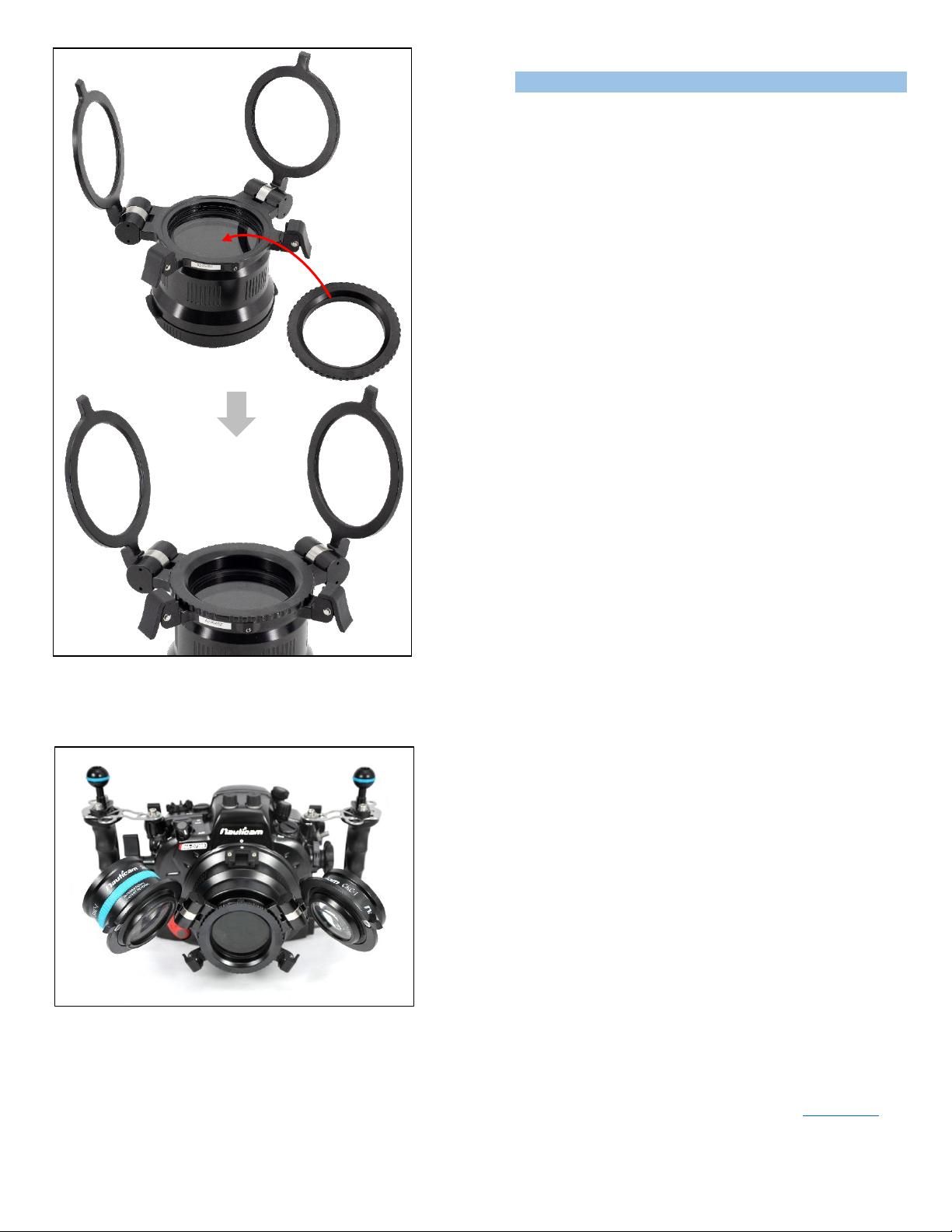

4. Fasten the holder by screwing the locking

ring into the thread on the front of the

port.

5. To un-mount the double flip holder from

the port, reverse the above steps.
