Nauticam NA-EM10IV Manuale utente
NA - EM10IV
For Olympus OM-D E-M10IV Camera
PN 17818
User Manual
Housing
M4/3-MIL
Introduction 2
2
3
4
7
8
Package Contents
Important Instructions
Part Names and Functions
Opening the Housing
Closing the Housing
9
13
Preparation for Use
Recommended Accessory
14
15
16
Care/Storage
Warranty
Specifications
2
INTRODUCTION

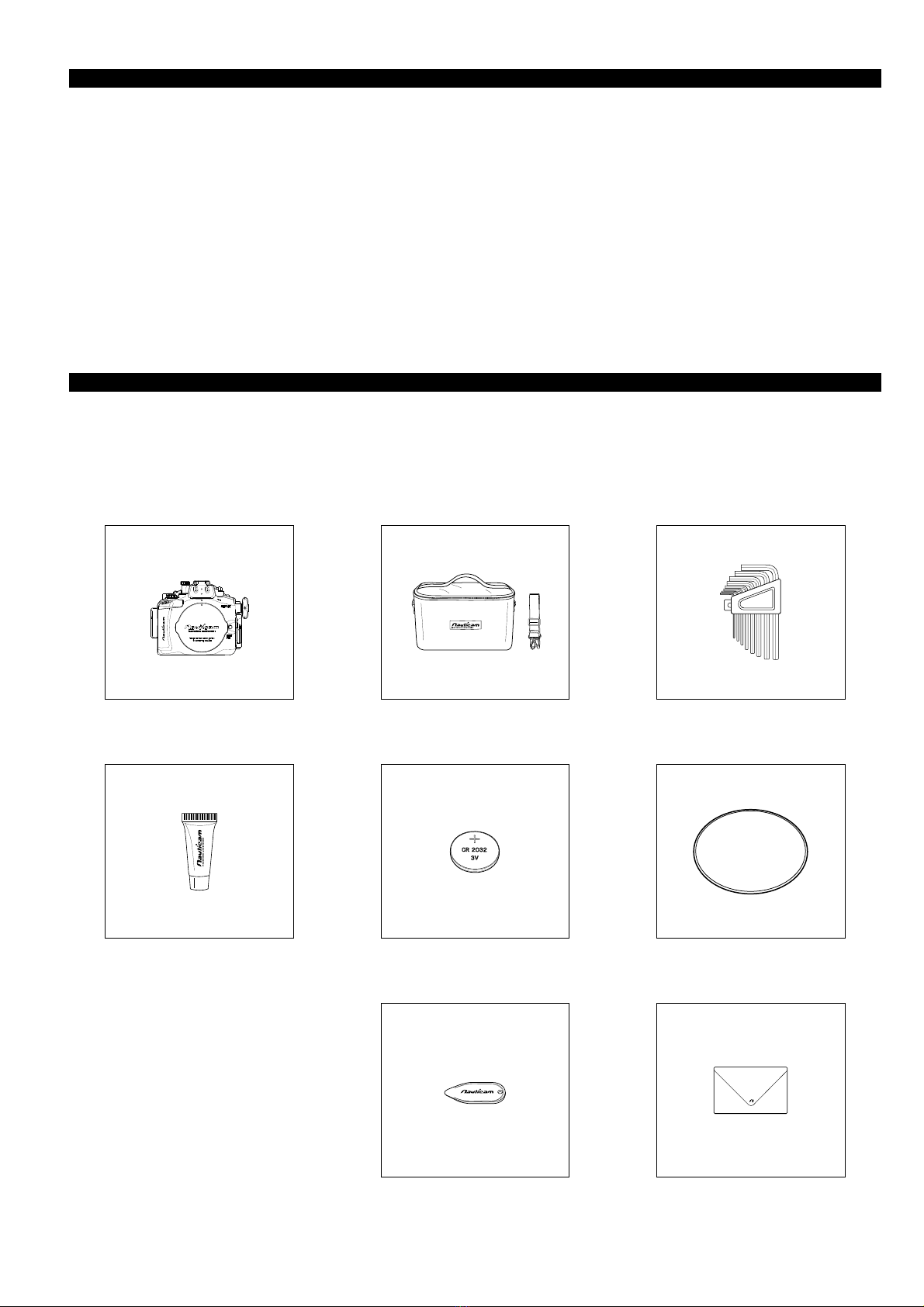

PACKAGE CONTENTS
Thank you for purchasing this Nauticam product.
Before using the product, please read this manual thoroughly to familiarize yourself with full scope of functions on the
product as well as ensuring that you will use the product correctly.
Make sure that you have all the included items listed below before using this product.
If some items are missing or damaged, contact your local Nauticam dealer.
After purchase, we suggest that
you reuse all packaging materials
for future travelling.
NA-EM10IV
(1 x Handle brackets and shutter release extension)
Panasonic CR2032 Battery
(pre-installed for Moisture Alarm)
Spare Main O-ring
Padded Travel Case
Lubricant
Allen key set
O-ring Remover Manual Instruction Card
3
IMPORTANT INSTRUCTIONS
Water-tight test of the housing (without
camera inside) before usage is recom-
mended as well as any O-ring renewal
and port change.
Use only Nauticam lubricant on silicone
rubber O-ring.
Discontinue use immediately when there is
a sign of leakage.
Do not expose the housing in direct
sunlight for a prolonged period.
Prevent any sand or dust or water
penetration inside the housing. Be
extra careful when changing lens and
inserting or removing the camera.
This product is not intened for use by
children, or persons with reduced physical,
sensory or mental capabilities, or lack of
experience and knowledge, unless they
are supervised and/or given instruction by
a responsible person concerning use of
the product to ensure that they can use it
safely.
Do not seal the housing when travelling by
air as this may lead to a pressure difference
between the atmosphere and inside the
housing.
Only the accesories specified by
Nauticam must be used. Third-party
accessories may result in malfunctions
or damage to the product.
Do not stretch any O-rings excessively.
Only remove it using Nauticam O-ring
remover.
Do not open the housing in wet or sandy
environment. Protect the housing from
moisture and debris in order to prevent
malfunction or leakage.
1
3
5
7
9
11 12
4
6
8
10
2
Do not attempt to remove parts of the
housing yourself. Repairs must be done
at authorized service centers only.
The housing should be positioned on the a
stable and safe surface on land.
4
A

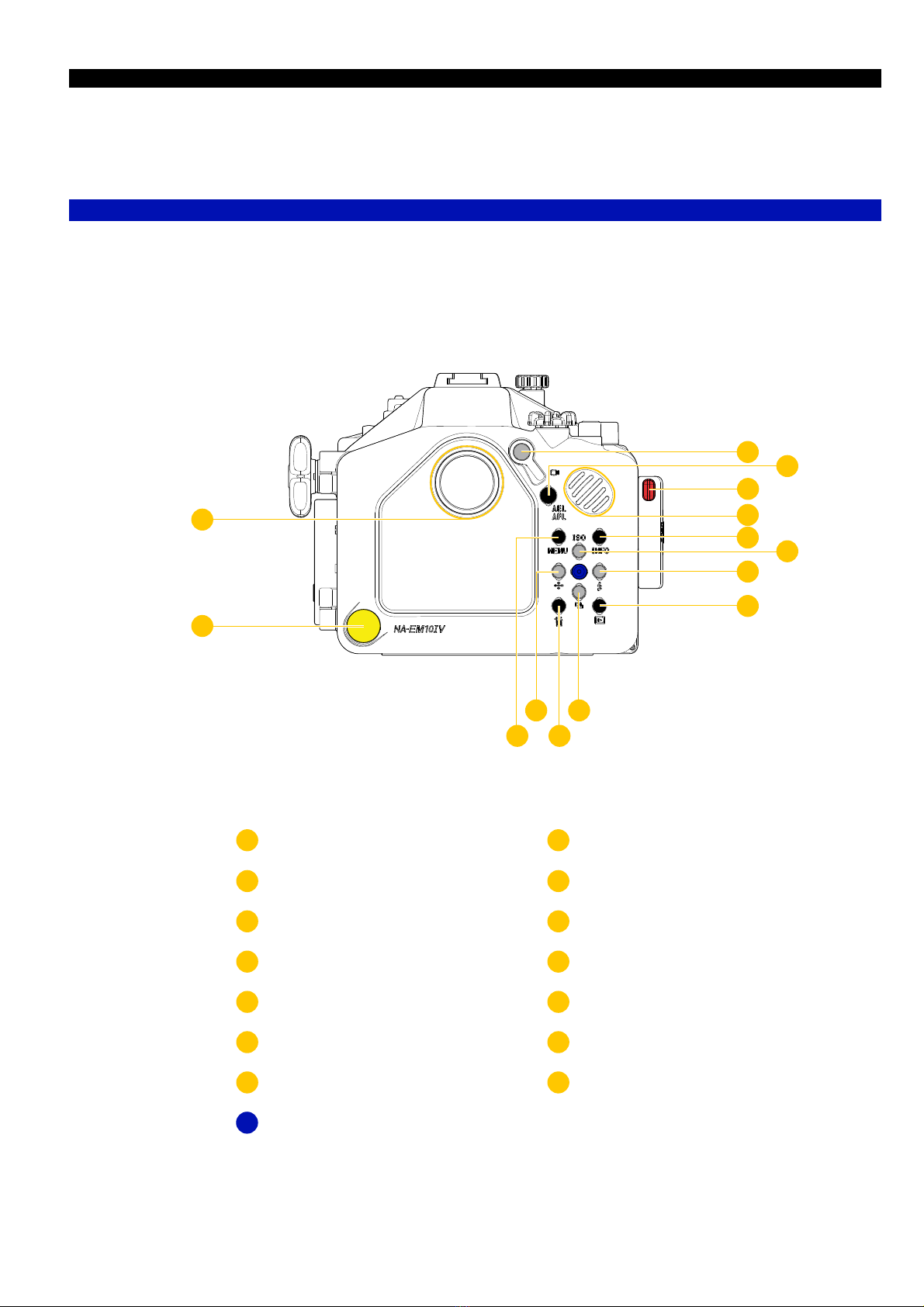

PART NAMES AND FUNCTIONS
Viewfinder Moisture alarm window
LV button AEL/AFL button
Housing unlock button Thumb position
Iso button
Playback button
Delete button
Info button
Flash modes button
Shooting modes button
1 2
3 4
5
7
9
11
6
8
10
12
Rear View
OK buttonA
5
6
8
4
3
7
9
10
14 12
1113
1
2
Menu buttonAF target button13 14
5

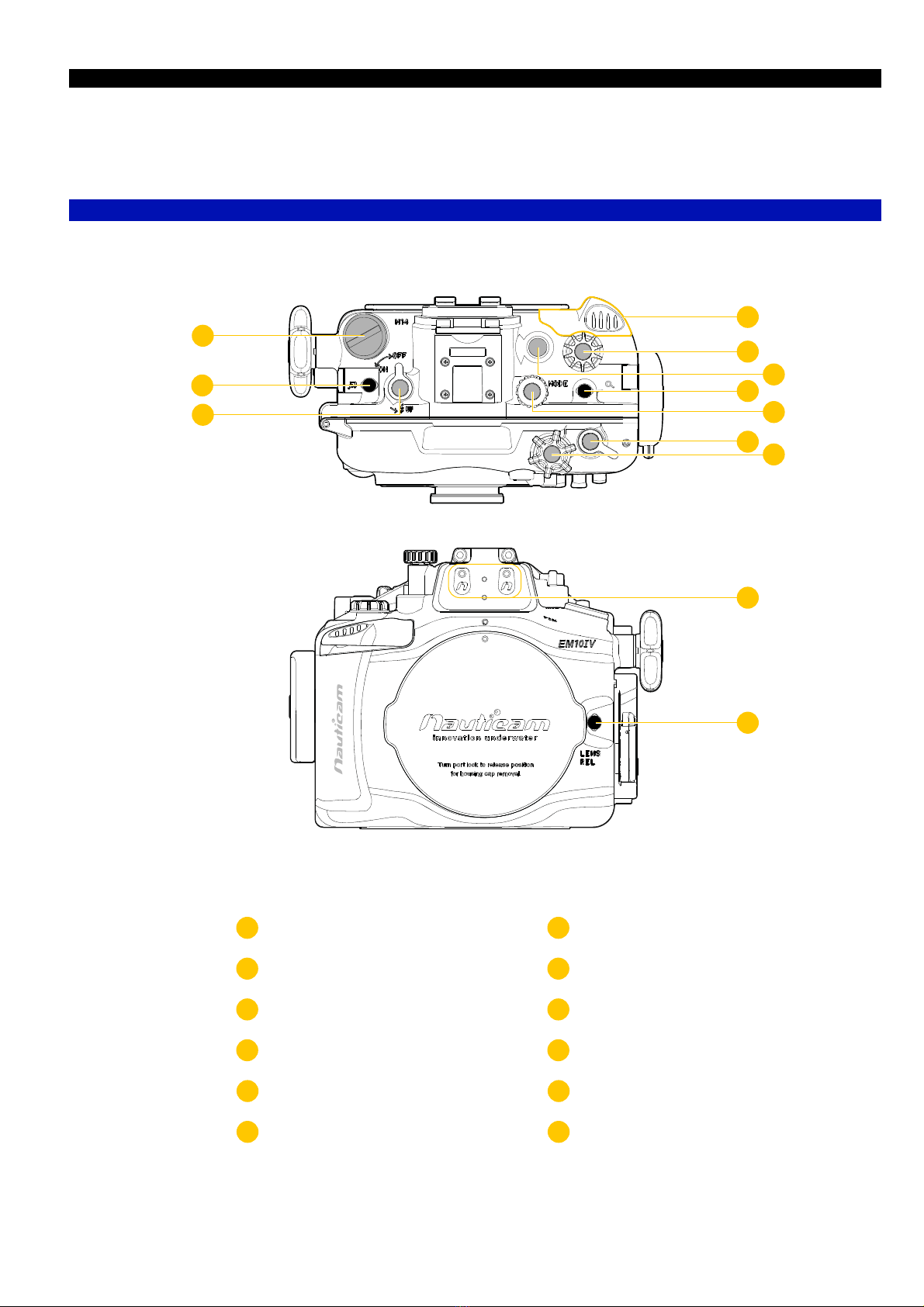

PART NAMES AND FUNCTIONS
M14 Accessory port
Front dial
Rear dial
M10 strobe mount base
Mode dial
Optical fiber cable connection
Main switch/Flash up
Tele-converter button
Lens release button
Shutter release
Shortcut button
REC lever
1
5
9
2
6
10
3
7
11
4
8
12
Top + Front Views
11
12
9
7
6
8
10
5
4
1
2
3
6
PART NAMES AND FUNCTIONS

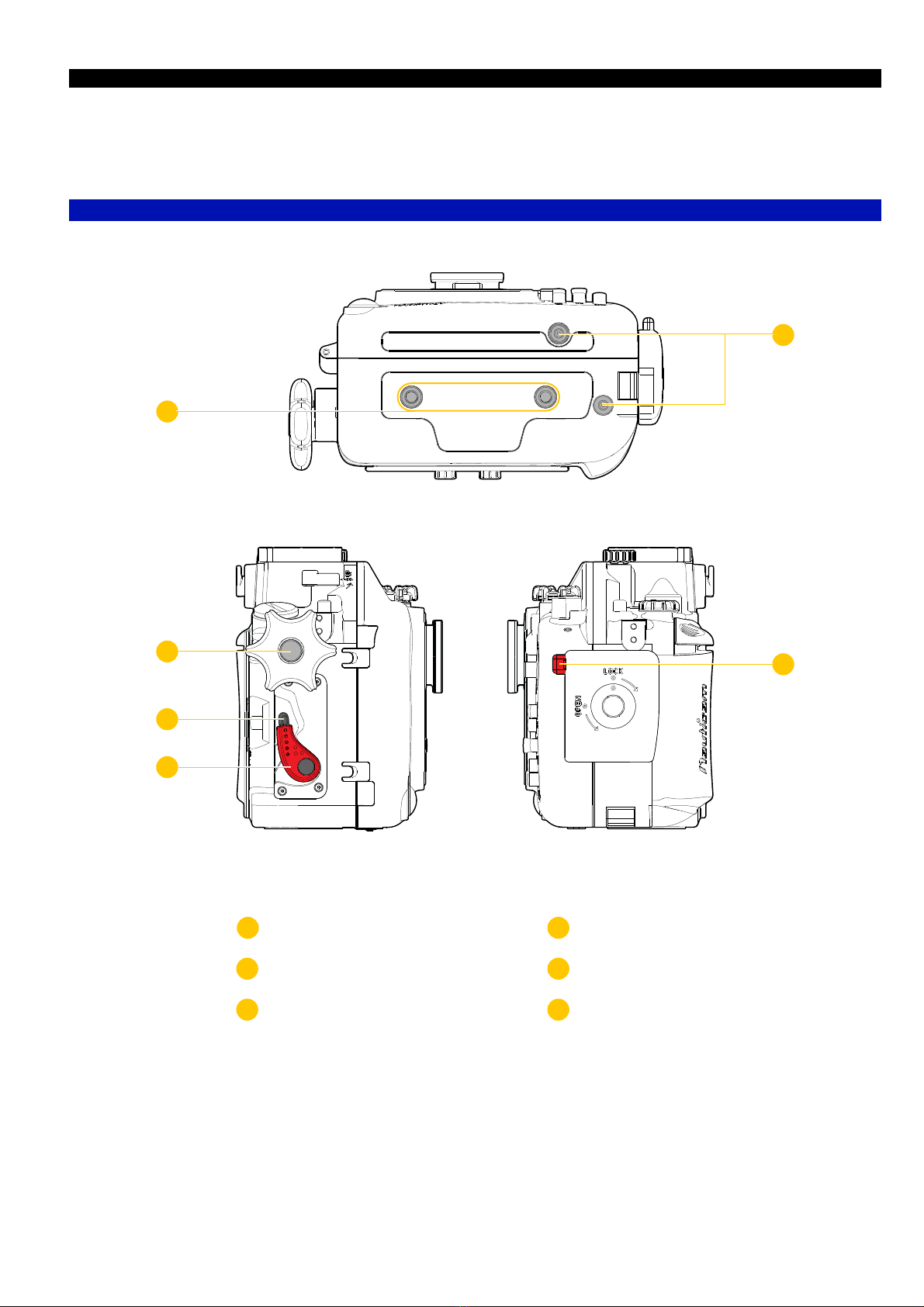

Back + Side Views
1
2
4
3
5
6
Zoom/Focus knob Port lock safety button
1/4” Threaded tripod holes
Port lock lever Housing unlock button
Zinc Anodes
3
1
4
5
2
6
7

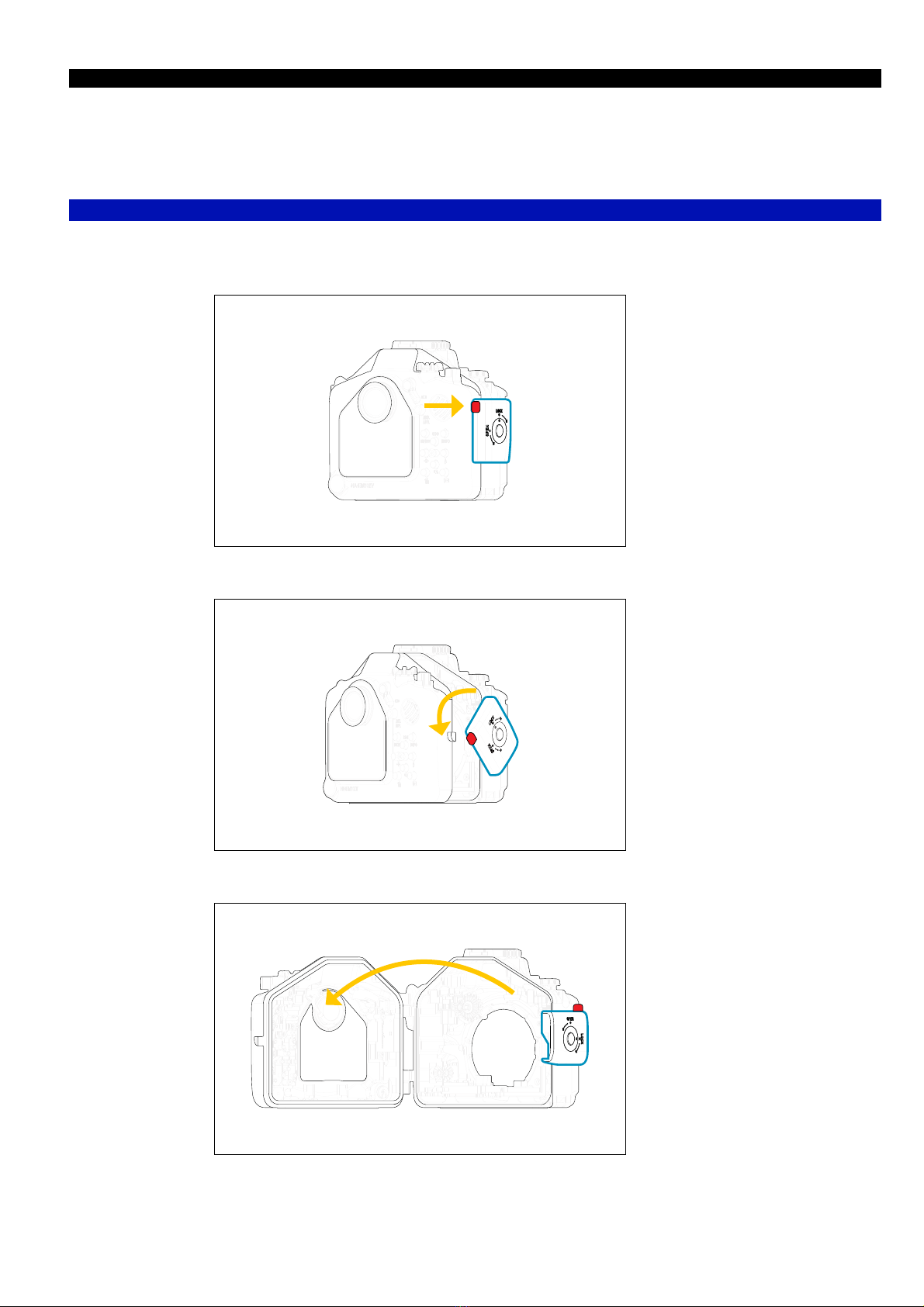

OPENING THE HOUSING
1
2
3
depress housing unlock button
turn housing lock latch
anti-clockwise to open the
housing
flip open the back housing
when lock latch is aligned to
‘open’ position
*
drawings as illustrations onl
y
8

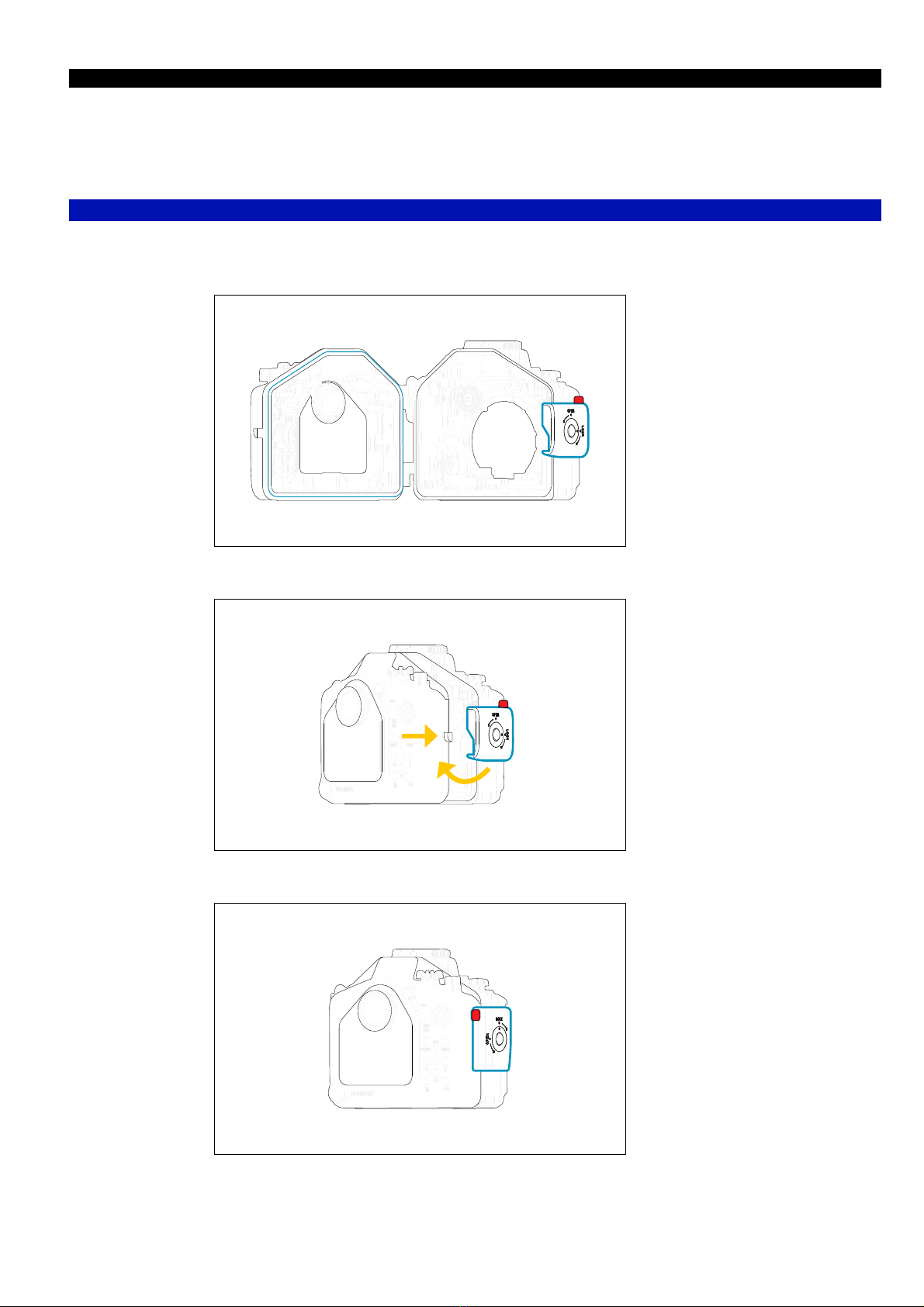

CLOSING THE HOUSING
1
2
3
before closing the housing, clean
and lubricate the main O-ring
make sure nothing is caught
between front and back housing
and that they are fully aligned
before locking
main O-ring
insert the housing shaft into the
shaft hole and then rotate the lock
latch clockwise until you hear and
feel it click into place
housing locked in place securely
*
drawings as illustrations onl
y
9

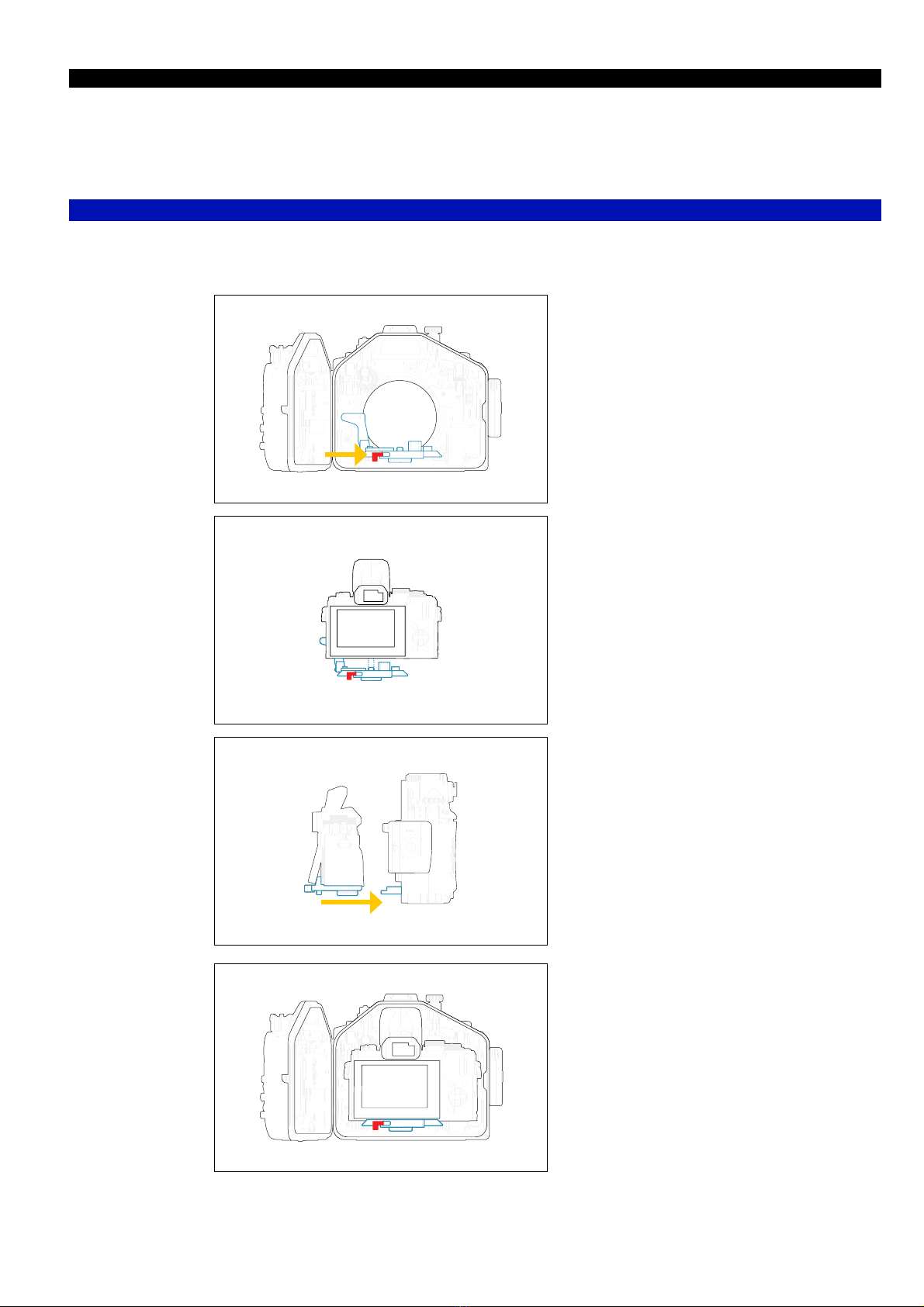

PREPARATION FOR USE
Installing the Camera
1
4
2
3
unlock camera tray lever and
remove the tray from the housing
lock camera tray
* gently push the ON/OFF lever
downwards and make sure it is
engaged with the lever on the
camera
attach the camera tray by tightening
the tray screw into the tripod socket
of the camera
* lift up the ON/OFF lever each time
before installing the camera
slide the camera tray back into the
housing along the tray rail
*
drawings as illustrations onl
y
10
PREPARATION FOR USE

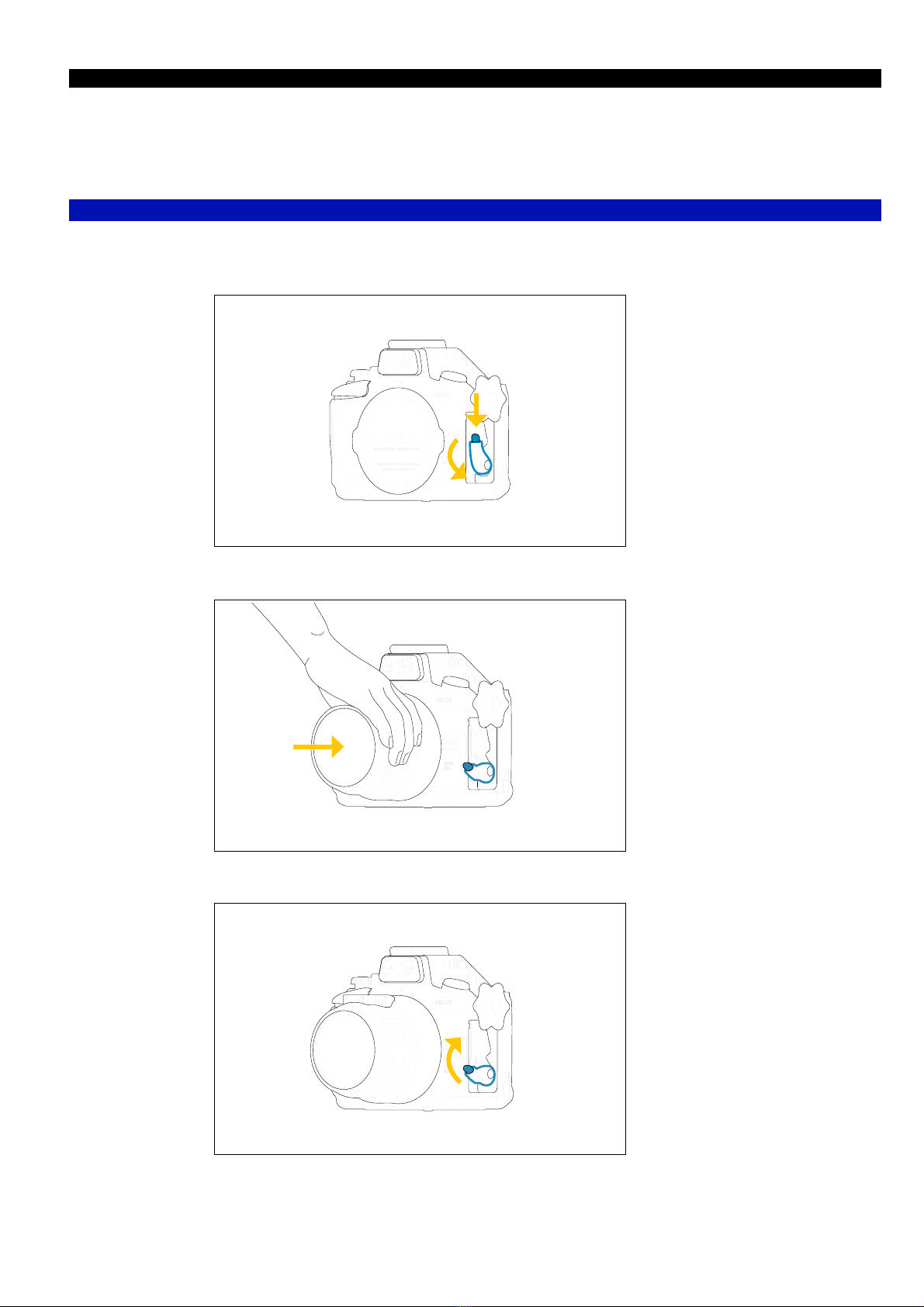

Port Mounting
1
2
3
depress port lock safety button
and rotate anti-clockwise
lubricant the port O-ring before
mounting
align index mark
push port assembly straight in
rotate locking lever clockwise to
lock
*
drawings as illustrations onl
y
