Nauticam NA-R50 Manuale utente

NA - R50/NA - R50 Pro Package

For Canon EOS R50 Camera with RF-S 18-45mm F4.5-6.3 IS STM Lens

User Manual

Housing

APS-C - COMPACT

PN 17340/17340P

Introduction 2

Package Contents

Important Instructions

Part Names and Functions

Housing Mount

Opening the housing

9Closing the housing

Preparation for Use

Optional Accessories

Care/Storage

Warranty

Specications

April, 2023

INTRODUCTION

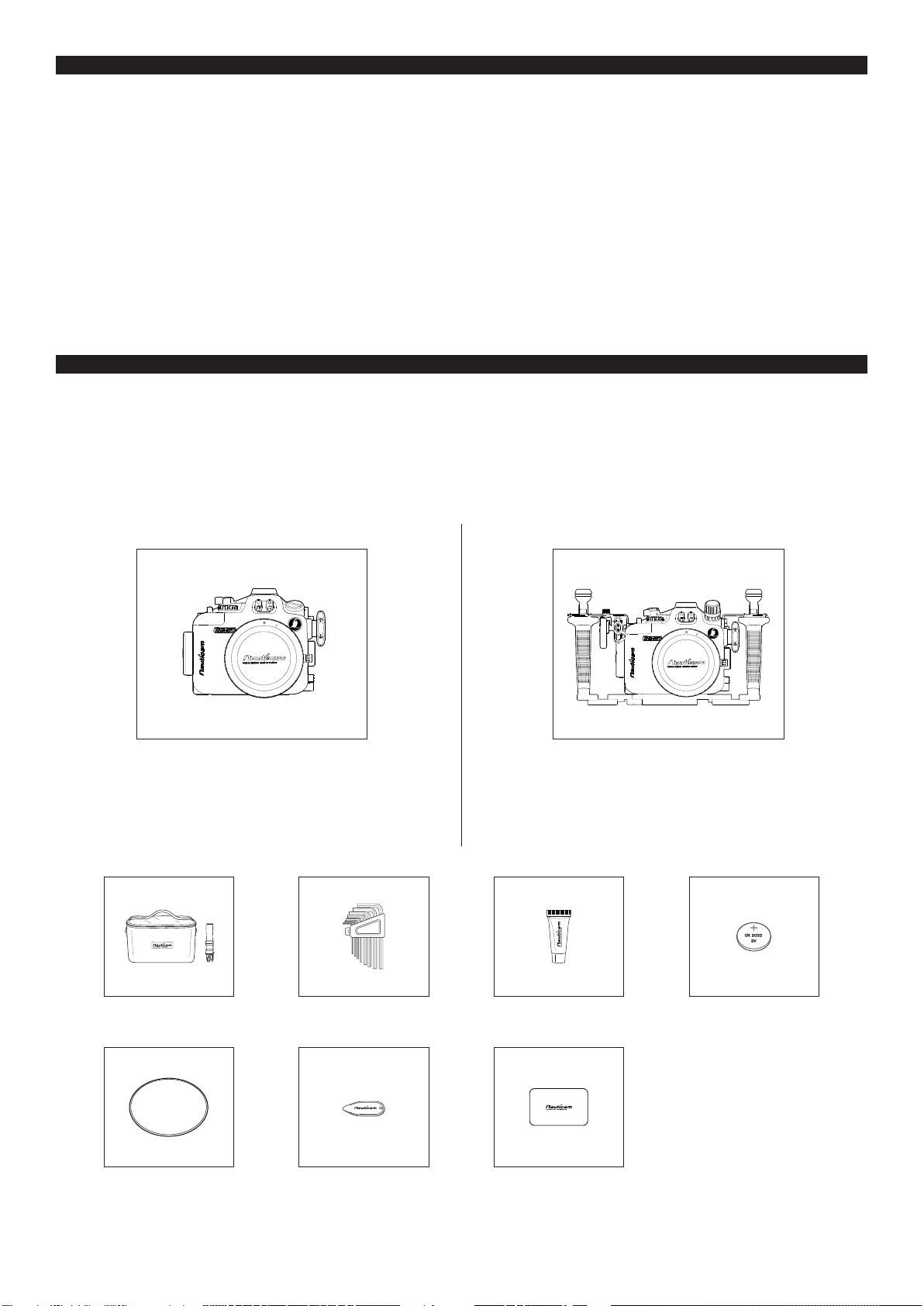

PACKAGE CONTENTS

Thank you for purchasing this Nauticam product.

Before using the product, please read this manual thoroughly to familiarize yourself with full scope of functions on the

product as well as ensuring that you will use the product correctly.

Make sure that you have all the included items listed below before using this product.

If some items are missing or damaged, contact your local Nauticam dealer.

Afterpurchase,wesuggest

that you reuse all pack-

aging materials for future

travelling.

Allen key set

Spare Silicone Rubber

O-ring #90131

O-ring Remover Manual Instruction

Card

Padded Travel Case

NA-R50

intergrated at port with bayonet mount

(1 x Housing Cap, 2 x Plugs for Optical Fiber Mount)

NA-R50 Pro

intergrated at port with bayonet mount

(Flexitray Right & Left Handles, 2 x Plugs for Optical Fiber Mount, 2 x Mounting Balls,

1 x Shutter Release Extension, 1 x M16 Vacuum Valve II, 2 x Stainless Steel Handle

Brackets, 1 x Housing Cap)

Lubricant

17340 NA-R50 Housing 17340P NA-R50 Housing Pro Package

Panasonic CR2032 Battery

(pre-installed for Moisture Alarm)

IMPORTANT INSTRUCTIONS

Water-tight test of the housing (without

camera inside) before usage is recom-

mended as well as any O-ring renewal

and port change.

Use only Nauticam lubricant on silicone

rubber O-ring.

Discontinue use immediately when there is

a sign of leakage.

Do not expose the housing in direct

sunlight for a prolonged period.

Prevent any sand or dust or water

penetration inside the housing. Be

extra careful when changing lens and

inserting or removing the camera.

This product is not intended for use by

children, or persons with reduced physical,

sensory or mental capabilities, or lack of

experience and knowledge, unless they

are supervised and/or given instruction by

a responsible person concerning use of

the product to ensure that they can use it

safely.

Do not seal the housing when travelling by

air as this may lead to a pressure difference

between the atmosphere and inside the

housing.

Only the accesories specied by

Nauticam must be used. Third-party

accessories may result in malfunctions

or damage to the product.

Do not stretch any O-rings excessively.

Only remove it using Nauticam O-ring

remover.

Do not open the housing in wet or sandy

environment. Protect the housing from

moisture and debris in order to prevent

malfunction or leakage.

11 12

Do not attempt to remove parts of the

housing yourself. Repairs must be done

at authorized service centers only.

The housing should be positioned on a

stable and safe surface on land.

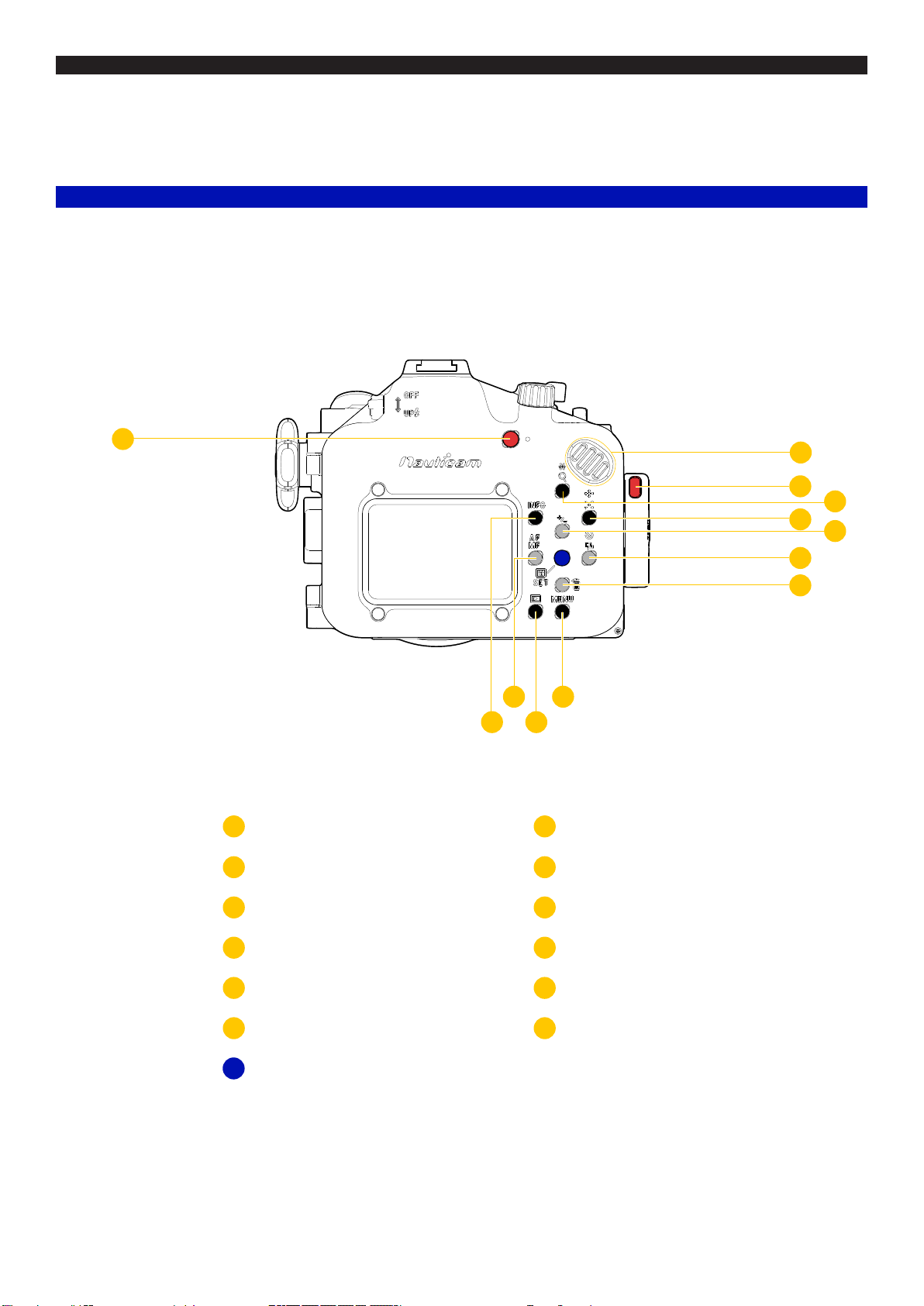

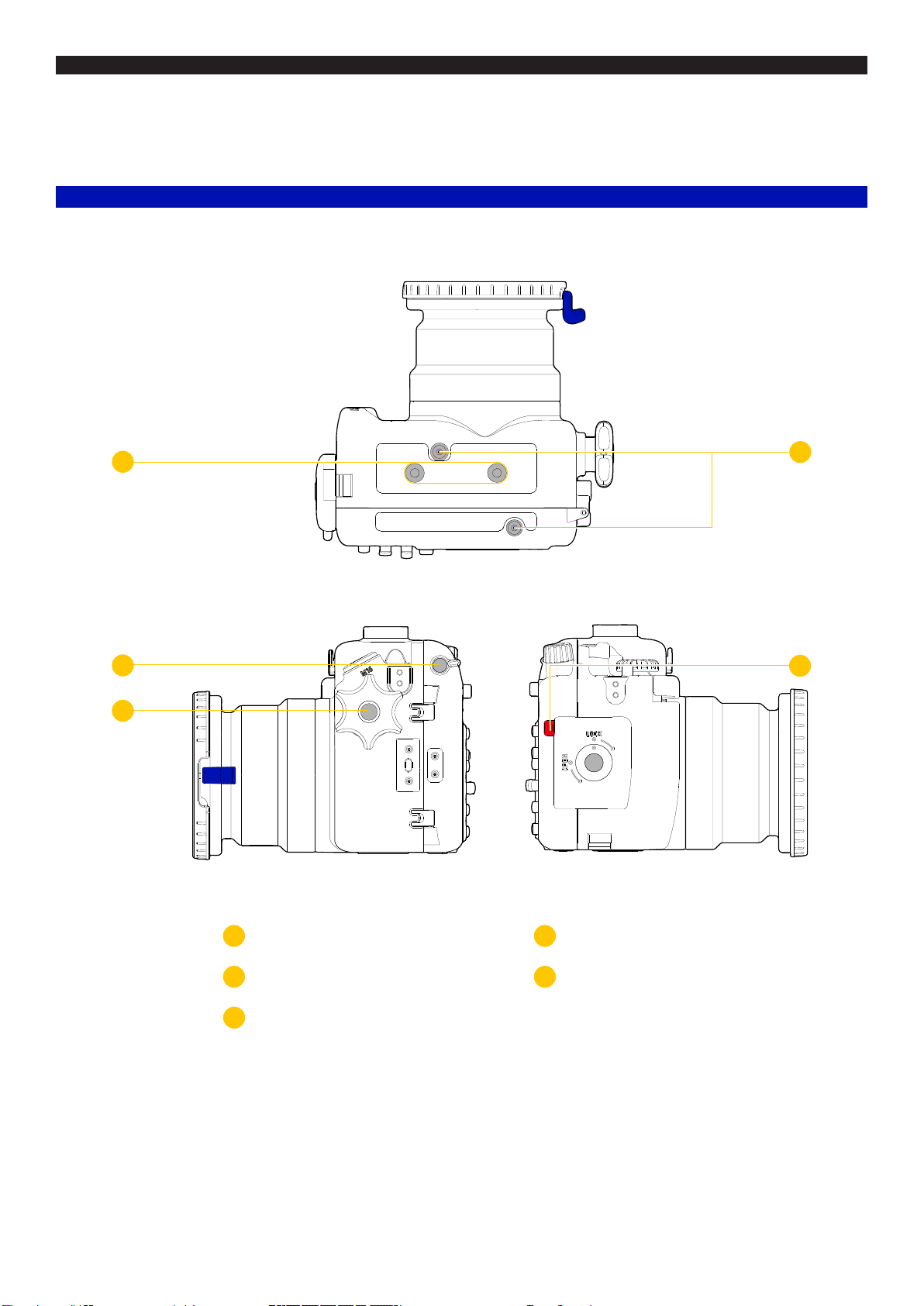

PART NAMES AND FUNCTIONS

REC button Thumb position

Housing unlock button AE lock/FE lock/Magnify button

AF point/index/reduce button Up/exposure compensation button

Down/erase button

Playback button

Info button

Right/self-timer/drive mode button

Menu button

Left/AF/MF button

1 2

3 4

Rear View

Quick control/set buttonA

12 10

911

Front dial ISO button

Optical ber cable connection

M10 threaded hole

Bayonet mount II release button

M16 Accessory port

Main switch

Moisture alarm window

Mode dial

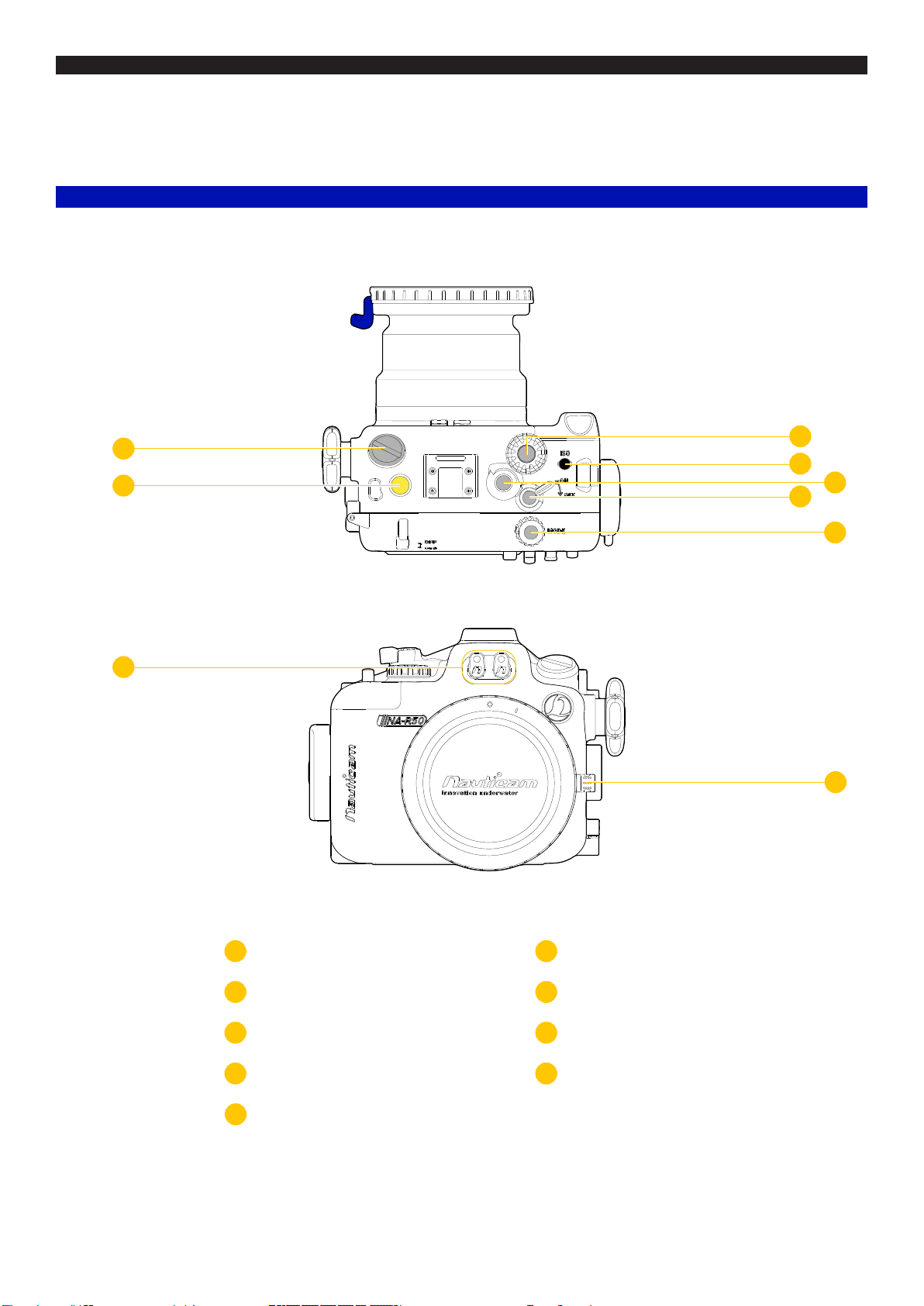

PART NAMES AND FUNCTIONS

Top + Front Views

PART NAMES AND FUNCTIONS

Back + Side Views

Zoom/Focus knob

Sacricial zinc anodes

Housing unlock button

Flash On/Off switch

1/4” Threaded tripod holes1

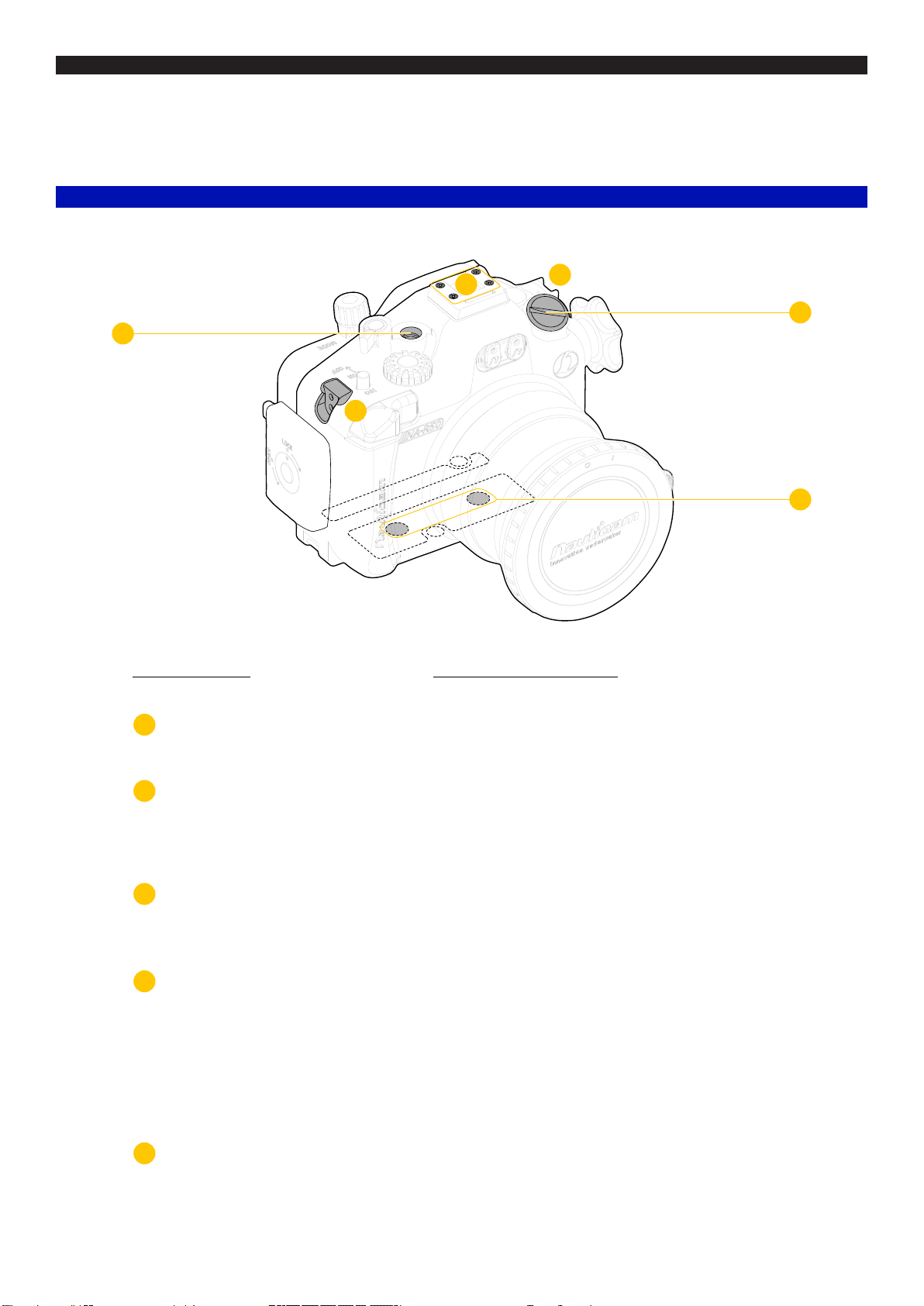

HOUSING MOUNT

M16 Accessory port

Hand straps and housing tray

Cold shoe

Compatible accessoriesHousing mount

M16 Vacuum Valve II

M16 Offset connector with vacuum valve II

Standard HDMI bulkhhead for HDMI 1.4

HDMI D-D cable in 200mm length

Easitray II with left handle

Flexitray plate II W with left handle

Adjustable right handle II

Flexitray plate II W with left handle

Hand strap for Mirrorless IL camera &

compact camera housing (Standard)

Long hand strap for Mirrorless IL camera &

compact camera housing

Strobe mounting ball for cold shoe

25625

25627

25033

25076

71206

71207

71208

71209

36316

36323

25311

M10 Accessory port 25221

25224

17954

17960

M10 Strobe mounting ball

M10 Strobe mounting ball with hole

Universal tripod plate

Universal Quadra-Pod Plate for Nauticam

Housings

1/4” -20 mounting threads3

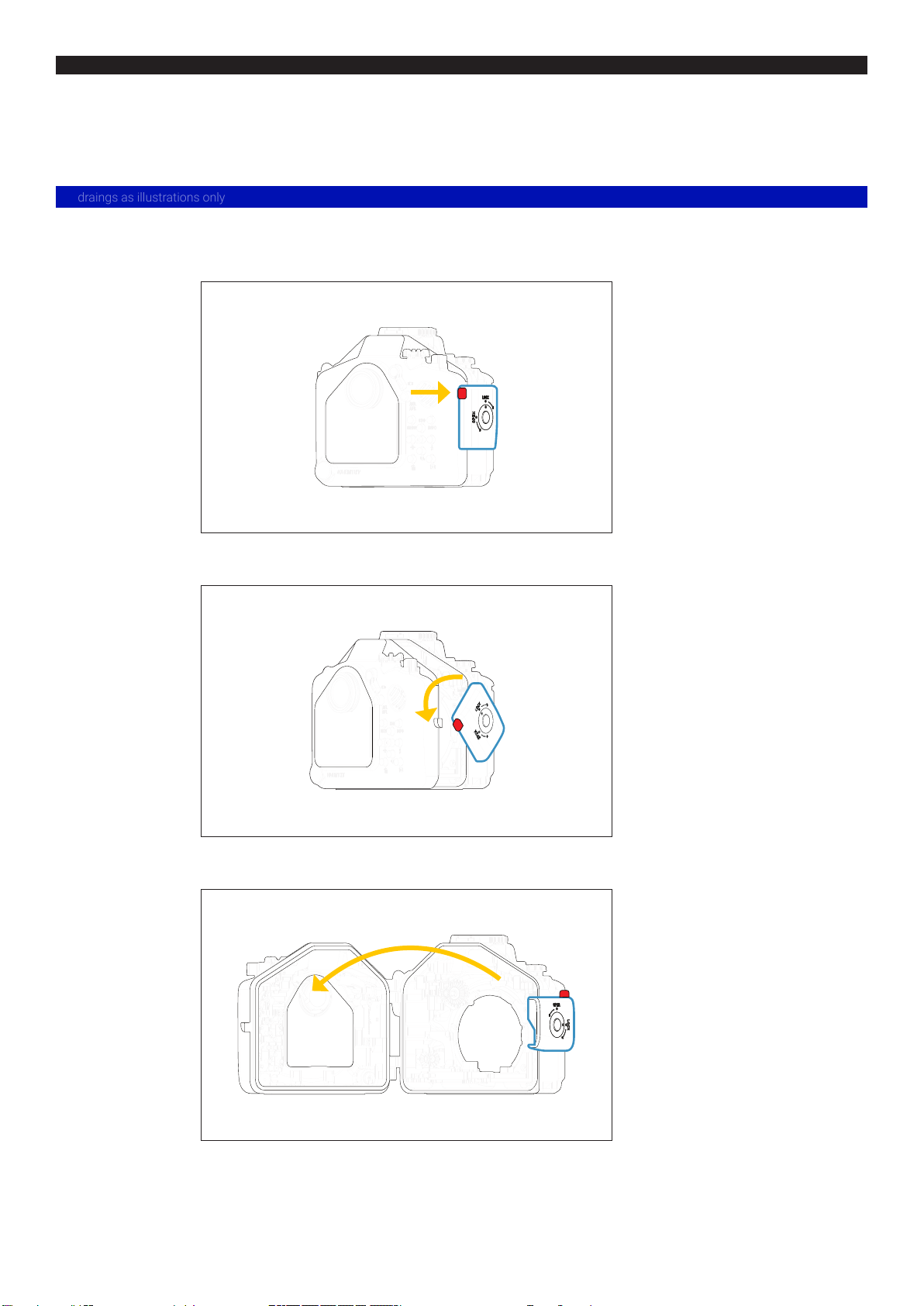

OPENING THE HOUSING

1depress housing unlock button

turn housing lock latch

anti-clockwise to open the

housing

ip open the back housing

when lock latch is aligned to

‘open’ position

* drawings as illustrations only

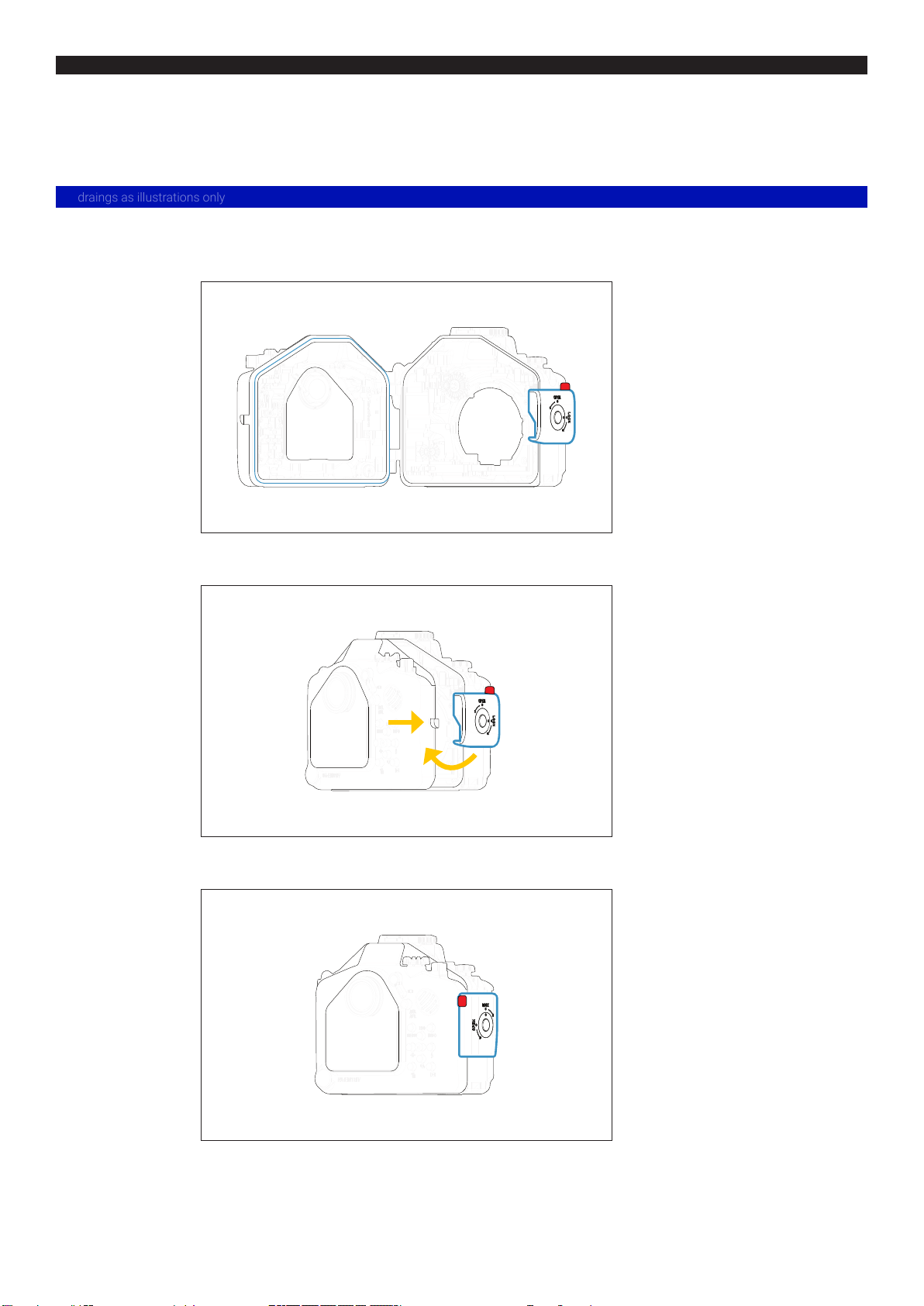

CLOSING THE HOUSING

before closing the housing, clean

and lubricate the main O-ring

make sure nothing is caught

between front and back housing

and that they are fully aligned

before locking

main O-ring

insert the housing shaft into the

shaft hole and then rotate the lock

latch clockwise until you hear and

feel it click into place

housing locked in place securely

* drawings as illustrations only

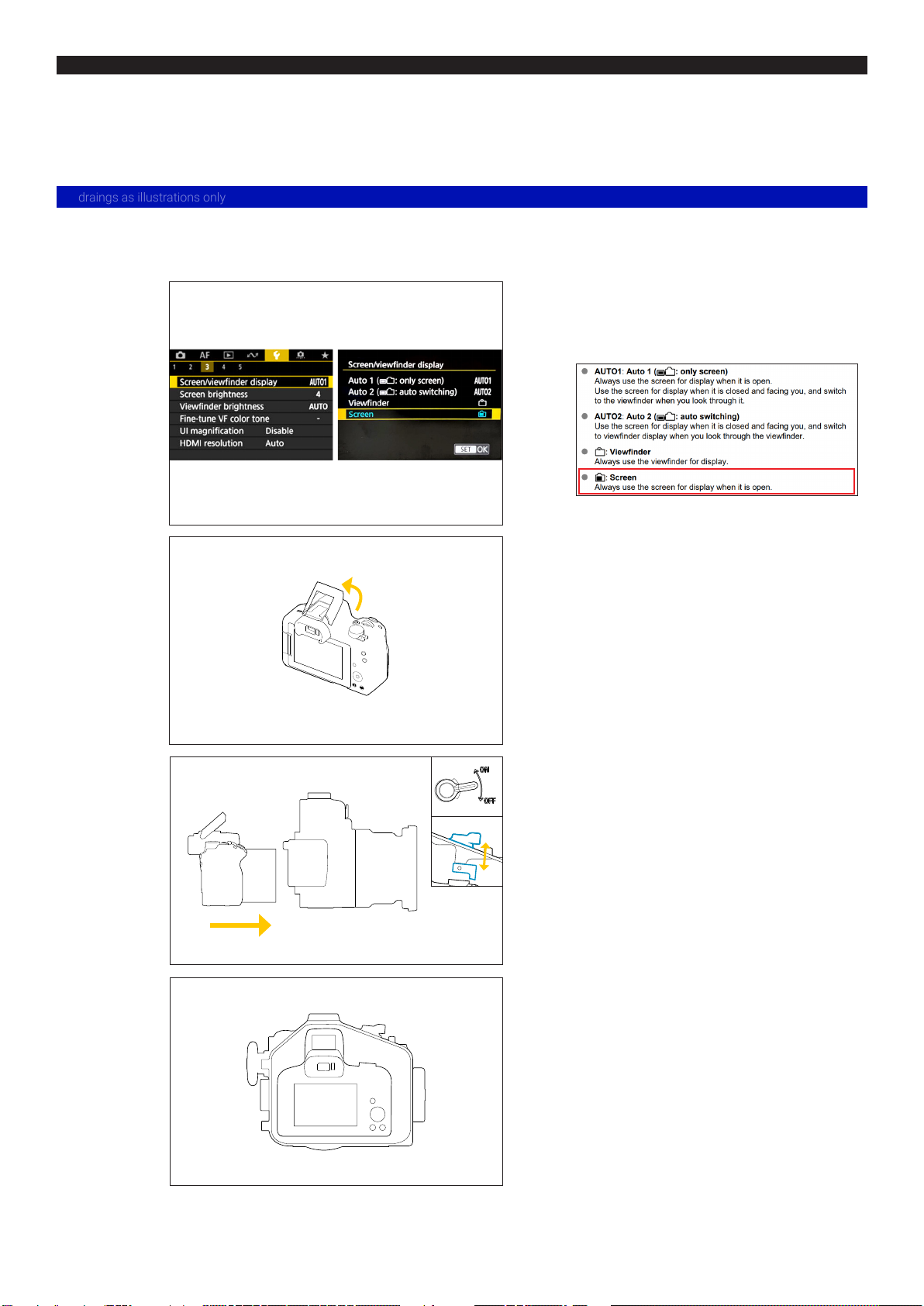

PREPARATION FOR USE

* drawings as illustrations only

Please follow the below camera manual settings

before installing the camera :

Screen/viewnder display --- Screen

Installing the Camera

Lift up the camera ash

Press down the ON/LOCK/OFF

lever and make sure it is aligned

with camera control

*lift up the ON/LOCK/OFF lever each

time before installing the camera

*make sure the ON/LOCK/OFF lever

is aligned with camera control before

sliding the camera into the housing

Place the camera into the housing
