Navitar 1-51206 Guida
REV CHANGERECORD AND DATECH
ROCHESTER,NEWYORK
REV
SIZE
B
P/NSUFFIXDEFINITION
-1CONVERSIONCOATING
-2PAINTING
-3MARKING
-RREWORK
UNLESS OTHERWISE
SPECIFIED
DIMENSIONSAREININCHES
AND INCLUDECHEMICALLY
APPLIEDORPLATEDFINISHES
DEC..XXX `.005
DEC..XX `.010
FRACT.`1/64
ANGLES `30'
CONCENTRICITY.003 TIR
BREAK ALL SHARPEDGES
.005 MIN..010 MAX
MAX.SURF.ROUGHNESS 32
TOLERANCES:
MATERIAL:
FINISH:
CHAMFERALL THREADS
30~TOROOTDIAM.
USEDON:
SCALE:
DR.:
CH.:
APP.:
DATEDR.:
DONOTSCALEDRAWING
0.0mm 25.0
0.0inch1.0
SHEETOF
THECONTENTSOFTHIS
DOCUMENTAREPROPRIETARY
TONAVITAR,ITSUSE IS
AUTHORIZEDONLYFOR
RESPONDINGTOREQUEST
FORQUOTATIONOR
PERFORMANCEOFWORKFOR
NAVITAR
1-51206 A
11
R.PODLENA
P.BONAFEDE
11/19/2002

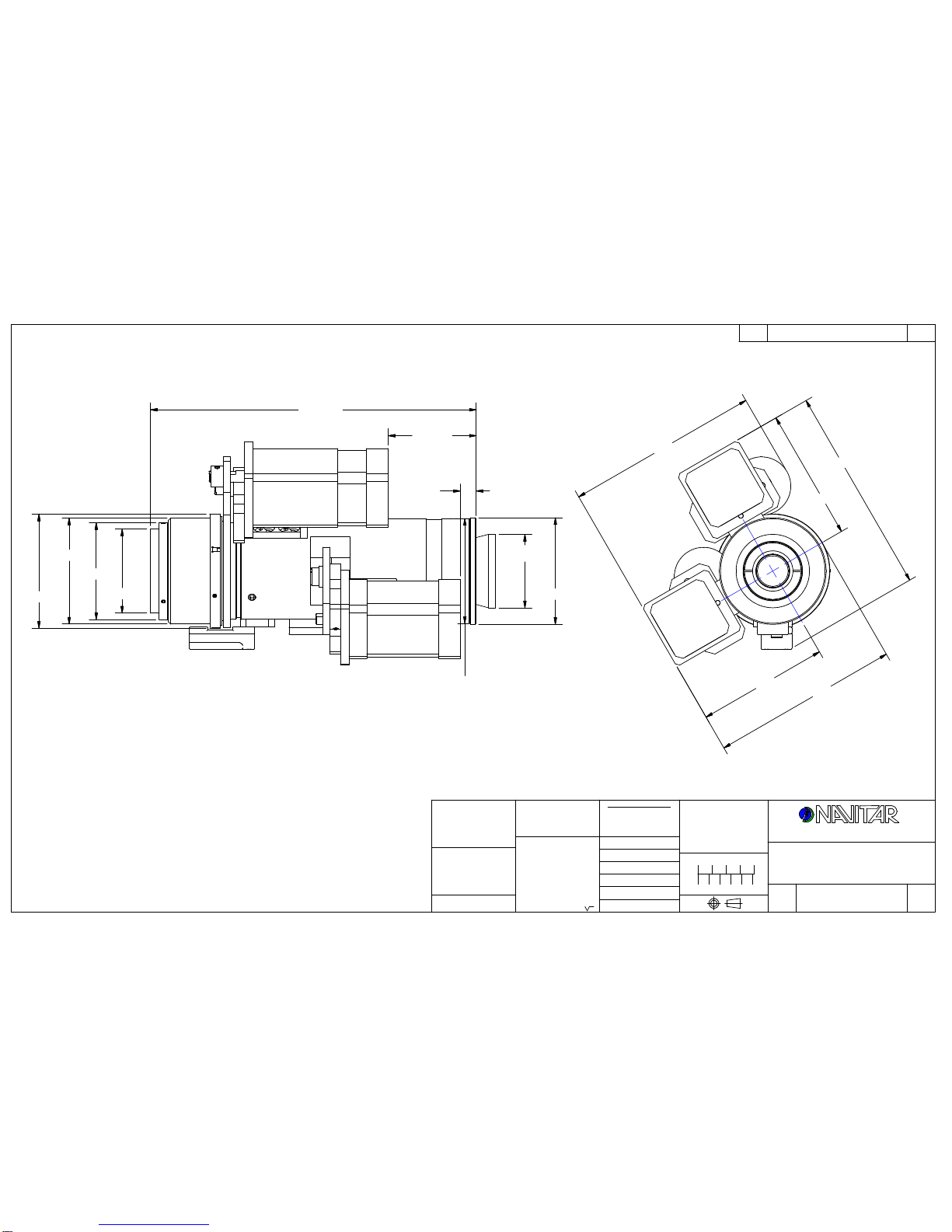

MOTORIZED(5PH)12XZOOM&
12mm FF,DUAL2POSITIONLS
1:1
OUTLINE
3.71 [94.2]
3.35 [85.2]
3.45 [87.5]
2.34 [59.4]
2.34 [59.5]
n1.50 [38.1]
n1.73 [43.9]
n1.89 [48.1]
n2.04 [51.8]
5.82 [147.9]
.28 [7.2]
1.57 [39.9]
1.312n-.001
.000+
n1.875
n1.91 [48.4]
