Nano-media
Operating instructions
2
Content
3
Content
General information ................................................................................................................................... 4
Transmitter Nano-media ......................................................................................................................... 8
Accessories .................................................................................................................................................. 12
Technical documents .............................................................................................................................. 14
4
Standard scope of delivery
– Transmitter including carrying system
– Receiver with integrated mounting holes
– Integrated connection cable or adapter cable for receiver
The order confirmation and/or delivery note is binding for the actual scope of delivery.
Safety information
Even if you have already operated radio control systems, always read these operating
instructions before commissioning. Only these operating instructions include the latest
information about your NBB radio control system.
Please refer to the enclosed documents for explanations about the operating license.
Always observe the relevant work safety and accident prevention regulations. Only
trained and authorized persons may operate the NBB radio control system. The safety
features installed in the NBB radio control system must be checked regularly.
The NBB radio control system must be shut down immediately in case of failures.
The transmitter must be switched off using the EMERGENCY STOP switch or
STOP button. The connection cable at the receiver must be disconnected from the
connection (terminal) of the controlled system. The radio control system may only
be repaired by NBB or specialists authorized by NBB.
Disregarding these recommendations puts you and others in danger!
NBB refuses any warranty and liability in such cases. The radio control system is used
to control machines and transmit data. In explosive atmospheres or for the control of
machines for the transport of persons it may not be used, unless specifically authorized
by the manufacturer for this application. Any different use is prohibited and releases
NBB from any responsibility.
In the event of faults
Stop work immediately if a fault event occurs with the NBB radio control system!
Please note that even small faults can lead to extensive defects. Always contact your
dealer or NBB in the event of a fault. Do not attempt to repair the NBB radio system.
Nameplates
The nameplates specify transmitter and receiver type, serial number, frequency range
and approval for non-EU countries. Please always advise serial number for queries.
General information
Never expose the radio control
system to strong jet high pressure
cleaning equipment!
5
Maintenance
The NBB radio control system is maintenance-free. Nevertheless observe the following
points:
– Check EMERGENCY STOP and STOP function regularly.
– Remove residues of building material.
– Disconnect receiver from power supply before welding work, to avoid the risk of
damage to the receiver electronics.
– Check regularly for worn parts.
Warranty
NBB grants a functional warranty of 12 months from the date of sale on all NBB radio
control systems (transmitter, receiver, charger). Working hours and material costs are
included in the warranty. Shipping costs shall be at the expense of the buyer. Worn parts,
relays, rechargeable batteries and batteries are excluded from the warranty.
The functional warranty does not cover damage, accidental damage, negligence, improper
use, non-compliance of the operating conditions, non-observance of the operating,
test and service information as well as for repairs or device modifications that are not
authorized by NBB.
NBB is not liable for indirect damage and reserves the right to decide on improvements
or replacements.
Liability exclusion
The manufacturer (NBB Controls+ Components GmbH) assumes no liability for the final
product. The buyer is obliged to check the goods after receipt for possible defects and
to report these to the manufacturer within 14 days. Furthermore, in terms of product
liability, the buyer is obliged to instruct and train the end customer on the proper use
and application of the product. The obligation for complete documentation (placing on
the market, identification) is transferred to the buyer at the time of delivery.
6
General information
US-FCC and CANADA IC
>FCC notes
Part 15.105 Statement
NOTE: This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own expense.
Part 15.21 Statement
Changes or modifications made to this equipment not expressly approved by
NBB Controls+ Components GmbH may void the FCC authorization to operate this
equipment.
>IC notes
The installer of this radio equipment must ensure that the antenna is located or
pointed such that it does not emit RF field in excess of Health Canada limits for the
general population; consult Safety Code 6, obtainable from Health Canada’s website
www.hcsc.gc.ca/rpb.
>Part 15.19 / RSS-GEN
This device complies with Part 15 of the FCC Rules and with Industry Canada licence-
exempt RSS standard(s).
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils
radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes:
(1) l’appareil ne doit pas produire de brouillage, et
(2) l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage
est susceptible d’en compromettre le fonctionnement.
7
Republic of China
>Announcement No. 52, 2019 regulation
It is not allowed to change the scene or conditions of use, expand the range of
transmission frequency, increase the transmission power (including adding additional
RF power amplifiers) or change the transmission antenna without authorization;
It shall not cause harmful interference to other legitimate radio stations or stations,
nor shall it propose protection against harmful interference
It shall withstand interference from industrial, scientific and medical (ISM) application
equipment that radiates radio frequency energy or other legitimate radio (station)
interference;
If harmful interference is caused to other legitimate radio stations (stations), the use
of such stations shall be stopped immediately, and measures shall be taken to eliminate
the interference before they can continue to be used;
The use of micro power equipment in the aircraft and in the electromagnetic
environment protection areas of military and civil radio stations (stations) and airports,
such as radio observatories, weather radar stations, satellite earth stations (including
measurement and control, ranging, receiving and navigation stations) planned in
accordance with laws and regulations, relevant regulations and standards of the
state, shall comply with the provisions of the electromagnetic environment protection
and the competent departments of relevant industries;
8

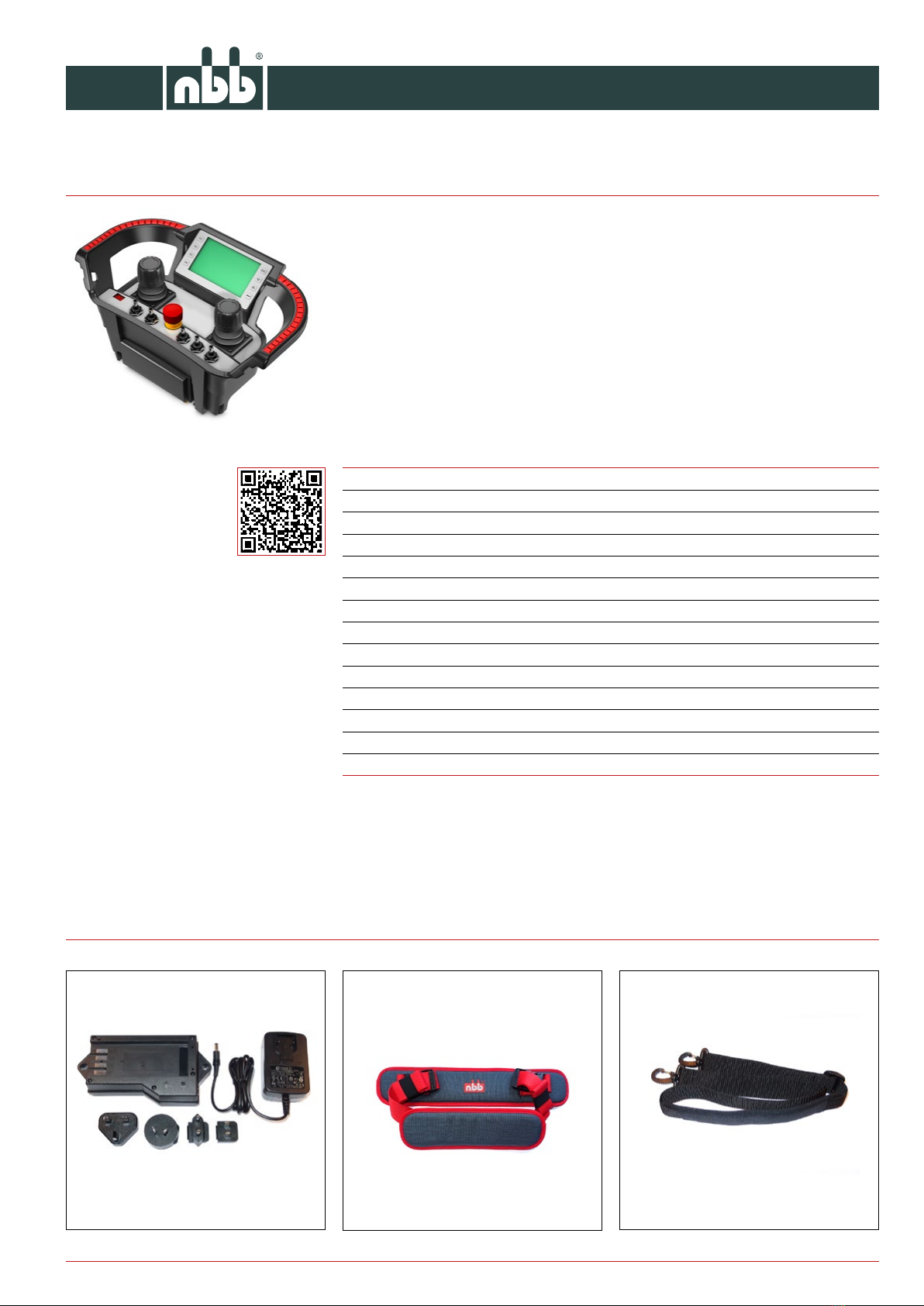

Transmitter Nano-media
Technical data
Nano-media combines the compact design of the Nano-minor with the technical variance
of the Nano-magna – for the greatest variety of operating and feedback options in the
smallest space.
– Compact, ergonomic design
– Also suitable for complex applications
– Optional: 3-axis joysticks in NBB design
– Optional: 4.3” LCD display with customer-specific design
– Operation with 7.2 V Ni-MH battery
– SMJ technology
– IP65
– Compatible with all NBB receivers
Neckbelt
NBB-No.: 3.320.1011
Transmitter Nano-media
Transmission frequency range See nameplate
Data security Addressing each transmitter using a unique Binary bit code combination
Data repetition rate Approx. 15ms
LF-modulation GFSK
Baud rate 9.600 Baud (bit/sec.)
Operating range 100 m
Operating voltage 7,2V – NBB battery
Current consumption Approx. 150mA depending on the configuration
RF output ≤1 mW, ≤10 mW, ≤25 mW (depending on the configuration)
Protection class IP 65
Operating ambient temperature –20 to +70°C
Weight (without battery) 1.900g
Measurements (L x B x H) 340 x 201 x 151mm
Universal-Charger with 4 adapter plug
NBB-No.: 2.251.1450
Accessories optional (Webshop: https://shop.nbb.de/en-us/)
Waistbelt
NBB-No.: 3.320.1016
9
Commissioning
>Operating voltage 7.2 V

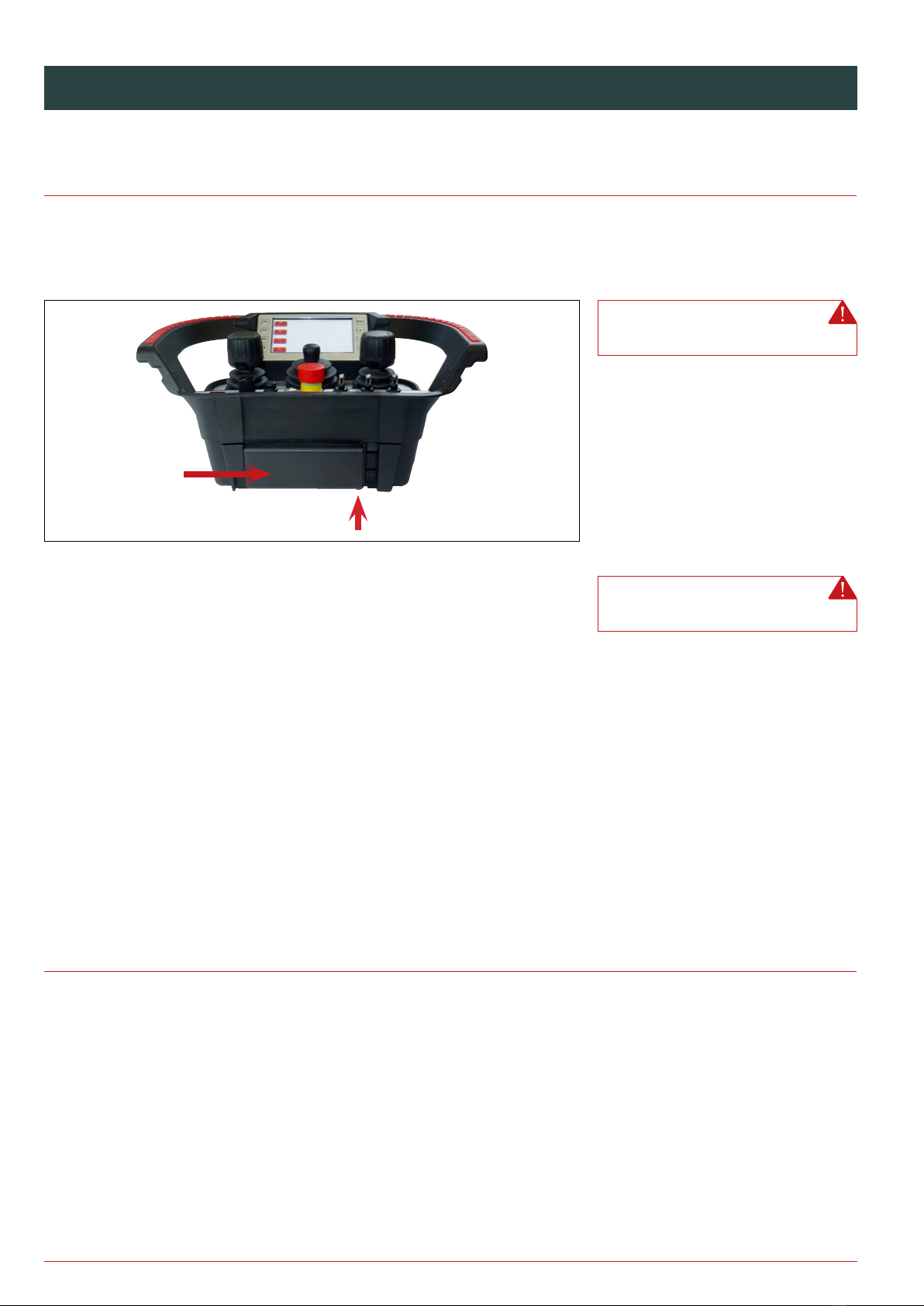

Insert the battery in the battery compartment for commissioning. For removal, press in
the locking pin to unlock and slide out the battery.
If the NBB radio control system won’t be used for a long period of time, it is strongly
recommended remove the battery from transmitter and charge the battery approx.
every 4 weeks. This prevents deep discharge of the battery and enhances its service
life.
>Battery life warnings
The quick blinking of the letter “L” in the display shows the end of the battery capacity.
From this time the operation of the transmitter is approx. 30 minutes possible. During
this time, bring the unit into a safe position, switch off the transmitter and and insert a
new battery. Charge discharged batteries only in the charger.
>Energy saving function
If no buttons are pressed within a specified time*, the transmitter switches off automatically.
The display turns off. A transmitter can also be manufactured without a standby function
for continuous operation as an option.
*The standby time can be set as desired.
Safety equipment
>Safety equipment in the NBB radio control system
– EMERGENCY STOP or STOP function
– Zero position interlock
– Addressing each transmitter using a unique Binary bit code combination
– Rubber sleeves to protect the switch
Please check the sleeves and the housing for breaks and cracks each time before com-
missioning the transmitter. Contact your service team if necessary. Non-observance can
cause malfunctions and water damage.
Please refer to the technical docu-
ments for the exact design.
1. Press in the locking
2. Slide out the
Charge the rechargeable battery
completely before initial use.
10
Transmitter Nano-media
Operation of the system
>Switching the transmitter on and off
– Unlock the emergency stop pushbutton by turning clockwise to switch on the transmitter.
– Two acoustic signal sounds.
– A red dot flashes in the LED display.
– Switch off the transmitter by pressing the emergency stop pushbutton once.
After pressing the emergency stop pushbutton, the transmitter sends stop telegrams for
2 seconds to switch off the system. This shut-off time is displayed on the LED display by
the external segments rotating clockwise.
To ensure faultless free operation, please observe the following rules:
The system to be controlled – provided the transmitter is ready for operation – can only
be switched on if no command is activated. To start the system to be controlled and to
activate the functions press the “On/Horn” button, which also triggers a horn signal.
Due to work specifications, the same button is used for triggering repeated horn signals.
>Frequency change
To change the frequency, press and hold the “On/Horn” button. Now press the
“Frequency change” button. Each press advances one channel. If the receiver locks on a
new frequency, a horn signal is triggered and the system is ready for operation. Please
observe the country-specific regulations.
>Channel number
During operation the set channel can be displayed by pressing the “Frequency switching”
key.
Operation:
The red dot flashes.
Information symbols:
Frequency change
On/Horn
