NCR 7409-K223 Manuale

7409-K223/K225

MSR

Kit Instructions

Issue D

Revision Record

Issue Date Remarks

A Jan 2009 First issue

B Mar 2009 Kit PID changed to accommodate new 19”

terminal; was 7409-K221 (longer ground cable)

C Dec 2009 Added JIS model

D July 2011 Added 7409-K225; was 7409-K224

1

Introduction

This kit provides an MSR module that mounts on the side of the 7409 Display Head.

There are two versions:

JIS MSR (7409-K223)

ISO MSR (7409-K225)

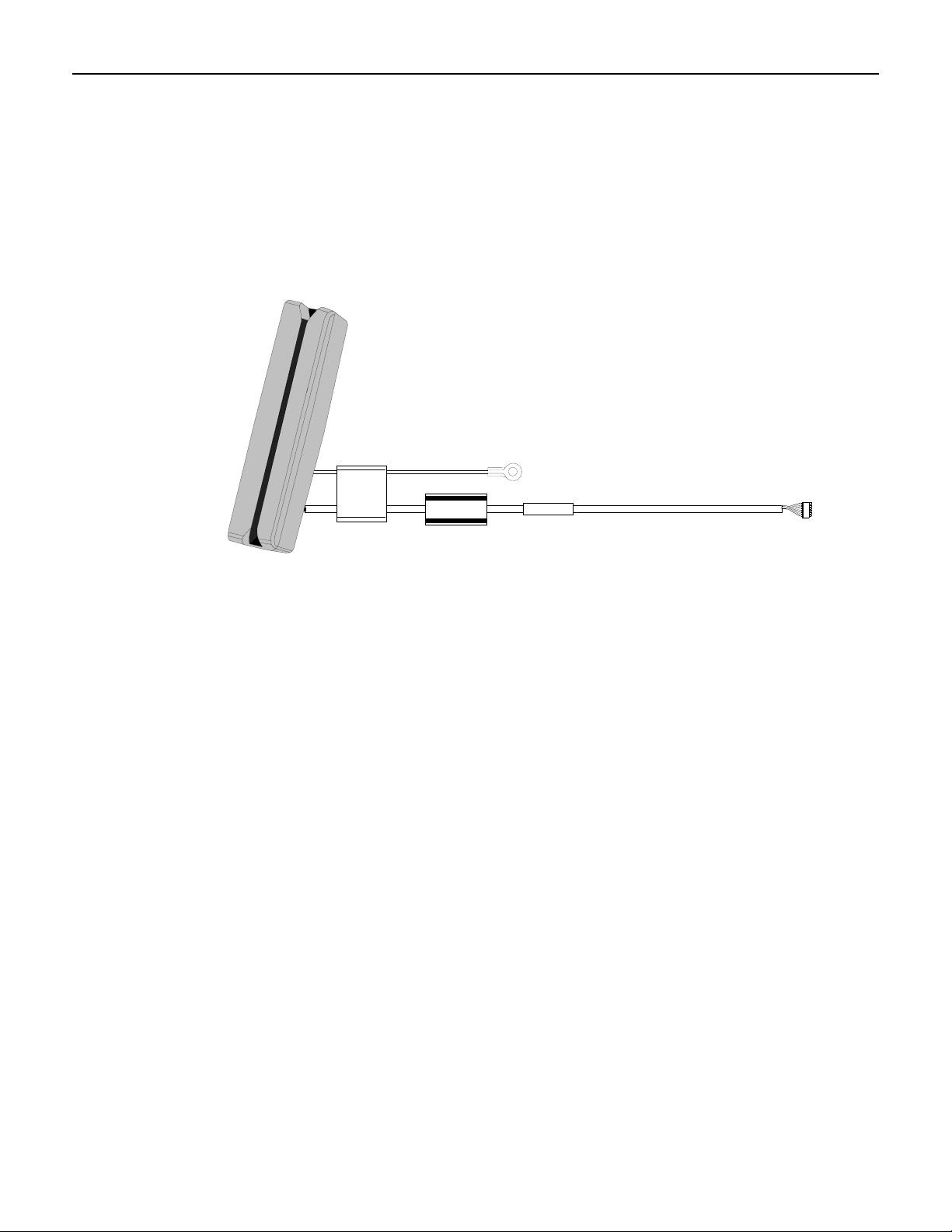

26439

2

Installation Procedures

Warning: Disconnect the AC power cord before disassembling the Terminal.

1. Remove the Display Head from its mount.

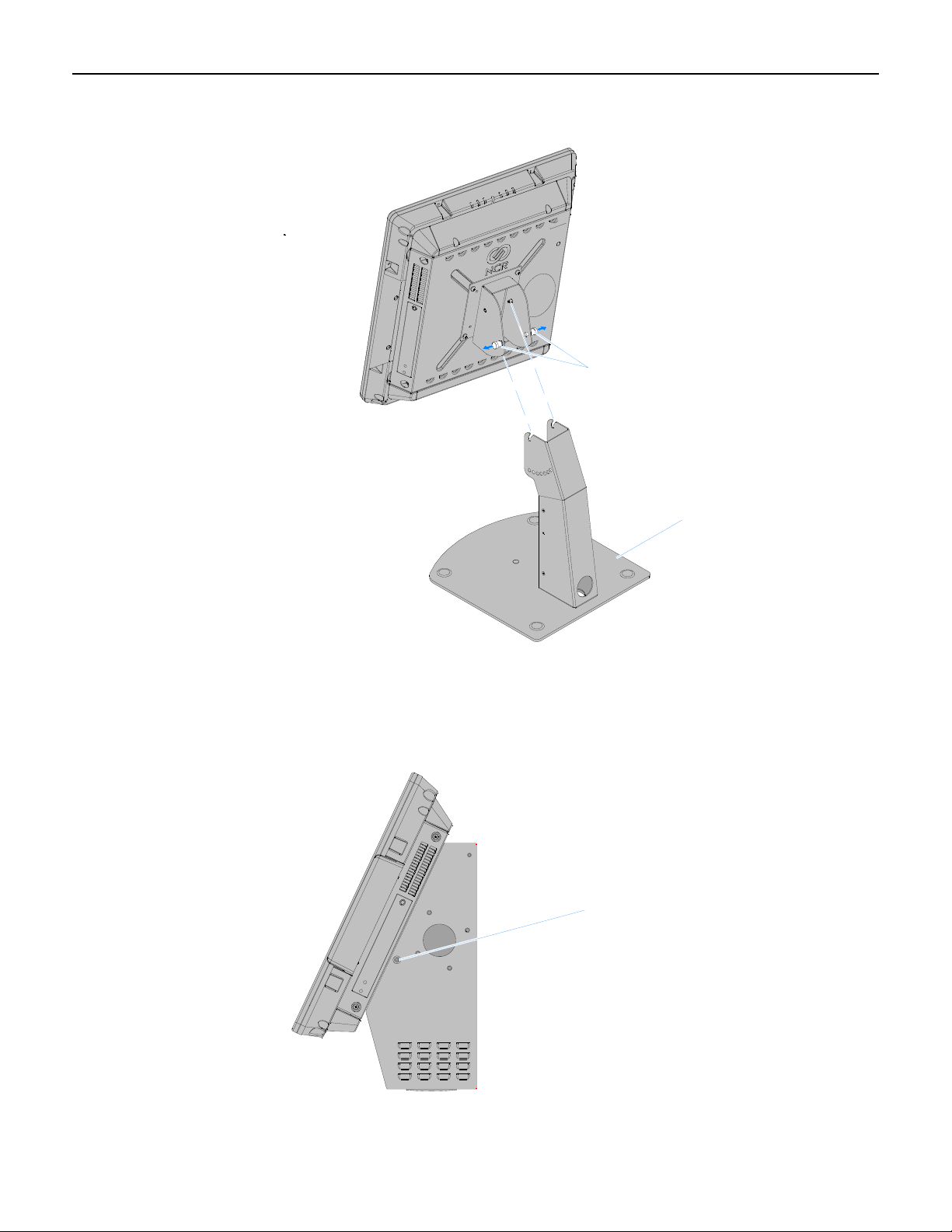

Removing the 7409 from the Table Top Mount

a. Release the Mounting Plate Latches and tilt the display back. Relock the

latches.

26901

Mounting Plate Latches

3

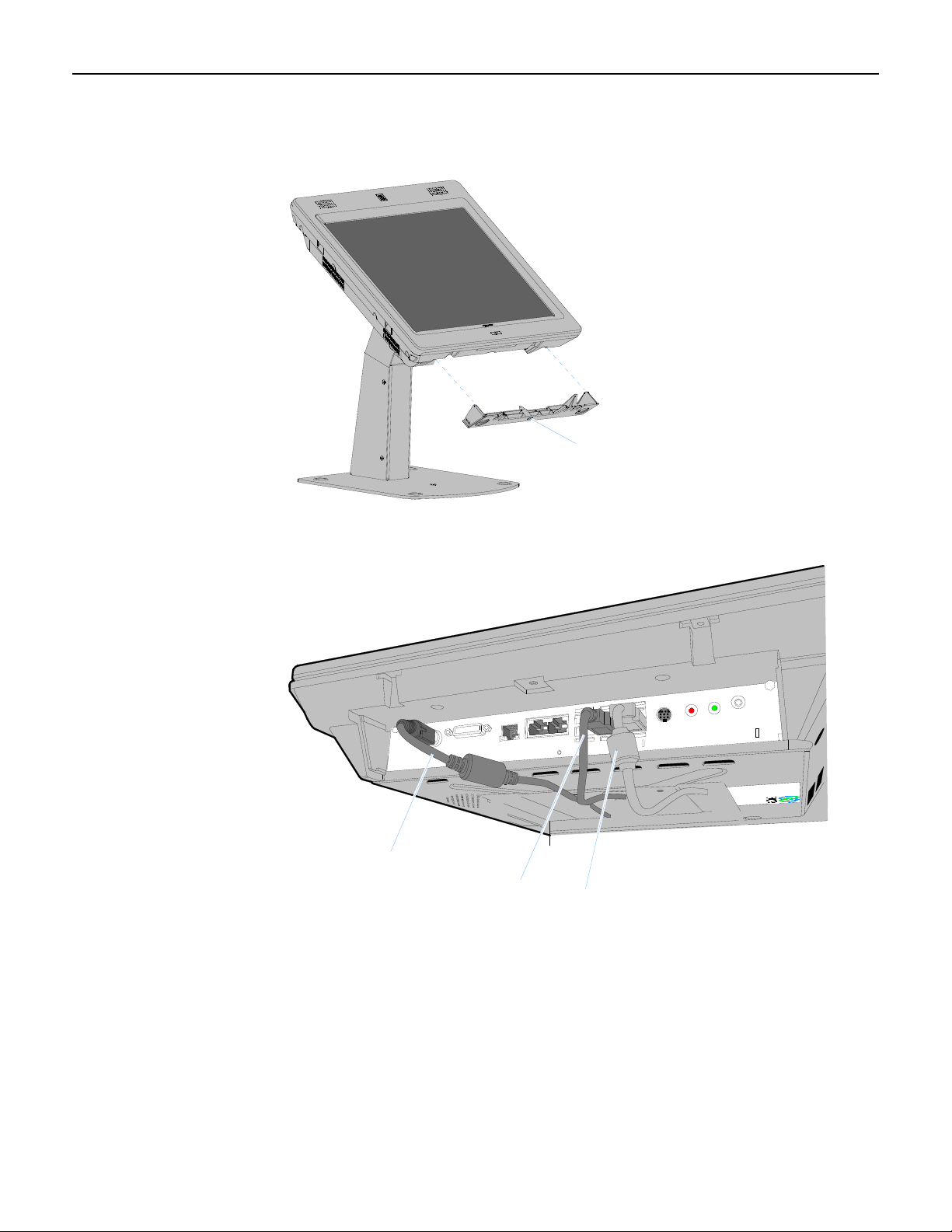

b. Loosen the captive screw that secures the Cable Cover and remove the cover.

26690

Cable Cover Captive Screw

c. Disconnect the cables from the I/O Panel.

26445a

Terminal Power Cable

Printer USB Cable

Keyboard USB Cable

4

d. Release the Mounting Plate Latches and remove the 7409 from the mount.

26659

Mounting Plate Latches

Baseplate

Removing the 7409 from the Fixed Angle Mount

a. Remove the screws (2) in the sides of the Fixed Angle Mount.

26681

Screw

(One on each side)

5

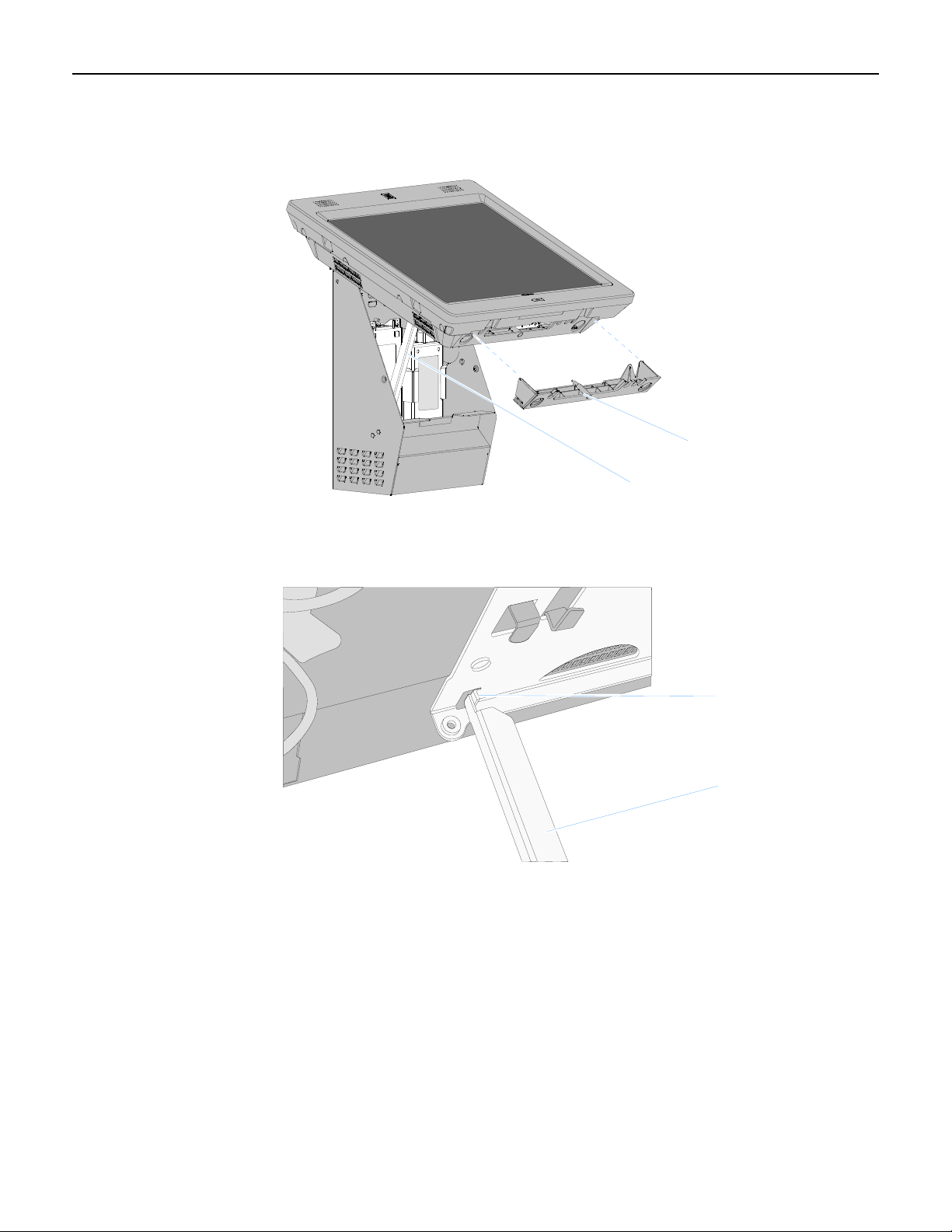

b. Rest the bottom of the display on the Display Support.

26680

Display Support

Cable Cover Captive Screw

Note: Place the Display Support behind the extension on then Display Hinge

Bracket.

24753

Display Support

Bracket Extension

c. Loosen the captive screw that secures the Cable Cover and remove the cover.

6

d. Disconnect the cables from the I/O Panel.

Note: The Power Cable connector locks into position when connected to the

terminal and cannot be removed by simply pulling on the cable. You must

grasp the connector and slide the outside housing out from the terminal to

unlock it from the terminal connector.

26445

Terminal Power Cable

Printer USB Cable

Keyboard USB Cable

e. Slide the Locking Brackets (2) to the unlocked position.

24747

7

f. Remove the display from the Fixed Angle Mount.

24629

g. Disconnect the Power Cord from the I/O Panel on the terminal.

2. Lay the terminal face down on a flat surface.

3. Loosen the captive screws (2) that secure the Rear Cover.

26903

Captive Screws

Rear Cover

8

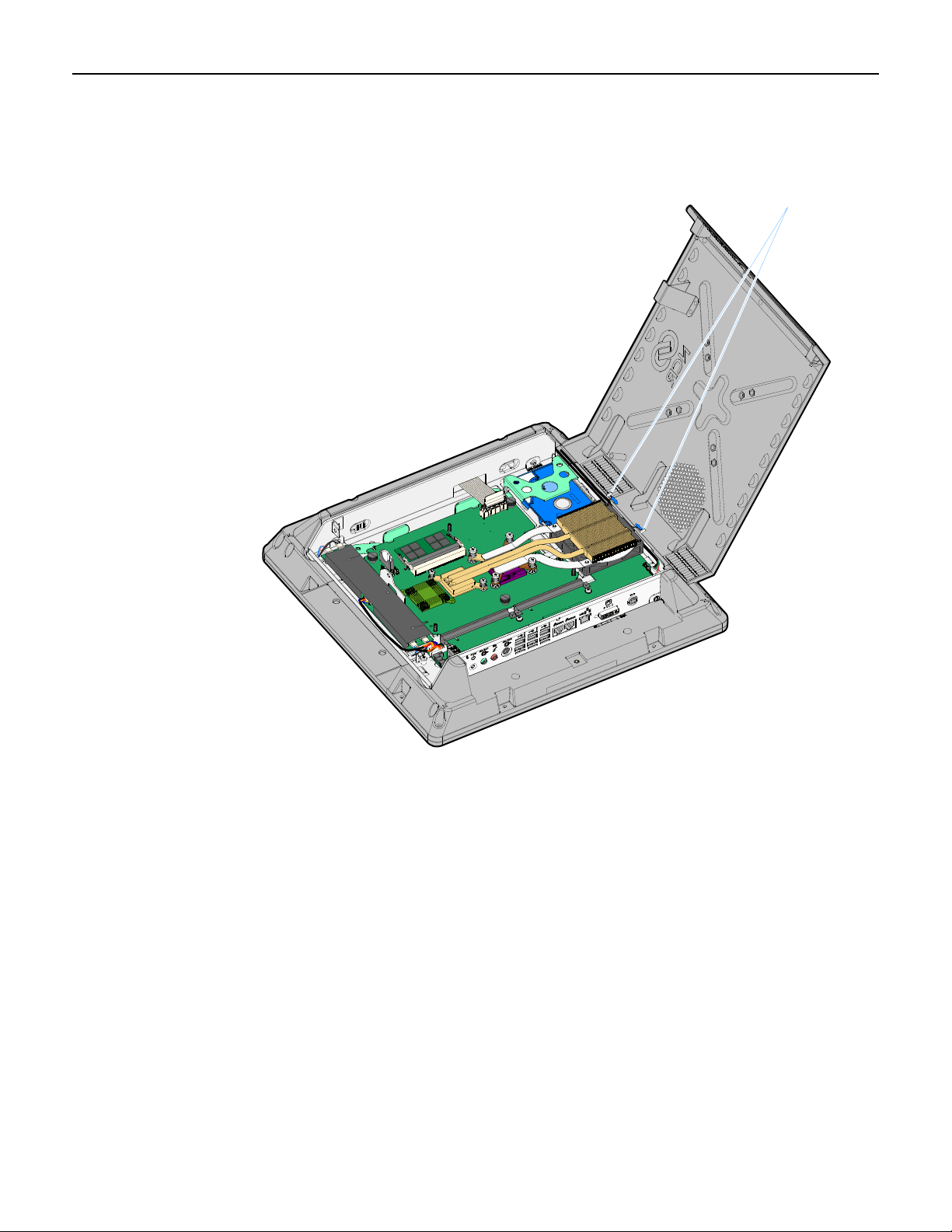

4. Pivot the Rear Cover to the open position.

26651a

Rear Cover Latches

5. Remove the Rear cover by squeezing the Rear Cover Latches together as indicated

above.
