NEC GT5000 Series Manuale utente

Wireless LAN

Quick Setup Guide

for the following models:

LT220/240/240K/260/260K

MT860/1060/1060R/1065

GT5000/6000/6000R v2.0

oProjector Setup

oWindows Setup

oUsing NEC Software

NEC Solutions (America), Inc.

Visual Systems

Only the following Wireless LAN cards will work in the projector:

•Samsung MagicLAN (5volt version only)

•Linksys WPC11

•ZCOM LANEscape XI-300

1. Open the projector’s LAN menu and click on

manual IP setting and use the IP address

192.168.010.011

2. Use the subnet Mask 255.255.255.0

(Note: The last three digits can be assigned to many

different LAN components. However, each

component can have only one unique address to

avoid conflict.)

Click on OK and the projector is ready for use.

3- Next, select Network type and click on

Adhoc, or Adhoc 802.11

(Note: Infrastructure mode is to be used only

when connecting to an existing network

via an access point.)

Projector Setup

Windows Setup

There are a variety of Wireless LAN cards available. We recommend that you select a WiFi compliant card

for your PC.

2- Use the CD-Rom supplied

by the manufacturer to

install the drivers need for

Windows.

3- After detection is complete, find and

open Wireless Network Properties.

4- Under General tab, click on configure

and then Advanced tab. Change the

operating mode for your card to

AdHoc, or 802.11 AdHoc.

Click on OK

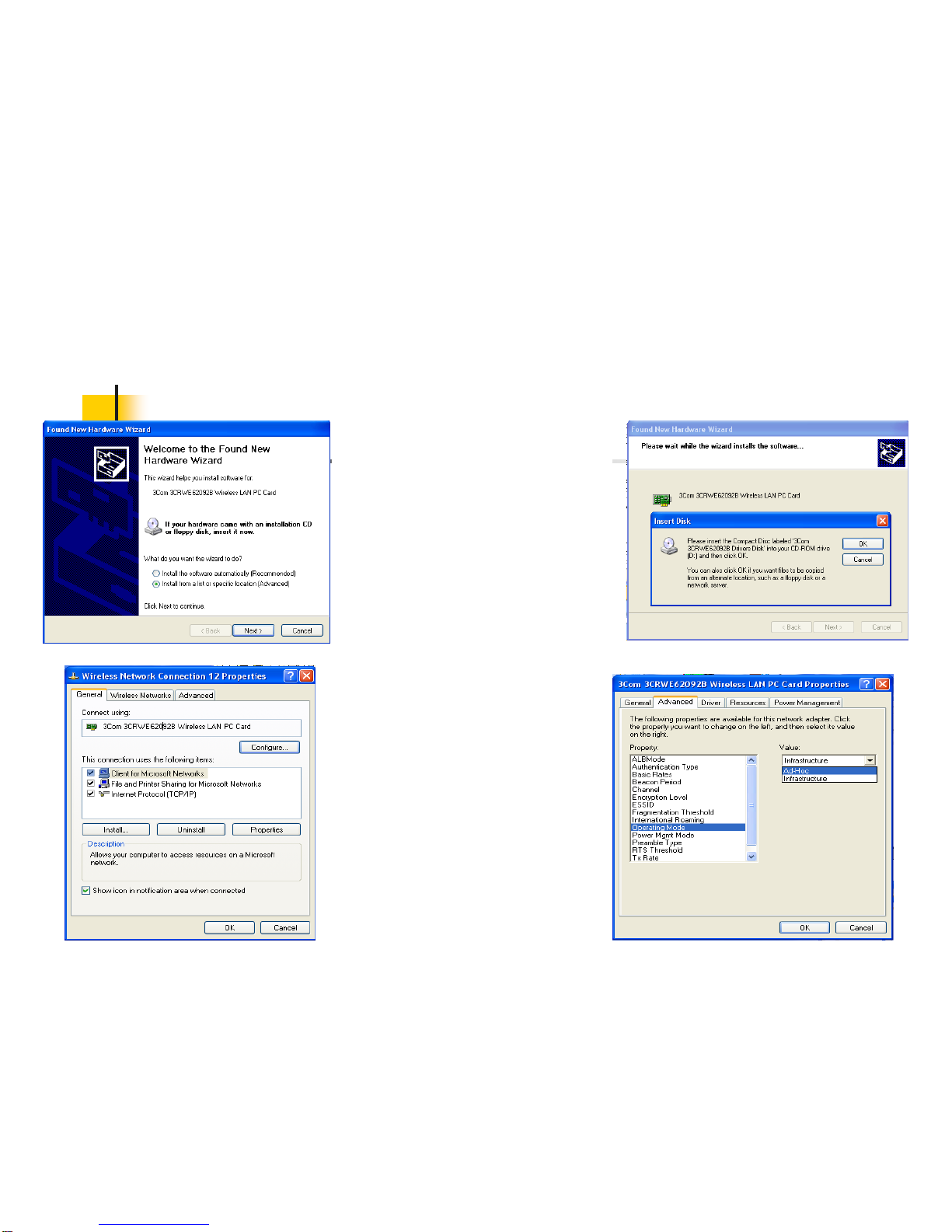

1. Insert you selected Wireless LAN card into

the PCMCIA slot of your laptop and wait for

the new found hardware wizard to appear.

Do not install any utilities included with

your LAN card. It is best if Windows is

allowed to control the wireless LAN card.

Continued

1- Next, Click on TCP/IP and

then Properties.

(Note: There may be several

TCP/IP configurations.

Make sure you click on the

one related to the Wireless

LAN card.)

2- Click to change the IP

address manually and input the

IP and subnet mask settings as

shown.

Using NEC Software

1. Start NEC Dynamic Image

Utilities.

2- Click on Options, then

Communication settings.

A window will appear where you will

select Autosearch LAN.

The software will search and detect

any projectors that are connected to

LAN or are in range or Wireless

connectivity.

Continued

Once the connection is made, select Tools,

then Image Express Utility Start.

A list will appear with all the projectors that

are present and available. Put a checkmark in

the box before a projector and click on

connect.

Once connected to a projector, an icon

will appear in the Systems Tray

resembling a projector. You can switch

to single frame transmit in order to allow

other users send single frame at a time.

Continued

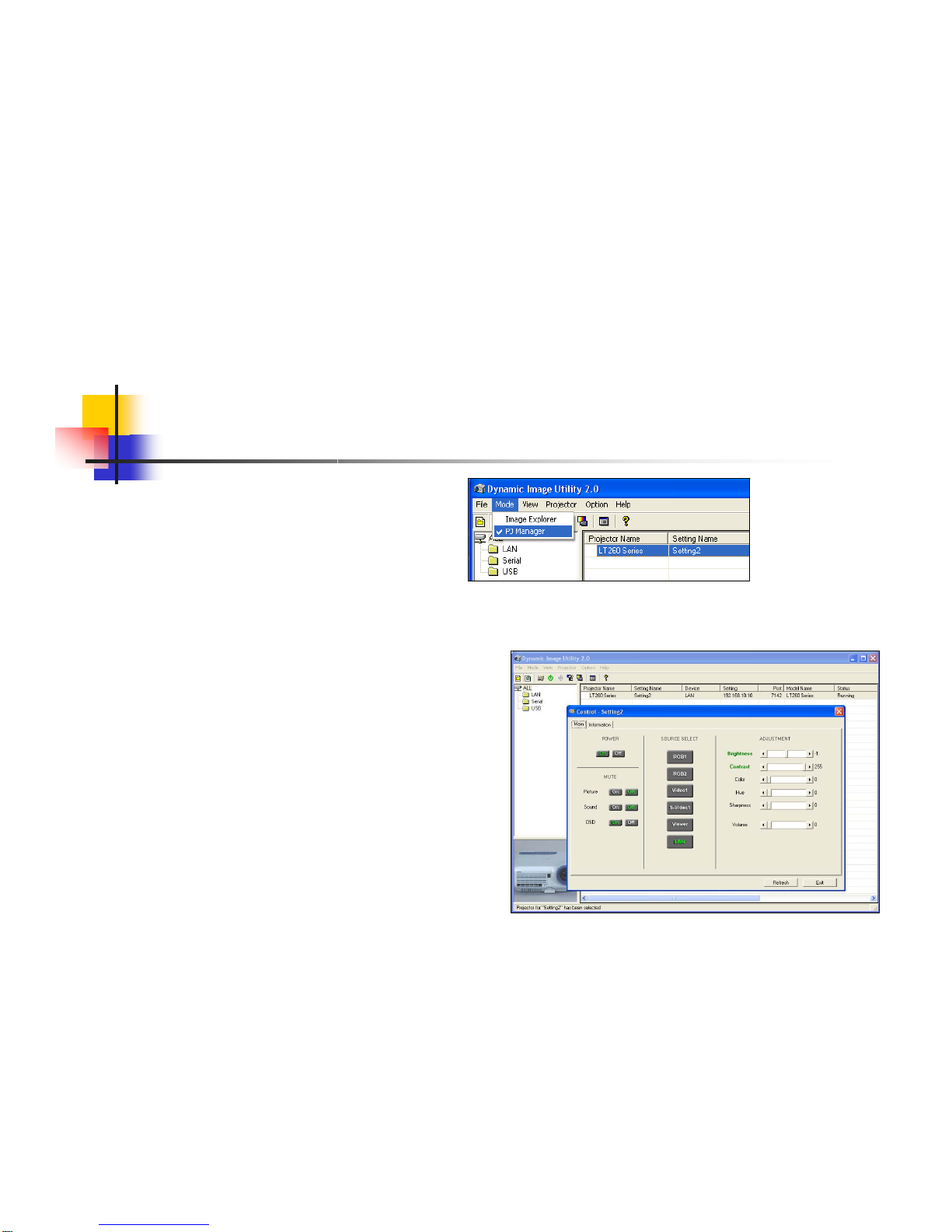

Finally, you can go into projector control

mode by clicking on Mode, then PJ

Manager.

A menu will appear with all the available projectors

and their status. You can control any and all

projectors on the list.
