NEC NVM-2000 Manuale utente

NVM-2000

Installing an Expansion Drive

Part No. 17511MINS01

Issue 1-0, June 2001

This manual has been developed by NEC America, Inc. It is intended for the use of its customers and service person-

nel, and should be read in its entirety before attempting to install or program the system. Any comments or sugges-

tions for improving this manual would be appreciated. Forward your remarks to:

NEC America, Inc., Corporate Networks Group

4 Forest Parkway

Shelton, CT 06484

Attention: Manager, Technical Publications

Nothing contained in this manual shall be deemed to be, and this manual does not constitute, a warranty of, or repre-

sentation with respect to, any of the equipment covered. This manual is subject to change without notice, and NEC

America has no obligation to provide any updates or corrections to this manual. Further, NECAmerica also reserves

the right, without prior notice, to make changes in equipment design or components as it deems appropriate. No rep-

resentation is made that this manual is complete or accurate in all respects, and NEC America shall not be liable for

any errors or omissions. In no event shall NECAmerica be liable for any incidental or consequential damages in con-

nection with the use of this manual. This document contains proprietary information that is protected by copyright.

All rights are reserved. No part of this document may be photocopied or reproduced without prior written consent of

NEC America.



Printed in U.S.A.

Table of Contents

Issue 1-0

◆

Installing an Expansion Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Tools and Materials Needed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Install the Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Write the Hardware Settings for the New Drive to CMOS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Determine the Proper Procedure for Writing to CMOS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Table of Contents

◆

Issue 1-0

Installing an Expansion Drive

Install the Drive

Issue 1-0

◆

Install the Drive

Installing an Expansion Drive

Introduction

This supplement provides instructions for installing an expansion (slave) drive in the NVM-2000

Tools and Materials Needed

■

ESD Wrist Strap (to be worn on wrist and attached to a grounded metal object at all times)

■

Phillips-head screw driver

■

Diagonal cutters

■

Monitor and keyboard connected to NVM

■

Expansion Hard Drive with two U brackets

Install the Drive

To install the expansion drive:

Note:

Instructions assume you are using the Full Screen Editor.

1. From the

Main Menu

, select

Exit

2. Type the system password and press

<Enter>

3. Select

ShutdownVoice Mail System

to shut down theVoice Mail.

4. At the prompt,

Are you sure you want to SHUT DOWN theVoice Mail System (Y/N)?

, enter

5. After the Voice Mail shuts down, turn off the system power and remove the power cord.

6. Remove the monitor cord and the keyboard cord from the NVM cabinet.

7. From the rear of the cabinet, remove the 5 hex-head screws that secure the cover to the cabinet.

See Figure 1. (The back of your cabinet may appear differently from the one shown).

Figure 1

WARNING

Do not turn off the NVM without ﬁrst shutting it down. If you do not shut

down ﬁrst, you may corrupt the NVM database when you turn it off.

DT-SPswap1

Installing an Expansion Drive

Install the Drive

◆

Issue 1-0

8. Remove the cabinet cover as follows:

●

If the power switch on your cabinet is mounted on the rear of the cabinet (above the power

supply vent fan), slide the cover/front panel assembly 1 3/4 inches towards the front of the

cabinet, and lift up. See Figure 2.

●

If the power switch on your cabinet is mounted on the front panel, slide the cover 1/2 inch

towards the rear of the cabinet and lift up. See Figure 2.

Figure 2

9. On many styles of desktop cabinets, the front panel would have been removed when you lifted

off the cabinet cover. If your front panel is removed, go to step 9. If it is still attached:

●

Do not

remove the front panel if it is secured to the cabinet with screws. Go to step 9.

●

If your front panel is secured to the cabinet with 5 metal spring clips:

■

Grab the notch located beneath the front panel (on the end where the logo is located)

and ﬁrmly pull the front panel away from the chassis. See Figure 3.

Figure 3

Power Switch

mounted at

rear of cabinet.

1 - 3/4

Slide 1-3/4, then lift.

Power Switch

mounted on

front panel.

1/2

Slide 1/2, then lift.

DT-ex

HD-2

DT-expHD-3

Grab at notched

area and pull.

Installing an Expansion Drive

Install the Drive

Issue 1-0

◆

10. Remove all jumpers from the expansion (slave) hard drive.

However, do not change any

jumpers on the hard drive (master) that is installed in your cabinet.

11. Secure the two U brackets (labeled asA and B on Figure 4) on the expansion hard drive as

shown in Figure 4.

Figure 4

12. If your cabinet has a front panel that is secured with spring clips (as shown in Figure 3), then

go to step 12. If your cabinet has a front panel like Figure 5, then perform the following steps:

Figure 5

●

Remove and retain the screws securing the hard drive/ﬂoppy drive bucket assembly to the

side of the expansion hard drive cage (see partsA and B, respectively, on Figure 6).

DT-expHD-6

QUANTUM drive

DT-expHD-7

Installing an Expansion Drive

Install the Drive

◆

Issue 1-0

●

Set the bucket assembly off to the side. Do not disconnect any wires or ribbon cables from

either the ﬂoppy drive or the hard drive.

Note:

You may also see a screw securing a green (chassis ground) to the hard drive/ﬂoppy

drive bucket assembly (part C on Figure 6). Remove this screw to disconnect the

green wire.

Figure 6

●

Slide the expansion hard drive into the top of the cage until the top holes of the U-brackets

line up with the slots in the sides of the cage. See Figure 7.

Figure 7

Note: For clarity, power wires and

ribbon cables are not shown.

DT-expHD-8

Line up these top holes of u-brackets

with top slots on the sides of cage

DT-expHD-9

Installing an Expansion Drive

Install the Drive

Issue 1-0

◆

●

Secure the expansion drive in place with four screws. See Figure 8.

Figure 8

●

Refer to Figure 9. Using the screws you previously removed, re-attach the hard drive/

ﬂoppy drive bucket assembly to the side of the expansion hard drive. If you disconnected

the green “chassis ground” wire, re-connect it. Tighten the screw to secure in place.

Figure 9

●

Go to step 13.

cut-away

view

DT-expHD-10

Note: For clarity, power wires and

ribbon cables are not shown.

DT-expHD-8

Installing an Expansion Drive

Install the Drive

◆

Issue 1-0

13. If your desktop has a front cabinet that was secured with spring clips, then perform the follow-

ing steps:

●

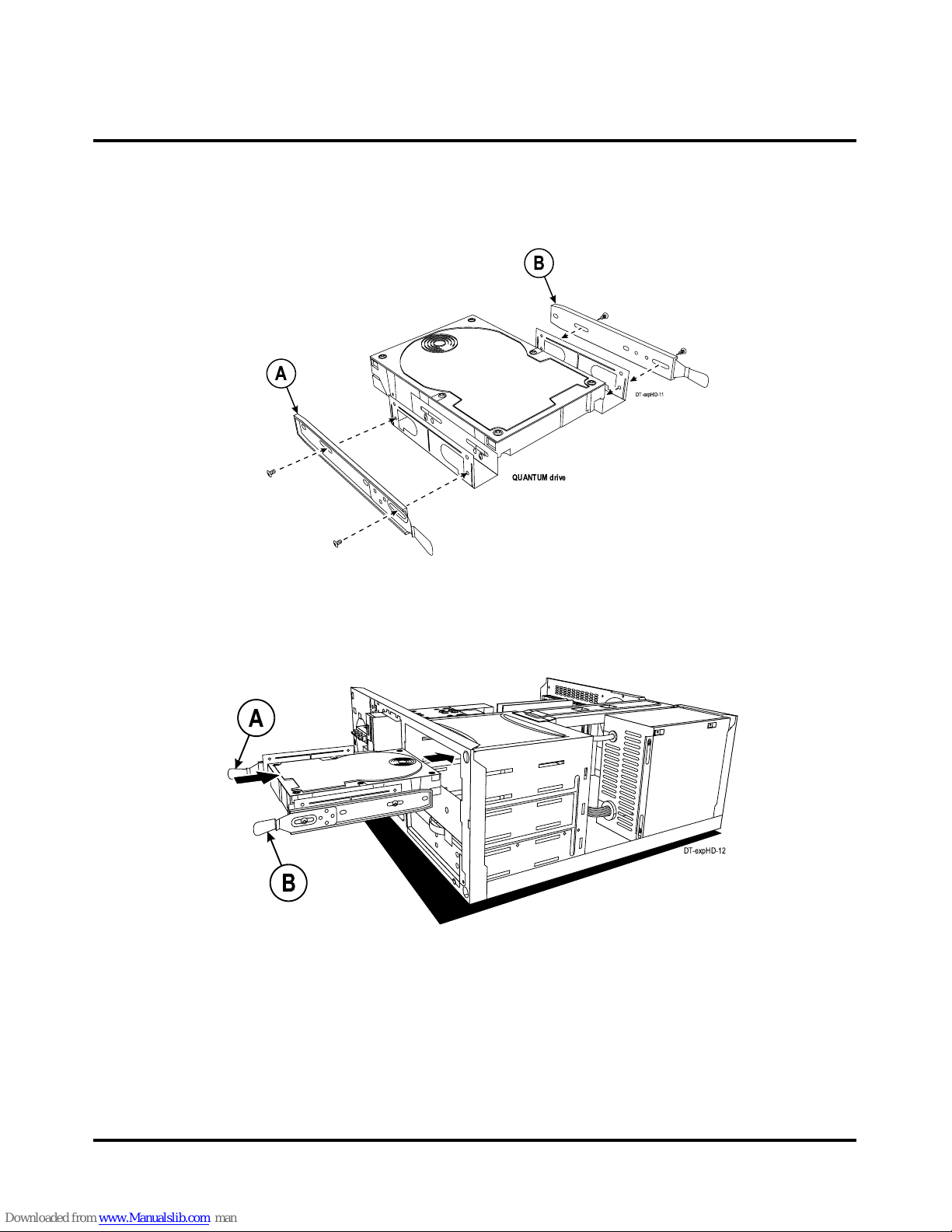

Use screws to secure the outer two slides (partsA and B on Figure 10) to the to the bottom

holes on the expansion hard drive U-brackets. See Figure 10.

Figure 10

●

Push the expansion hard drive into the front of the cabinet until both spring tabs on the

slides (A and B on Figure 11) snap and lock the hard drive in place. See Figure 11.

Figure 11

202xA12

DT-expHD-11

QUANTUM drive

DT-expHD-12
