Net Media IViewHD Manuale utente

iViewHD Userʼs Manual

Manual V1.05

Firmware V2.0drn or later

Website V2.0aoa or later

November 11, 2009

NetMedia, Inc.

10940 N. Stallard Place

Tucson, Arizona 85737

TEL: (520) 544-4567

FAX: (520) 544-0800

http://NetMedia.com

PURCHASE TERMS AND CONDITIONS

The laws of the State of Arizona shall govern PURCHASE TERMS AND CONDITIONS. LIMITED WARRANTY:

NETMEDIA MAKES NO WARRANTIES OTHER THAN THOSE CONTAINED HEREIN AND NETMEDIA EXPRESSLY

DISCLAIMS ANY AND ALL IMPLIED WARRANTIES, INCLUDING ANY WARRANTY OF FITNESS FOR A PARTICU

LAR PURPOSE OR OF MERCHANTABILITY.

The foregoing limited warranty shall not apply unless Buyer has paid for in full the NetMedia products. Elec

tronic updates to the NetMedia iViewHD User’s Manual and NetMedia iViewHD software are available free to

Registered Buyer upon request for a one (1) year period from the invoice date.

NOTICE

NetMedia, Inc. reserves the right to make improvements in the software product described in this manual as

well as the manual itself at any time and without notice.

DISCLAIMER OF ALL WARRANTIES AND LIABILITY

NETMEDIA, INC. MAKES NO WARRANTIES, EITHER EXPRESSED OR IMPLIED, WITH RESPECT TO THIS MANUAL

OR WITH RESPECT TO THE SOFTWARE DESCRIBED IN THIS MANUAL, ITS QUALITY, PERFORMANCE, MER-

CHANTABILITY, OR FITNESS FOR ANY PARTICULAR PURPOSE. NETMEDIA, INC. SOFTWARE IS SOLD OR LI-

CENSED “AS IS”. IN NO EVENT SHALL NETMEDIA, INC. BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAM-

AGES RESULTING FROM ANY DEFECT IN THE SOFTWARE.

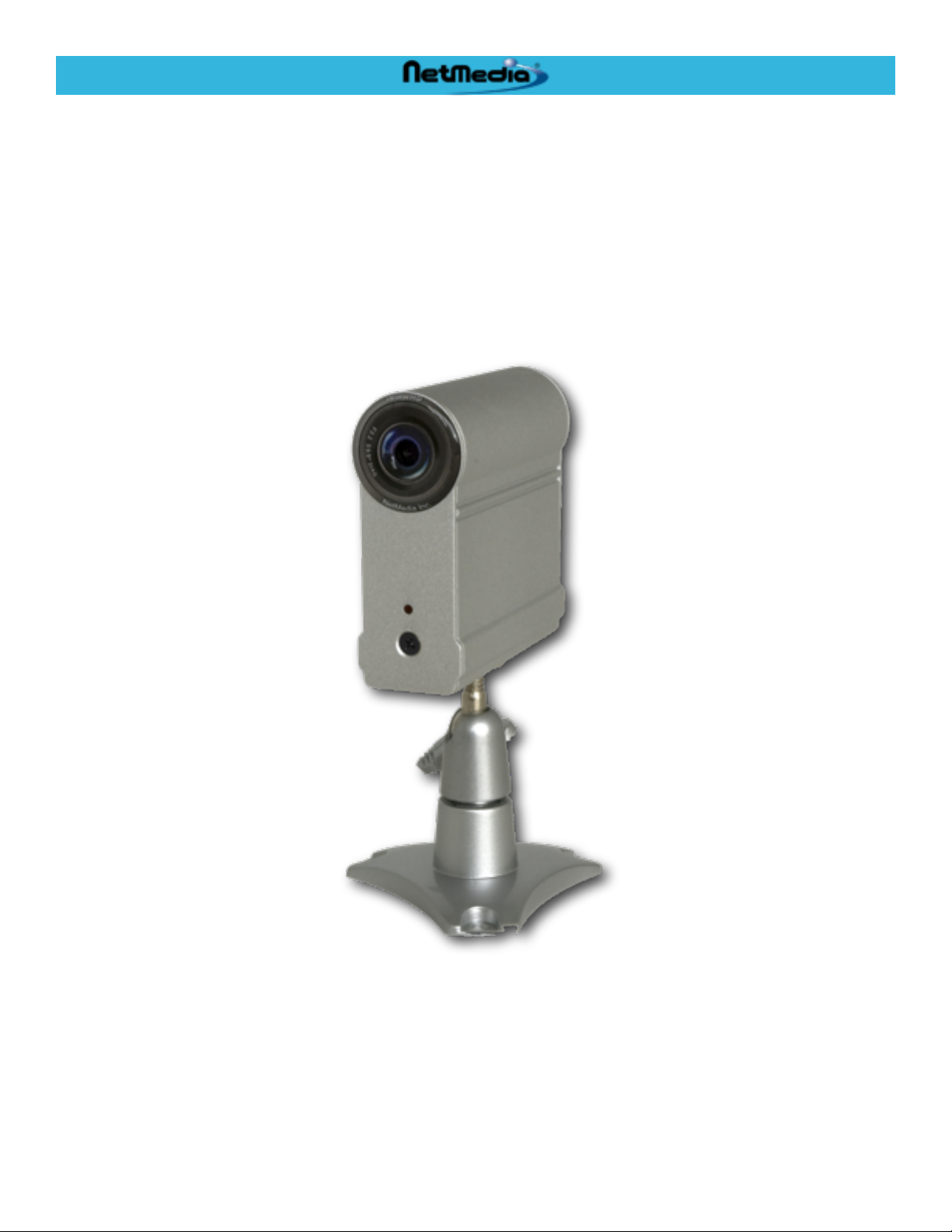

iViewHD Camera 2M / D1

Tested to comply with

For Home or Commercial Use

All rights are reserved. This manual may not, in whole or part, be copied, photocopied, reproduced, trans-

lated, or reduced to any electronic medium or machine-readable form without the prior agreement and

written permission of NetMedia, Inc.

iViewHD Userʼs Manual

Conventions

•The term iViewHD is used throughout this manual to denote the family of iViewHD cameras such

as the iViewHD-2M or iViewHD-D1.

•Web screen shots may not appear exactly the same between various web browsers and operating

systems.

iViewHD Userʼs Manual

Table of Contents

....................................................................................Introduction!6

.....................................Distinguishing Various iViewHD Models!7

...............................................................................................................iViewHD-2M!7

...............................................................................................................iViewHD-D1!7

.................................................................................Speciﬁcations!8

..........................................................FCC Compliance Statement!9

.............................................................................................................FCC Warning!9

............................................................................CE-Mark Warning!9

...............................................................Quick Setup Procedure!10

.............................................................Conﬁguration and Setup!12

......................................................iViewHD Image Control Page!15

..............................................................................Info Web Page!19

......................................................................Services Web Page!21

.............................................................................................Change Device Name!21

................................................................................................Change Port Values!21

.........................................................................................Change TCP Keep-Alive!22

..........................................................................................................Set Extra Port!22

...................................................................IP Options Web Page!23

...............................................................................................DHCP Conﬁguration!23

................................................................................................Fixed IP Addresses!23

.......................................................................Security Web Page!25

.........................................................................Change Username and Password!25

.................................................................Authorized Port, IP address and Mask!26

..........................................................................Admin Web Page!27

................................................................................................Set LED Brightness!27

.................................................................................................................Blink LED!27

......................................................................................................Restart iViewHD!28

..........................................................................................Set to Factory Defaults!28

........................................................................................Clear Persistent Storage!28

.........................................................................Update Web Page!30

.............................................Informational and Error Messages!31

iViewHD Userʼs Manual

.......................................................Factory defaults are being set. Please wait...!31

..................................................................................................Parameters set OK!31

........................................................................................Restarting. Please wait...!31

..........................................................................................................Bad ﬂash ﬁle.!31

........................................................Bad request from browser or ﬁle not found.!31

.......................................................................................Error setting parameters!31

...............................................Firmware received OK. Reﬂashing, please wait...!31

.......................................................................Website feature/version mismatch!31

.......................................................................Website received OK. Restarting...!32

....................................................................................Appendix A!33

...Alternate Ways to Locate an iViewHD Camera on the Network!

................................................................Bonjour Browser for Windows (plugin)!33

..................................................................................Safari Browser for Windows!33

............................................................................................................DHCP Server!33

..........................................................................................ARP Table Modiﬁcation!34

Adding Route to Windows so Link Local Devices Can be Ac-

...........................................................................................cessed!36

.........................................................................HTTP Commands!37

..................................................................JSON Object Support!41

..........................................................................................Reading JSON Objects!41

............................................................................................Writing JSON Objects!41

.......................................................................................................JSONP Support!41

..........................................................................................iViewHD JSON Objects!42

iViewHD Userʼs Manual

Introduction

iViewHD is a family of high resolution small form factor internet protocol (IP) cameras. The cameras

provide both still JPEG and Motion-JPEG (MJPEG) images which are either viewable with a standard

web browser or usable with a Network Video Recorder (NVR).

iViewHD cameras are powered using Power Over Ethernet (POE) which means that data and power

are supplied via a single Ethernet cable. Power is provided by standard POE network switches or

power injectors. Because the cameras use standard Ethernet cabling infrastructure (CAT5), they are

ideal in environments where networking cabling is already installed. New installations are also easier

than traditional video cameras, due to the use of a single cable for both power and video.

The cameras are conﬁgured using a standard web browser. Various camera parameters can be set

up and saved using a web page. A live camera view is also available via the web interface. iViewHD

has several levels of security available to help protect the camera against unwanted use.

For security applications, iViewHD will generally be used in conjunction with a Network Video Re-

corder (NVR). Due to its use of JPEG and MJPEG, it will work with most NVR software and hardware.

iViewHD Userʼs Manual

Distinguishing Various iViewHD Models

Below you will nd several iViewHD cameras illustrated so that you can distinguish between them.

iViewHD-2M

•2 Megapixel maximum image output (1600x1200)

•Power Over Ethernet (POE) powered

iViewHD-D1

•385K maximum pixel output (720x536)

•Power Over Ethernet (POE) powered

iViewHD Userʼs Manual

Speciﬁcations

Some of the iViewHD features include

•Compact size

•MJPEG streaming output. Can be preconﬁgured or selectable via HTTP or JSON commands for

NVR integration

•JPEG output

•Various standard and user conﬁgurable resolutions from 1600x1200(UXGA) to 160x120

(QQVGA)

•Maximum resolution: 1600x1200 2M Camera; 720x536 D1 Camera

•Lens: F3.2, 59.9º diagonal

•Image Sensor Size: 1/4 inch

•Conﬁgurable via a web browser with username/password and IP and mask protection

•Conforms to various internet standards:

•ARP

•TCP/IP

•UDP

•DHCP

•Link Local / Bonjour

•ICMP Ping

•HTTP

•Up to 4 IP addresses conﬁgurable:

•DHCP

•Link Local

•2 static IP Addresses

•OEM custom webpages available

•Controllable LED status indicator

•Audio power-on signal

•Power requirements: Class 1 (less than 3.8W) Power Over Ethernet POE (IEEE 802.3af ) 2.5W

actual

•FCC Class B certiﬁcation

•CE certiﬁcation

•RoHS

•Dimensions 2.75”x1.1”x2.75” (HxWxD)

•Camera Weight: 4 oz.

•Base Weight: 2 oz.

•Housing type: Aluminum

iViewHD Userʼs Manual

FCC Compliance Statement

This device compiles with Part 15 of the FCC Rules. Operation is subject to the following two condi-

tions:

1. This device may not cause harmful interference

2. This device must accept any interference received, including interference that may cause unde-

sired operation.

FCC Warning

This equipment has been tested and found to comply with the limits for a Class B digital device, pur-

suant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used

in accordance with the instructions, may cause harmful inerference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception, which can be determined

by turning the equipment off and on, the user is encouraged to try to correct the interference by one

or more of the following measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and the receiver.

•Connect the equipment into an outlet different from that to which the receiver is connected.

•Consult the dealer or an experienced radio/TV technician for help.

CE-Mark Warning

In a domestic environment this product may cause radio interference in which case the user may be

required to take adequate measures.

iViewHD Userʼs Manual

Quick Setup Procedure

This section presents a quick setup guide in conﬁguring the iViewHD camera. For a more detailed

explanation, please consult the following sections of the manual

The iViewHD camera connects to a Power Over Ethernet (POE) network switch, such as the Netme-

dia POEmax or other suitable POE switch. The POE switch provides the network connectivity and

power for the camera.

To conﬁgure the iViewHD camera:

1. Plug in an Ethernet cable to the POE switch:

2. Plug the the other end of the Ethernet cable into the iViewHD Camera. The orange LED next to

the RJ45 connector should illuminate. The red LED in front of the camera will light up and the

camera should emit a series of beeps and you will probably see the green link activity light

blinking:

3. Connect a computer to the same network as the camera.

iViewHD Userʼs Manual
