NetComm N3G007W Manuale utente

NetComm 3G Wireless Router

N3G007W

User Guide

NetComm

The contents of this publication may not be reproduced in any part or as a whole, stored,

transcribed in an information retrieval system, translated into any language, or transmitted in any

form or by any means, mechanical, magnetic, electronic, optical, photocopying, manual, or

otherwise, without the prior written permission.

Trademarks

All products, company, brand names are trademarks or registered trademarks of their respective

companies. They are used for identification purpose only. Specifications are subject to be changed

without prior notice.

FCC Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against radio interference in a commercial environment. This equipment can generate, use and

radiate radio frequency energy and, if not installed and used in accordance with the instructions in

this manual, may cause harmful interference to radio communications. Operation of this

equipment in a residential area is likely to cause interference, in which case the user, at his own

expense, will be required to take whatever measures are necessary to correct the interference.

FCC COMPLIANCE STATEMENT

Table of Contents

FCC Interference Statement........................................................................................ 2

System Requirements for Configuration................................................................. 4

1. Introduction............................................................................................................. 5

1.1. Connections............................................................................................ 5

1.1.1. Wireless WAN Mobile Broadband Router (Rear View)......... 5

1.1.2. LEDs– Wireless WAN Mobile Broadband Router (Front View)

............................................................................................................................. 6

1.2. Features............................................................................................................ 7

2. Configuring Wireless WAN Mobile broadband Router.................................... 8

2.1. Installation Considerations ......................................................................... 8

2.1.1. Installation Instructions- Get Start Networking.......................... 8

2.1.2. Establish WiFi Connection............................................................. 11

2.2. Using the Configuration Menu.................................................................. 11

2.2.1. Wizard setting.................................................................................... 14

2.2.2. Advanced Setup > Basic Setting.................................................. 22

3. Troubleshooting....................................................................................................... 54

4. Technical Specifications ....................................................................................... 58

Package Contents

Importance: Check your product package contents FIRST.

The Wireless WAN Mobile Broadband Router package should contain the items listed

below. If any of the items are missing, please contact your reseller.

items Description Quantity

1 Wireless WAN Mobile

Broadband Router 1

2 RJ-45 Cable 1

3 Power adapter 5V 3.0A 1

4 Quick Installation Guide 1

5 CD 1

6 Cradle set 1

7 Rubber pad and Sponge 1

Caution: Using a power supply with a different voltage rating than the one included with

the Wireless WAN Mobile Broadband Router will cause damage and void the warranty for

this product.

System Requirements for Configuration

• A compatible USB 3G modem card with service

Note: Subject to services and service terms available from your carrier.

• Computers with Windows, Macintosh, or Linux-based operating systems with an installed

Ethernet adapter.

• Internet Explorer version 6.0 or Netscape Navigator version 7.0 and above.

WiFi System Requirements

• An 802.11b, 802.11g Adapter, or 802.11n later

1. Introduction

The Wireless WAN Mobile Broadband Router is a high-performance tool that supports wireless

networking at home, work, or in a public place. The Wireless WAN Mobile Broadband Router

supports uses a Type II PC card or USB 3G modem card, either WCDMA or EVDO and even

HSDPA as well, and supports wireless data transfers up to 54 Mbps, and wired data transfers up

to 100 Mbps.

The Wireless WAN Mobile Broadband Router is compatible with industry security features.

1.1. Connections: 3G modem interface depending on the

differenceofmodels

1.1.1.Wireless WAN Mobile Broadband Router (Rear View)

Note:

Contains a reset button to restore the setting back to original factory defaulted setting as if

your convenience of forgetting your applicable setting

Antenna

Auto MDI/MDIX RJ-45 Ports

Automatically sense the types of WAN

and LAN when connecting to Ethernet

Receptor for

Power adapter

Reset Button

Restore to Original

factory defaulted setting

USB port for connecting

with 3G USB modem

1.1.2. LEDs– 3G Wireless WAN Mobile Broadband Router

(Front View)

3G Status LED

A green light as

power is on and

read

LAN LED

A green light as connected

to local Ethernet and blinks

durin

data is transmission

WAN LED

A green light as

WAN is connected

WiFi LED

A green light as

connection on

WLAN available

1.2. Features

zAutomatic take over back up with 3G connection as Ethernet WAN failover.

zImplementation within 3 minutes allows the network to go where wires cannot go –

even outside the home or office.

zFully compatible with the 802.11g standard to provide a wireless data transfer rate of

up to 54Mbps.

zBackwards compatible with the 802.11b standard to provide a wireless data rate of up

to 11Mbps.

zUtilizes OFDM technology (Orthogonal Frequency Division Multiplexing).

zUser-friendly configuration and diagnostic utilities.

zOperates in the 2.4GHz frequency range.

zAdvanced Firewall features.

zSupports NAT with VPN pass-through, providing added security.

MAC Filtering

IP Filtering

Port Scheduling

zDHCP server enables all networked computers to automatically receive IP addresses.

zWeb-based interface for Managing and Configuring.

zAccess Control to manage users on the network.

zSupports special applications that require multiple connections.

zEquipped with 2*10/100 Ethernet ports, for LAN and WAN access, and USB port for

3G network connection.

zConnects multiple computers to a Broadband either WCDMA or EV-DO even

HSDPA modem to share the Internet connection.

Note: The Wireless WAN Mobile Broadband Router is designed to work with either EVDO

or WCDMA (UMTS) even up to 3.5G HSPA PC interface.

Please refer to your service provider for detailed feature information.

2. Configuring Wireless WAN Mobile broadband Router

2.1. Installation Considerations

The Wireless WAN Mobile Broadband Router allows you access your network using a

wireless connection, from virtually anywhere within its operating range. Keep in mind

however, that the number, thickness, and location of walls, ceilings, or other objects that the

wireless signals must pass through, may limit this range.

Typical ranges vary depending on the types of materials used, and background RF (radio

frequency) noise in your home or business.

To maximize your wireless range, please follow these guidelines:

1. Keep the number of walls and ceilings between the Wireless WAN Mobile Broadband

Router and other network devices to a minimum. Each wall or ceiling can reduce the

Wireless WAN Mobile Broadband Router’s range from 3-90 feet (1-30 meters).

Note: The same considerations apply to your broadband EVDO connection.

2. Keep your product aware from electrical devices (such as microwaves, air conditioners,

and televisions) that emit large quantities of RFI (Radio Frequency Interference).

2.1.1. Installation Instructions- Get Start Networking

Connect the Wireless Router to Your Network

Note: DO NOT connect Wireless WAN Mobile Broadband Router to power before

performing the installation steps below.

1. Attach the antenna.---picture 2.1

Picture 2.1

a. Remove the antenna from its plastic wrapper.

b. Screw the antenna in a clockwise direction to the back panel of the unit.

c. Once secured, position the antenna upward at its connecting joint. This will

ensure optimal reception.

2. Plug in USB modem with service to the Wireless WAN Mobile Broadband Router

---see Picture 2.2

Picture 2.2

Note: The Wireless WAN Mobile Broadband Router is designed to work with

either UMTS or EV-DO and even HSDPA 3G card that can be used as a modem

(support tethered data). Please refer to your service provider for detailed feature

information.

3. Insert the Ethernet patch cable into LAN Port on the back panel of the Wireless

WAN Mobile Broadband Router, and an available Ethernet port on the network

adapter in the computer you will use to configure the unit.-see Picture 2.3

Picture 2.3

Note: The Wireless WAN Mobile Broadband Router LAN Port is

“Auto-MDI/MDIX.” This provides patch Ethernet cable LAN Port access.

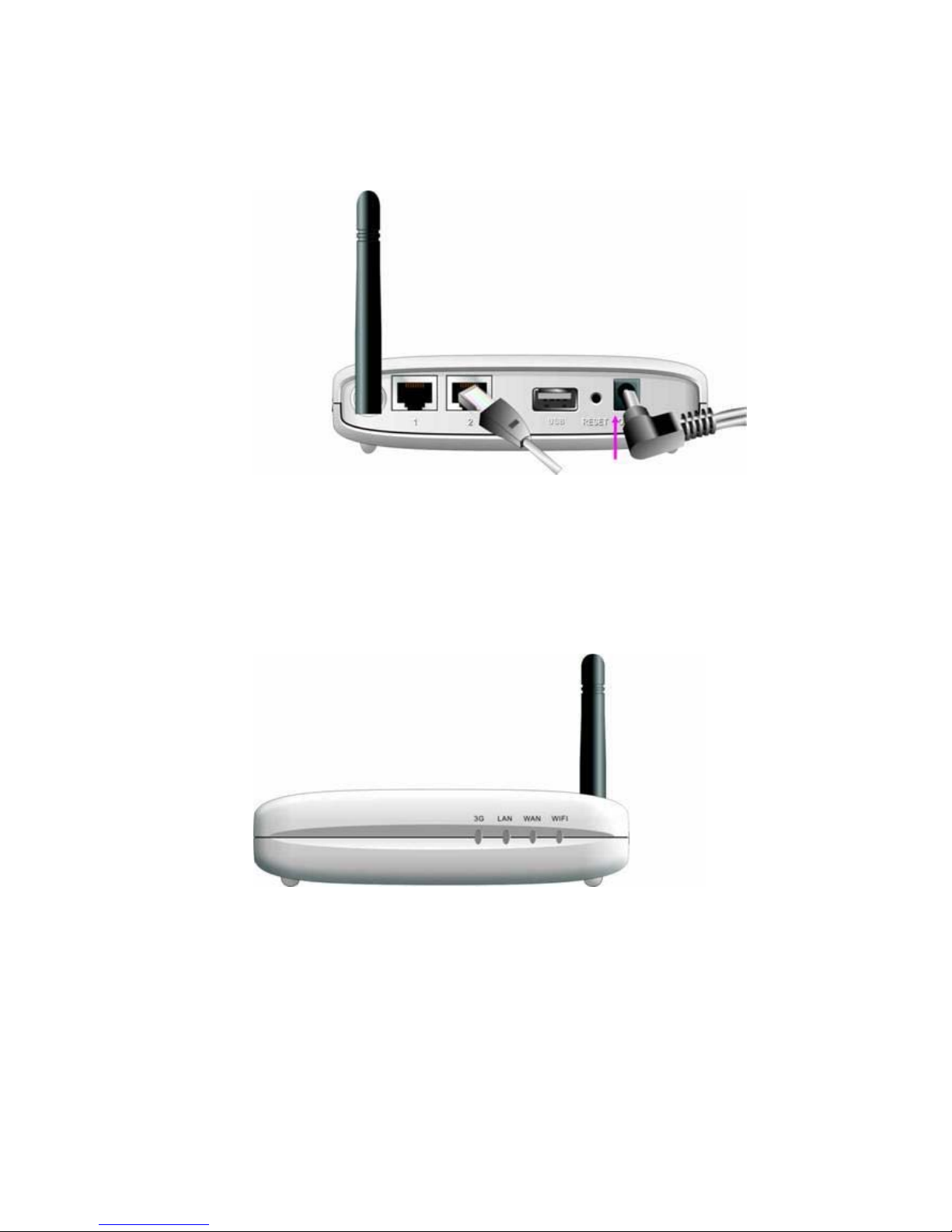

4. Connect the power adapter to the receptor on the back panel of your Wireless WAN

Mobile Broadband Router. Then plug the other end of the power adapter into a wall

outlet or power strip.---Picture 2.4

Picture 2.4

a. The Power LED will turn ON to indicate power has been applied.

b. Other LEDs will flash ON and OFF as the Wireless WAN Mobile Broadband

Router performs initialization and Internet connection processes. This will take a

few minutes.

c. When complete, the following LEDs will illuminate green: M1, WAN, LAN, and

WiFi
